• LED BULKHEADS

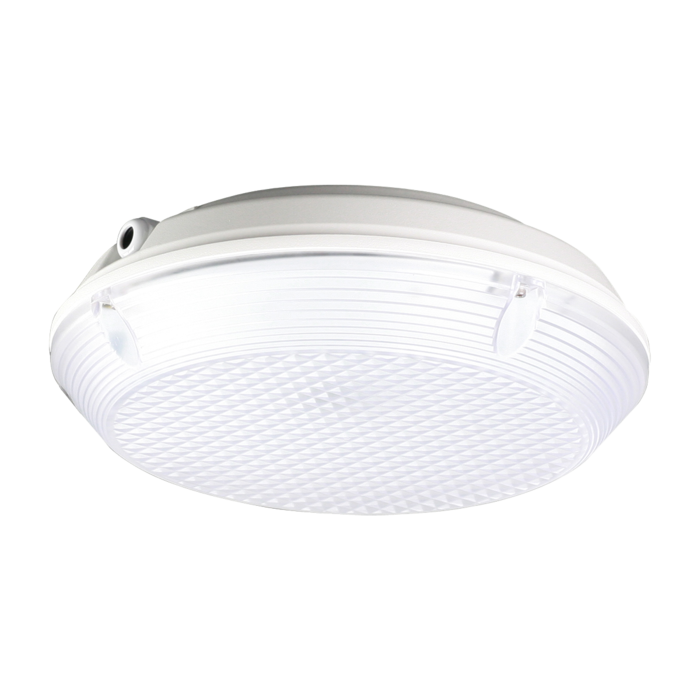

MEMPHIS ROUND SL9719RD - 22W

IP65 LED round surface mount luminaire, IK10 rated

Application

A robust solution for industrial and commercial spaces

Design Specifications

  • Die-cast aluminium body, designed with multi access rear or side conduit entry points

  • Frosted polycarbonate diffuser, silicon gasket

  • Stainless steel allen screws
  • High efficiency SMD LED chips
  • Integral constant current non-dimmable LED driver

  • Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the exterior emergency section of this catalogue.

Performance

Dimmable - OPTIONAL
Dimmer Type - TRAINING EDGE
In Built Sensor - OPTIONAL
Sensor Type - MICROWAVE

  • COOL WHITE4000K
  • COOL WHITE4000K

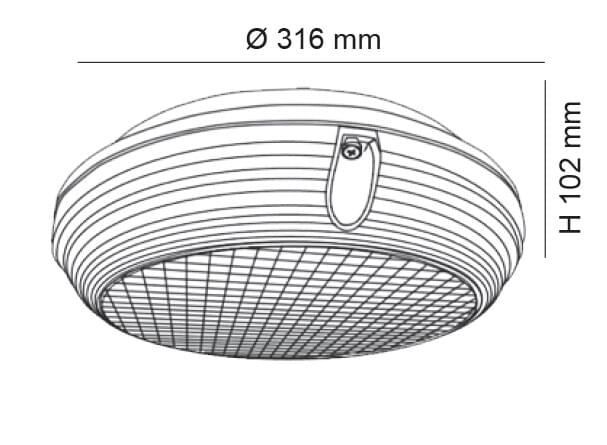

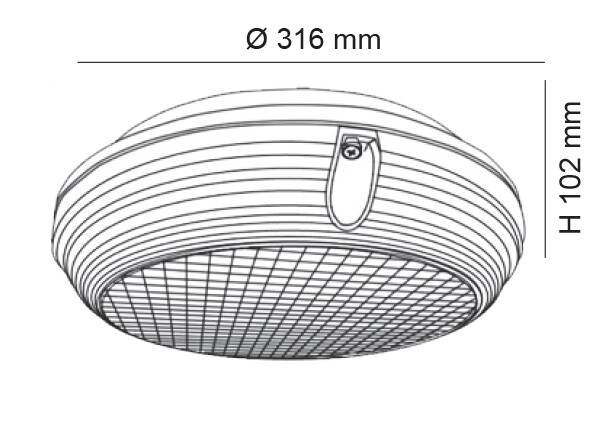

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES

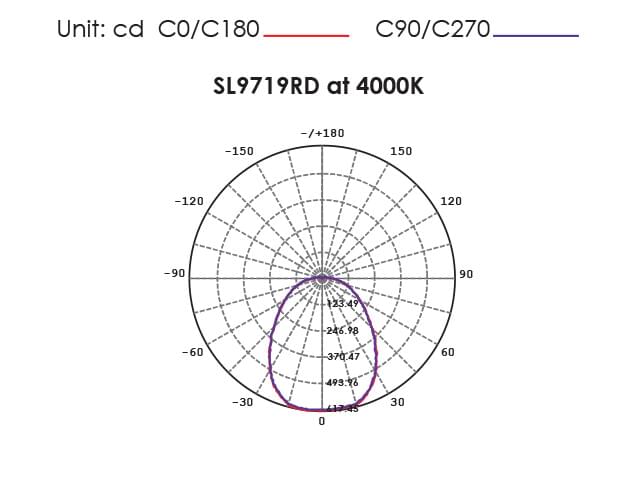

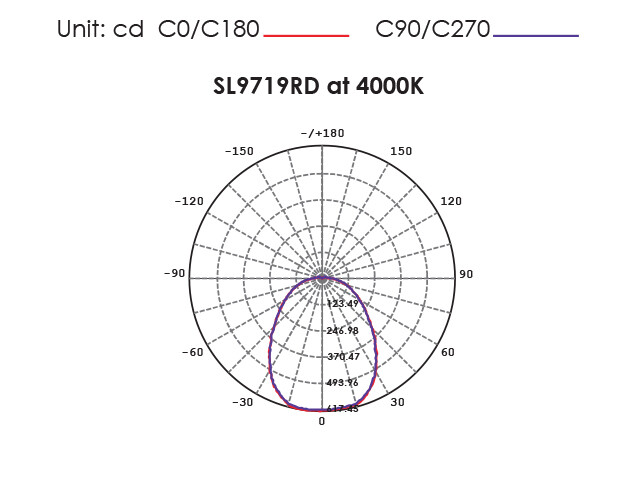

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Power Lumens CCT CRI Body Colour Dimensions Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL9719RD DescriptionLED OYSTER 316mm RND IP65 4K WH Input Voltage240 Power22 Lumens1700 CCT4000 CRI80 Body ColourWHITE Dimensions316(W) x 102(H) Add to Enquiry Add Remove Remove
