• LED EXTERIOR ARCHITECTURAL

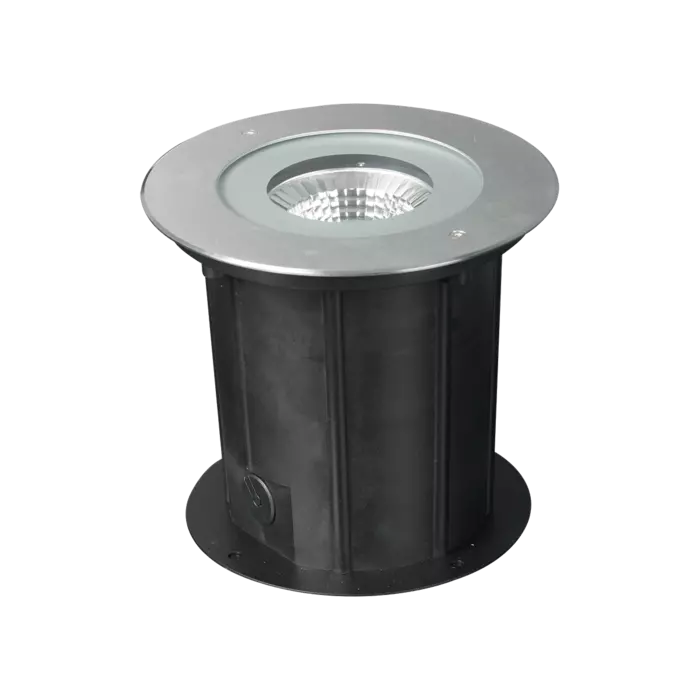

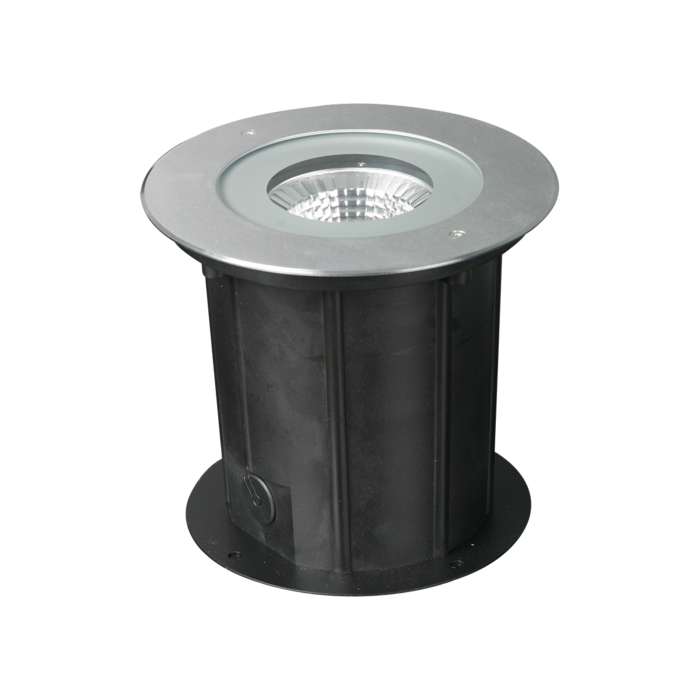

GEO S9345 - 32W

32 watt, LED inground IP67 luminaire, IK09 rated

Application

Decorative accent solution, ideal for gardens and decorative pathways

Design Specifications

  • 316L stainless steel face cover, Die-cast aluminium body
  • Clear tempered glass diffuser, High efficiency SMD LED chips with optical lens, beam distribution 24 degree

  • Built-in constant current non-dimmable LED driver
  • IP68 PG11 PVC cable gland, PVC installation canister included
  • 450 mm 3 core rubber flex
  • Maximum load capacity 5000 kg

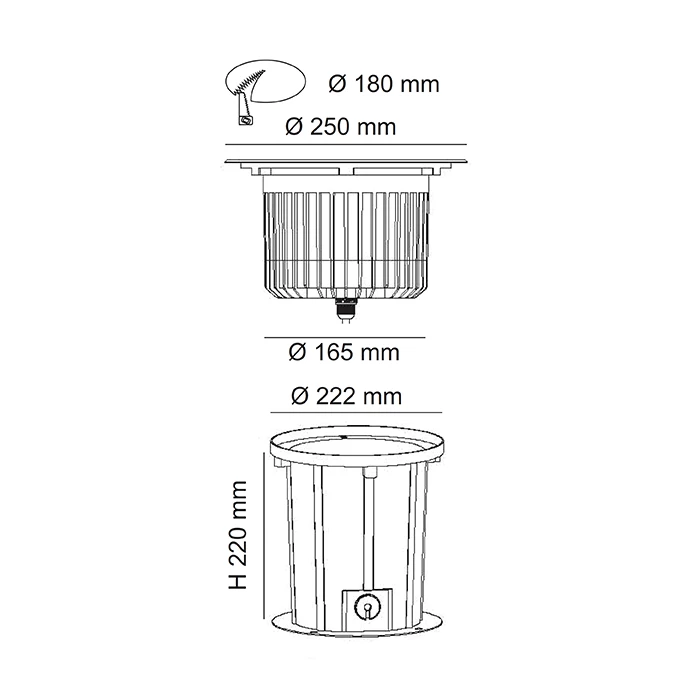

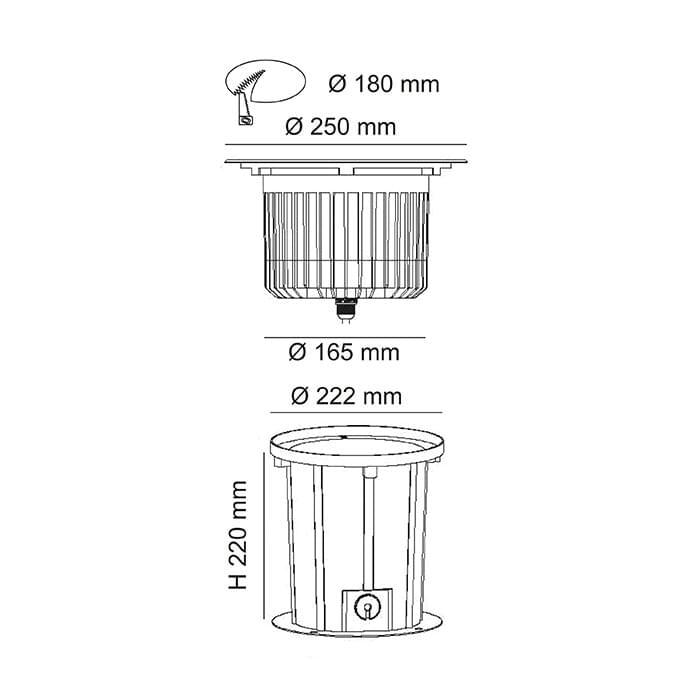

  • Dimensions
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Description Input Power Lumens CCT CRI Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9345CW DescriptionLED INGROUND UPLIGHT IP67 4K Input240 Power32 Lumens2000 CCT4000 CRI80 Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
    Model No.S9345WW DescriptionLED INGROUND UPLIGHT IP67 3K Input240 Power32 Lumens2000 CCT3000 CRI80 Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
