• LED EXTERIOR ARCHITECTURAL

LOUNGE II S9328/220TC - 15W

15 watt decorative IP54 architectural LED wall mount luminaire, with selectable CCT

Application

A decorative architectural solution for residential, commercial interior or exterior spaces

Design Specifications

  • Convenient TC selectable colour temperature, 3000K / 4000K / 5000K

  • Durable white or black powder coated finish

  • Integral non-dimmable control gear 15 watt

  • Robust die-cast aluminium body profile

  • High efficiency SMD LED

  • Indirect illumination optical performance


  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5000K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5000K

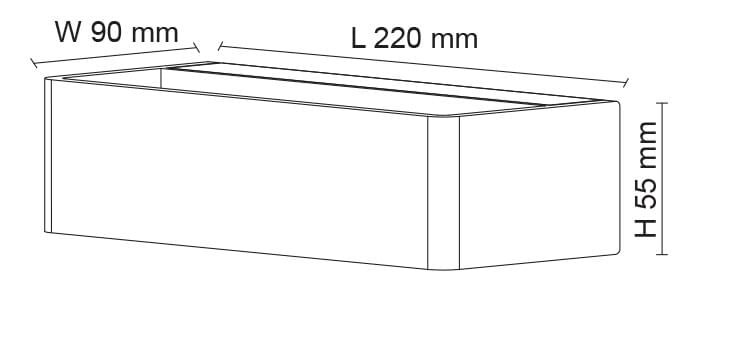

  • Dimensions - Wiring Diagrams
  • Design Options

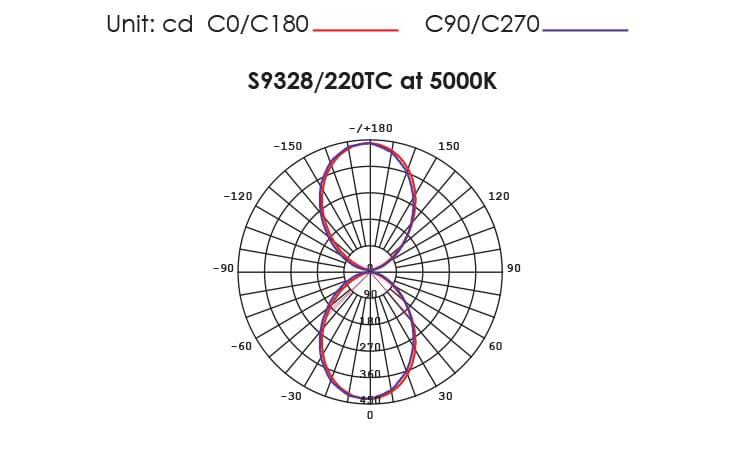

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Power Lumens CCT CRI Dimensions Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9328/220TC/WH DescriptionLOUNGE II 15W/TC WH IP54 Input Voltage240 Power15 Lumens800/1000/900 CCT3000/4000/5000 CRI80 Dimensions220(L) x 90(W) x 55(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9328/220TC/BK DescriptionLOUNGE II 15W/TC BK IP54 Input Voltage240 Power15 Lumens800/1000/900 CCT3000/4000/5000 CRI80 Dimensions220(L) x 90(W) x 55(H) Body ColourBLACK Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only.
