• LED EXTERIOR ARCHITECTURAL

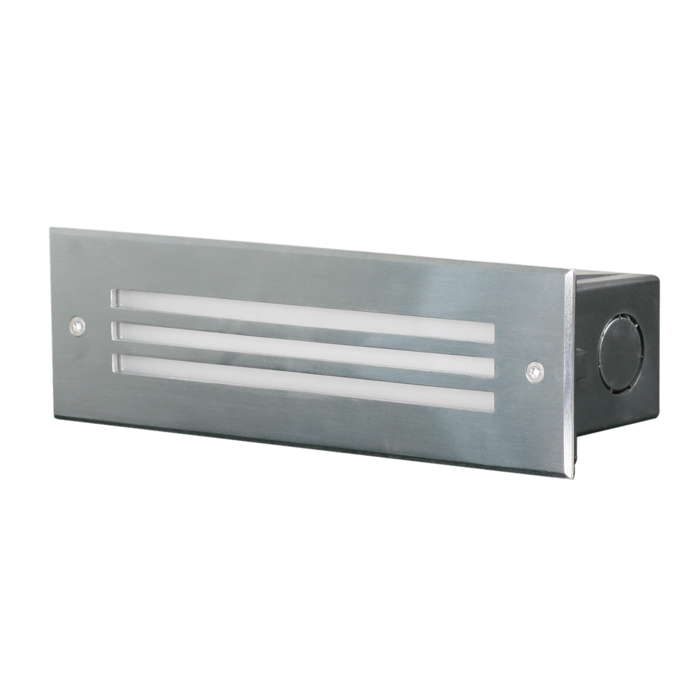

MAXI GRILLED SE7138 - 7W

Recessed IP65 LED wall luminaire

Application

A decorative residential exterior or interior solution

Design Specifications

  • Die-cast aluminium body and stainless steel face cover

  • Opal polycarbonate diffuser

  • High efficiency SMD LED chips with integral non-dimmable LED driver

  • IP68 PVC cable gland

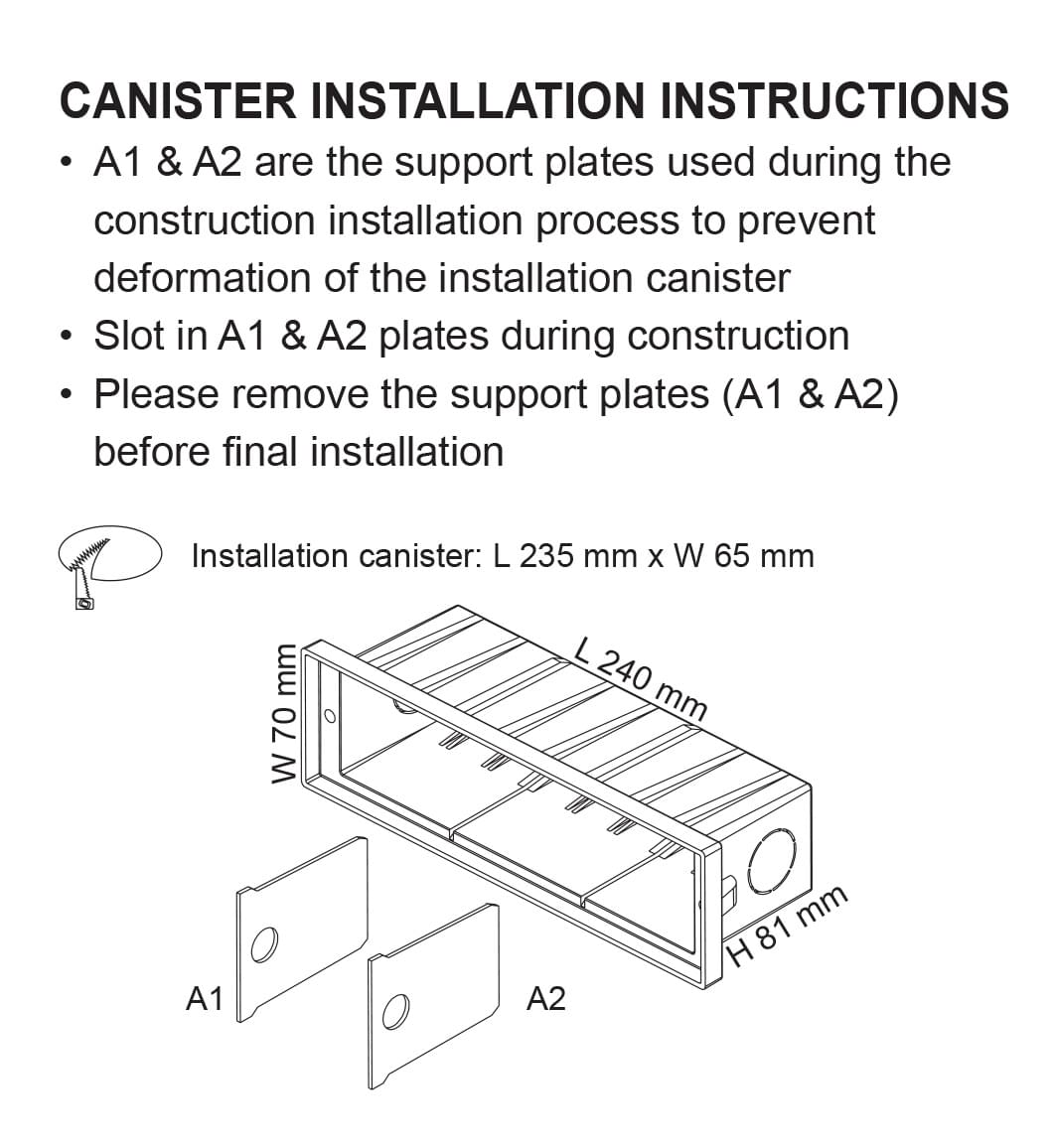

  • ABS installation canister included


  • WARM WHITE3000K
  • COOL WHITE4000K
  • WARM WHITE3000K
  • COOL WHITE4000K

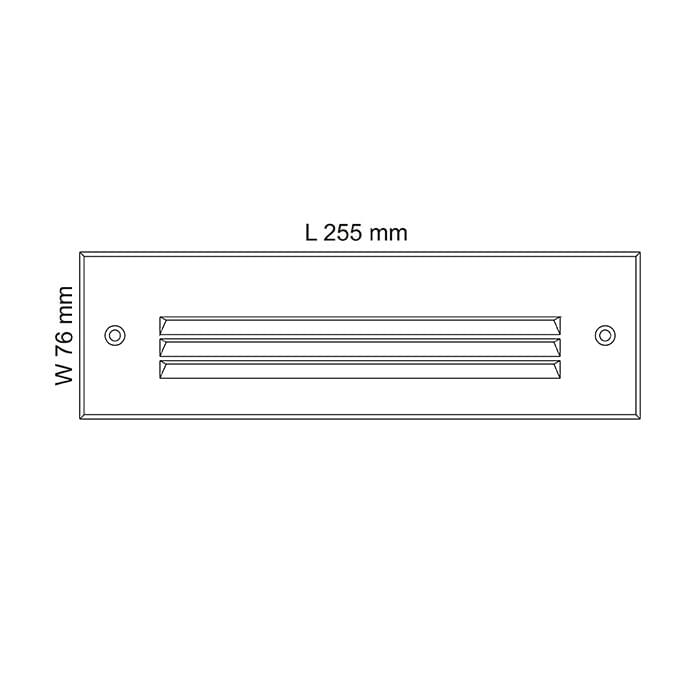

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Power Lumens CCT CRI Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SE7138WW DescriptionLED BRICK GRILL 7W IP65 3K SLS Input Voltage240 Power7 Lumens80 CCT3000 CRI80 Dim265(L) x 76(W) Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
    Model No.SE7138CW DescriptionLED BRICK GRILL 7W IP65 4K SLS Input Voltage240 Power7 Lumens80 CCT4000 CRI80 Dim265(L) x 76(W) Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
