• LED EXTERIOR ARCHITECTURAL

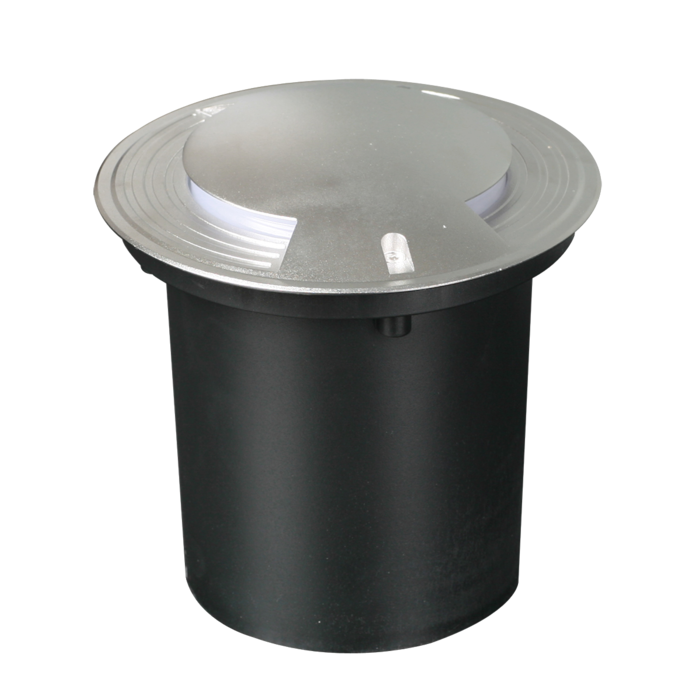

PATHWAY 2 WAY S9349 - 4W

LED inground IP67 luminaire, IK10

Application

Decorative LED solution, ideal for gardens and decorative pathways

Design Specifications

  • 316L stainless steel face cover, die-cast aluminium body

  • Clear tempered glass diffuser, High efficiency SMD LED chips with optical lens
  • Integral constant current non-dimmable LED driver

  • IP68 PG9 PVC cable gland, PVC installation canister included
  • 450 mm 3 core rubber flex
  • Maximum load capacity 2000 kg

  • WARM WHITE3000K
  • COOL WHITE4000K
  • WARM WHITE3000K
  • COOL WHITE4000K

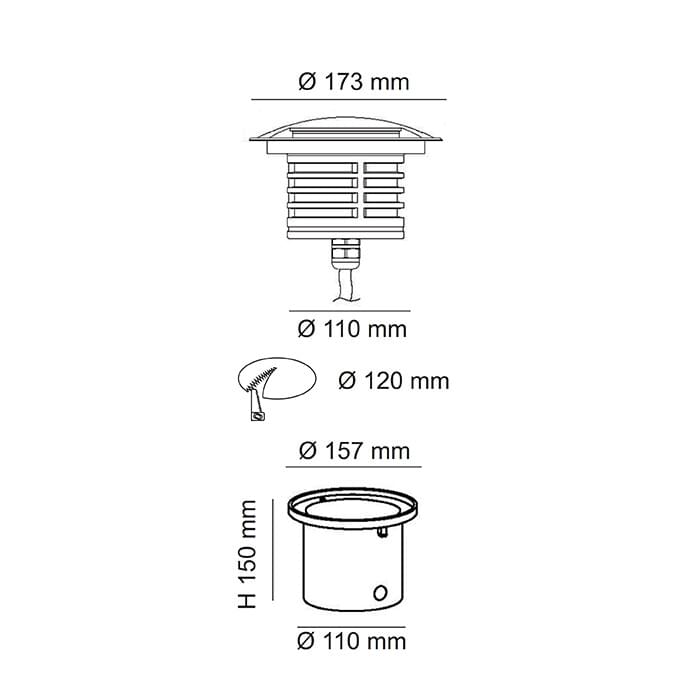

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Power Lumens CCT CRI Dimensions Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9349WW DescriptionLED INGROUND UPLIGHT IP67 3K Input Voltage240 Power4 Lumens80 CCT3000 CRI80 Dimensions173(W) x 150(H) Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
    Model No.S9349CW DescriptionLED INGROUND UPLIGHT IP67 4K Input Voltage240 Power4 Lumens80 CCT4000 CRI80 Dimensions173(W) x 150(H) Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove

    * Lumens and Power shown are TOTAL luminaire lumens (lm) and power (W).
