LED EXTERIOR ARCHITECTURAL

DRIVE SHP306

30 - 90 watt, IP66 LED street luminaire, IK08 rated

Application

A decorative and functional exterior commercial solution

Design Specifications

  • Stylish die-cast aluminium body
  • Durable powder coated finish
  • High efficiency SMD LED chips, Clear tempered glass diffuser
  • Built-in constant current non-dimmable LED driver fitted;

    3-in-1 dimming LED driver (1-10V DC, PWM signal & resistance) optional

  • Asymmetrical light distribution (TYPE II) fitted, 0% upward light ratio.

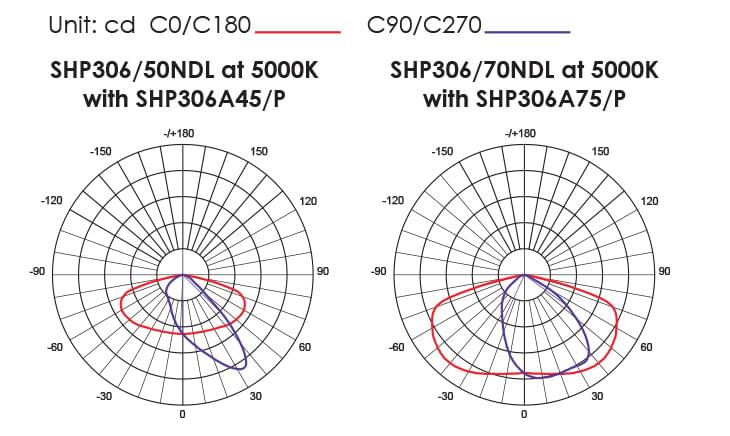

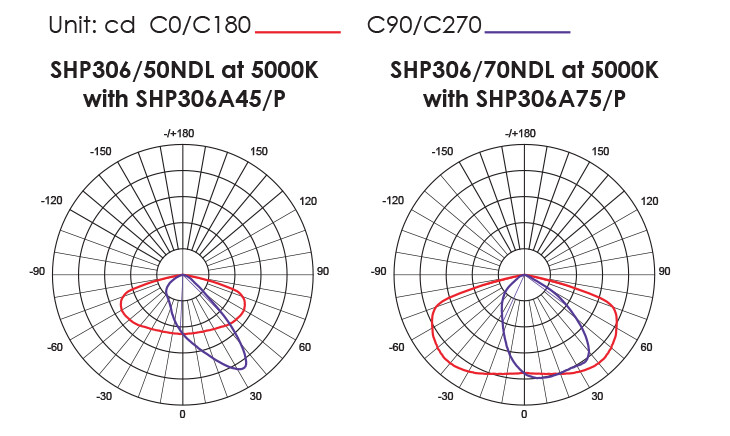

    LENS OPTIONS (refer to Photometric data below) SHP305A75/P (standard), SHP305A45/P (option), SHP306A45/P (standard), SHP306A75/P (option)

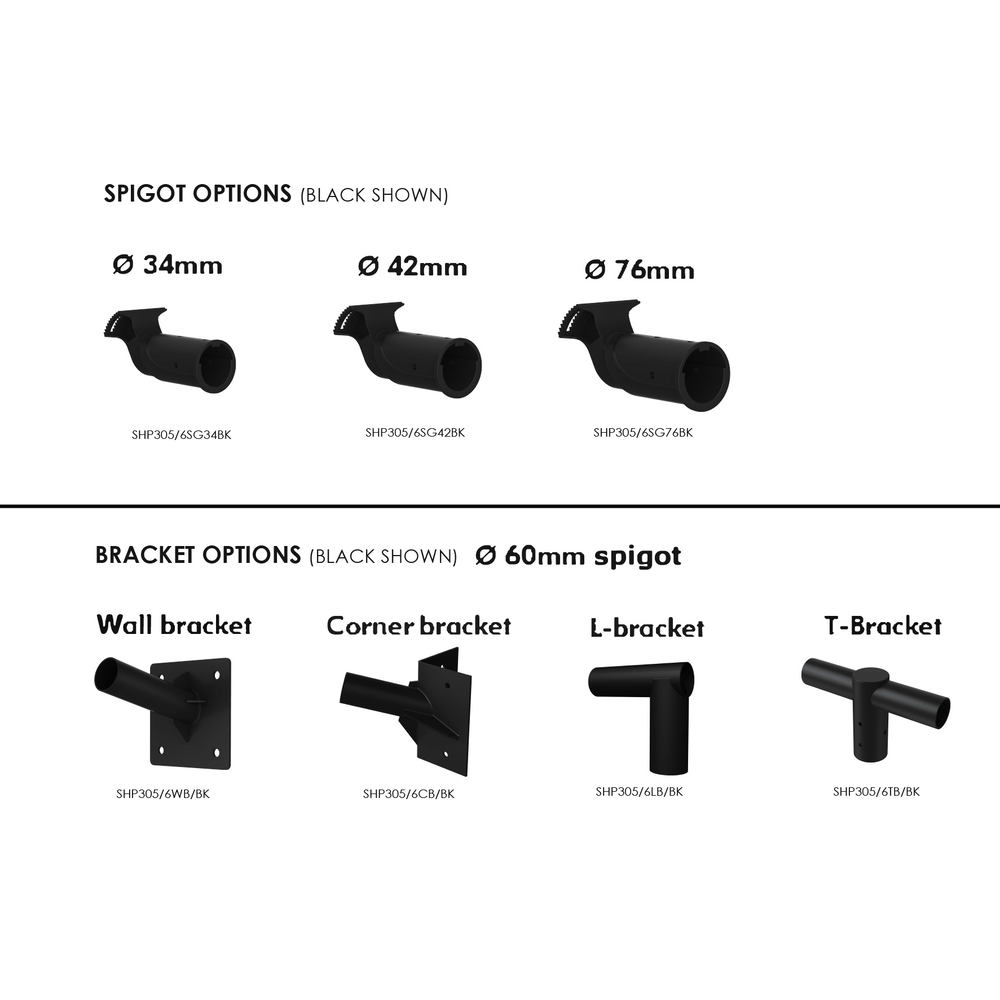

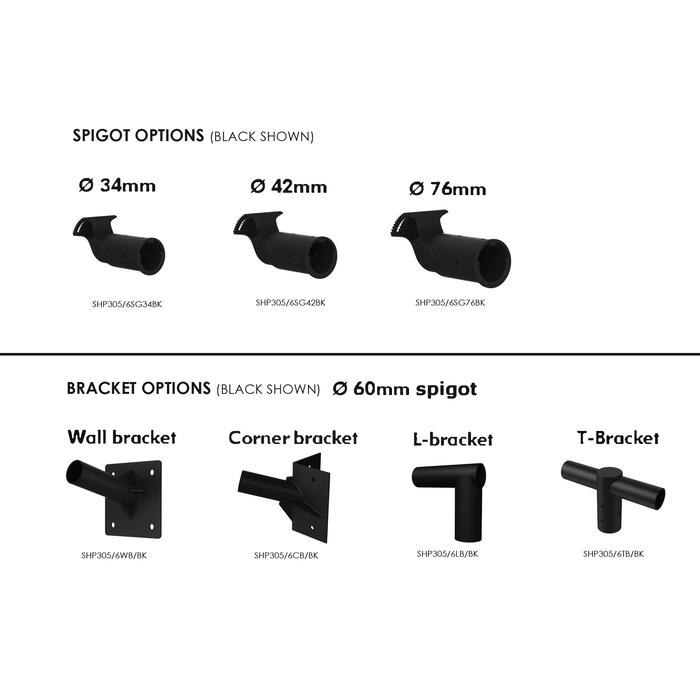

  • Standard 3G.ANSI C.136.31-2010 Ø 60 pole mounting bracket, 800 mm 3 core rubber flex

Performance

Dimmable Driver - YES
Dimmer Type - 1-10V DC
Model No. Description Input Power Lumens CCT CRI Body Colour Enquire
Model No.SHP306/180CW/BK DescriptionLED STREET LGT MINI 180W 4K BK Input240 Power180 Lumens21000 CCT4000 CRI70 Body Colour Enquire
Model No.SHP306/30CW/BK DescriptionLED STREET LGT MINI 30W 4K BK Input240 Power30 Lumens3600 CCT4000 CRI70 Body ColourBLACK Enquire
Model No.SHP306/50CW/BK DescriptionLED STREET LGT MINI 50W 4K BK Input240 Power50 Lumens6000 CCT4000 CRI70 Body ColourBLACK Enquire
Model No.SHP306/70CW/BK DescriptionLED STREET LGT MINI 70W 4K BK Input240 Power70 Lumens8400 CCT4000 CRI70 Body ColourBLACK Enquire
Model No.SHP306/90CW/BK DescriptionLED STREET LGT MINI 90W 4K BK Input240 Power90 Lumens10800 CCT4000 CRI70 Body ColourBLACK Enquire
