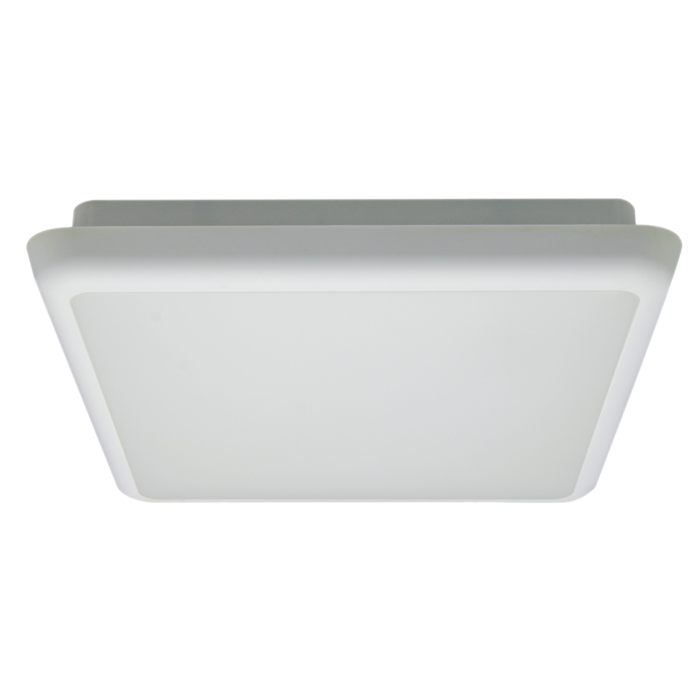

• LED WEATHERPROOF

CUSHION SL3247 -12/30W

Dimmable Square IP54 LED Oyster

Application

A perfect choice for apartments or commercial spaces

Design Specifications

  • (4) four models to select 12, 18, 25 or 30 watt

  • Soft square architectural design, colour white with an opal polycarbonate diffuser

  • High efficiency SMD LED chips, CRI > 80, CCT 4000K, optional 3000K and 5700K

  • Integral constant current trailing edge dimmable LED driver

  • Low profile design, IP54, designed for weather protected (under eave) installations, double insulated.

  • Sensor option (non-dimmable) - with integrated microwave motion sensor (SL3247/25 only).

Performance

Dimmable - YES
Dimmer Type - Trailing edge
In Built Sensor - OPTIONAL
Sensor Type - MICROWAVE

  • COOL WHITE4000K
  • COOL WHITE4000K

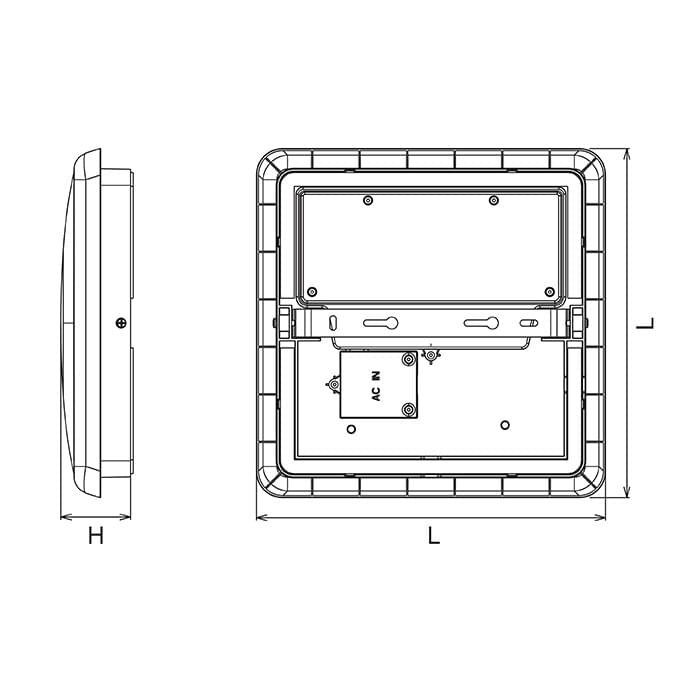

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES

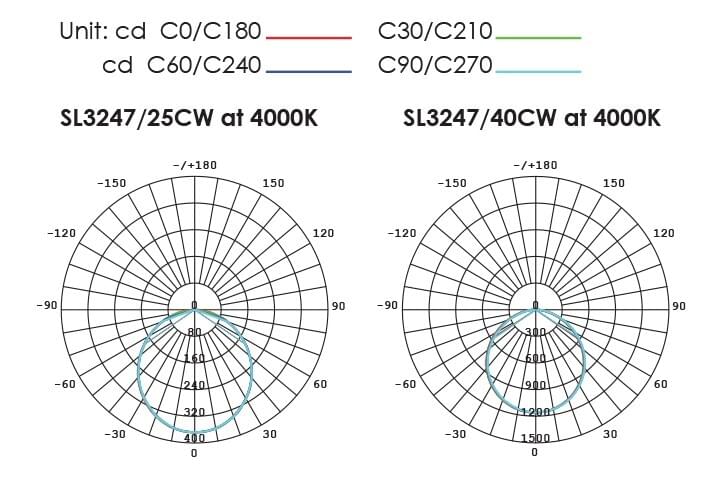

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Power Lumens CCT CRI Body Colour Dimensions Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL3247/25CW DescriptionLED OYSTER 12W SQ. IP54 4K WH Input Voltage240 Power12 Lumens1000 CCT4000 CRI80 Body ColourWHITE Dimensions250(L) x 250(W) x 50(H) Add to Enquiry Add Remove Remove
    Model No.SL3247/30CW DescriptionLED OYSTER 18W SQ. IP54 4K WH Input Voltage240 Power18 Lumens1600 CCT4000 CRI80 Body ColourWHITE Dimensions300(L) x 300(W) x 40(H) Add to Enquiry Add Remove Remove
    Model No.SL3247/35CW DescriptionLED OYSTER 25W SQ. IP54 4K WH Input Voltage240 Power25 Lumens2400 CCT4000 CRI80 Body ColourWHITE Dimensions350(L) x 350(W) x 40(H) Add to Enquiry Add Remove Remove
    Model No.SL3247/40CW DescriptionLED OYSTER 30W SQ. IP54 4K WH Input Voltage240 Power30 Lumens2500 CCT4000 CRI80 Body ColourWHITE Dimensions400(L) x 400(W) x 50(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
