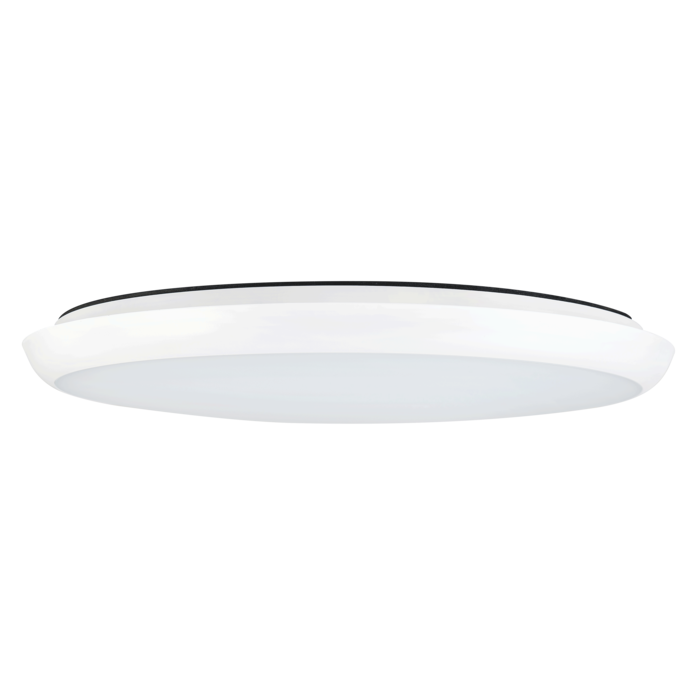

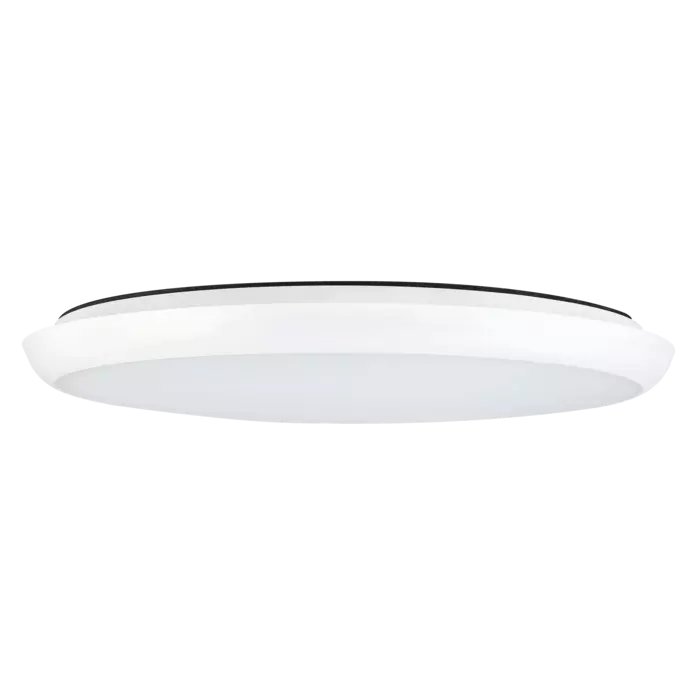

• LED WEATHERPROOF

DISC SL2105TC - 12/30W

Dimmable IP54 LED Oyster, 12, 25, 30 watt, with selectable colour temperature

Application

A perfect choice for apartments, residential or commercial spaces

Design Specifications

  • Robust white polycarbonate body profile, three sizes to select

  • Quality opal polycarbonate diffuser

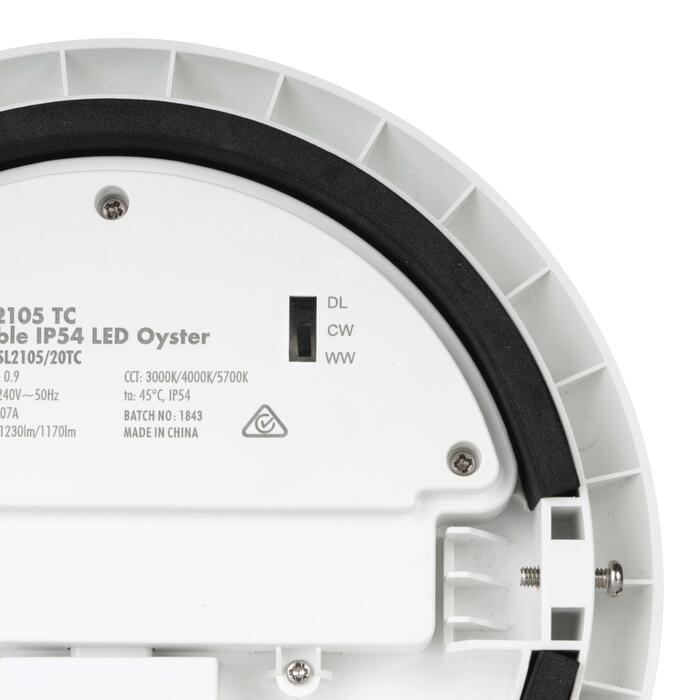

  • High efficiency SMD LED chips,  CRI > 80, selectable CCT 3000K, 4000K or 5700K

  • Integral constant current trailing edge dimmable LED driver

  • Low profile design, IP54, designed for weather protected (under eaves) installations, double insulated

  • Dimensions (mm):
    (20TC) = (D1) 200 x (H1) 48 (D2) 173 x (H2) 16

    (30TC) = (D1) 300 x (H1) 40 (D2) 271 x (H2) 13

    (40TC) = (D1) 400 x (H1) 52 (D2) 363 x (H2) 15

Performance

Dimmable - YES
Dimmer Type - Compatible trailing edge dimmers, SDA450U, SDD400U

  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • Dimensions - Wiring Diagrams
  • Design Options

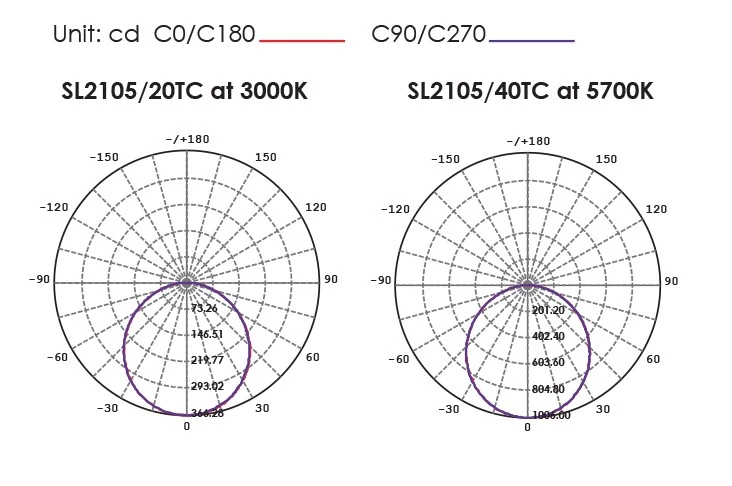

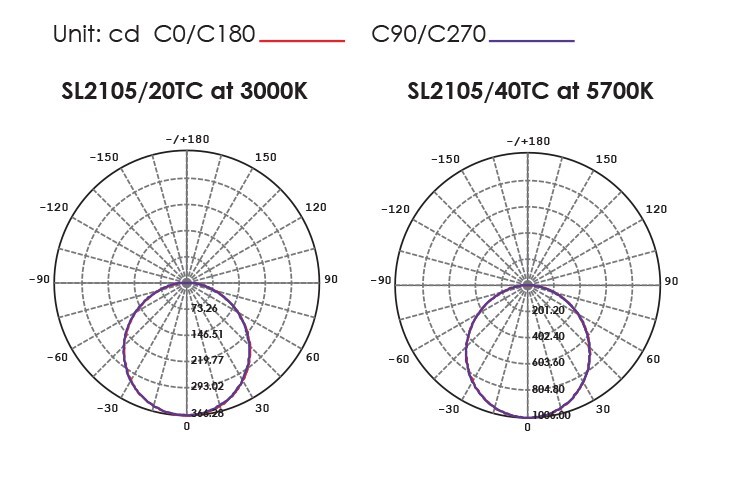

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL2105/20TC DescriptionLED OYSTER 12W IP54 TC DIM WH Input Voltage240 Power12 Lumens1100/1200/1200 CCT3000/4000/5700 CRI80 Beam Angle120 Body ColourWHITE Dim48(H) Add to Enquiry Add Remove Remove
    Model No.SL2105/30TC DescriptionLED OYSTER 25W IP54 TC DIM WH Input Voltage240 Power25 Lumens2450/2600/2500 CCT3000/4000/5700 CRI80 Beam Angle120 Body ColourWHITE Dim40(H) Add to Enquiry Add Remove Remove
    Model No.SL2105/40TC DescriptionLED OYSTER 30W IP54 TC DIM WH Input Voltage240 Power30 Lumens2800/3480/3000 CCT3000/4000/5700 CRI80 Beam Angle120 Body ColourWHITE Dim52(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
