• LED DOWNLIGHTS

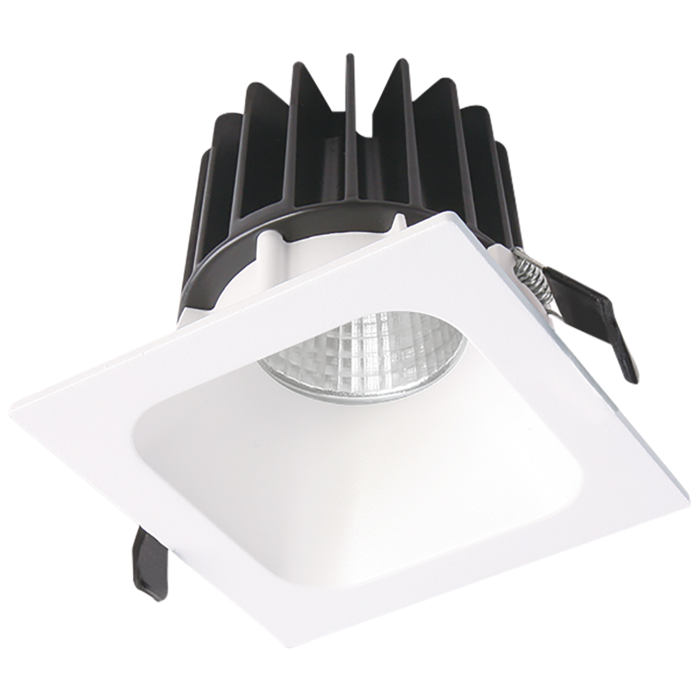

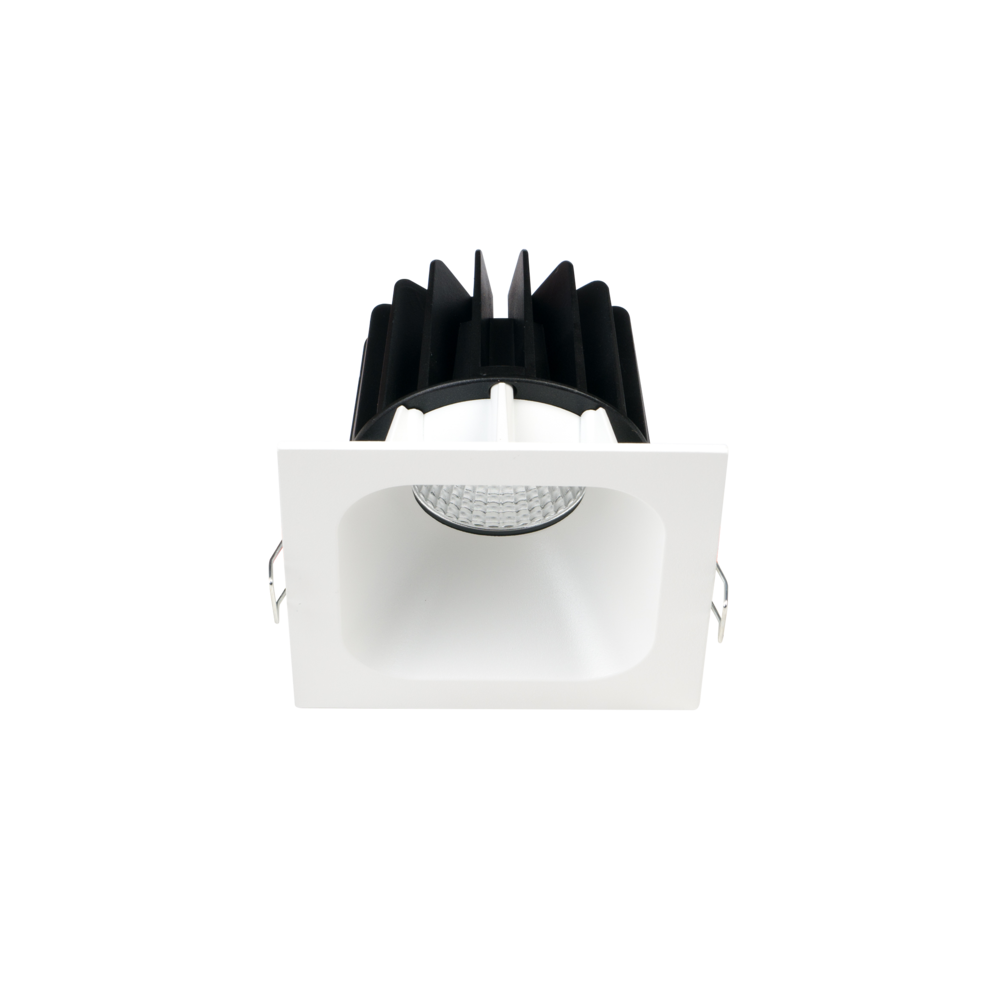

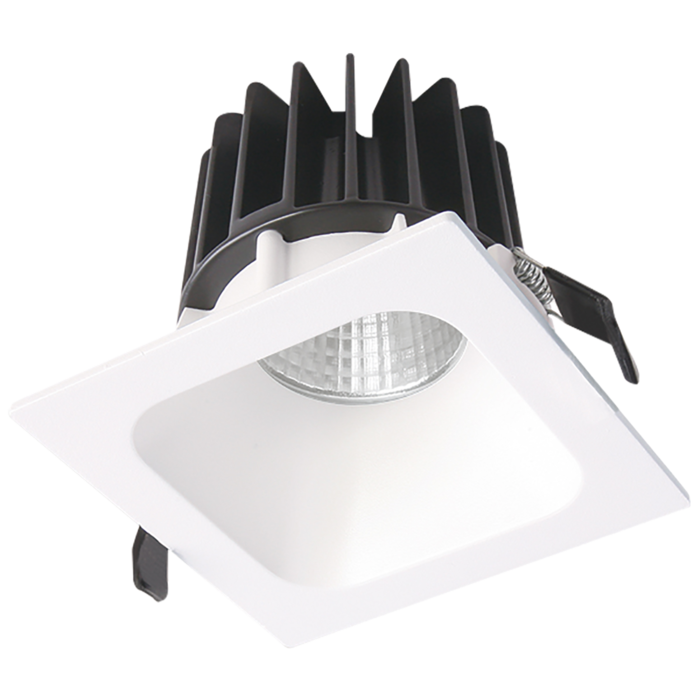

BENTO S9691 - 5/38W

Square profile IP44 LED downlight

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Square bezel combined with a round body to suit a round cut out

  • Deep recessed angle fitting enables precise optical control
  • Durable die-cast aluminium body profile, stylish
    white matt powder coat finish

  • S9691/85 and S9691/110 optional beam distributions 15/24/50. S9691/135 and S9691/160 optional beam distributions 10/20/40/70

  • High output COB LED chip design with a
    changeable multi-reflector system

  • Constant current non-dimmable LED
    driver (see table for options), complete with flex and plug

Performance

Dimmable - OPTIONAL
Dimmer Type -  Trailing edge, 1-10V, DALI/DSI  (excluding S9691/135 and S9691/160)

  • COOL WHITE4000K
  • COOL WHITE4000K

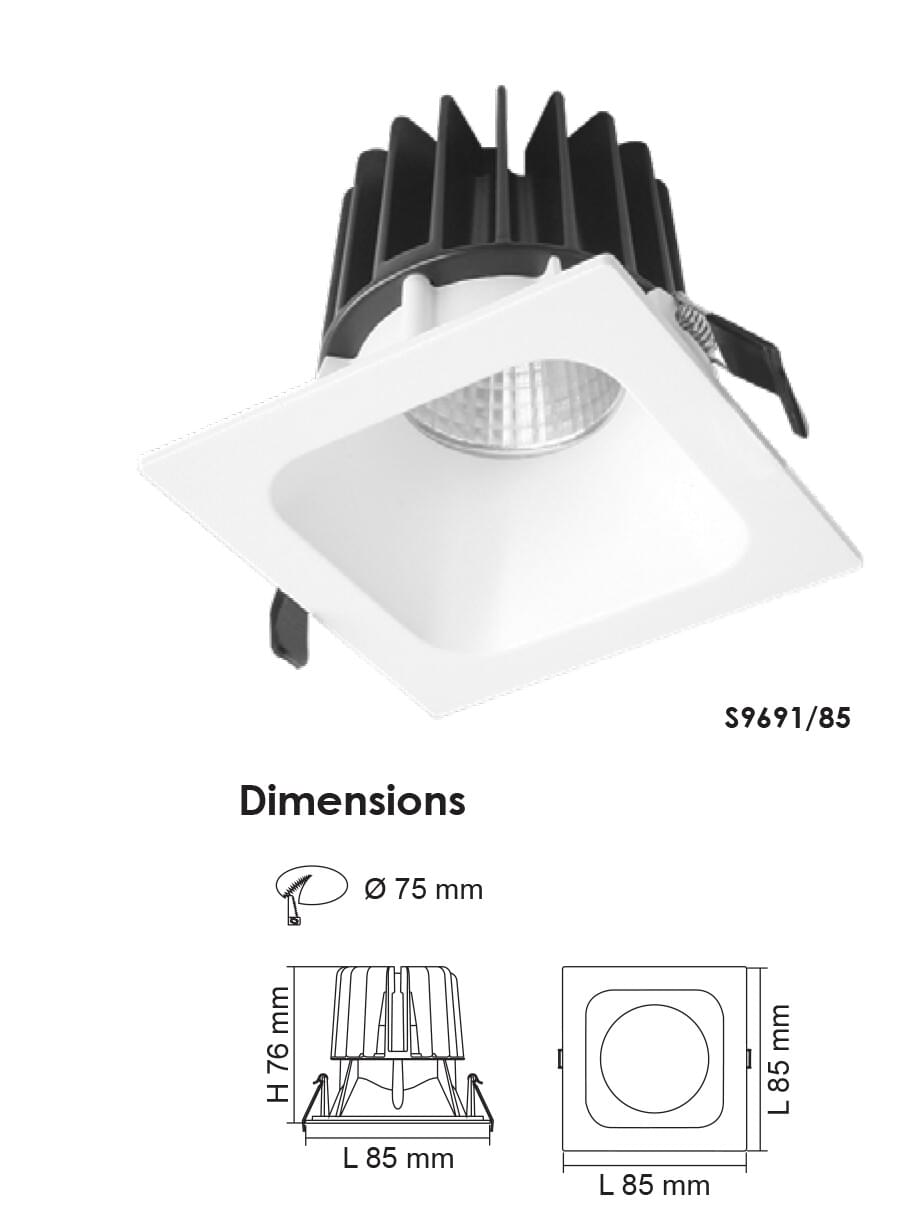

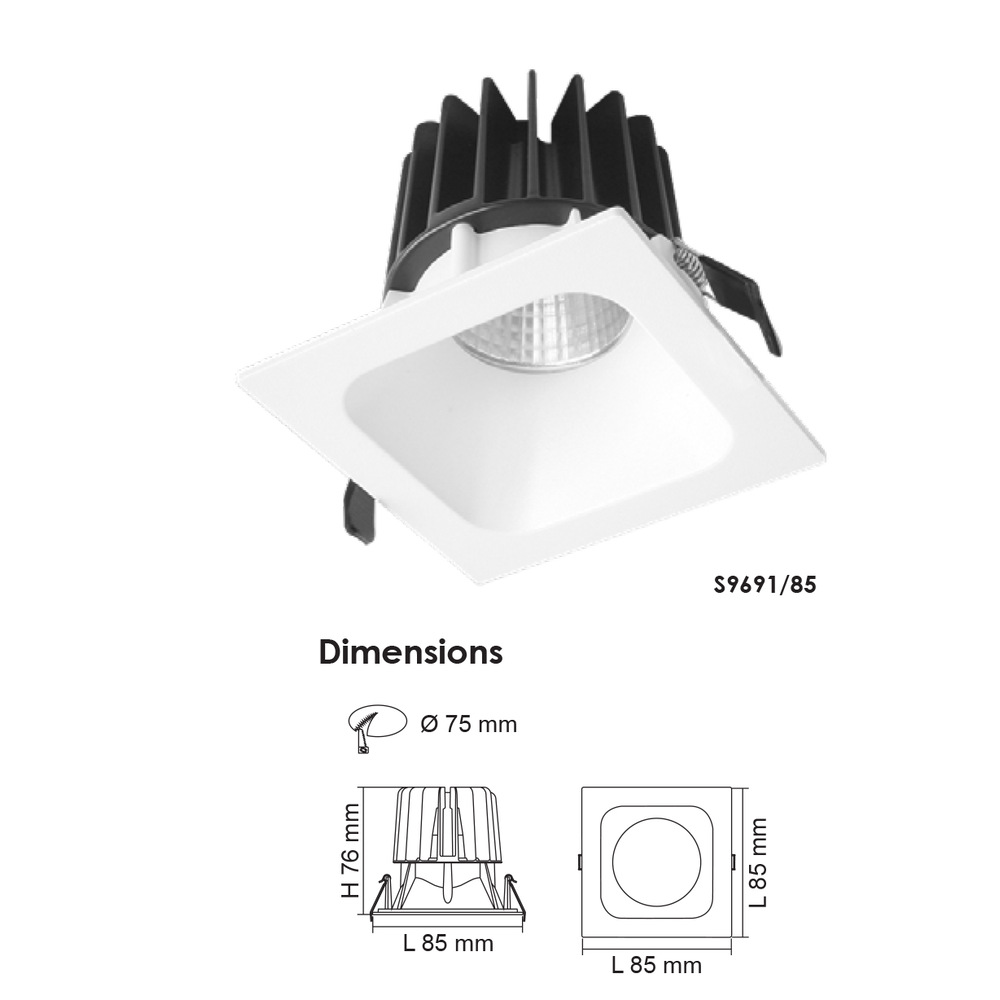

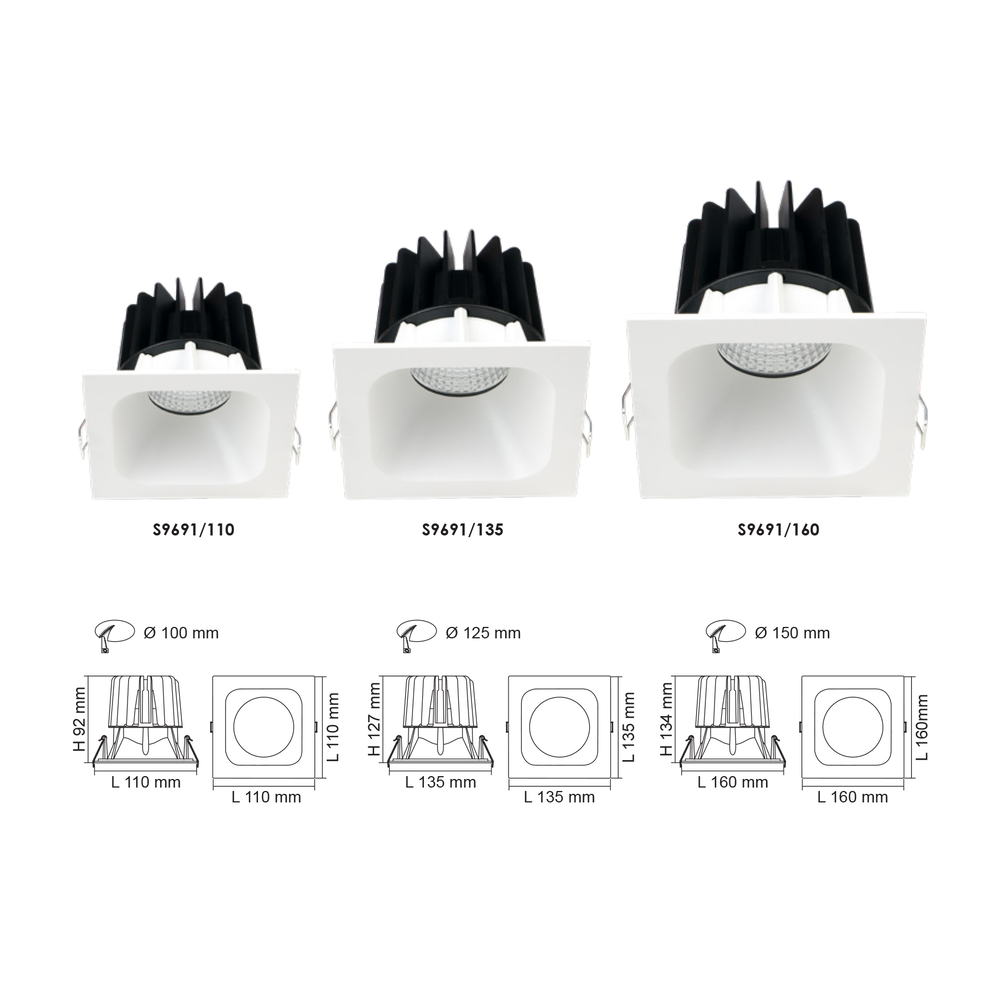

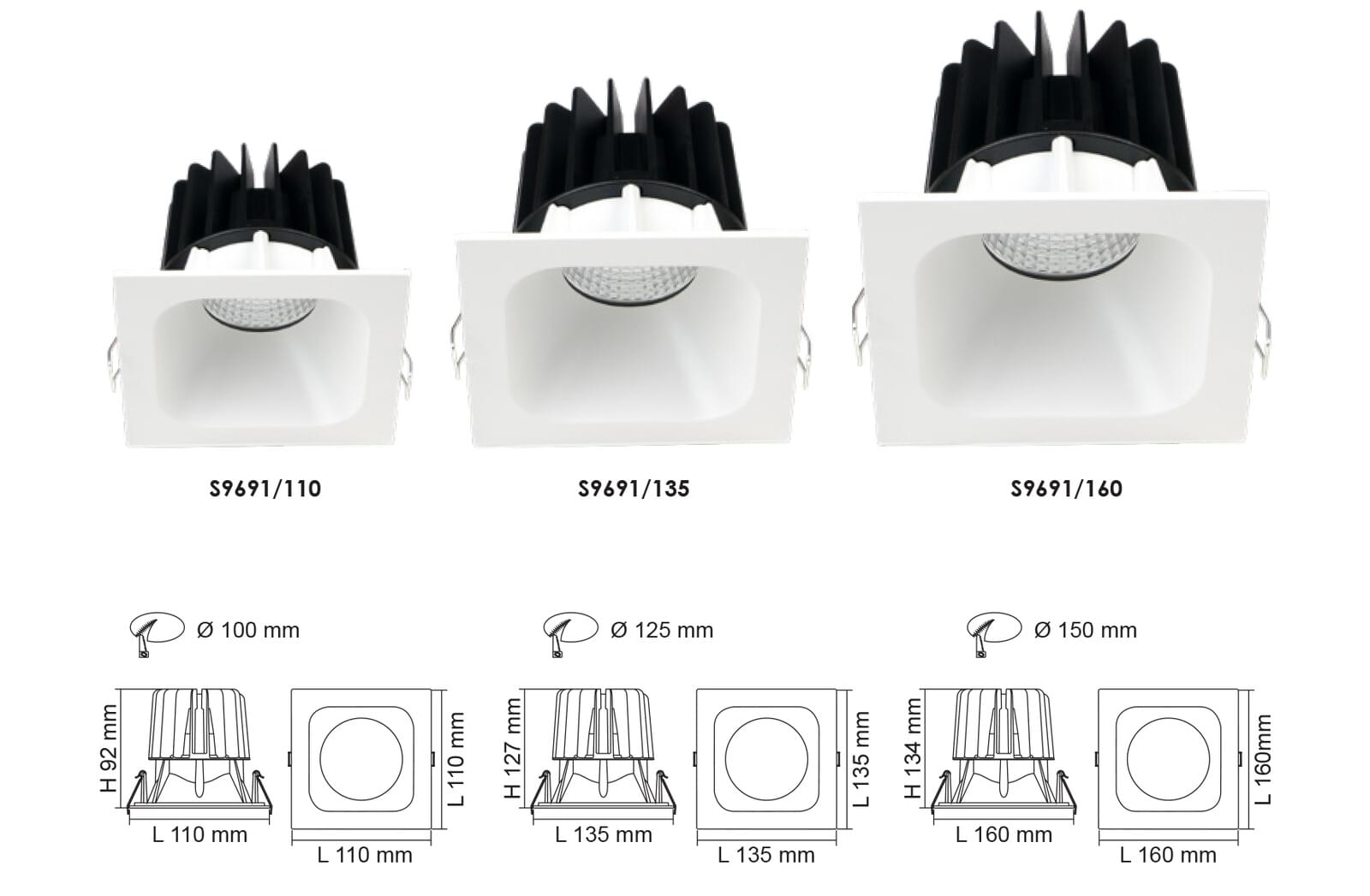

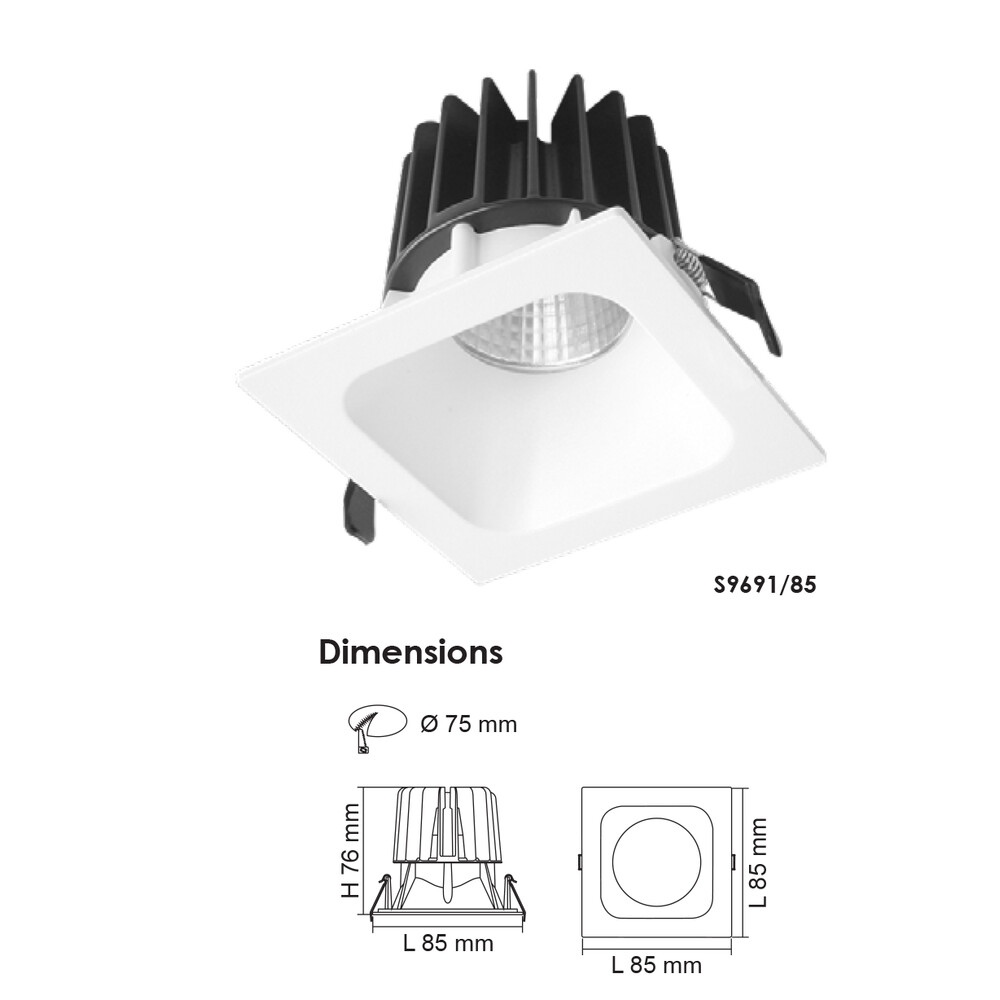

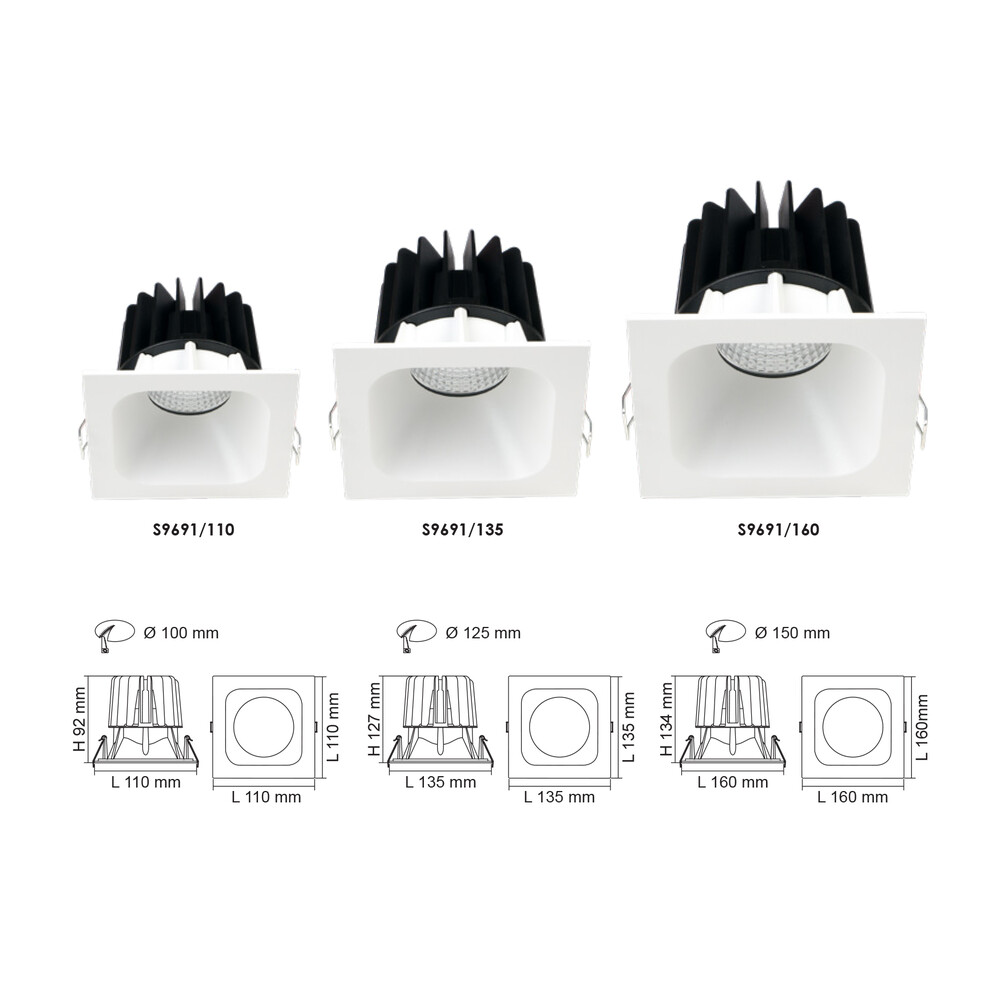

  • Dimensions - Wiring Diagrams
  • Design Options

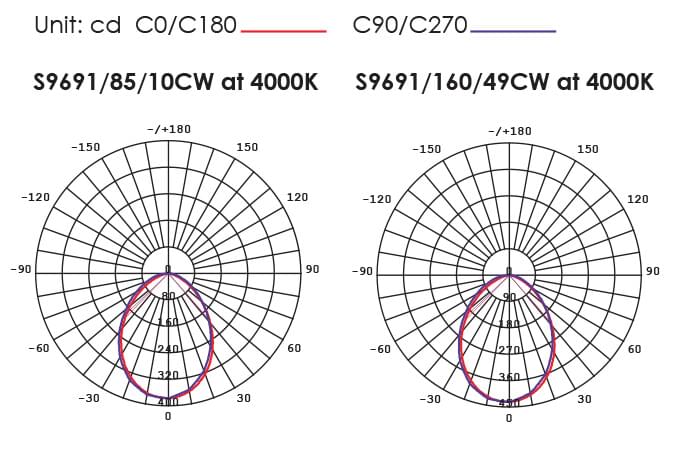

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Dimensions Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9691/85/7CW DescriptionLED D/LIGHT 5W SQ. IP44 4K WH Input Voltage240 Power5 Lumens700 CCT4000 Beam Angle36 Dimmable YES CRI80 Body Colourmatt white Dimensions85(W) x 76(H) Add to Enquiry Add Remove Remove
    Model No.S9691/85/10CW DescriptionLED D/LIGHT 8W SQ. IP44 4K WH Input Voltage240 Power8 Lumens1000 CCT4000 Beam Angle36 Dimmable YES CRI80 Body Colourmatt white Dimensions85(W) x 76(H) Add to Enquiry Add Remove Remove
    Model No.S9691/110/15CW DescriptionLED D/LIGHT 13W SQ. IP44 4K WH Input Voltage240 Power13 Lumens1500 CCT4000 Beam Angle36 Dimmable YES CRI80 Body Colourmatt white Dimensions110(W) x 92(H) Add to Enquiry Add Remove Remove
    Model No.S9691/135/34CW DescriptionLED D/LIGHT 27W SQ. IP44 4K WH Input Voltage240 Power27 Lumens3400 CCT4000 Beam Angle30 Dimmable OPTIONAL CRI80 Body Colourmatt white Dimensions135(W) x 127(H) Add to Enquiry Add Remove Remove
    Model No.S9691/135/42CW DescriptionLED D/LIGHT 34W SQ. IP44 4K WH Input Voltage240 Power34 Lumens4200 CCT4000 Beam Angle30 Dimmable OPTIONAL CRI80 Body Colourmatt white Dimensions135(W) x 127(H) Add to Enquiry Add Remove Remove
    Model No.S9691/135/49CW DescriptionLED D/LIGHT 38W SQ. IP44 4K WH Input Voltage240 Power38 Lumens4900 CCT4000 Beam Angle30 Dimmable OPTIONAL CRI80 Body Colourmatt white Dimensions135(W) x 127(H) Add to Enquiry Add Remove Remove
    Model No.S9691/160/42CW DescriptionLED D/LIGHT 34W SQ. IP44 4K WH Input Voltage240 Power34 Lumens4200 CCT4000 Beam Angle30 Dimmable OPTIONAL CRI80 Body Colourmatt white Dimensions160(W) x 134(H) Add to Enquiry Add Remove Remove
    Model No.S9691/160/49CW DescriptionLED D/LIGHT 38W SQ. IP44 4K WH Input Voltage240 Power38 Lumens4900 CCT4000 Beam Angle30 Dimmable OPTIONAL CRI80 Body Colourmatt white Dimensions160(W) x 134(H) Add to Enquiry Add Remove Remove

    Note: IC4 rating applicable to S9691/85 and S9691/110 only.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
