• LED DOWNLIGHTS

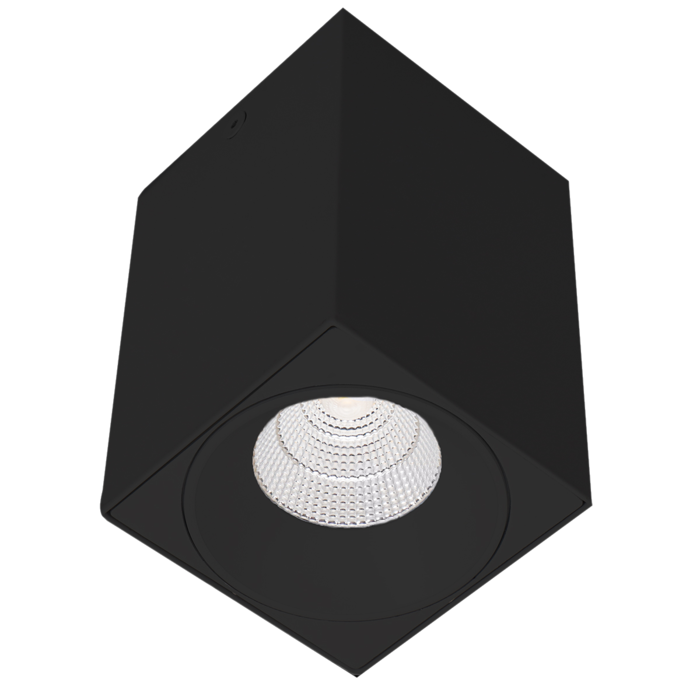

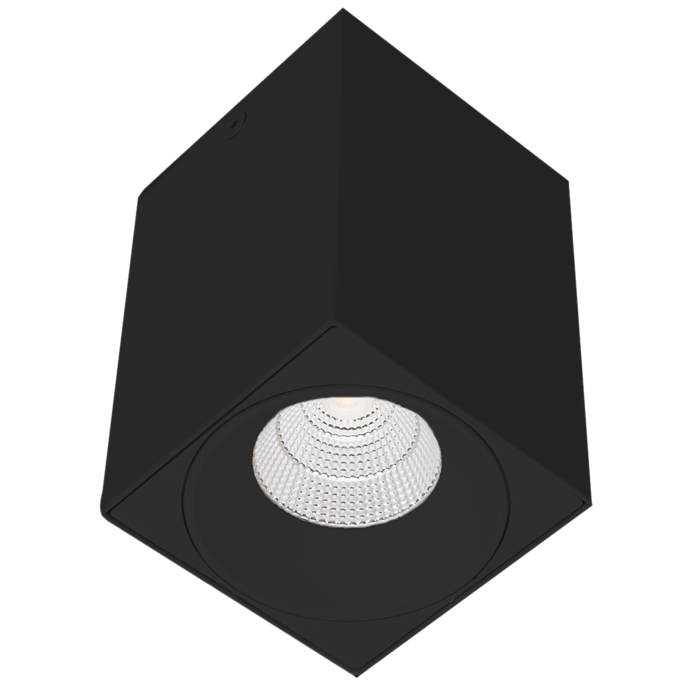

DICE S9015 - 9/15W

Surface mount square dimmable LED downlight

Application

Ideal for any residential or commercial interior spaces

Design Specifications

  • Aluminimu body profile, concealed mounting screws and matt Black powder coat finish, optional White to order

  • Surface mounted architectural square profile downlight

  • Durable die-cast aluminium body profile

  • High output COB LED chip, integral constant current trailing edge dimmable LED driver (excluding S9015/80GU10)

  • Changeable multi-reflector system with polycarbonate lens

Performance

Dimmable - YES
Dimmer Type - Trailing edge

  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

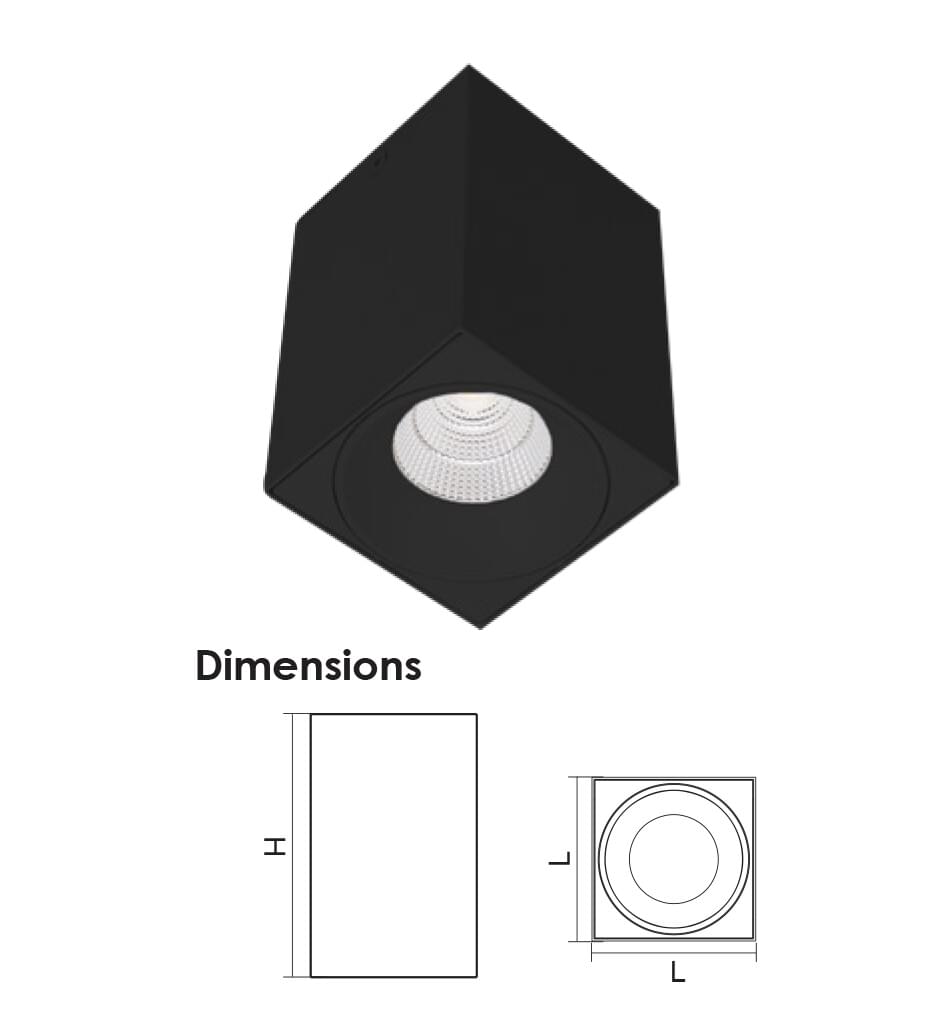

  • Dimensions - Wiring Diagrams
  • Design Options

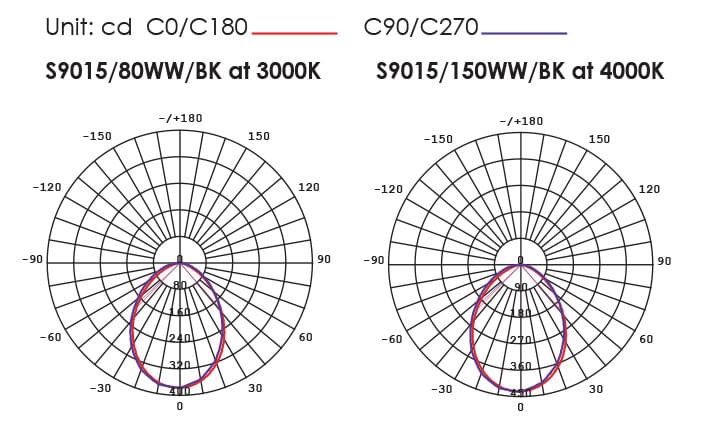

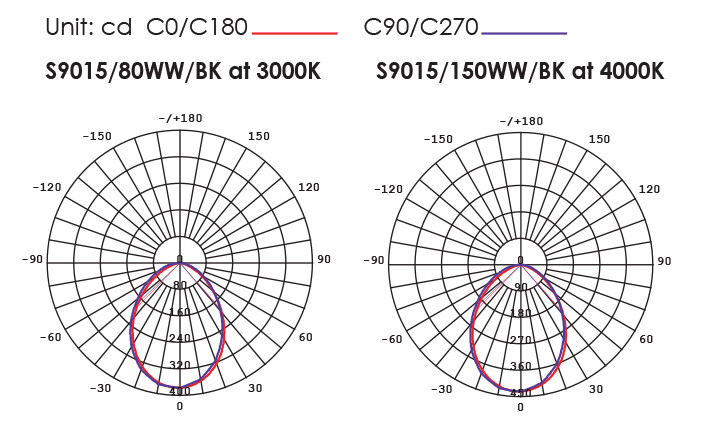

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Power Lumens CCT Beam Angle CRI Body Colour Dimensions Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9015/80WW/BK DescriptionLED D/LIGHT 9W SQ. SUR. 3K BK Input Voltage240 Power9 Lumens700 CCT3000 Beam Angle60 CRI80 Body ColourBLACK Dimensions80(L) x 122(H) Add to Enquiry Add Remove Remove
    Model No.S9015/80CW/BK DescriptionLED D/LIGHT 9W SQ. SUR. 4K BK Input Voltage240 Power9 Lumens800 CCT4000 Beam Angle60 CRI80 Body ColourBLACK Dimensions80(L) x 122(H) Add to Enquiry Add Remove Remove
    Model No.S9015/80DL/BK DescriptionLED D/LIGHT 9W SQ. SUR. 6K BK Input Voltage240 Power9 Lumens800 CCT6000 Beam Angle60 CRI80 Body ColourBLACK Dimensions80(L) x 122(H) Add to Enquiry Add Remove Remove
    Model No.S9015/80GU10/BK DescriptionLED D/LIGHT GU10 SQ. SUR. BK Input Voltage240 Power Lumens CCT Beam Angle CRI Body ColourBLACK Dimensions80(L) x 122(H) Add to Enquiry Add Remove Remove
    Model No.S9015/150WW/BK DescriptionLED D/LIGHT 15W SQ. SUR. 3K BK Input Voltage240 Power15 Lumens1500 CCT3000 Beam Angle60 CRI80 Body ColourBLACK Dimensions150(L) x 247(H) Add to Enquiry Add Remove Remove
    Model No.S9015/150CW/BK DescriptionLED D/LIGHT 15W SQ. SUR. 4K BK Input Voltage240 Power15 Lumens1500 CCT4000 Beam Angle60 CRI80 Body ColourBLACK Dimensions150(L) x 247(H) Add to Enquiry Add Remove Remove
    Model No.S9015/150DL/BK DescriptionLED D/LIGHT 15W SQ. SUR. 6K BK Input Voltage240 Power15 Lumens1500 CCT6000 Beam Angle60 CRI80 Body ColourBLACK Dimensions150(L) x 247(H) Add to Enquiry Add Remove Remove
    BEAM ANGLE - 60º optical reflector (standard) - 25º optical reflector (option) - 40º optical reflector (option) LAMP OPTIONS (S9015/80GU10), -= GU10L350 (lamp not included)--GU10L550 (lamp not included)
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
