• LED INTERIOR ARCHITECTURAL

FLAT SL2110 - 5/40W

Dimmable profile ceiling luminaires

Application

A creative design for residential or commercial spaces, with a selection of 5,12,18,30 or 40 watt models

Design Specifications

  • Seamless surface mounting base
  • Robust polycarbonate diffuser, luminaire colour white

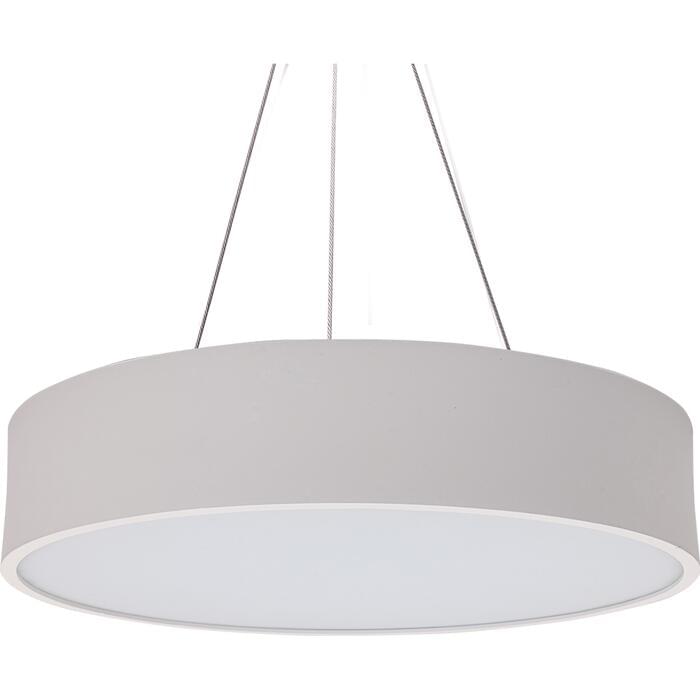

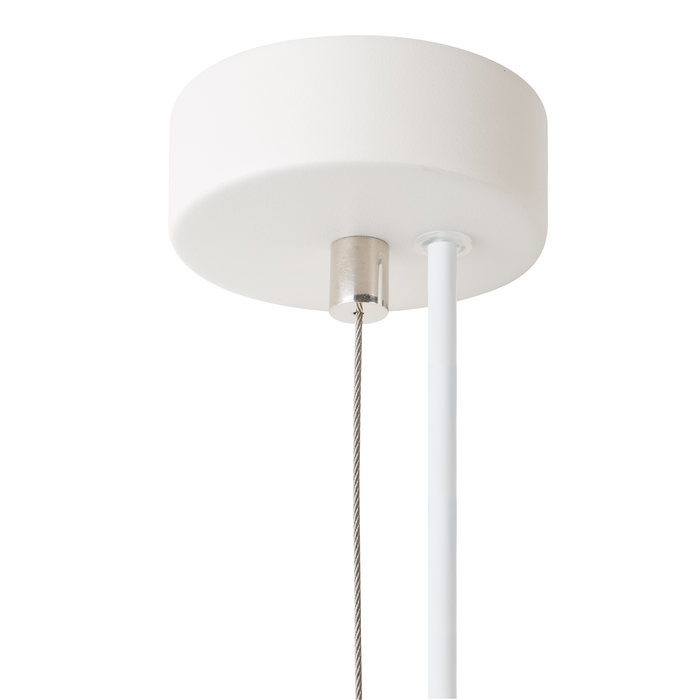

  • Simple twist lock installation mechanism for the surface mount model. Pendant includes surface mount cap and three (3) x 1.5M adjustable stainless cables

  • Built-in constant current trailing edge dimmable LED driver, Dimming options, DALI, DSI

  •  CCT 4000K as standard, optional 3000 or 6000K

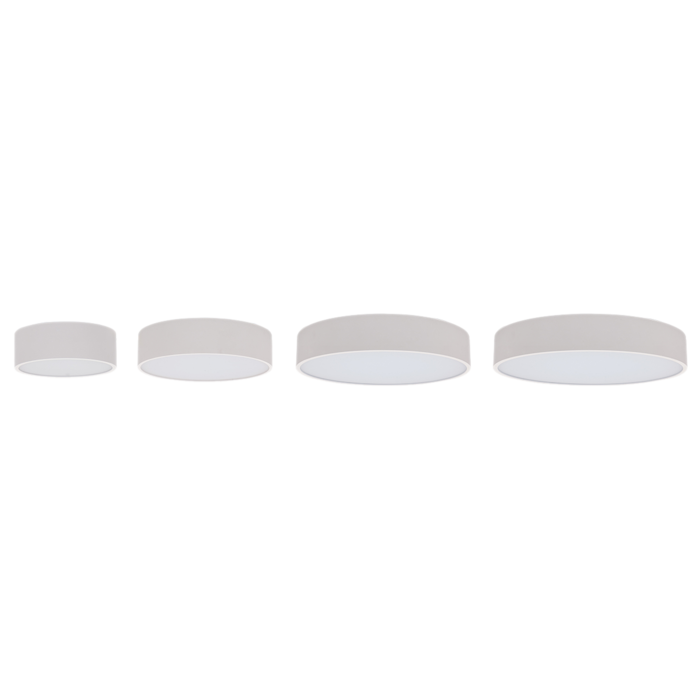

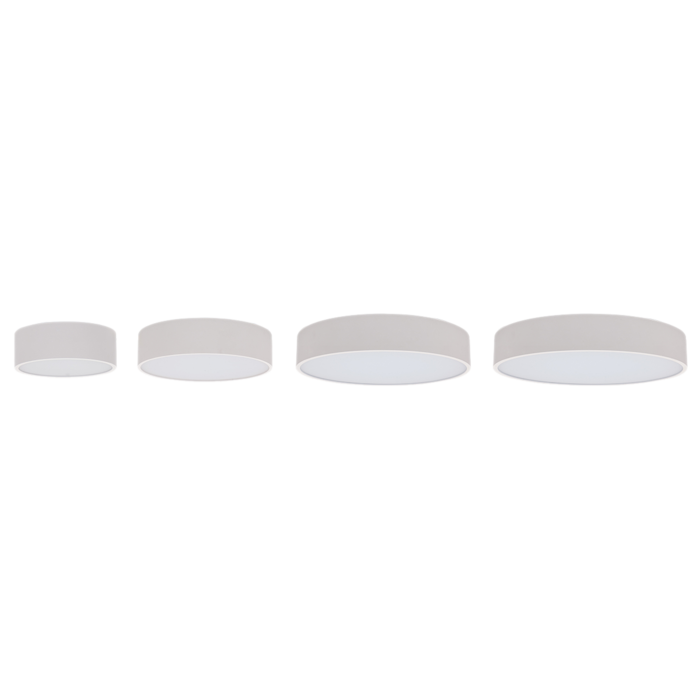

  • Dimensions: SL2110/10 - 100 X 50mm, SL2110/20 - 160 X 50mm, SL2110/30 - 250 x 60mm, SL2110/40 - 350 x 60mm, SL2110/50  - 480 X 60mm.

Performance

Dimmable Driver - YES
Dimmer Type - TRAILING EDGE

  • Dimensions
  • Design Options
    Dimmer Trailing Edge YES
    Dimmer 1-10V YES
    Dimmer DSI YES
    Dimmer DALI YES

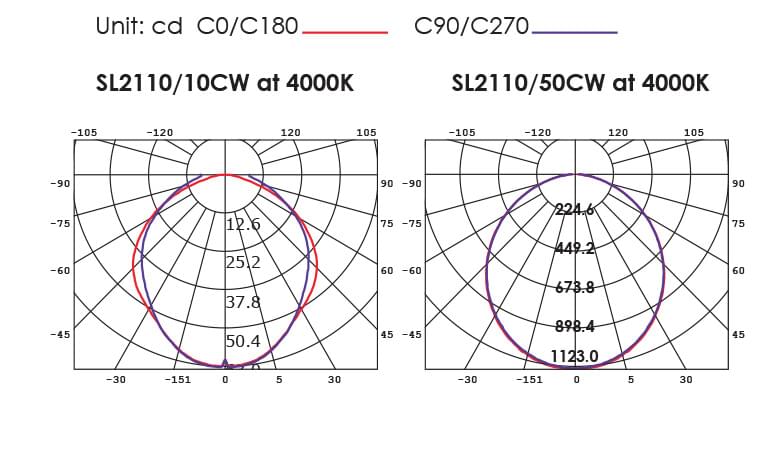

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Lumens CCT Power CRI Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL2110/10CW DescriptionLED OYSTER 5W 100mm 4K WHITE Input240 Lumens180 CCT4000 Power5 CRI80 Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL2110/20CW DescriptionLED OYSTER 12W 160mm 4K WHITE Input240 Lumens780 CCT4000 Power12 CRI80 Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL2110/30CW DescriptionLED OYSTER 18W 260mm 4K WHITE Input240 Lumens1200 CCT4000 Power18 CRI80 Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL2110/40CW DescriptionLED OYSTER 30W 350mm 4K WHITE Input240 Lumens2300 CCT4000 Power30 CRI80 Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL2110/50CW DescriptionLED OYSTER 40W 480mm 4K WHITE Input240 Lumens3200 CCT4000 Power40 CRI80 Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL2110SP DescriptionSuspension kit for SL2110 /30 / 40 / 50 Input Lumens CCT Power CRI Body ColourSTAINLESS Add to Enquiry Add Remove Remove

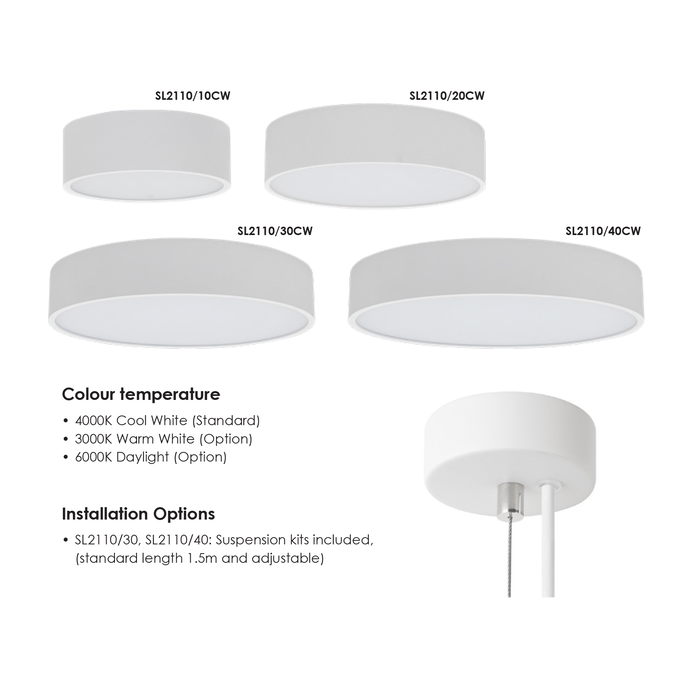

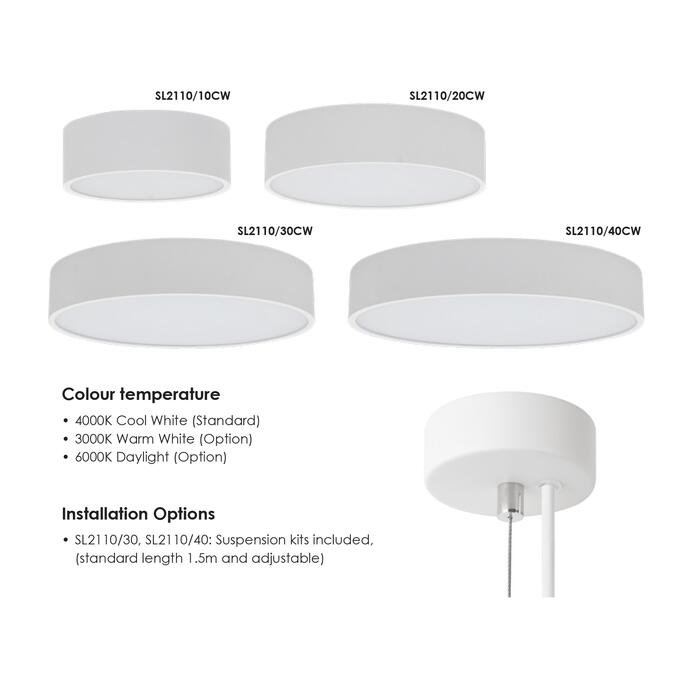

    INSTALLATION OPTION - SL2110/30, SL2110/40, SL2110/50: optional suspension kits consist of a standard length of 1.5 m which is adjustable. DALI / DSI, digital (SL2110/30 & SL2110/40 only) COLOUR TEMPERATURE 4000K Cool White (standard) 3000K Warm White (option) 6000K Daylight (option)

Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
