• LED LAMPS

CLEAR DIM LCA - 4W

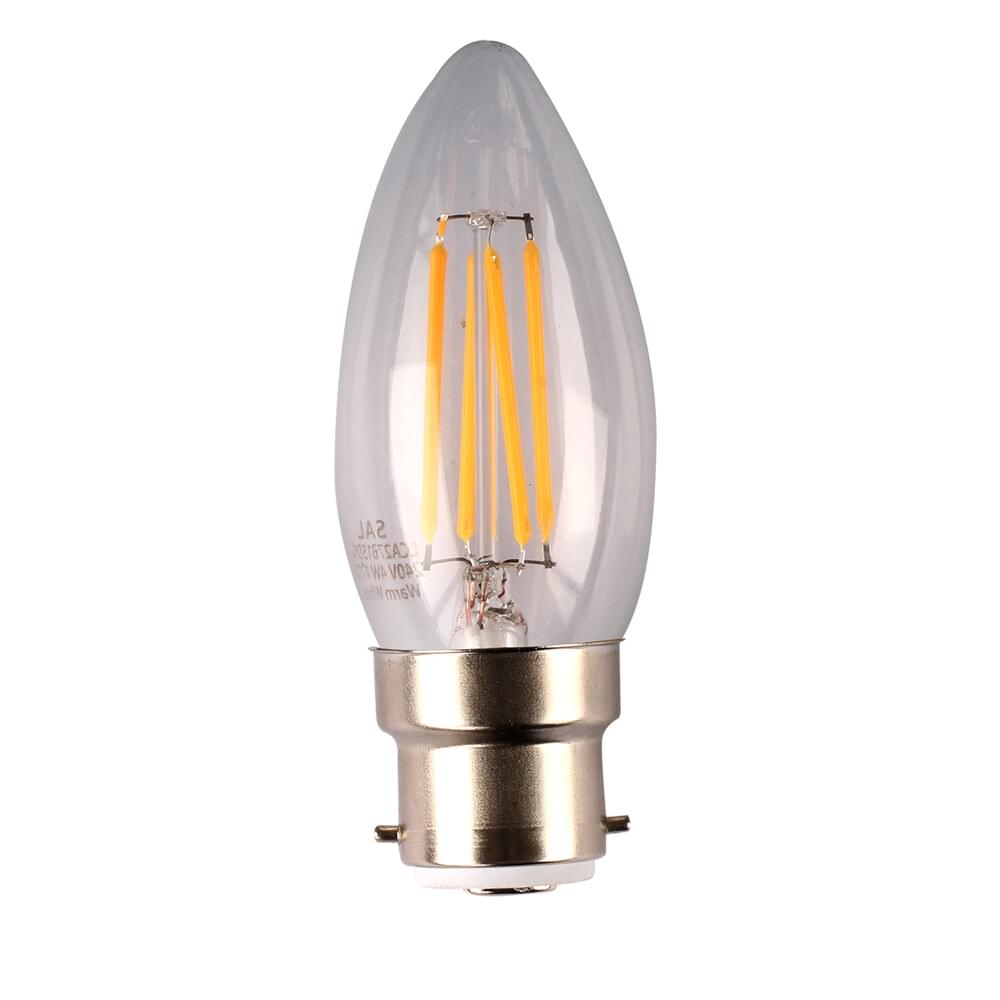

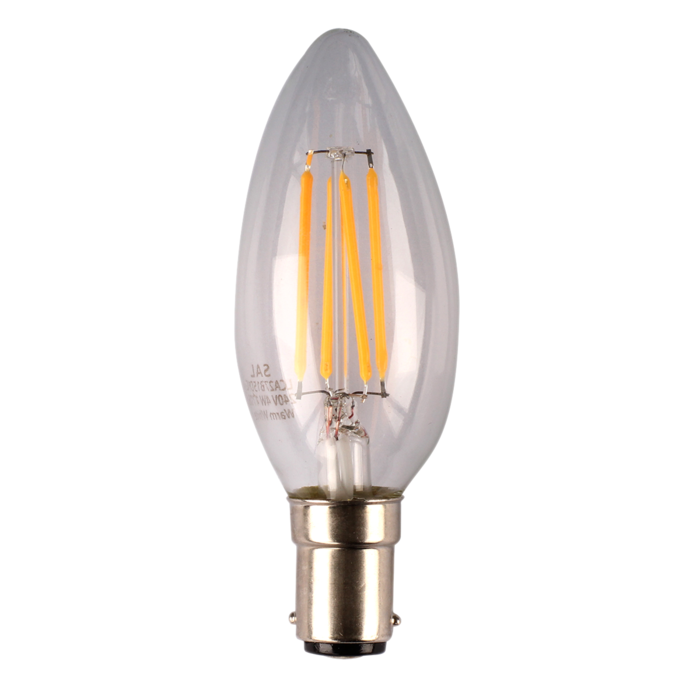

4 watt dimmable LED filament candle style clear lamps

Application

Energy efficient LED lamp solutions

Design Specifications

  • Clear glass diffuser, SES, SBC, ES or BC base

  • High efficiency LED filament

  • Integral trailing edge dimmable LED driver

  • 320° beam angle

  • Colour temperature 2700K / 5000K, CRI > 80

  • 1:1 size to traditional candle lamp, dimmable,
    suits most candle lamp fittings, double insulation

Performance

Dimmable - YES
Dimmer Type - Trailing edge

  • WARM WHITE2700K
  • DAYLIGHT5000K
  • WARM WHITE2700K
  • DAYLIGHT5000K

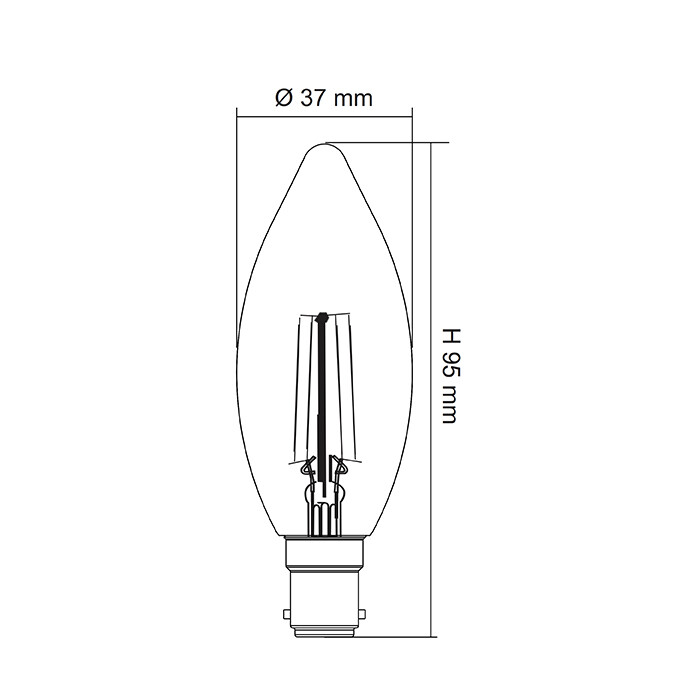

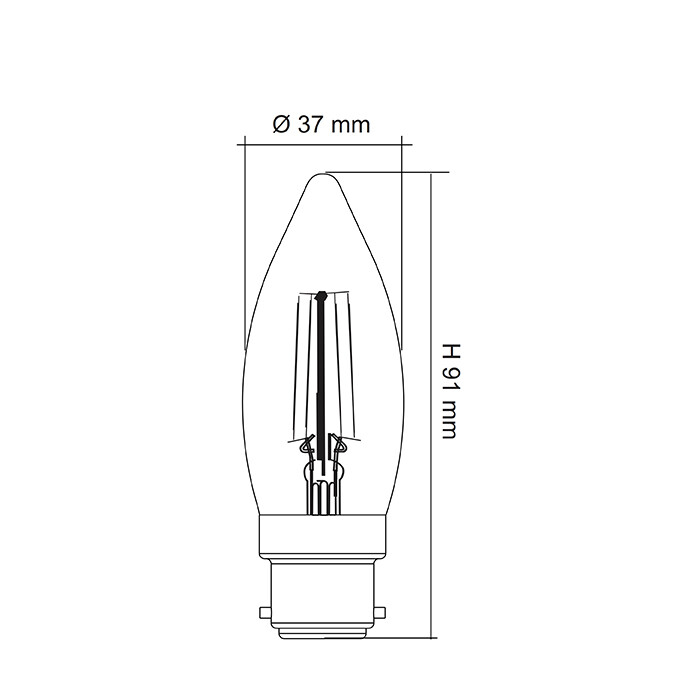

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dimensions Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

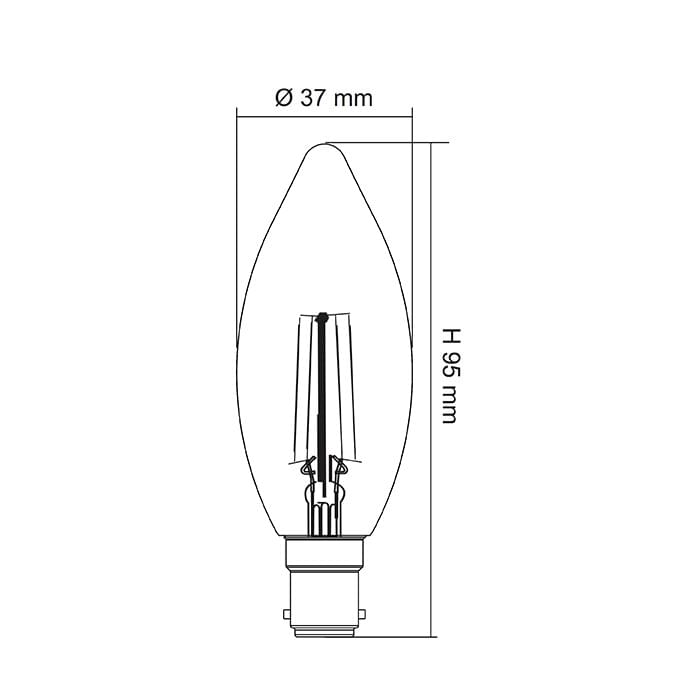

    Model No.LCA27B15D/C DescriptionLED CANDLE 4W B15 WW CLEAR DIM Input Voltage240 Power4 Lumens450 CCT2700 CRI80 Beam Angle320 Dimmable YES Dimensions95(L) x 37(W) Base TypeB15 Add to Enquiry Add Remove Remove

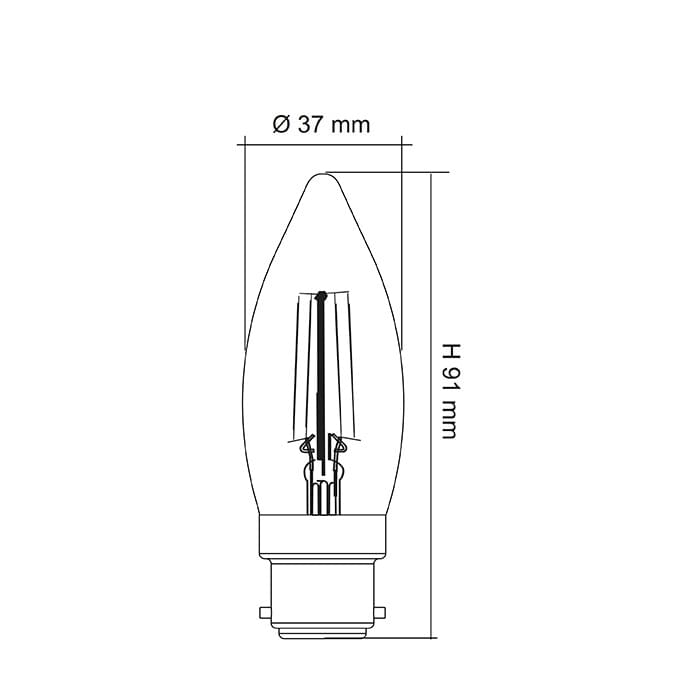

    Model No.LCA27B22D/C DescriptionLED CANDLE 4W B22 WW CLEAR DIM Input Voltage240 Power4 Lumens450 CCT2700 CRI80 Beam Angle320 Dimmable YES Dimensions91(L) x 37(W) Base TypeB22 Add to Enquiry Add Remove Remove

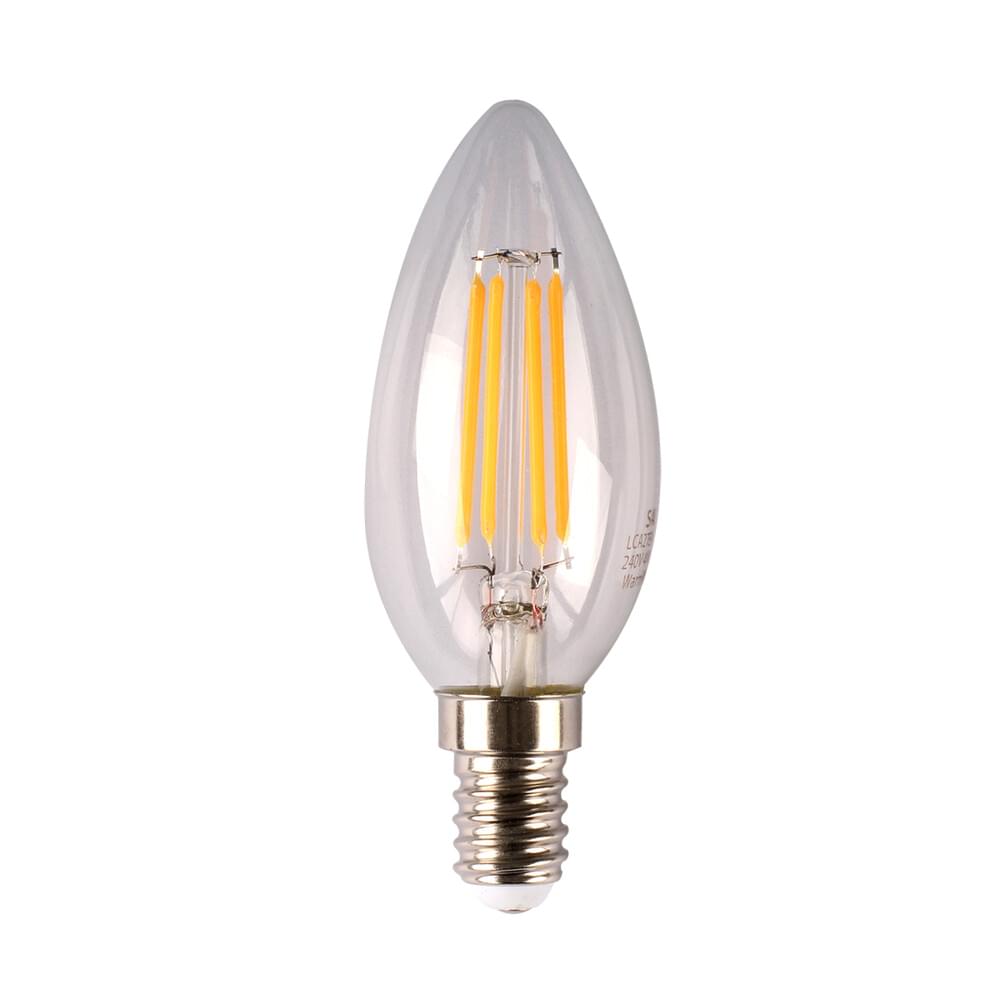

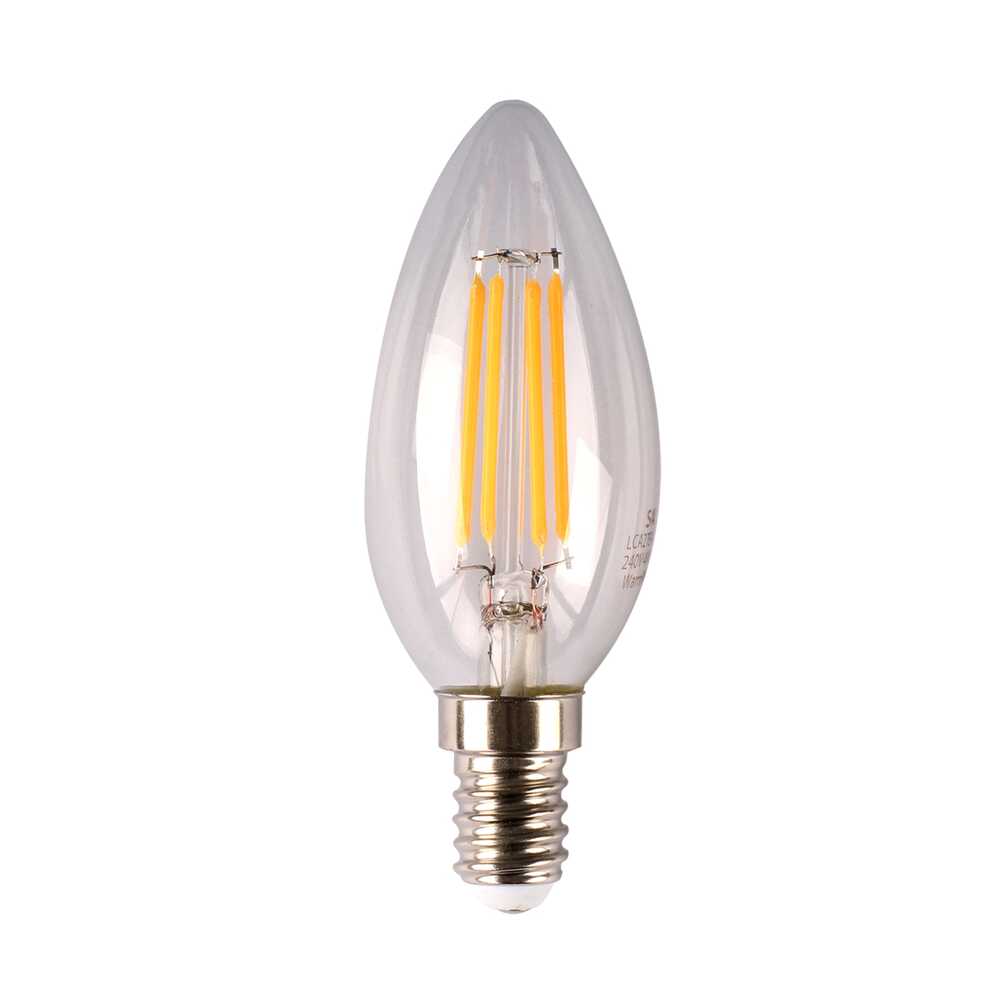

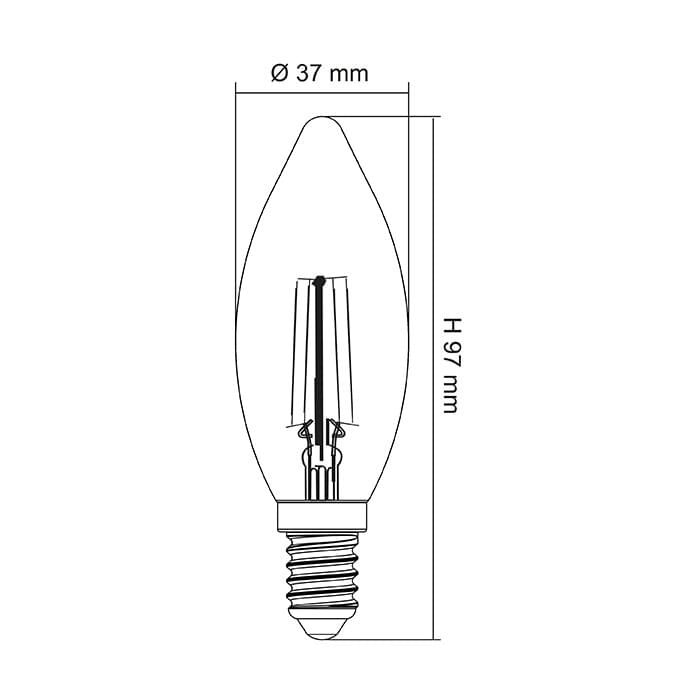

    Model No.LCA27E14D/C DescriptionLED CANDLE 4W E14 WW CLEAR DIM Input Voltage240 Power4 Lumens450 CCT2700 CRI80 Beam Angle320 Dimmable YES Dimensions97(L) x 37(W) Base TypeE14 Add to Enquiry Add Remove Remove

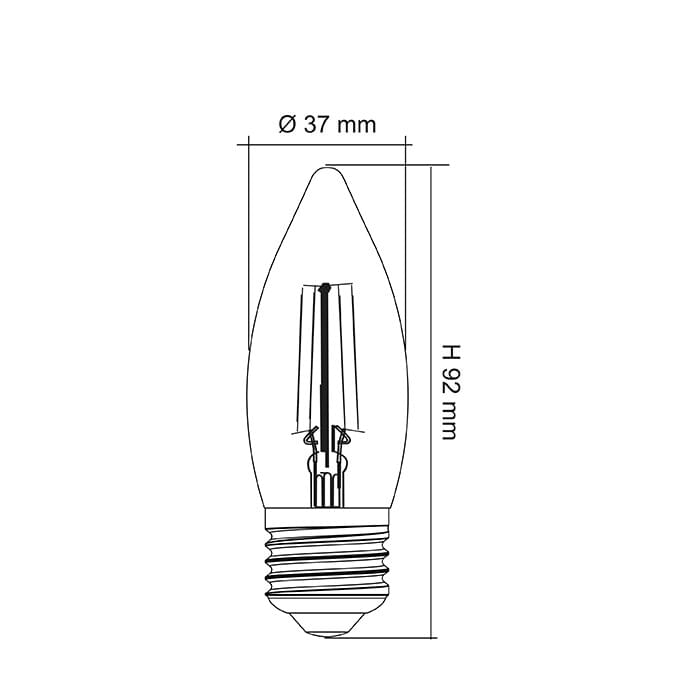

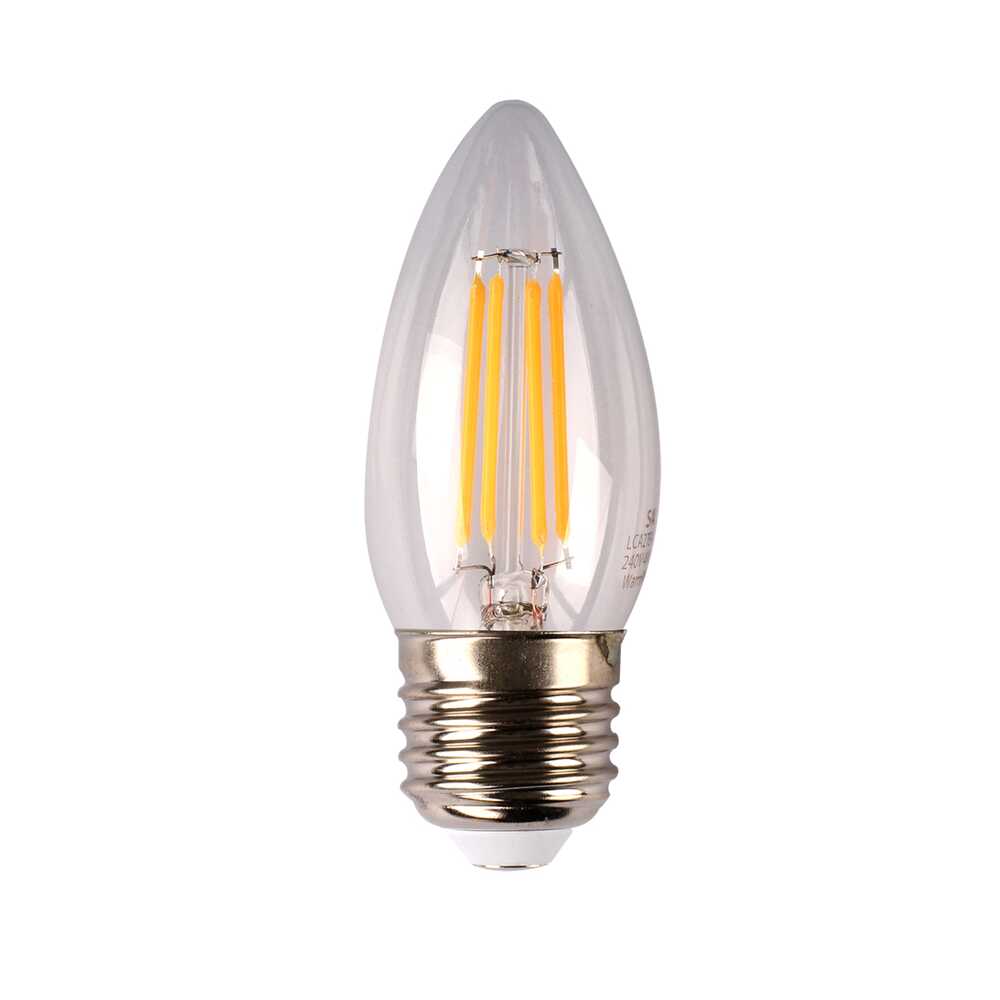

    Model No.LCA27E27D/C DescriptionLED CANDLE 4W E27 WW CLEAR DIM Input Voltage240 Power4 Lumens450 CCT2700 CRI80 Beam Angle320 Dimmable YES Dimensions92(L) x 37(W) Base TypeE27 Add to Enquiry Add Remove Remove
    Model No.LCA50B15D/C DescriptionLED CANDLE 4W B15 DL CLEAR DIM Input Voltage240 Power4 Lumens450 CCT5000 CRI80 Beam Angle320 Dimmable YES Dimensions95(L) x 37(W) Base TypeB15 Add to Enquiry Add Remove Remove
    Model No.LCA50B22D/C DescriptionLED CANDLE 4W B22 DL CLEAR DIM Input Voltage240 Power4 Lumens450 CCT5000 CRI80 Beam Angle320 Dimmable YES Dimensions91(L) x 37(W) Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LCA50E14D/C DescriptionLED CANDLE 4W E14 DL CLEAR DIM Input Voltage240 Power4 Lumens450 CCT5000 CRI80 Beam Angle320 Dimmable YES Dimensions97(L) x 37(W) Base TypeE14 Add to Enquiry Add Remove Remove
    Model No.LCA50E27D/C DescriptionLED CANDLE 4W E27 DL CLEAR DIM Input Voltage240 Power4 Lumens450 CCT5000 CRI80 Beam Angle320 Dimmable YES Dimensions92(L) x 37(W) Base TypeE27 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
