• LED LAMPS

G4 SERIES G4L15 - 1.5W

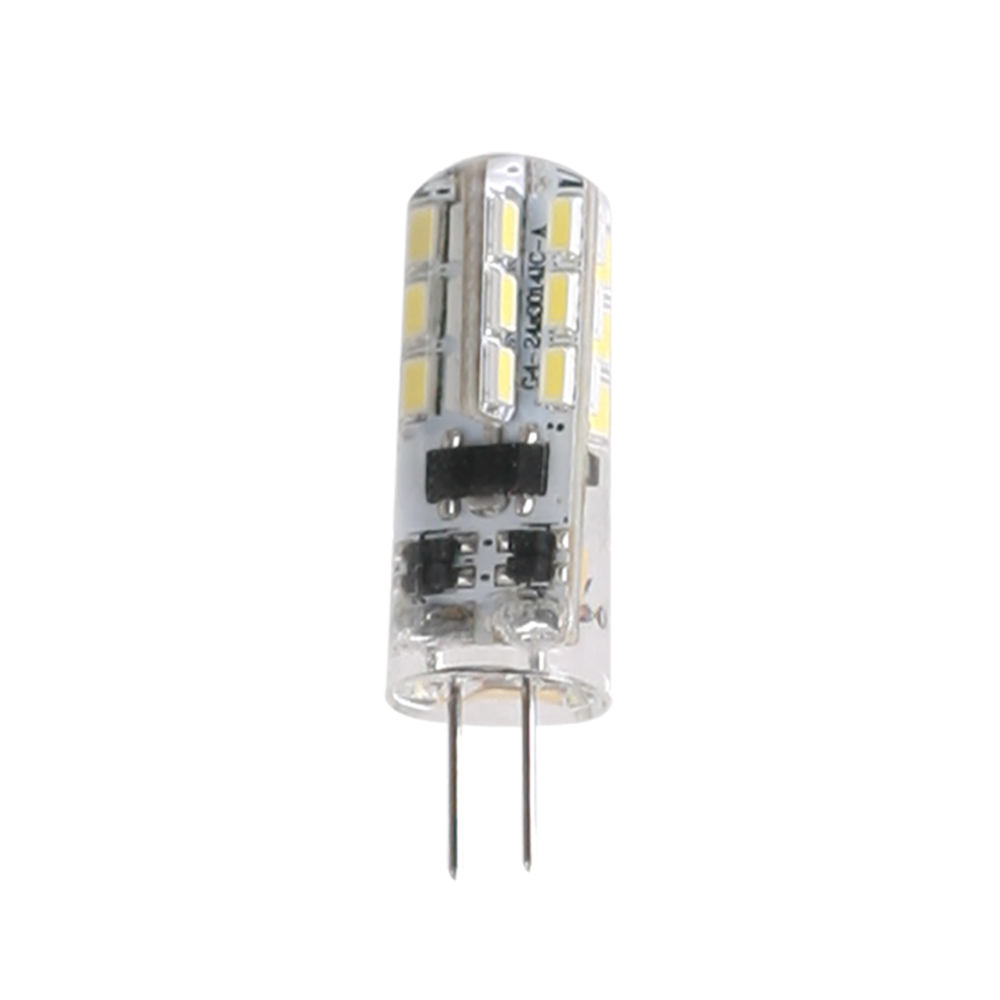

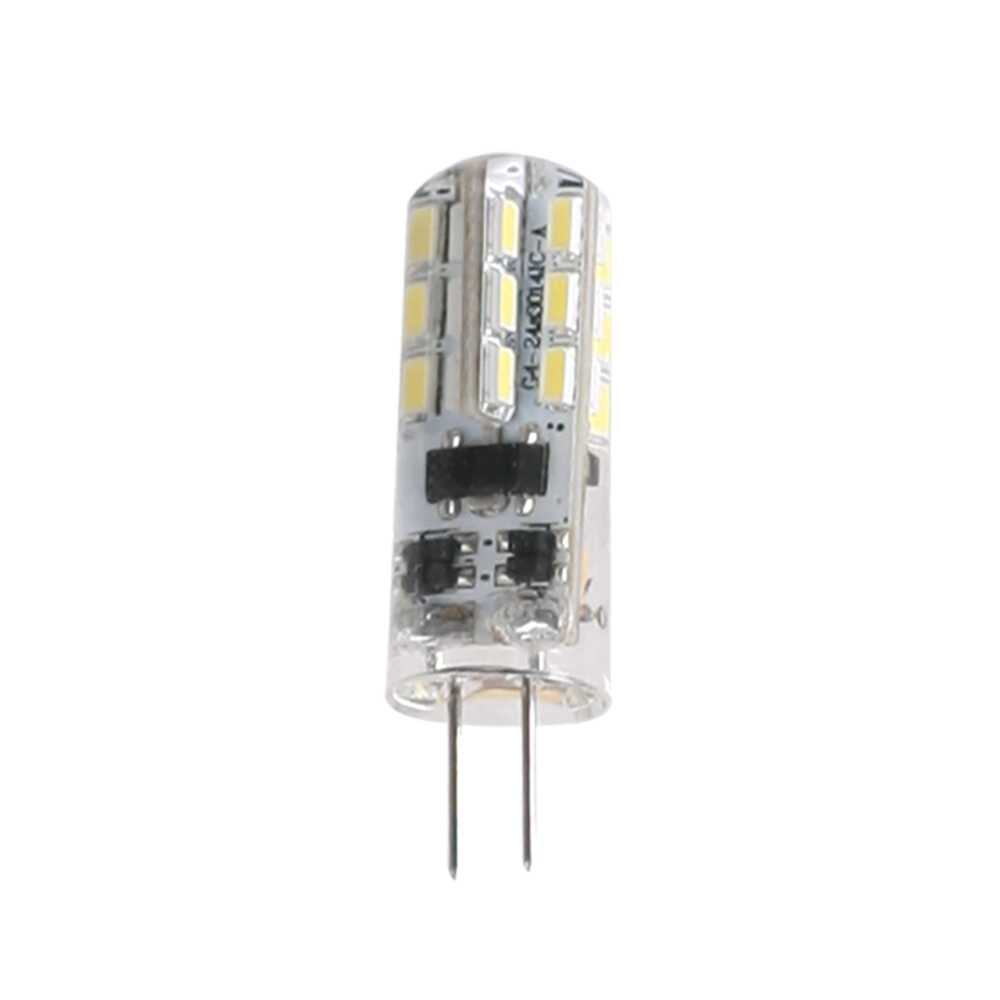

1.5 watt LED G4 base lamp

Application

Energy efficient LED lamp solutions designed for G4 base luminaires

Design Specifications

  • Transparent silicone body
  • 12V AC or DC driver required
  • High efficiency SMD LED chips
  • Colour temperatures 3000K, 6000K, CRI > 80

  • Wide beam angle 270 degree

  • Compatible with most electronic transformers, Suits most G4 lamp fittings

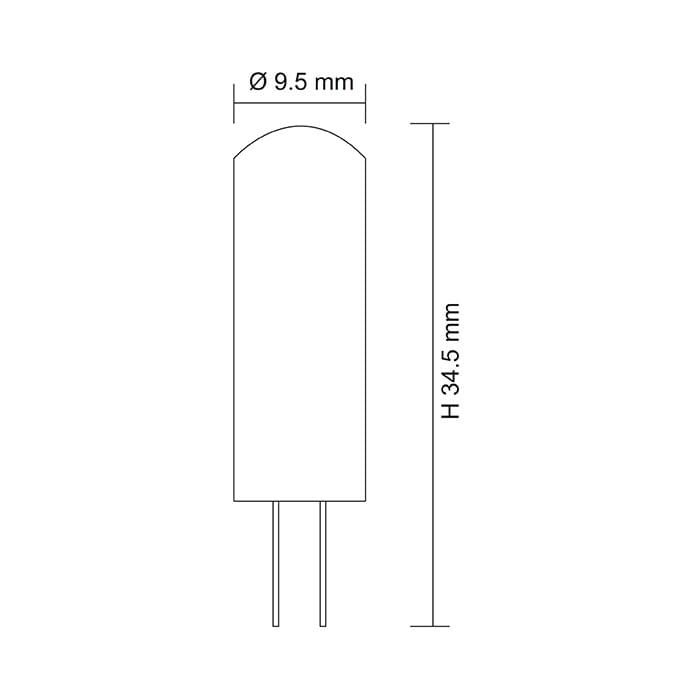

  • Dimensions
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Description Input Power Lumens CCT CRI Base Type Beam Angle Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.G4L15DL DescriptionLED G4 LAMP 10mm 1.5 W 6K Input12V DC Power1.5 Lumens100 CCT6000 CRI80 Base TypeG4 Beam Angle120 Add to Enquiry Add Remove Remove
    Model No.G4L15WW DescriptionLED G4 LAMP 10mm 1.5 W 3K Input12V DC Power1.5 Lumens90 CCT3000 CRI80 Base TypeG4 Beam Angle120 Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
