• LED LAMPS

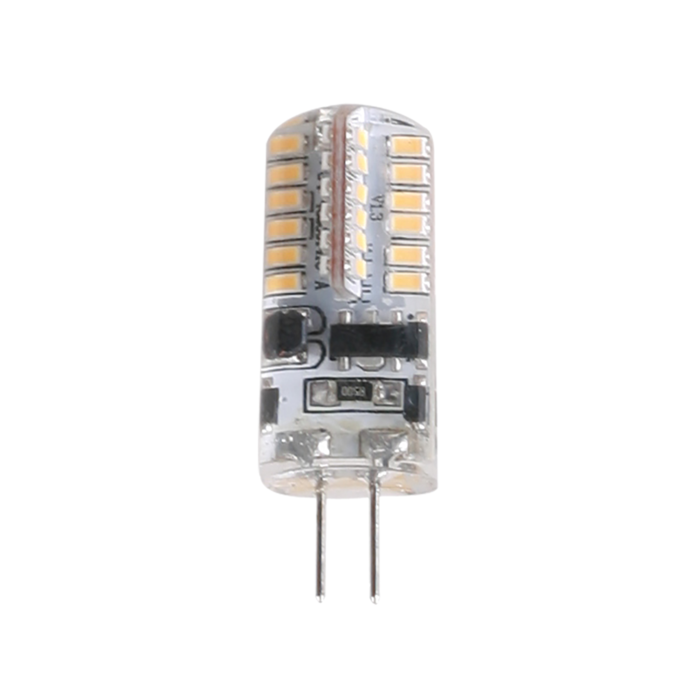

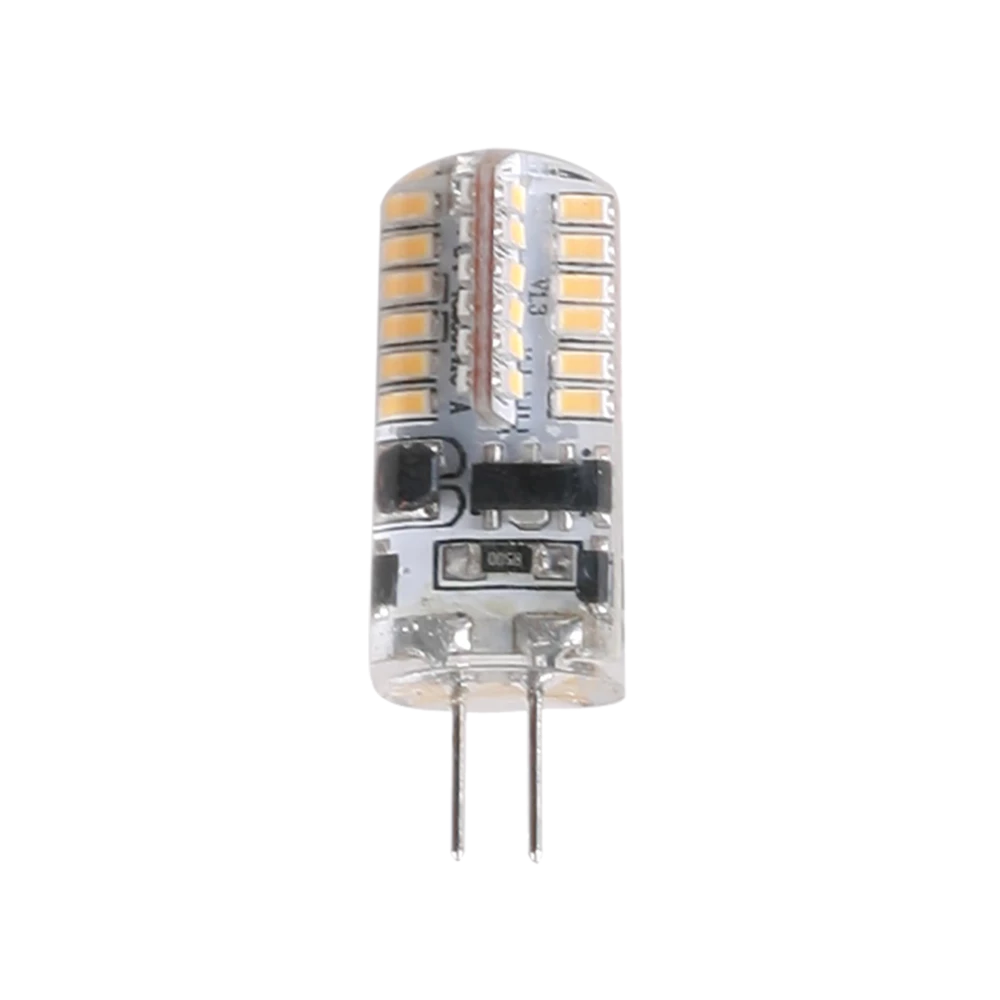

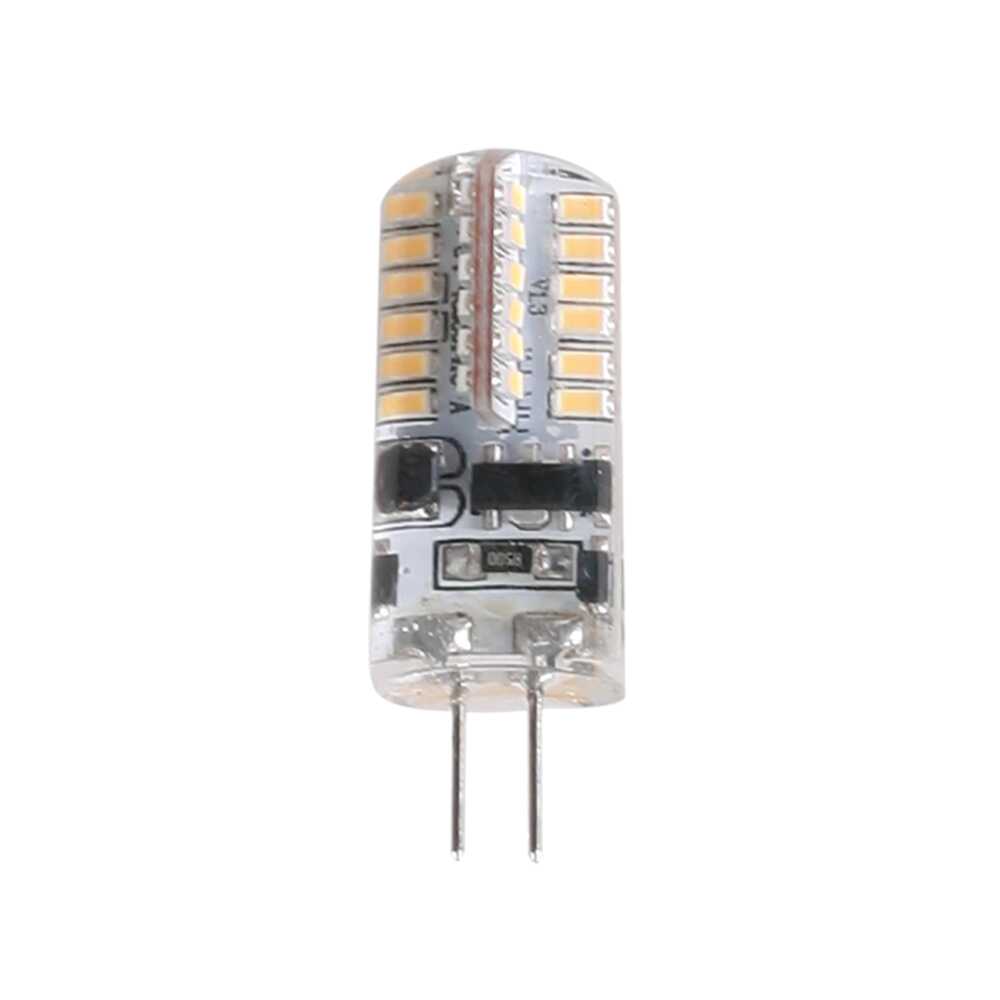

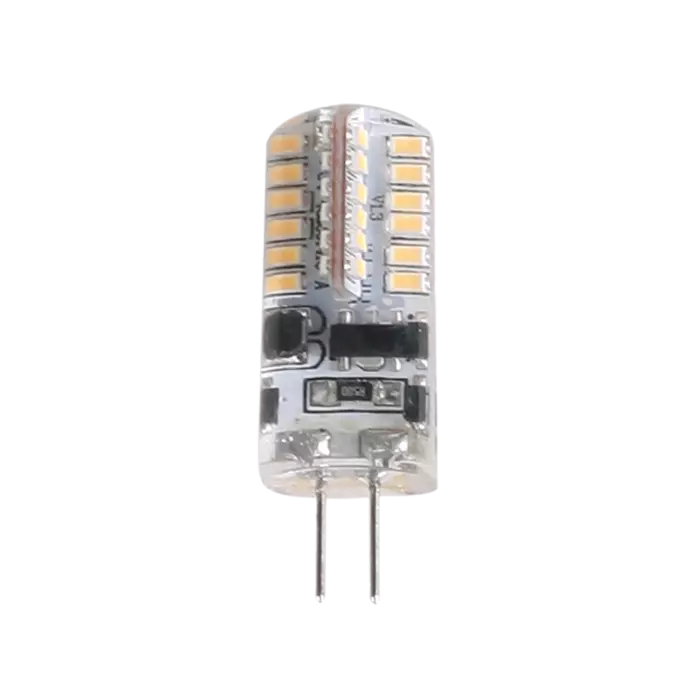

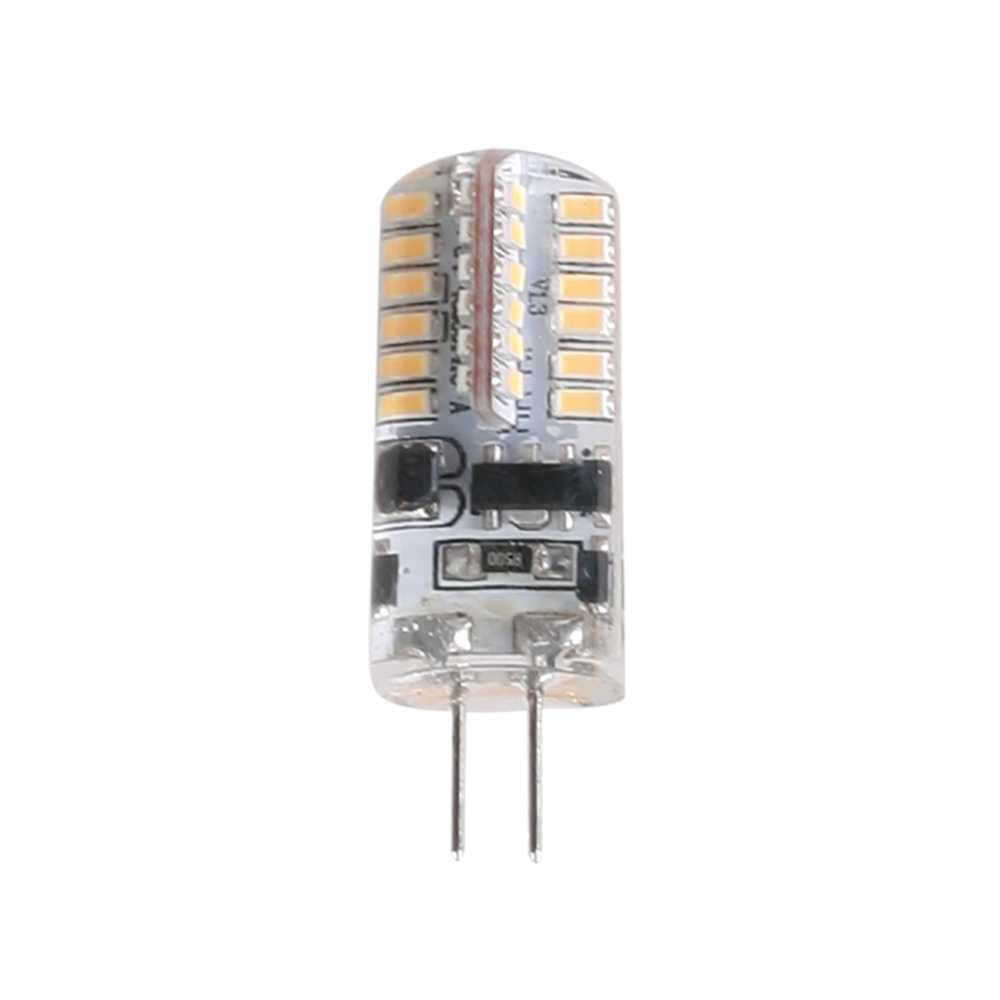

G4 BASE G4L25 - 2.5W

2.5 watt LED G4 lamp

Application

Energy efficient LED lamp solutions, designed for G4 base luminaires

Design Specifications

  • Transparent silicone body
  • 12V AC or DC driver required
  • High efficiency SMD LED chips
  • Colour temperatures 3000K, 6000K
  • Wide beam angle, 270 degree

  • Compatible with most electronic transformers, Suits most G4 lamp fittings

  • WARM WHITE3000K
  • DAYLIGHT6000K
  • WARM WHITE3000K
  • DAYLIGHT6000K

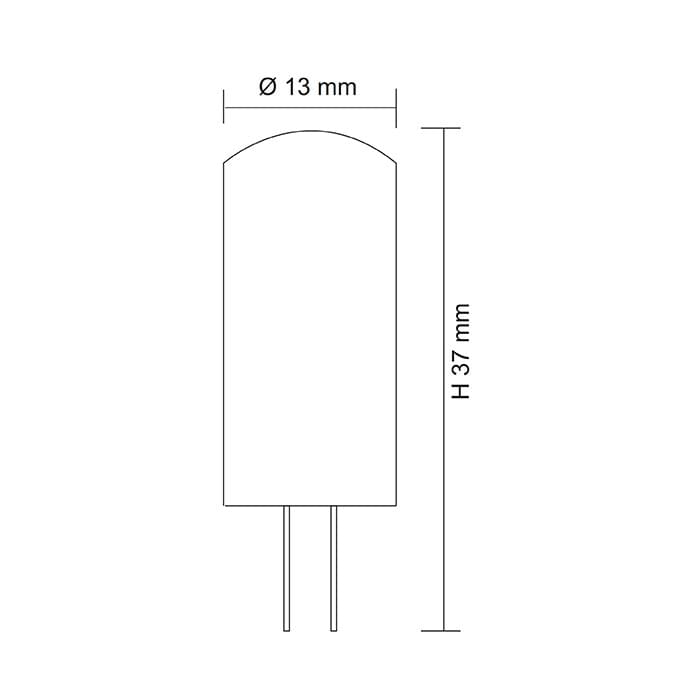

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.G4L25WW DescriptionLED G4 LAMP 13mm 2.5W 3K Input Voltage12 Input Voltage12 Power2.5 Lumens160 CCT3000 CRI80 Beam Angle270 Dimmable NO Dim37(H) Base TypeG4 Add to Enquiry Add Remove Remove
    Model No.G4L25DL DescriptionLED G4 LAMP 13mm 2.5W 6K Input Voltage12 Input Voltage12 Power2.5 Lumens180 CCT6000 CRI80 Beam Angle270 Dimmable NO Dim37(H) Base TypeG4 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
