• LED LAMPS

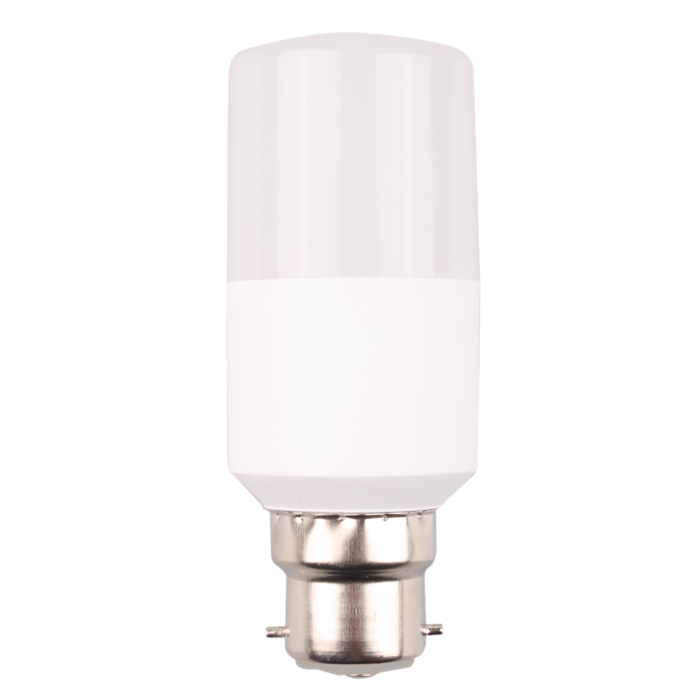

LT SERIES DIMM LT409D - 9W

9 watt dimmable LED SMD tubular lamps

Application

Energy efficient LED lamp solutions

Design Specifications

  • Opal polycarbonate diffuser
  • Poly covered aluminium body
  • High efficiency SMD LED chips, beam 240 degree

  • Integral dimmable LED driver

  • Colour temperature 3000K, 4000K, 6000K, CRI >80

  • Suits most CFL lamp fitting, lamp bases B22, E27

Performance

Dimmable Driver - YES
Dimmer Type - TRAILING EDGE

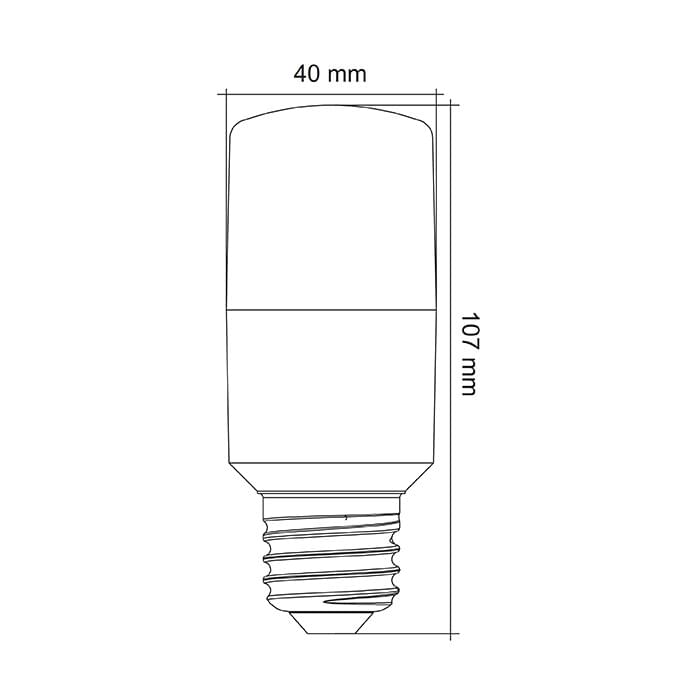

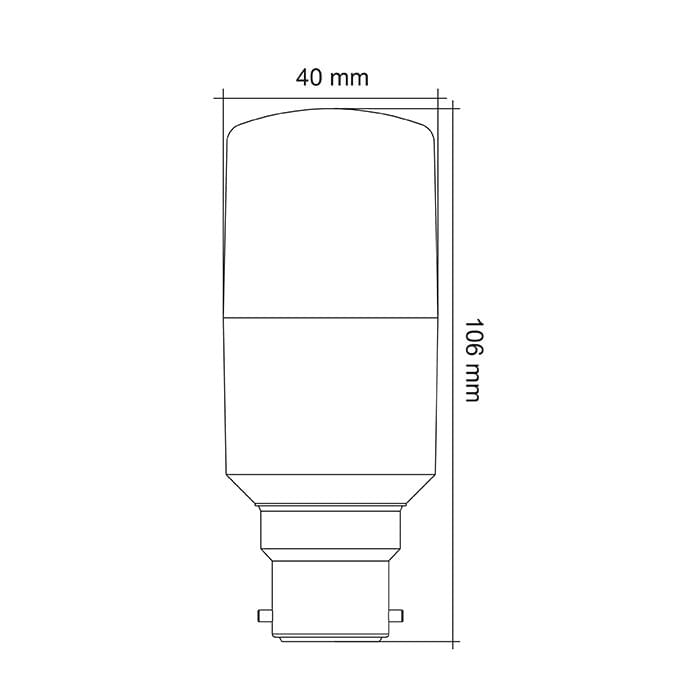

  • Dimensions
  • Design Options
    Dimmer Trailing Edge YES
  • Photometric Data
  • Technical Specifications
    Model No. Description Input Power Lumens CCT CRI Base Type Beam Angle Dimmable Driver Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.LT409/27B22D DescriptionLED TUBULAR 40mm 9W B22 3K DIM Input240 Power9 Lumens850 CCT3000 CRI80 Base TypeB22 Beam Angle240 Dimmable DriverYES Add to Enquiry Add Remove Remove
    Model No.LT409/27E27D DescriptionLED TUBULAR 40mm 9W E27 3K DIM Input240 Power9 Lumens850 CCT3000 CRI80 Base TypeE27 Beam Angle240 Dimmable DriverYES Add to Enquiry Add Remove Remove
    Model No.LT409/40B22D DescriptionLED TUBULAR 40mm 9W B22 4K DIM Input240 Power9 Lumens900 CCT4000 CRI80 Base TypeB22 Beam Angle240 Dimmable DriverYES Add to Enquiry Add Remove Remove
    Model No.LT409/40E27D DescriptionLED TUBULAR 40mm 9W E27 4K DIM Input240 Power9 Lumens900 CCT4000 CRI80 Base TypeE27 Beam Angle240 Dimmable DriverYES Add to Enquiry Add Remove Remove
    Model No.LT409/65B22D DescriptionLED TUBULAR 40mm 9W B22 6K DIM Input240 Power9 Lumens950 CCT6500 CRI80 Base TypeB22 Beam Angle240 Dimmable DriverYES Add to Enquiry Add Remove Remove
    Model No.LT409/65E27D DescriptionLED TUBULAR 40mm 9W E27 6K DIM Input240 Power9 Lumens950 CCT6500 CRI80 Base TypeE27 Beam Angle240 Dimmable DriverYES Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
