PANEL S9754HC - 40/50W

40 watt LED high CRI, low COI

Application

Low COI suitable for use in hospitals and medical centres to achieve compliance with AS/NZS 1680.2.5

Design Specifications

  • Extruded aluminium profile with high efficiency opal polystyrene back diffuser
  • Quality white powder coated finish

  • High efficiency SMD LED chips, beam distribution 100 degree

  • Integral constant current non-dimmable LED driver, 40 watt

  • Cyanosis Observation Index (COI) compliant with AS/NZS 1680.2.5, High colour rendering with emergency options available. COI < 1.8.

  • Dimensions (length a width x height mm) - S9754/312 = 1195 X 295 X 10, S9754/606 = 595 X 595 X 10, S9754/612 = 1195 X 595 X 10


  • Dimensions
  • Design Options
    Dimmer 1-10V YES
    Dimmer DSI YES
    Dimmer DALI YES

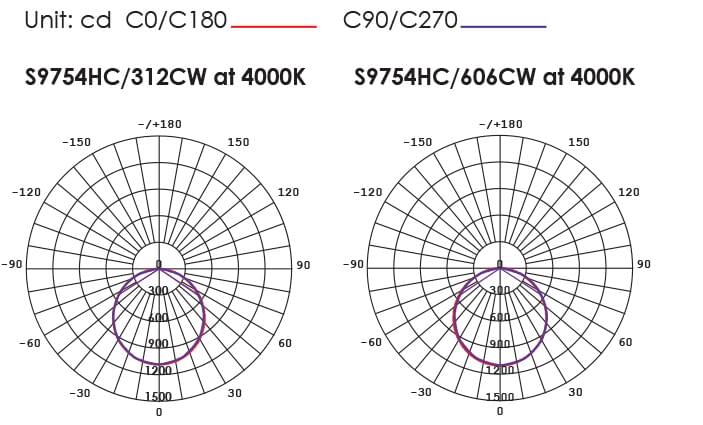

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Power Lumens CCT Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9754HC/312CW DescriptionLED PANEL HIGH CRI 295 x 1195mm CW Input240 Power40 Lumens2800 CCT4000 Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9754HC/606CW DescriptionLED PANEL HIGH CRI 595 X 595mm CW Input240 Power40 Lumens3200 CCT4000 Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9754HC/612CW DescriptionLED PANEL HIGH CRI 595 x 1195mm CW Input240 Power50 Lumens4000 CCT4000 Body ColourWHITE Add to Enquiry Add Remove Remove

    INSTALLATION TYPES - Standard metric T-Bar ceiling recessed installation, Air Slot models to suit –/312 panel sizes, Plaster ceiling recessed installation (S9704 Plaster ceiling frame required), Clean Room models to suit –/606, –/312 panels sizes, Surface mounted installation (S312FM, S606FM surface mounted frame required), Suspended installation (SSI1512 & S9714SP6 or SSY1512 & S9714SP6, Suspension Kits required Dimming options - 1-10V analogue (excluding S9754HC/612)
