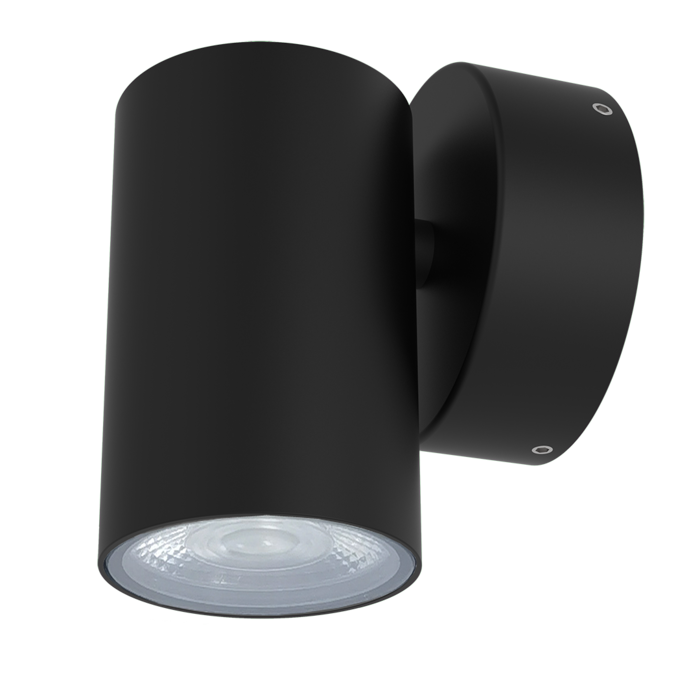

IP65 LED architectural wall luminaires


A decorative residential or commercial, exterior or interior LED solution

Design Specifications

  • Machined 316L stainless steel or cast aluminium body with a black powder coat or a stainless finish

  • Clear tempered glass cover

  • High efficiency LED optics, beam distribution 36°

  • Integral non-dimmable LED driver

  • Downward light distribution


  • Dimmable - NO

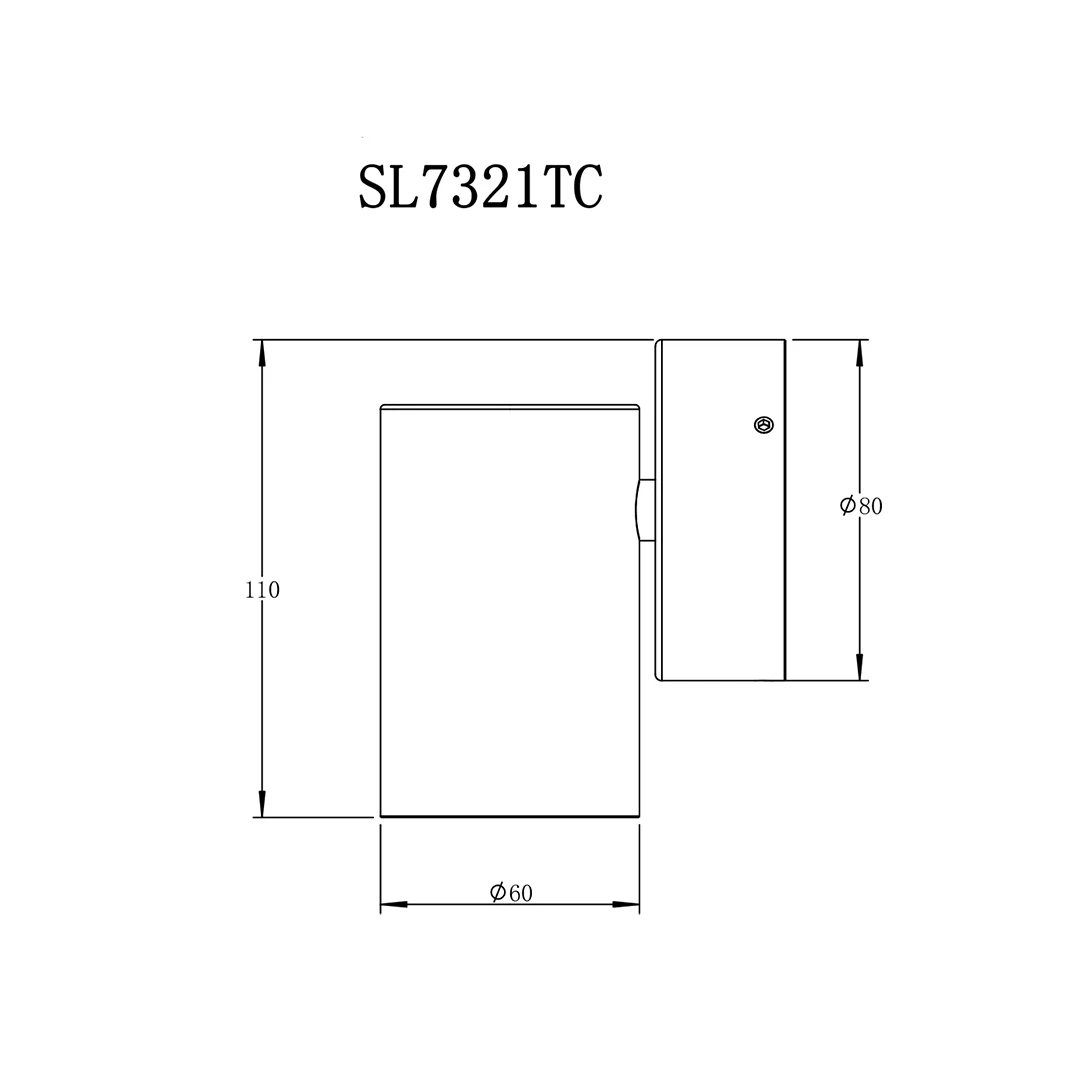

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.

  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click

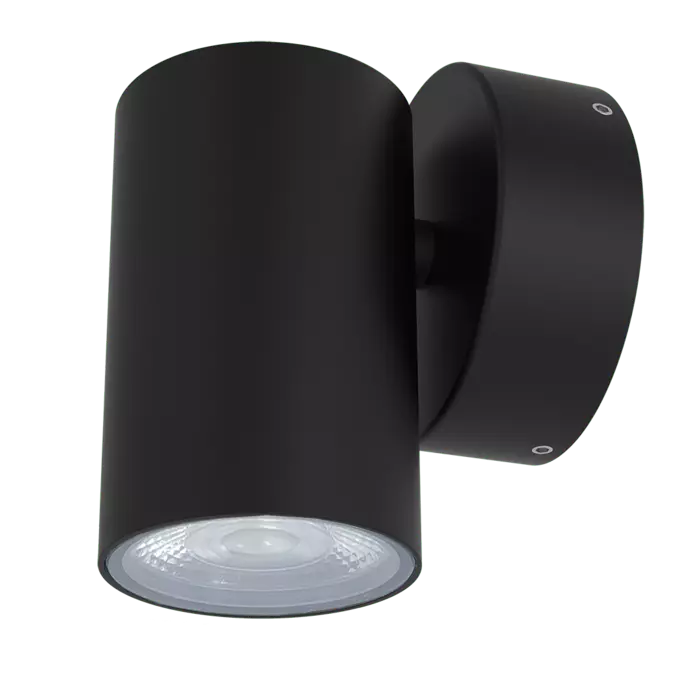

    Model No.SL7321TC/BK Input Voltage240 Power5 Lumens400/430/470 CCT3000/4000/6000 CRI80 Beam Angle36 Mass0.5 Diameter60 Dim110(H) Body ColourBLACK Add to Enquiry Add Remove Remove

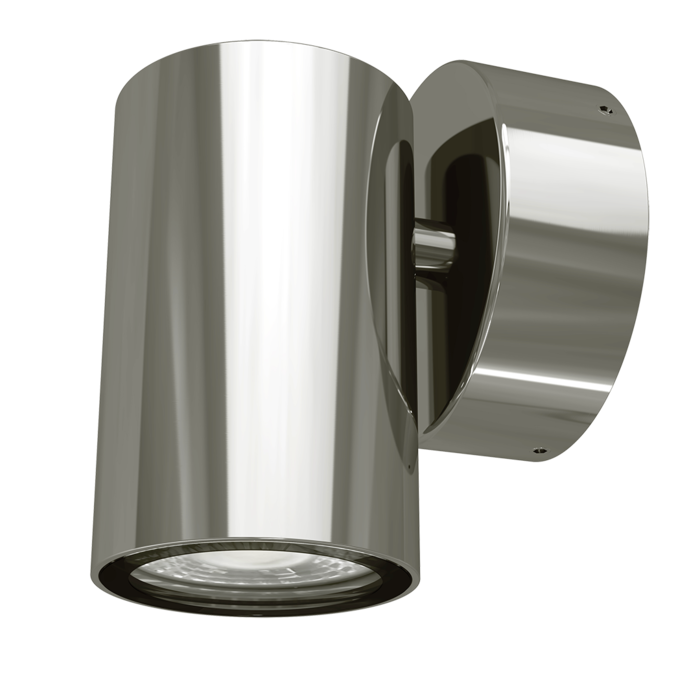

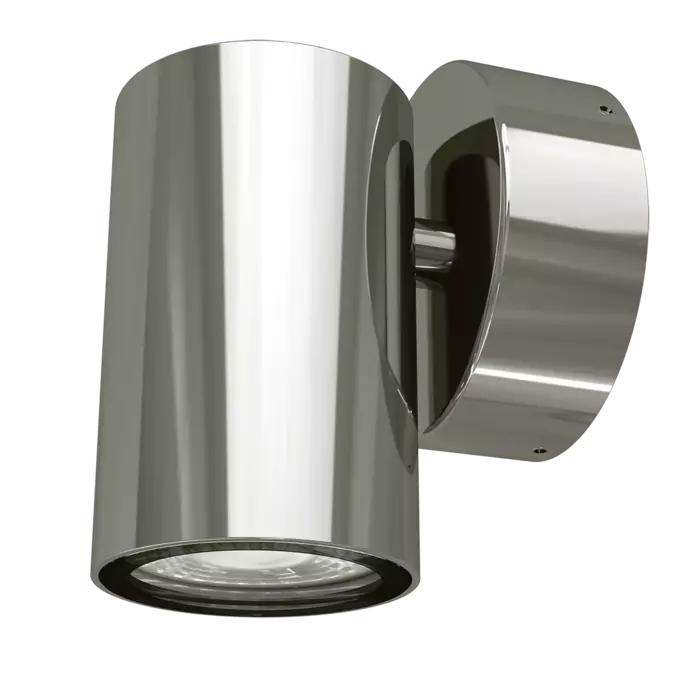

    Model No.SL7321TC/AST Input Voltage240 Power5 Lumens400/430/470 CCT3000/4000/6000 CRI80 Beam Angle50 Mass0.5 Diameter60 Dim110(H) Body ColourALUMINIUM STAINLESS Add to Enquiry Add Remove Remove

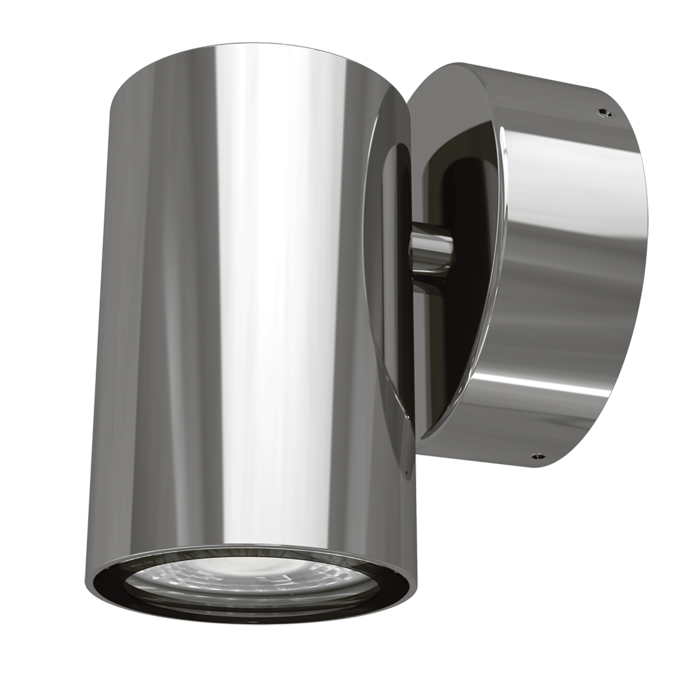

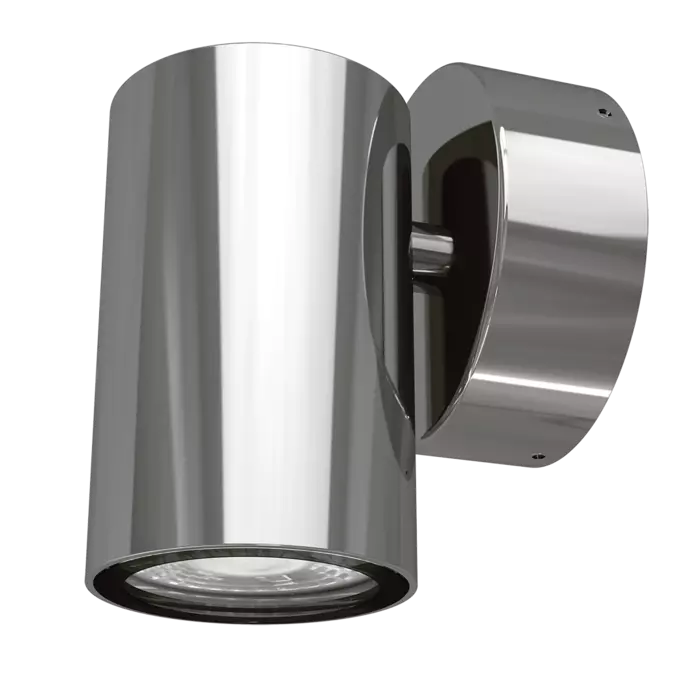

    Model No.SL7321TC/SLS Input Voltage240 Power5 Lumens400/430/470 CCT3000/4000/6000 CRI80 Beam Angle36 Mass1 Diameter60 Dim110(H) Body ColourSTAINLESS Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
