• ARCHITECTURAL

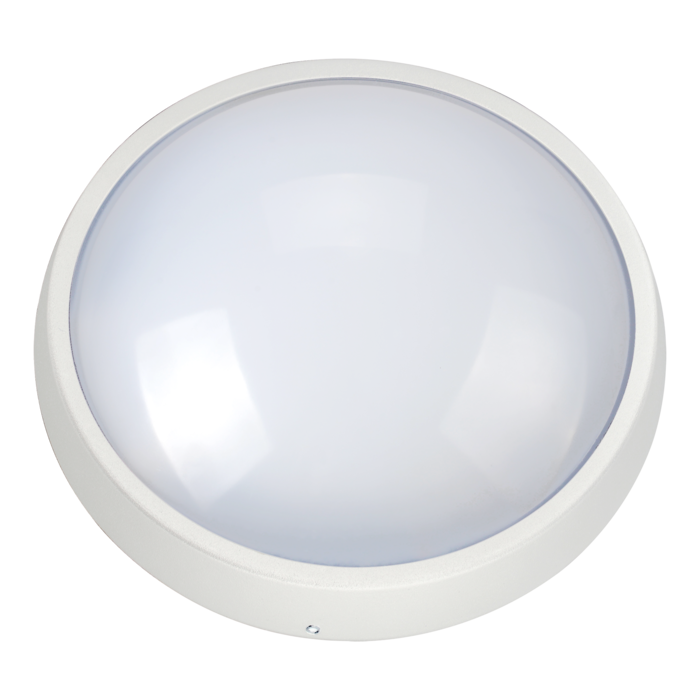

BUTTON SL7269 - 6W

6 watt IP65 LED bunker luminaire

Application

A decorative architectural solution for commercial exteriors

Design Specifications

  • Robust die-cast aluminium body
  • Durable powder coated finish, white or black

  • Opal polycarbonate diffuser
  • High efficiency LED optics

  • Integral constant current non-dimmable LED driver

Performance

  • Dimmable - NO
  • NEUTRAL DAYLIGHT5000K

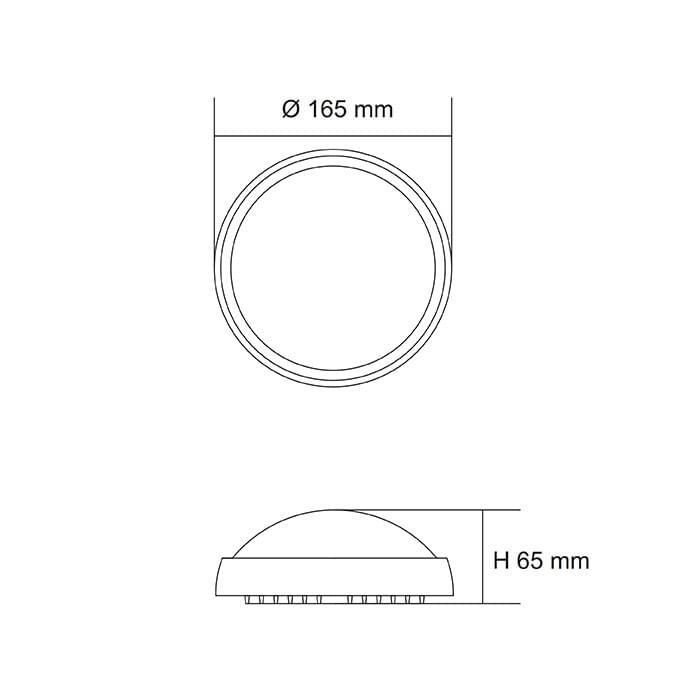

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL7269DL WH Input Voltage240 Power6 Lumens450 CCT5000 CRI80 Dim165(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL7269DL BK Input Voltage240 Power6 Lumens450 CCT5000 CRI80 Dim165(W) x 65(H) Body ColourBLACK Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
