• LED DOWNLIGHTS

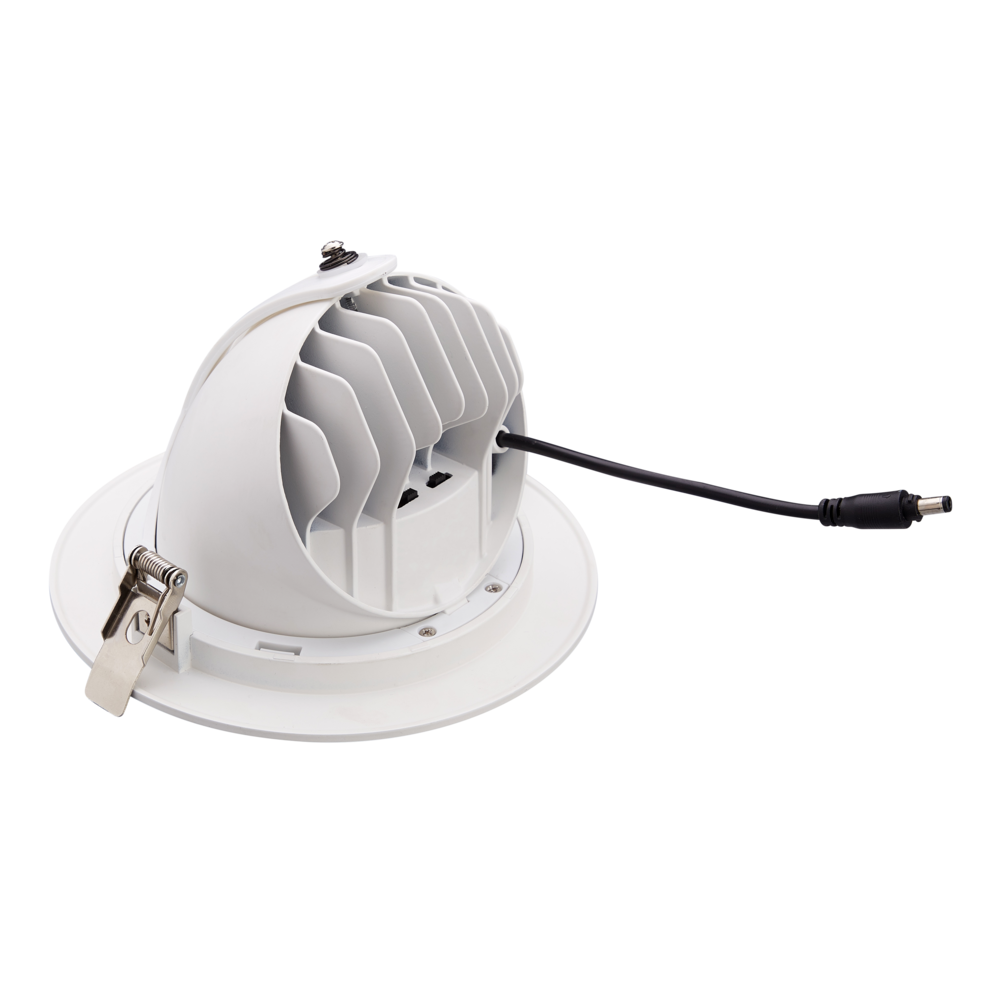

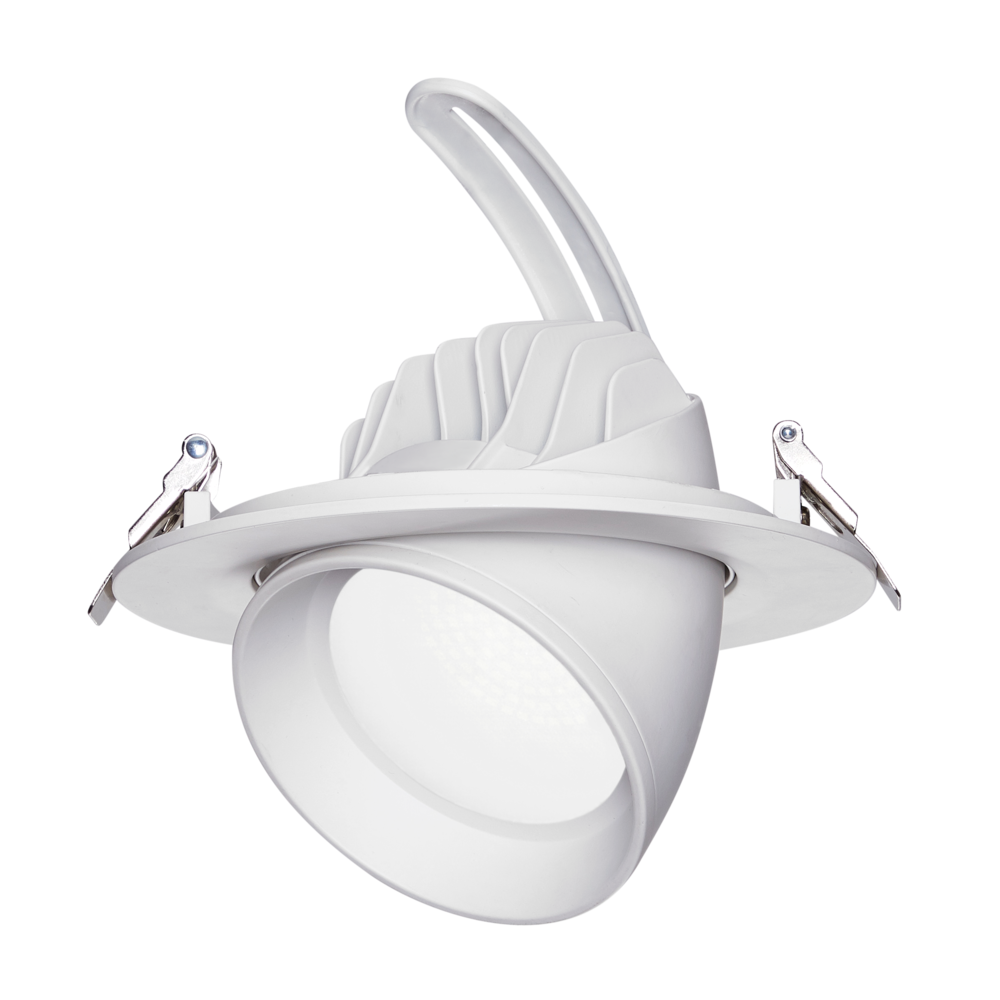

NEWMAN MKIII S9545TC/DP2 - 28W/38W

Rotable round gimbal LED Shoplight with selectable CCT and power

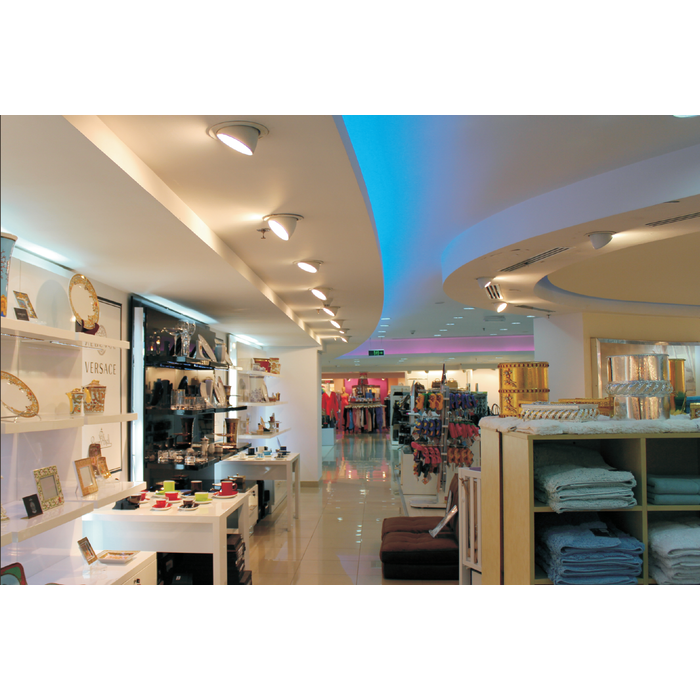

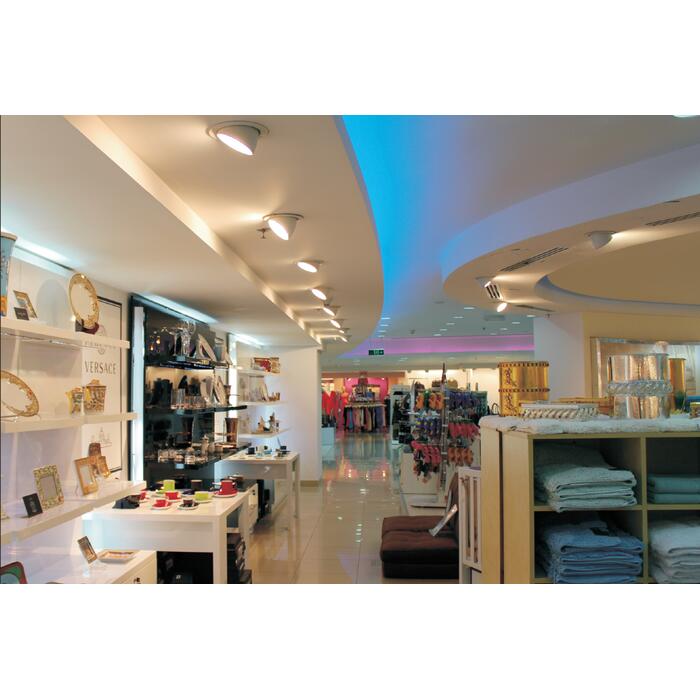

Application

Ideal for any retail or commercial interior space

Design Specifications

  • Durable die-cast aluminium body profile, with white trim

  • Selectable CCT 3000K / 4000K / 5700K

  • Selectable power 28W/38W

  • Opal PMMA diffuse

  • High efficiency LED optics, 90° reflector system

  • Remote, non-dimmable, dual power LED driver, with flex and plug, double insulated

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9545TC/WH/DP2 Input Voltage240 Multiple Wattage28/38 Lumens2600/3200/2800 CCT3000/4000/5700 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out165 Diameter195 Dim135(H) Add to Enquiry Add Remove Remove

    Note: Lumens (lm) shown are at full power rating

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
