• LED DOWNLIGHTS

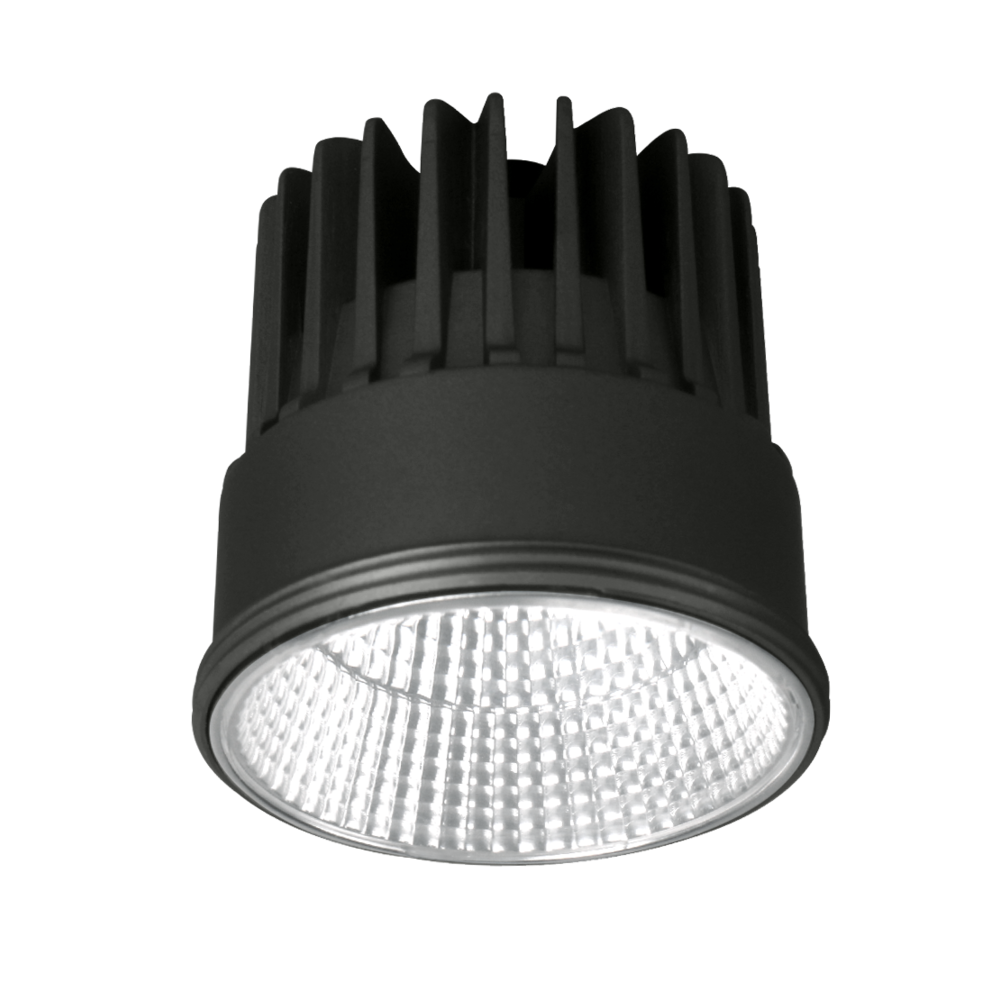

UNIFIT S9053HC - 8W

Dimmable 8 watt LED Module, CRI 90

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Efficient die-cast aluminium heat sink

  • High output COB LED chip, CRI > 90

  • Changeable multi-reflector system, standard 60 degree, optional 25 and 40 degree

  • Polycarbonate optical lens

  • Remote constant current trailing edge dimmable LED driver, fitted with flex and plug for plug and play

  • ACCESSORIES - S9053HC/P Honey comb, S9053DF/P Centre frost diffuser, S9053BF/P Buffer

Performance

Dimmable - YES
Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

  • WARM WHITE3000K
  • WARM WHITE3000K

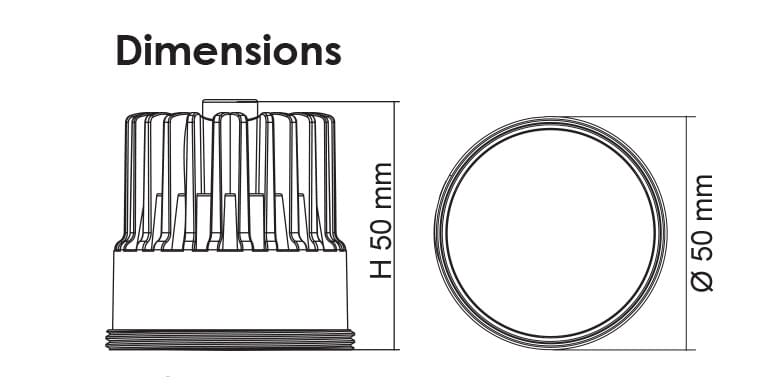

  • Dimensions - Wiring Diagrams

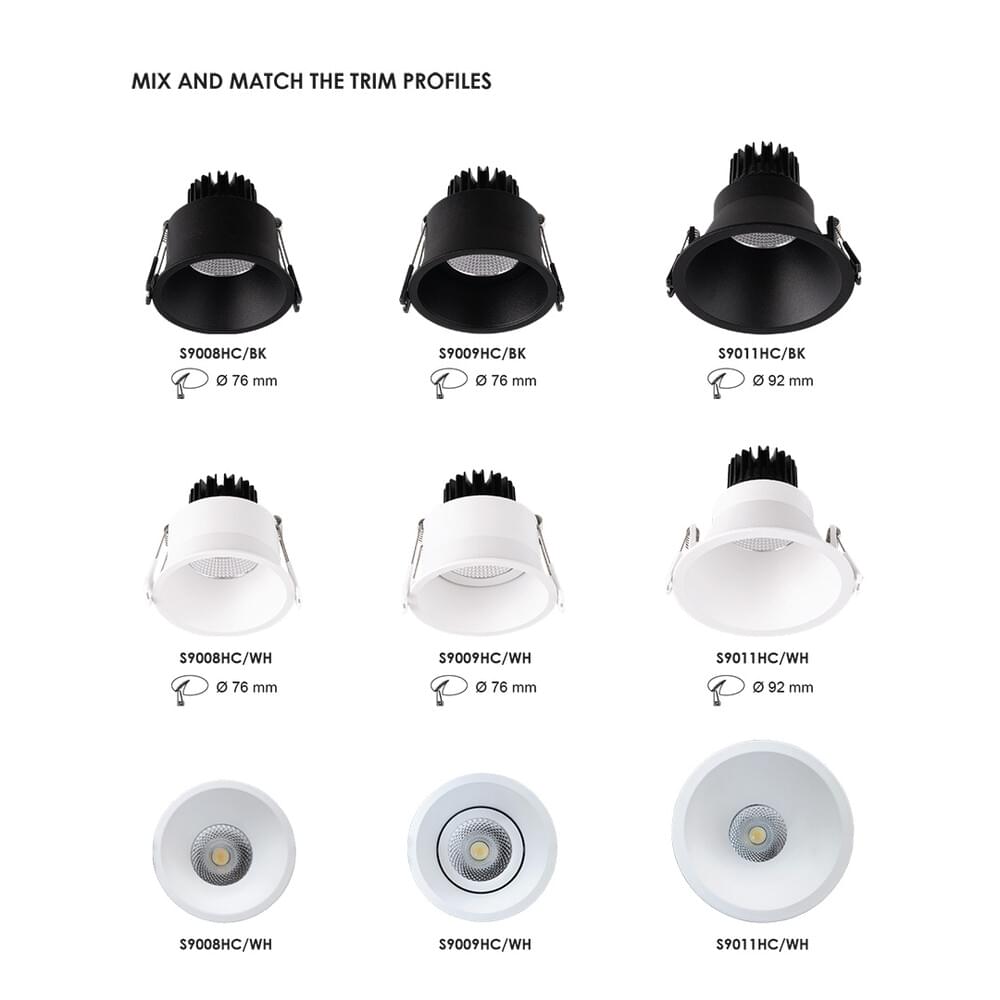

  • Design Options

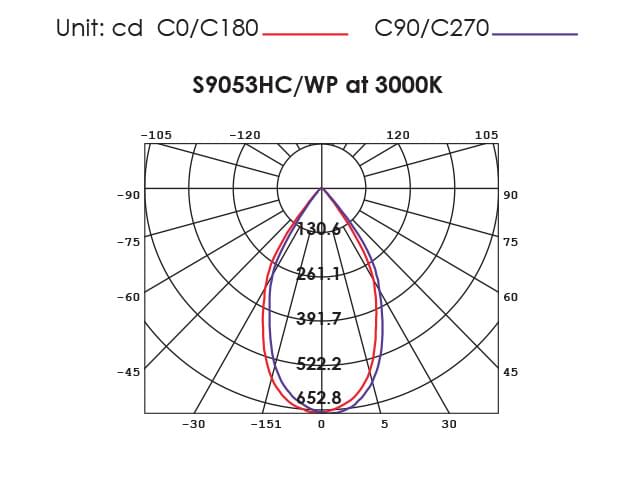

  • Photometric Data
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9053HC/WP Input Voltage240 Power8 Lumens620 CCT3000 Beam Angle60 Dimmable YES CRI90 Diameter50 Dim50(W) x 50(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
