• DOWNLIGHTS

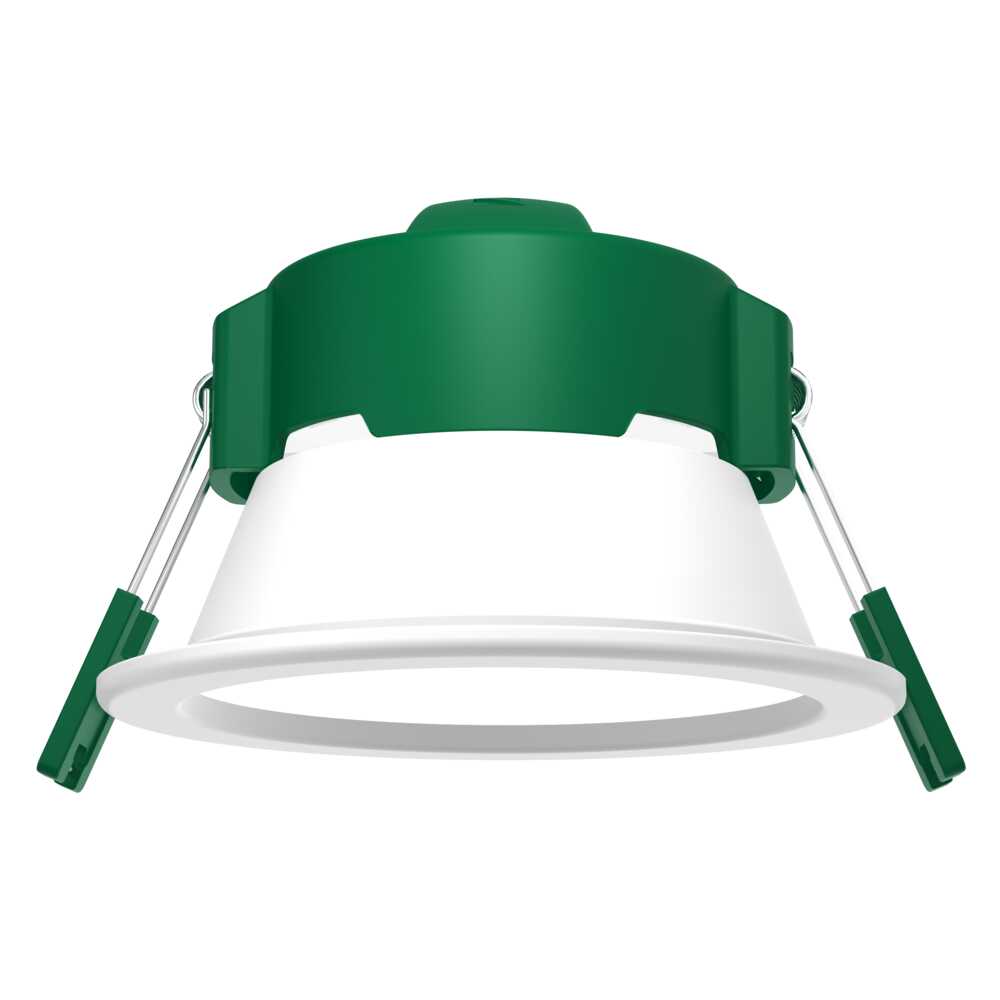

S9842 - 10W

Dimmable IP44 LED downlight, single CCT

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Choice of 3000 / 4000 / 6000K CCT models and fully compatible with SAL PIXIE or PIXIE PLUS Smart home controls.

  • Durable aluminium body profile, white trim face, IP44 rated

  • 10 watt integral control gear with smooth dimming functionality

  • IC-4 rated with a robust opal polycarbonate diffuser

  • 103mm trim profile , 92mm cut-out, plug and play flex and plug - ready to go.

Performance

  • Dimmable - YES
  • Dimmer Type - TRAILING EDGE
  • COOL WHITE4000K
  • WARM WHITE3000K
  • DAYLIGHT6000K

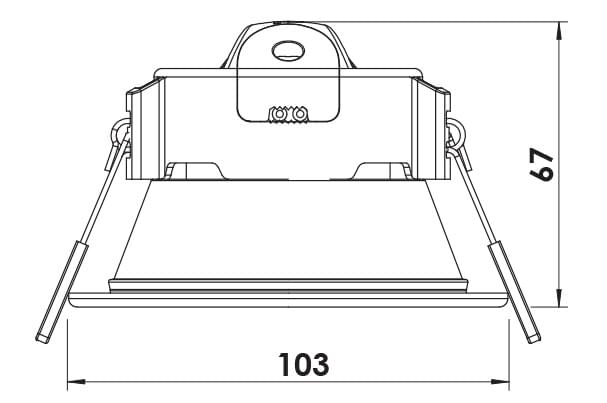

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 WHITE
    Dimmer Trailing Edge YES
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9842WW/WH Input Voltage240 Power10 Lumens800 CCT3000 Beam Angle90 CRI80 Body ColourWHITE Cut Out92 Diameter103 Dim67(H) Add to Enquiry Add Remove Remove
    Model No.S9842CW/WH Input Voltage240 Power10 Lumens900 CCT4000 Beam Angle90 CRI80 Body ColourWHITE Cut Out92 Diameter103 Dim67(H) Add to Enquiry Add Remove Remove
    Model No.S9842DL/WH Input Voltage240 Power10 Lumens850 CCT6000 Beam Angle90 CRI80 Body ColourWHITE Cut Out92 Diameter103 Dim67(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
