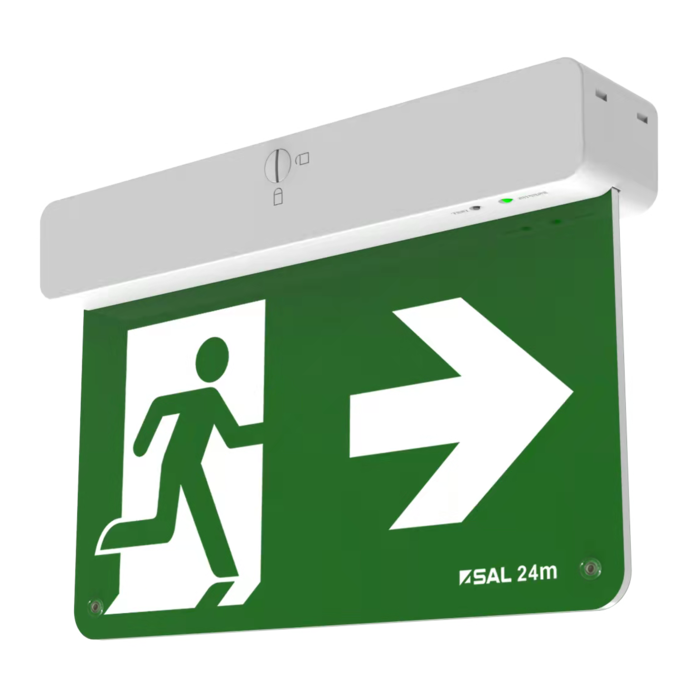

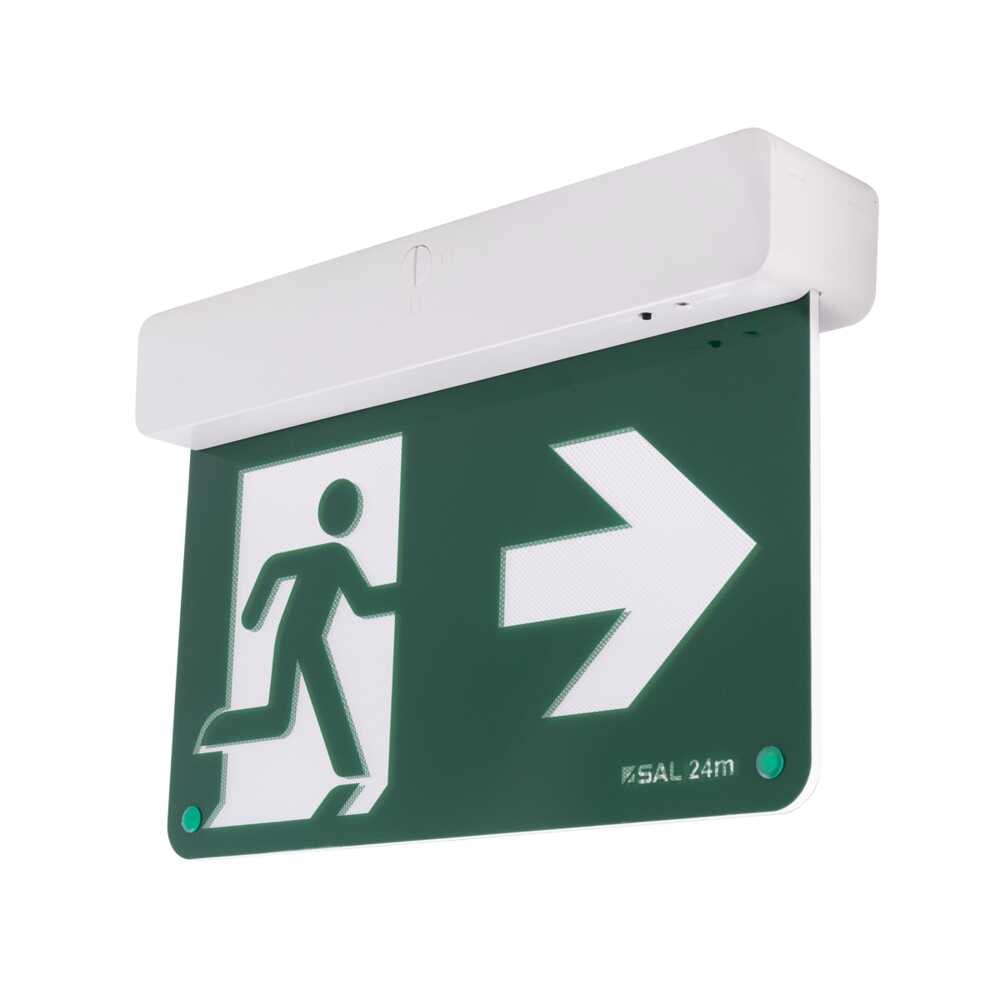

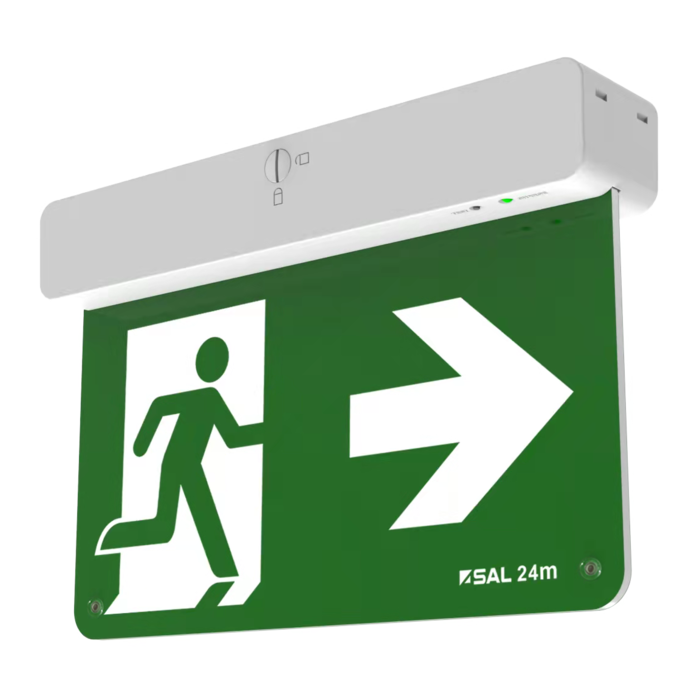

EMERGENCY EXIT SELK1500EX3 - 2.8W

MAINTAINED - SELK1500EX3 Emergency Exit 24 metre viewing

Application

A perfect choice for apartments or commercial spaces

Design Specifications

  • Compliant to AS/NZS 2293, emergency lighting with a viewing distance of 24 metres, E2.5@C0, E1.25@C90

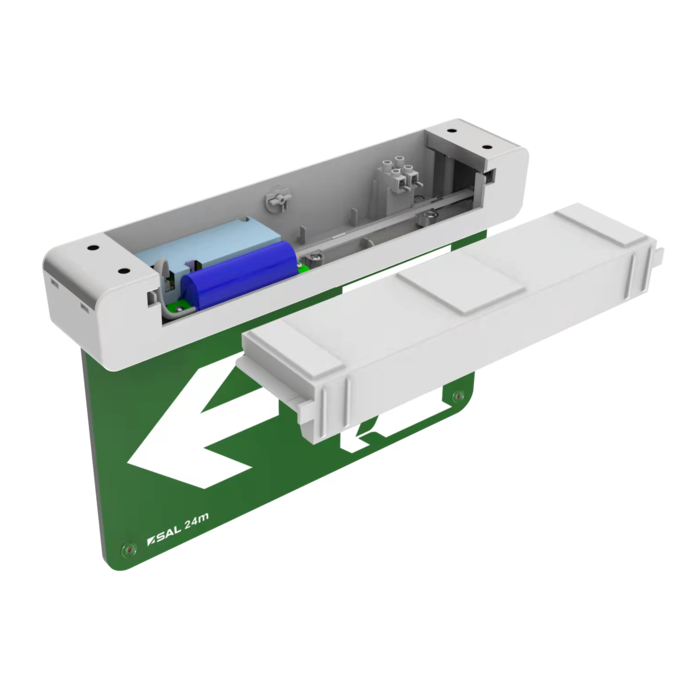

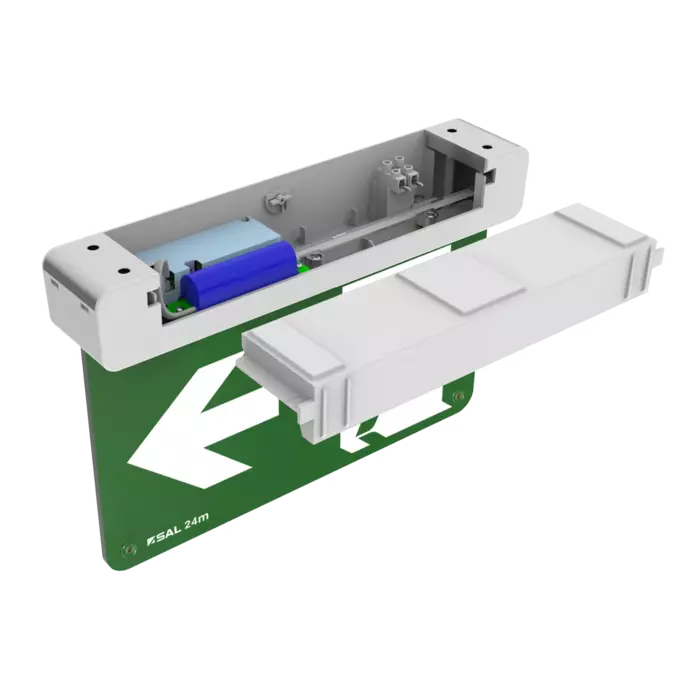

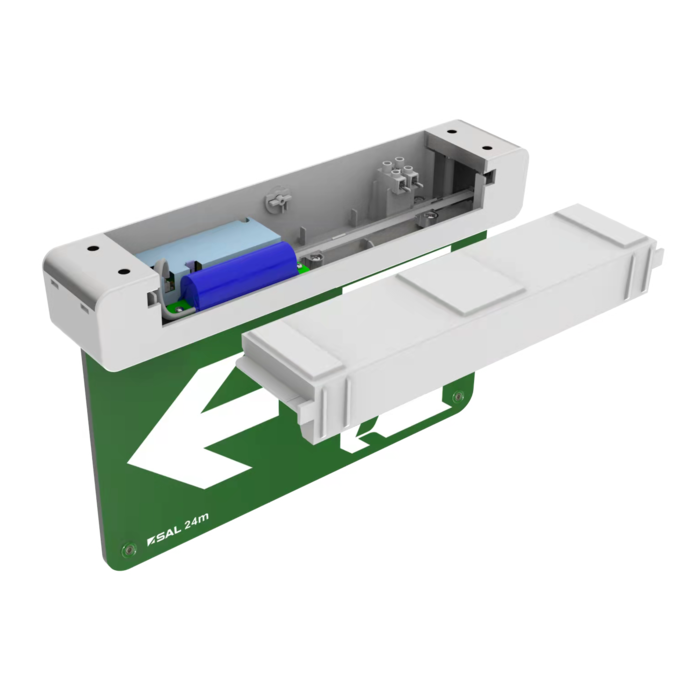

  • Polycarbonate body profile, IP20, integral 2.8 watt emergency control gear with long life Lithium battery technology

  • Multi-directional decals included

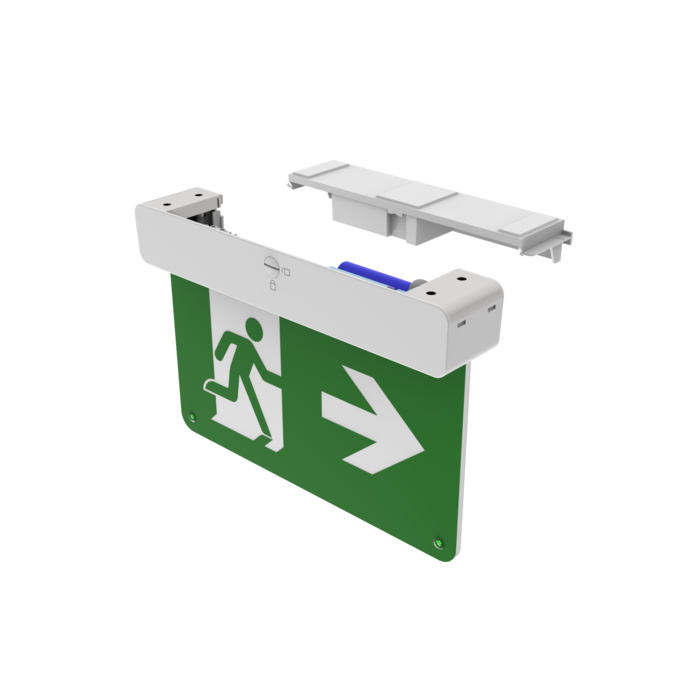

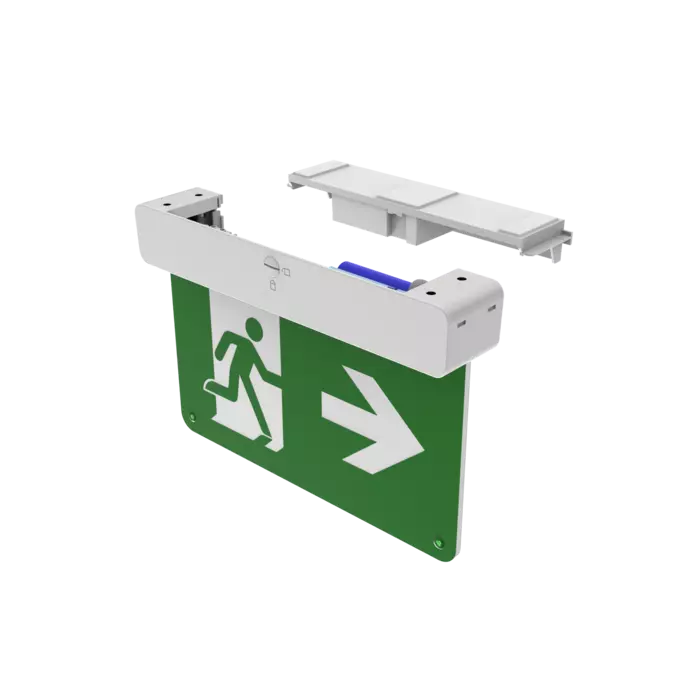

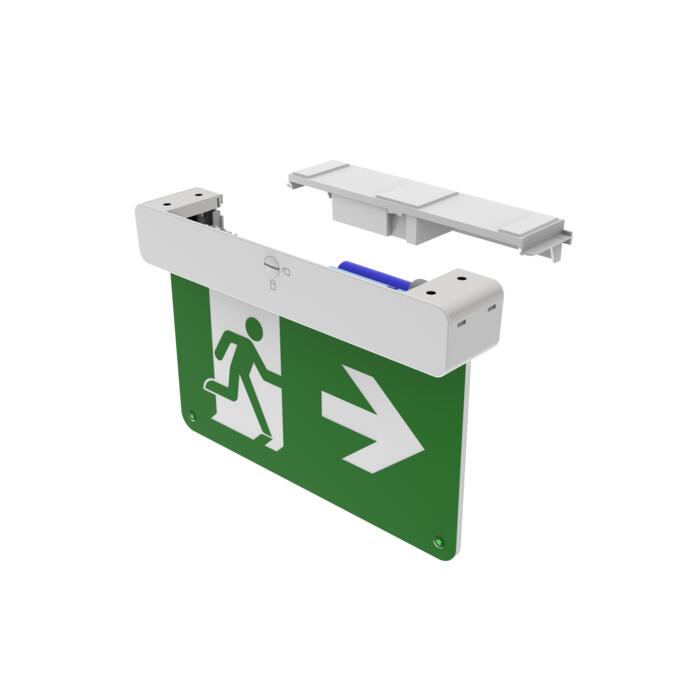

  • Versatile design to allow ceiling or wall mount installation, with quick connect removable decal housing.

  • Guaranteed 90 minutes emergency function.

  • Optional SELF-TEST systems available

Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power CRI Body Colour Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

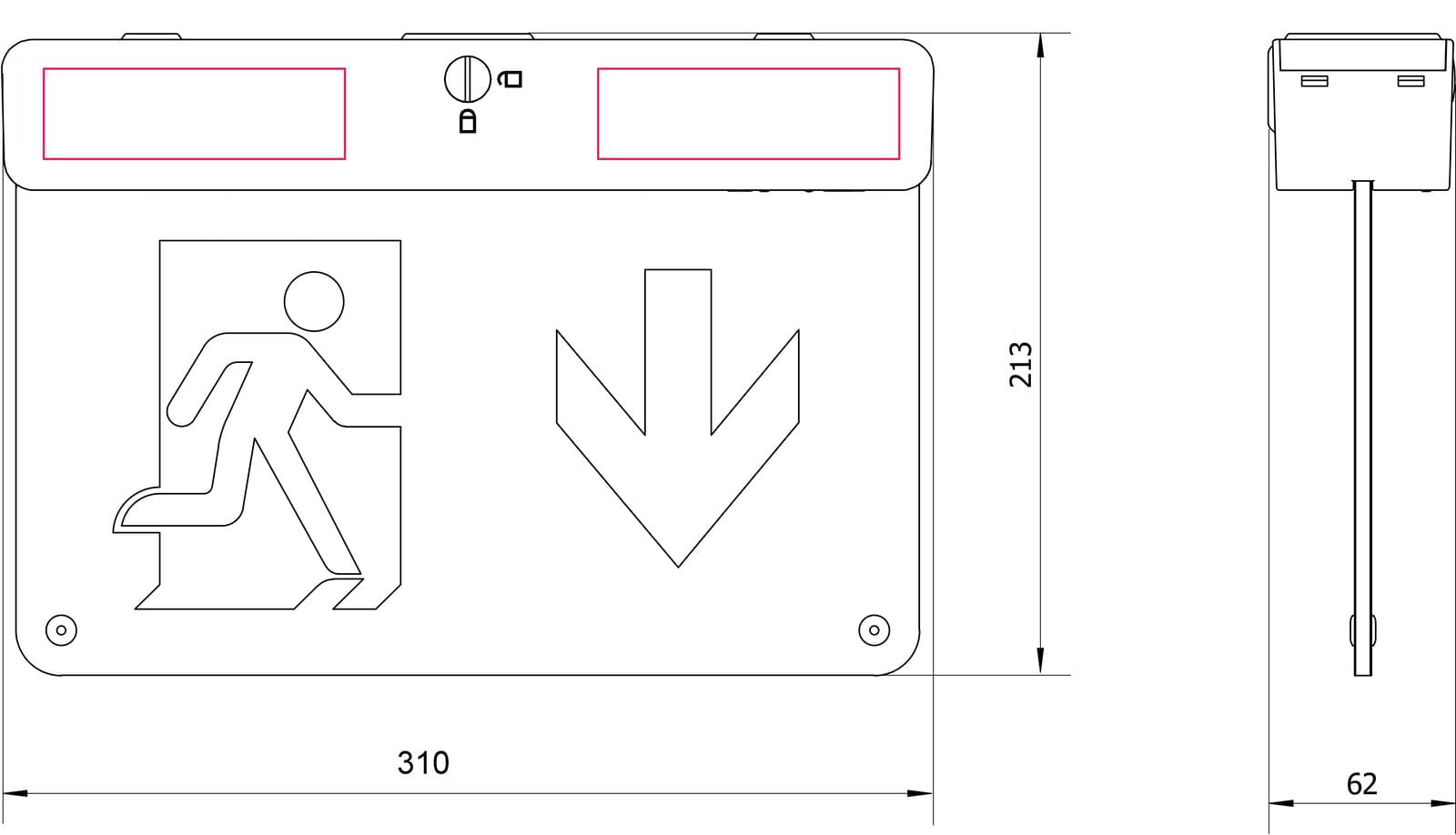

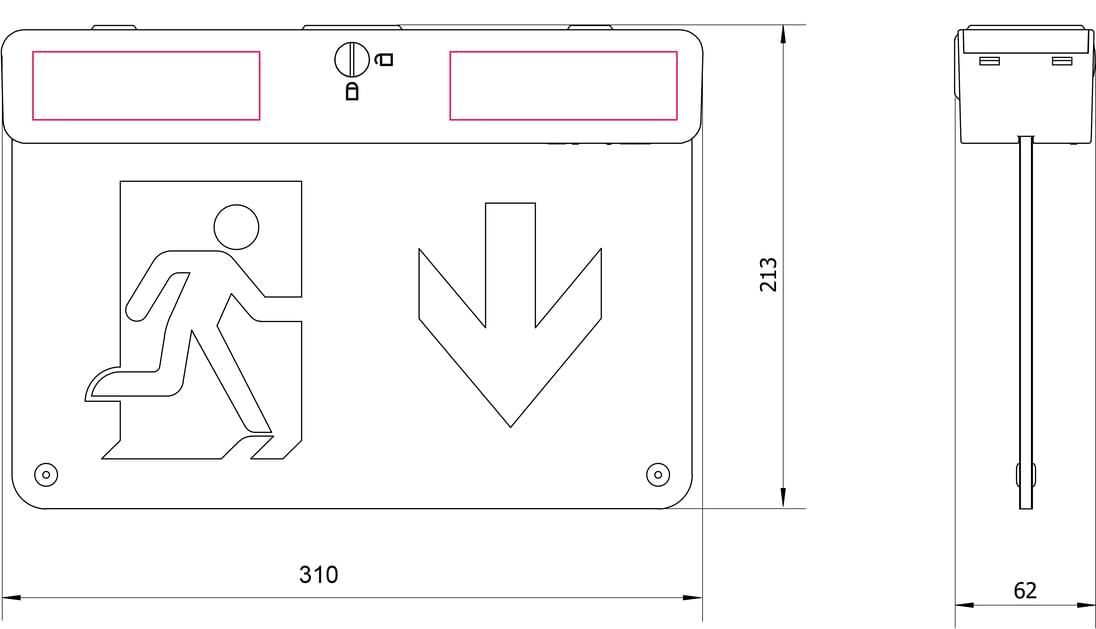

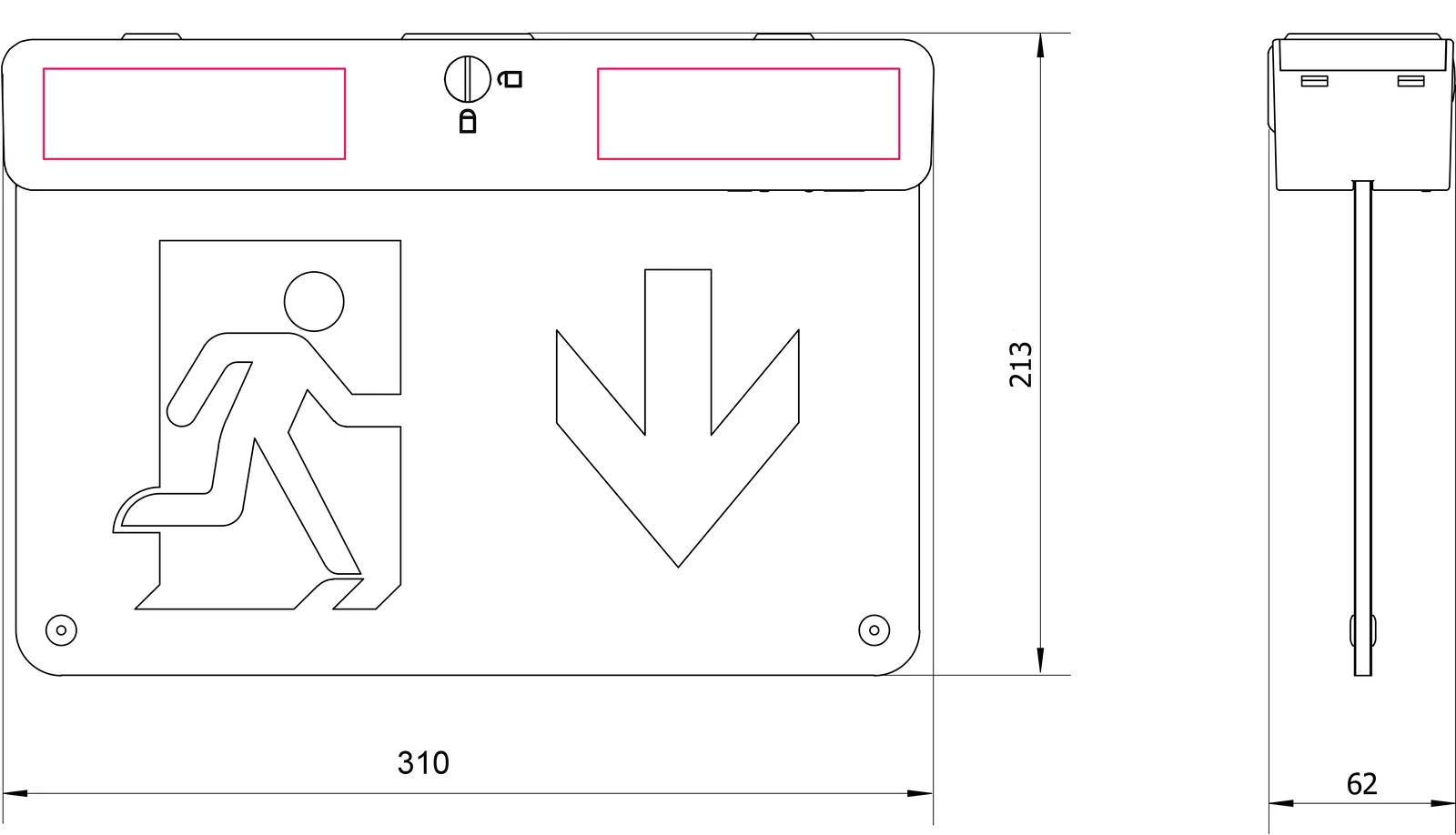

    Model No.SELK1500EX3 Input Voltage240 Power2.8 CRI80 Body ColourWHITE Dim310(L) x 62(W) x 213(H) Mass0.8 Add to Enquiry Add Remove Remove

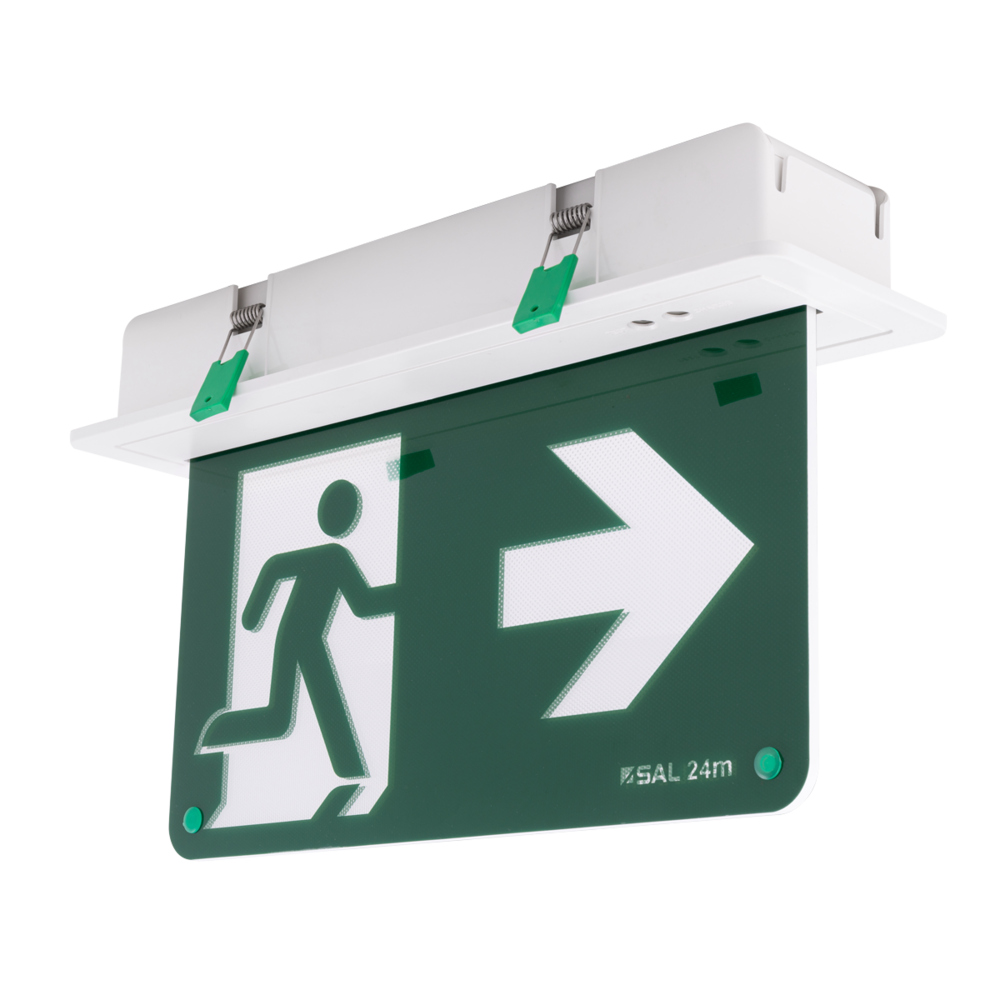

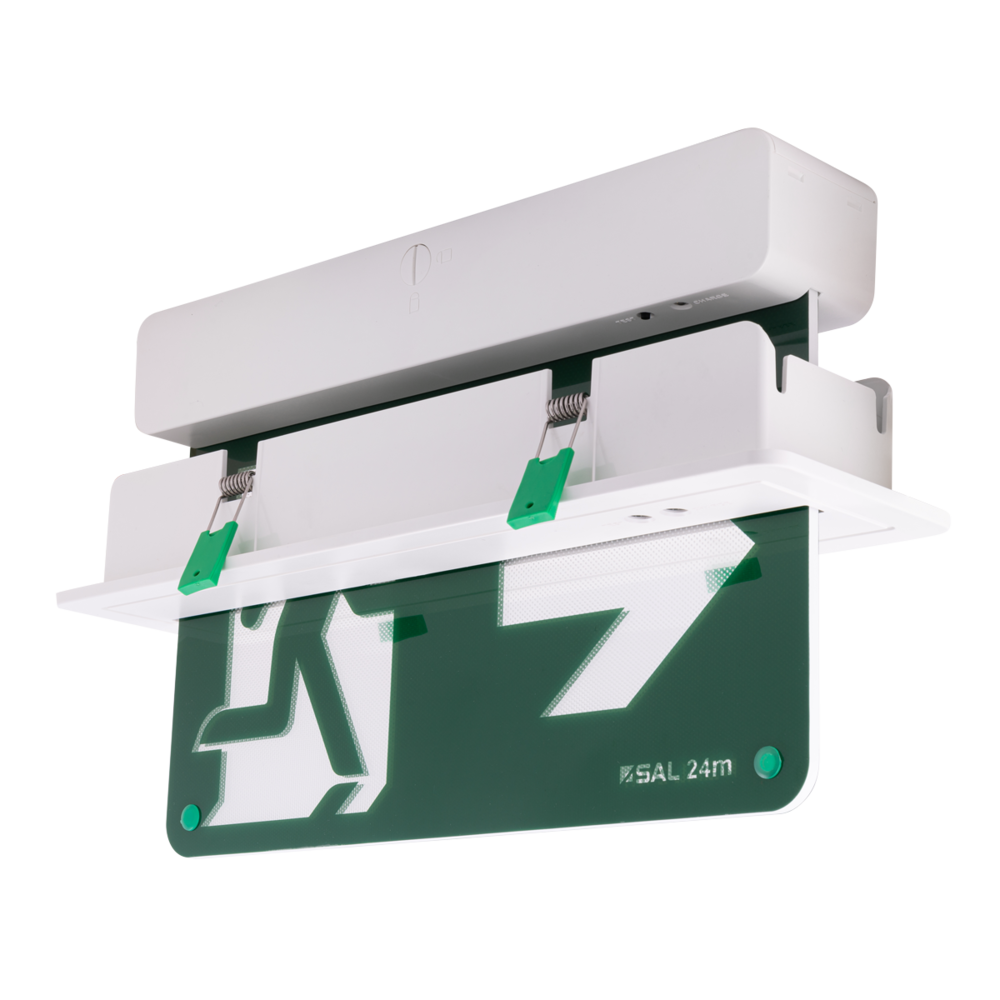

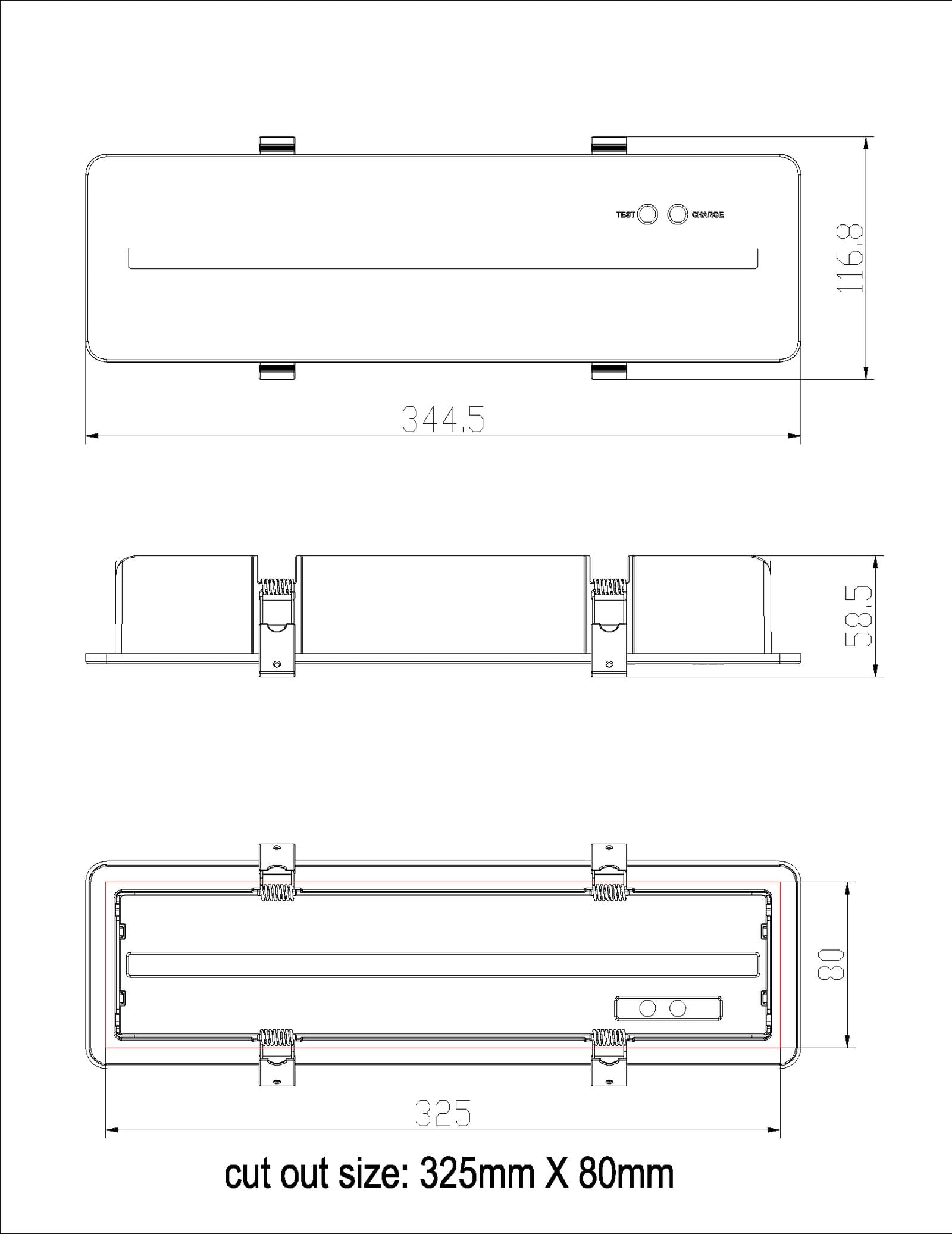

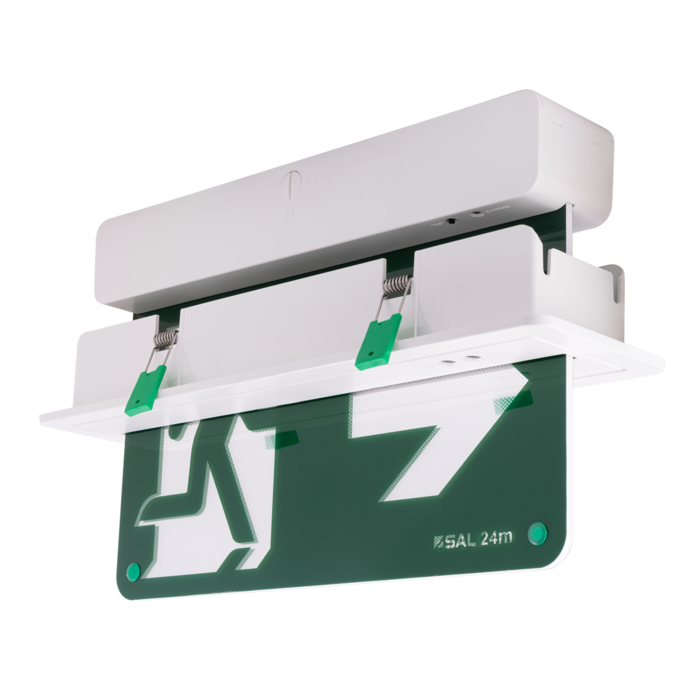

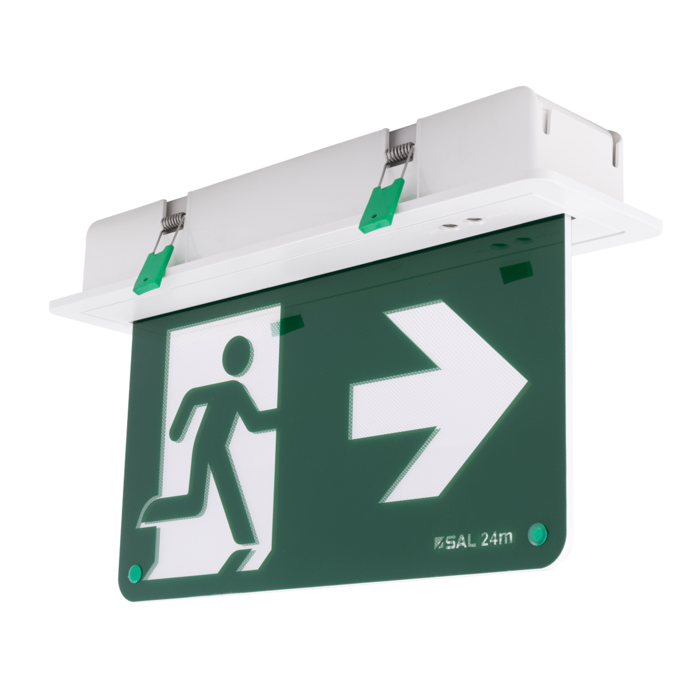

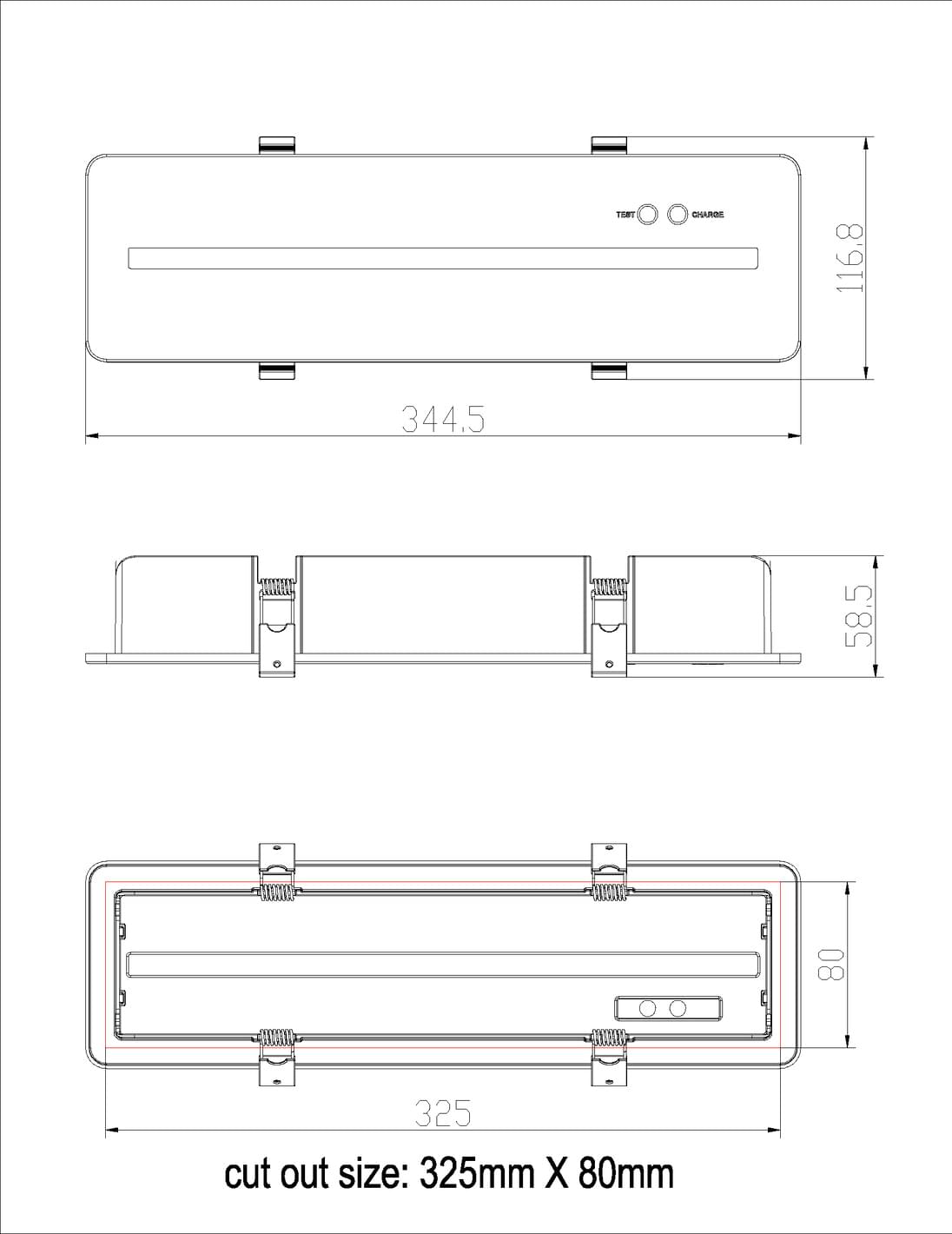

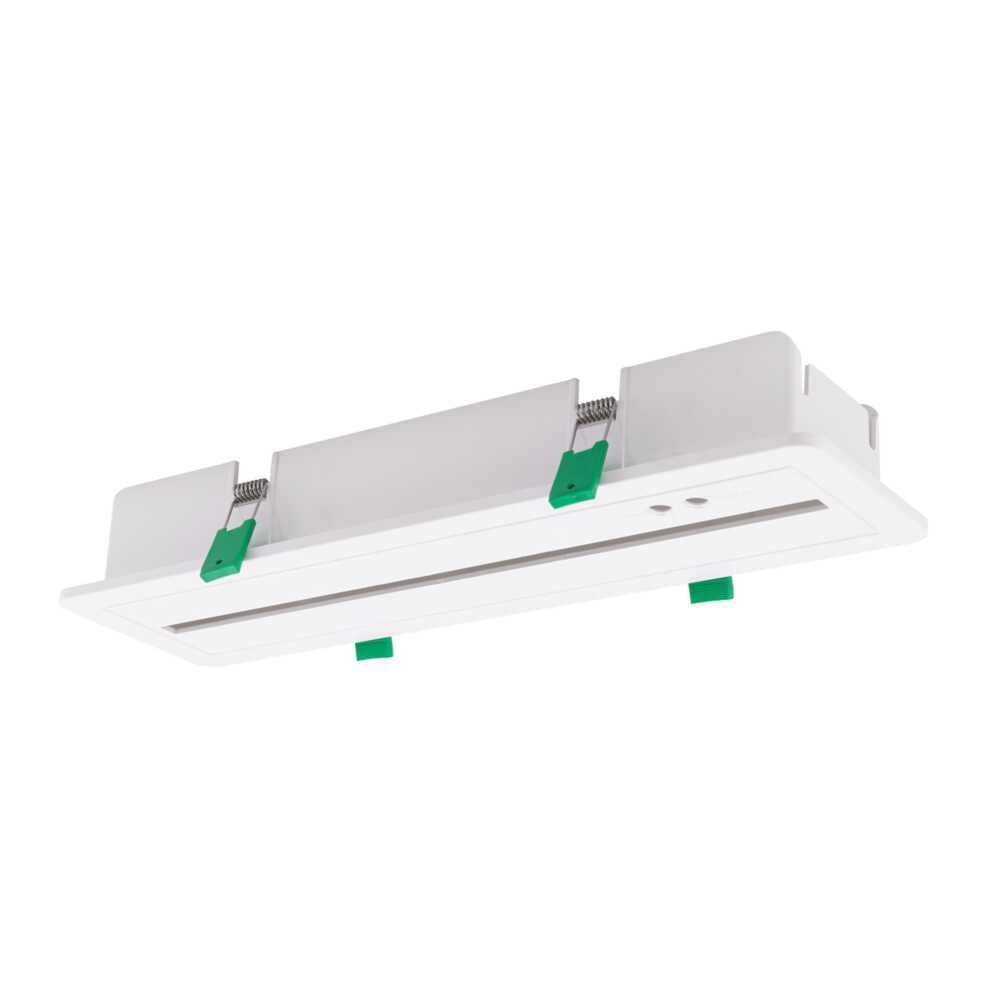

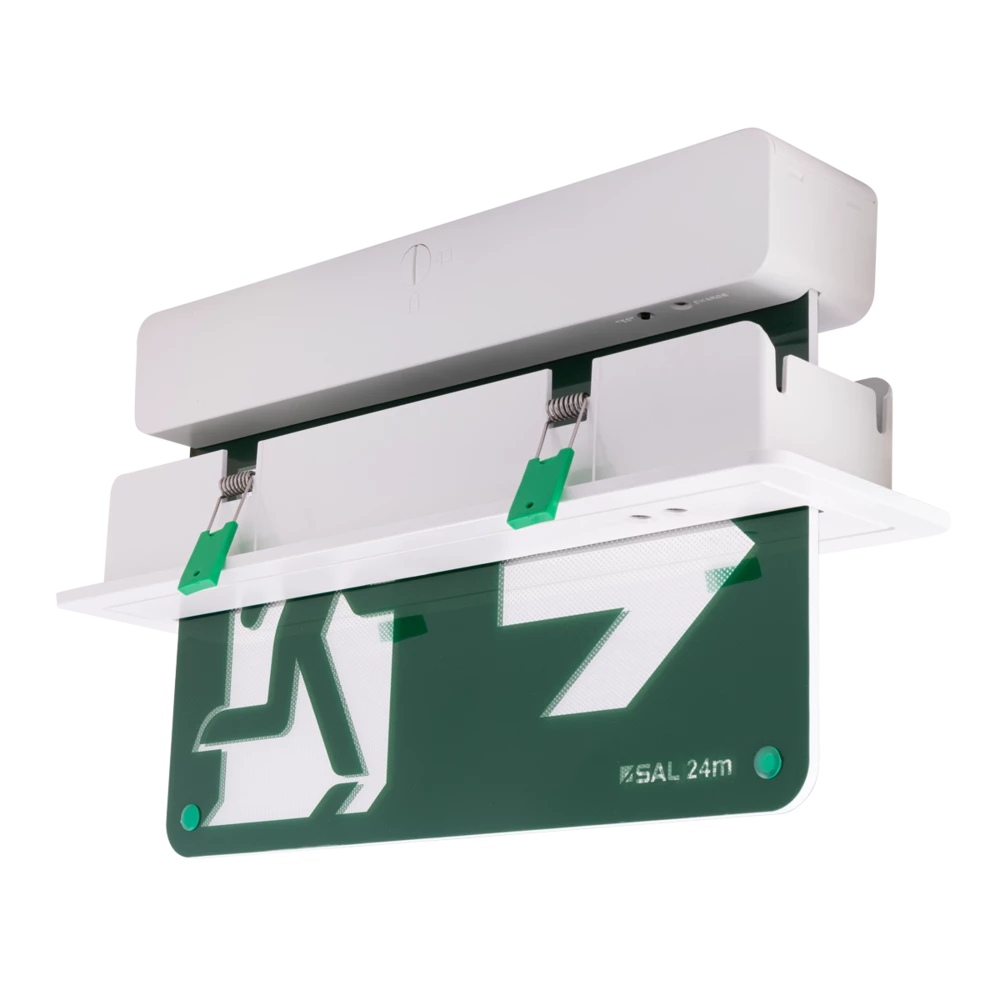

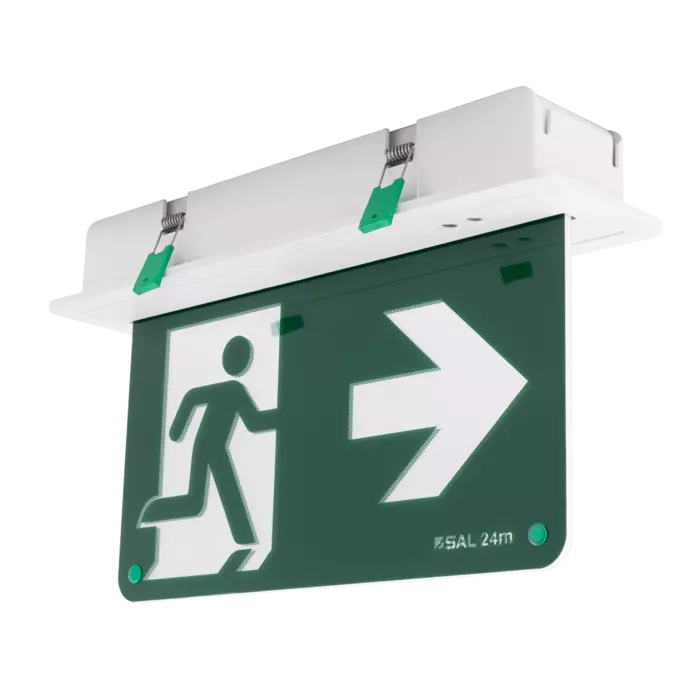

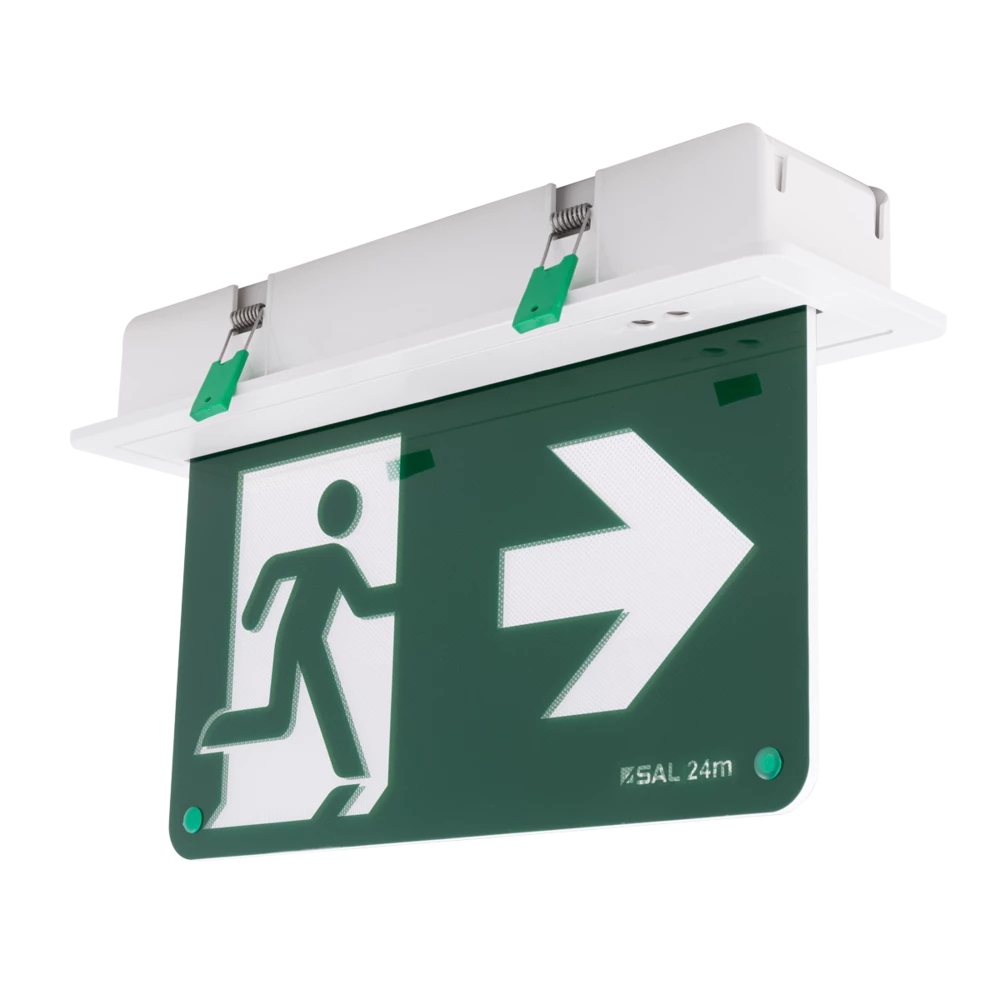

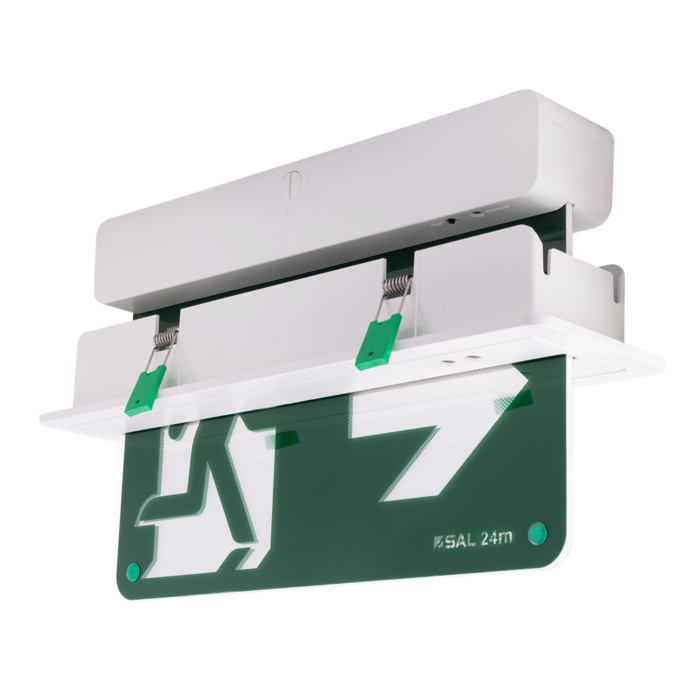

    Model No.SELK1500EX3RCP/WH Input Voltage Power CRI Body ColourWHITE Dim345(L) x 117(W) x 58(H) Mass0.23 Add to Enquiry Add Remove Remove

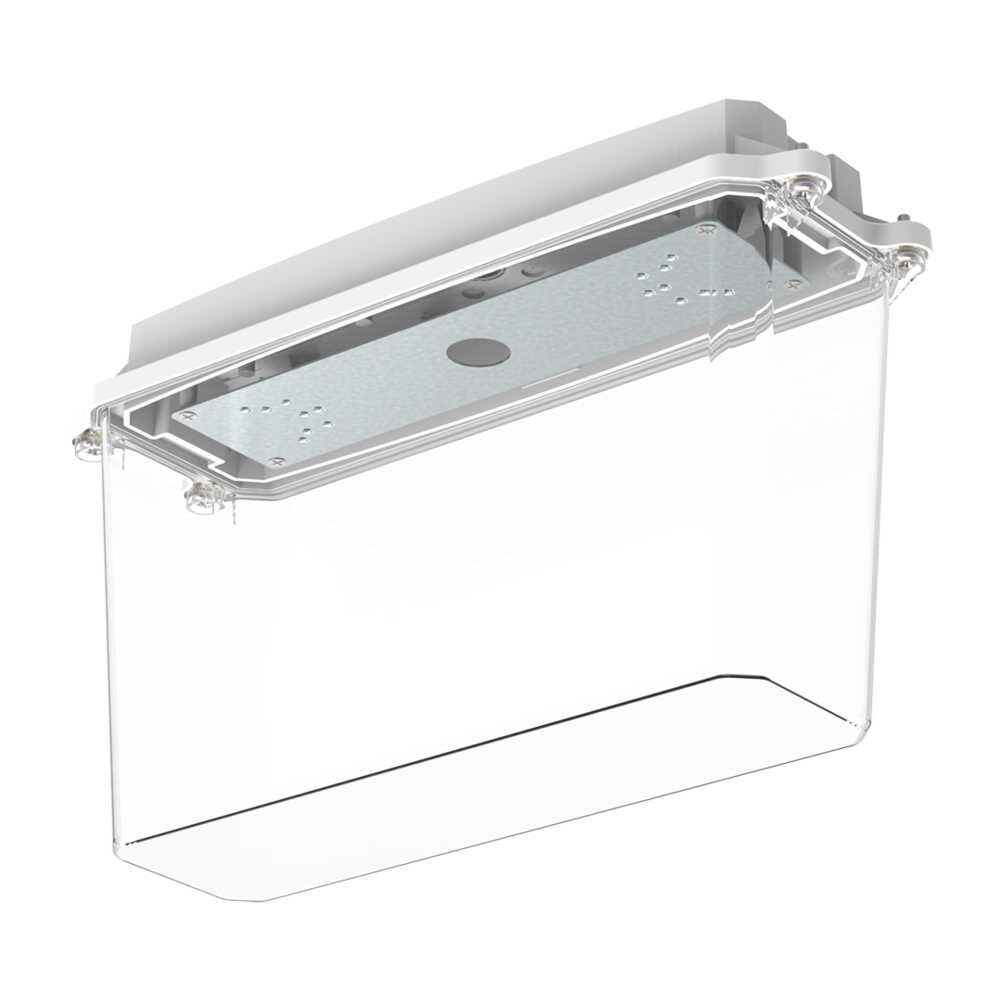

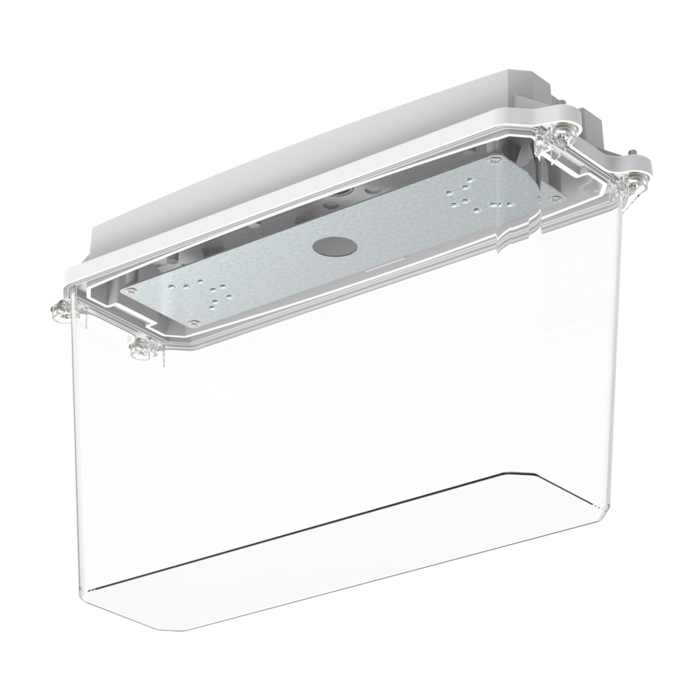

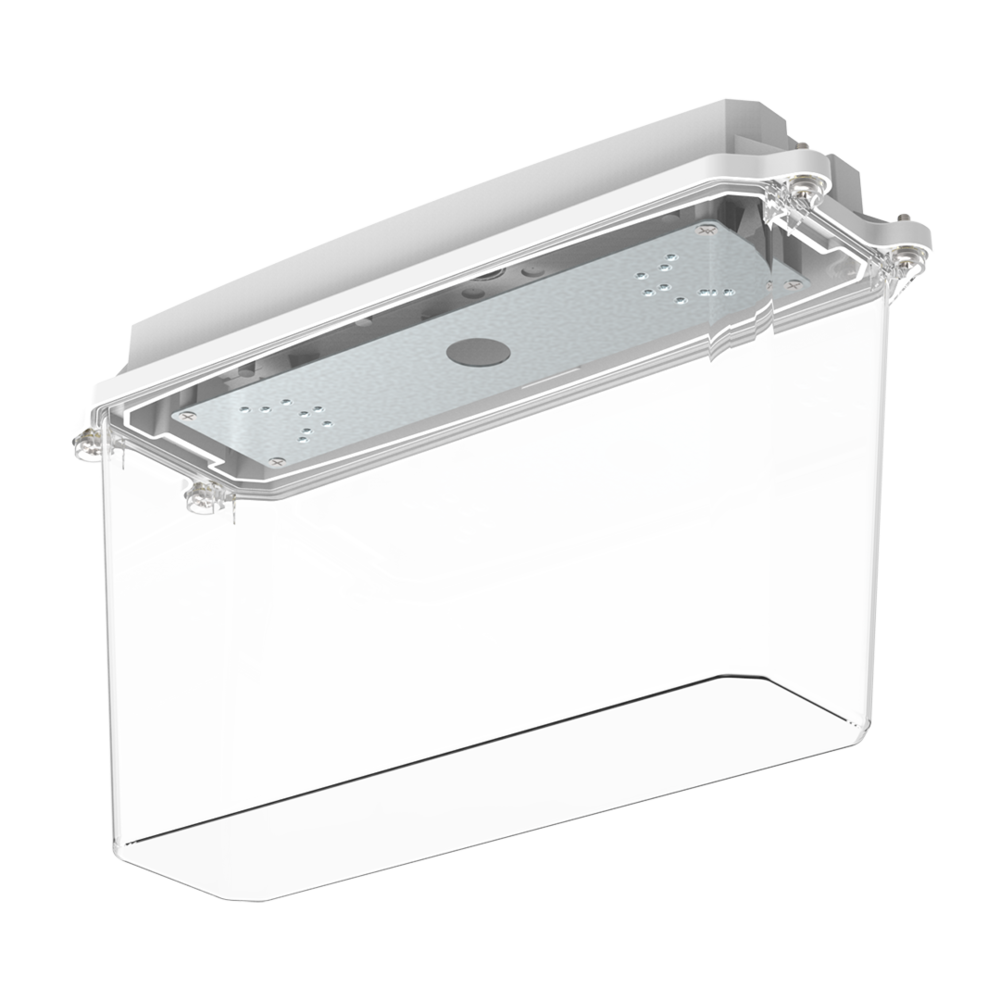

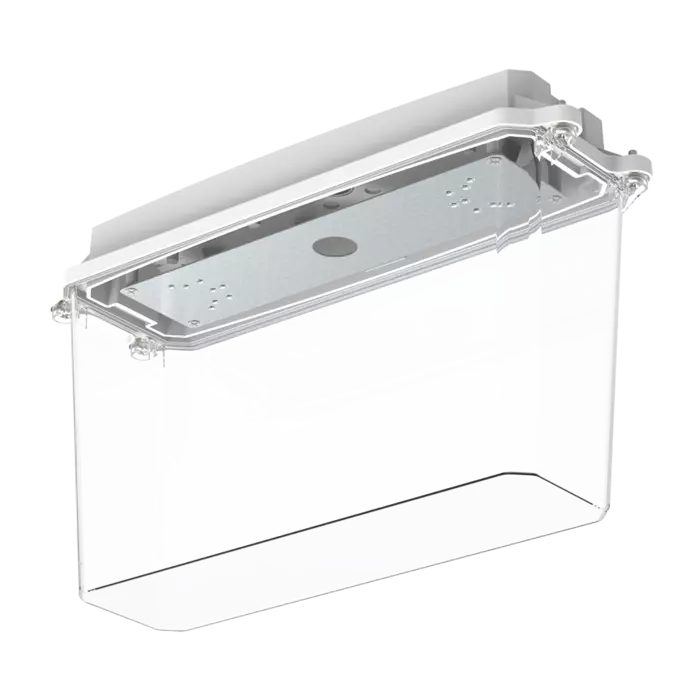

    Model No.SELK1500EX3BOX Input Voltage Power CRI Body ColourWHITE / CLEAR Dim442(L) x 141(W) x 270(H) Mass1.61 Add to Enquiry Add Remove Remove

    Important notes: (1) Battery warranty twelve (12) months (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
