• LED LAMPS

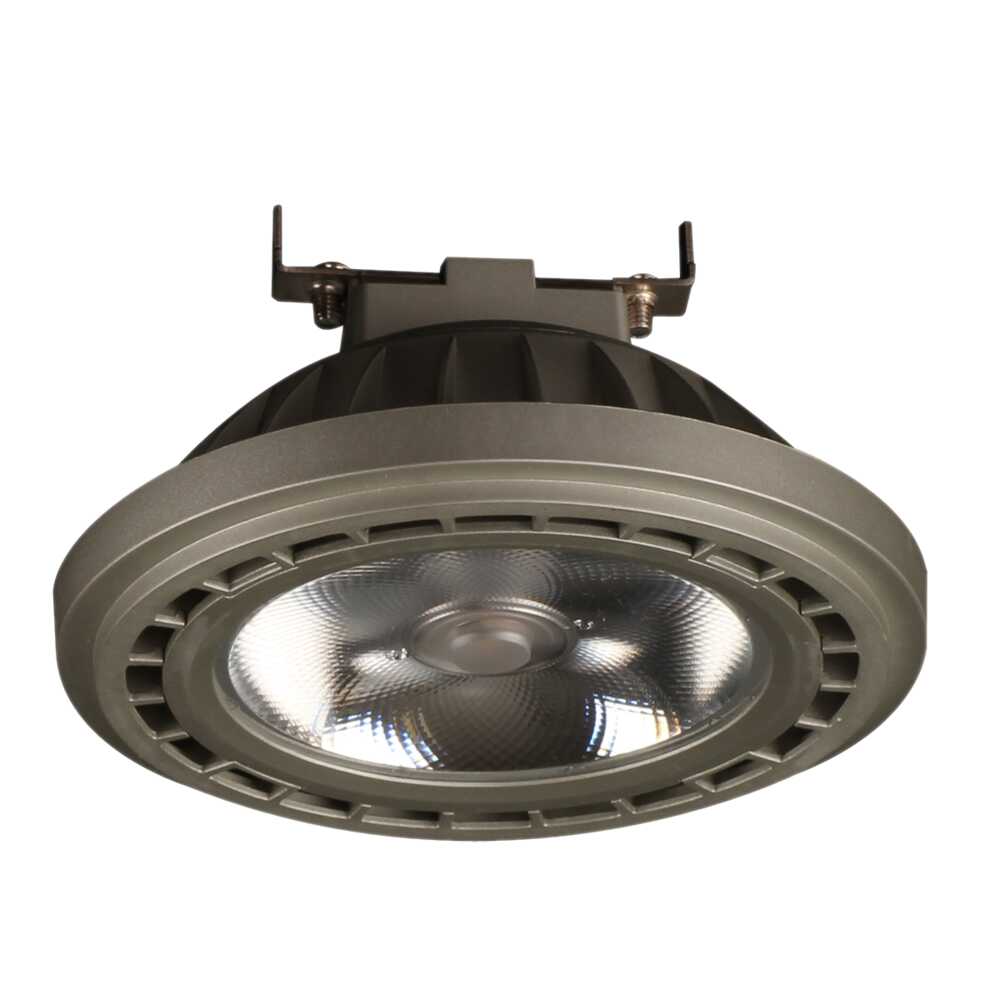

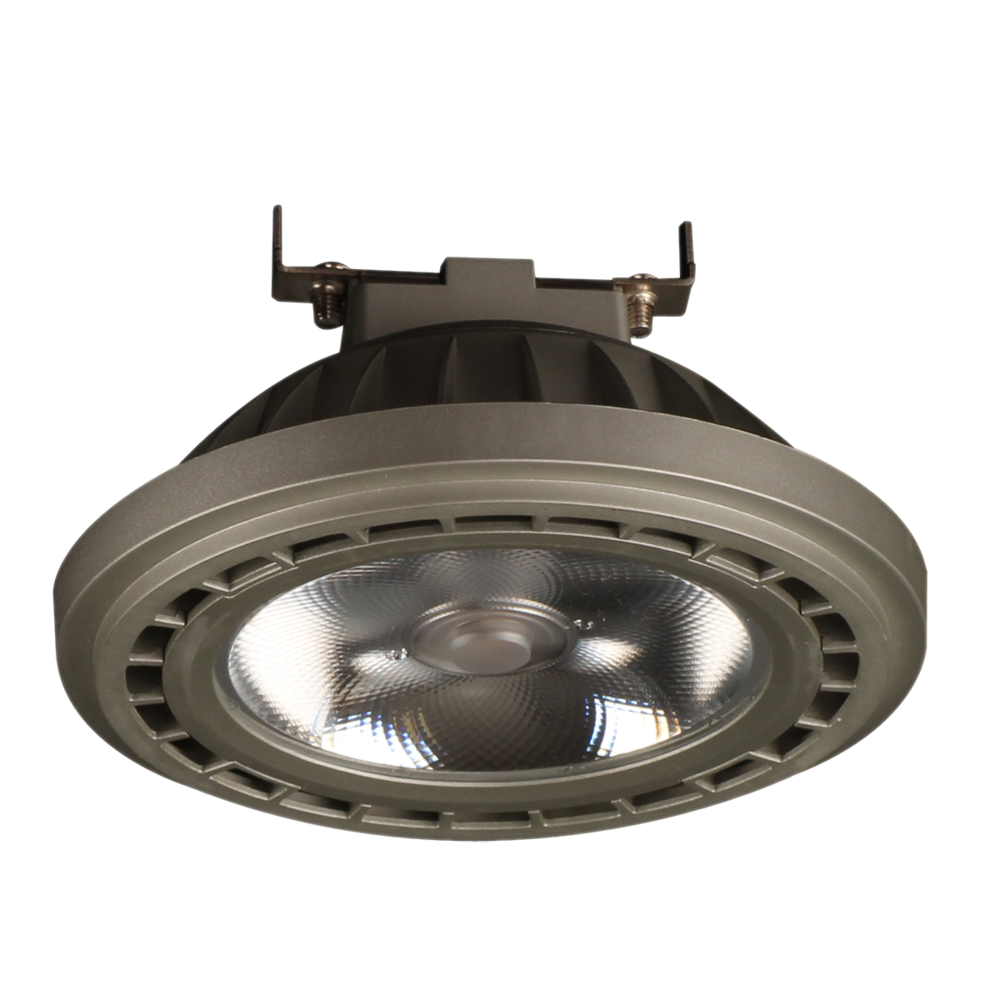

LED AR111 - 12W

AR111 LED directional lamp, dimmable

Application

Energy efficient LED lamp solutions

Design Specifications

  • Die-cast aluminium body, G53 base

  • High output LED optics, 3000K

  • Specially designed optical lens

  • 12V AC or DC dimmable driver required (SAL MINI60)

  • Standard beam angle 24°, optional 40°

  • Compatible with most electronic transformers,
    suits most halogen AR111 lamp fittings, double insulation.

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
  • WARM WHITE3000K
  • WARM WHITE3000K

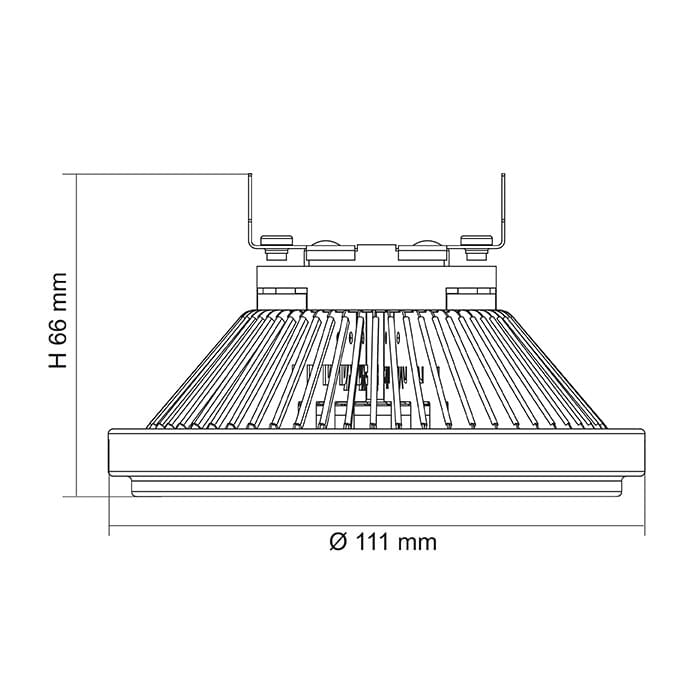

  • Dimensions - Wiring Diagrams
  • Design Options

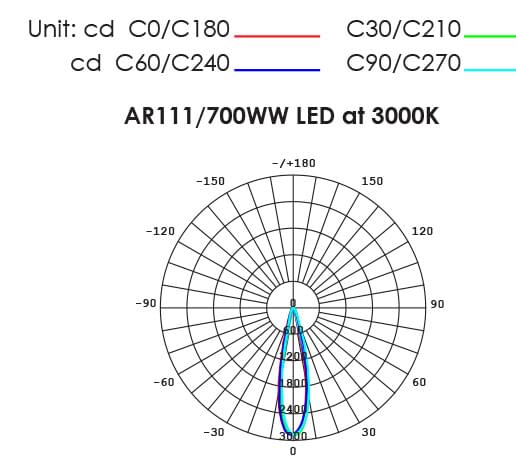

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Height Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.AR111/700WW LED Input Voltage12 Input Voltage12 Power12 Lumens750 CCT3000 CRI80 Beam Angle24 Dimmable YES Diameter111 Height66 Base TypeG53 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
