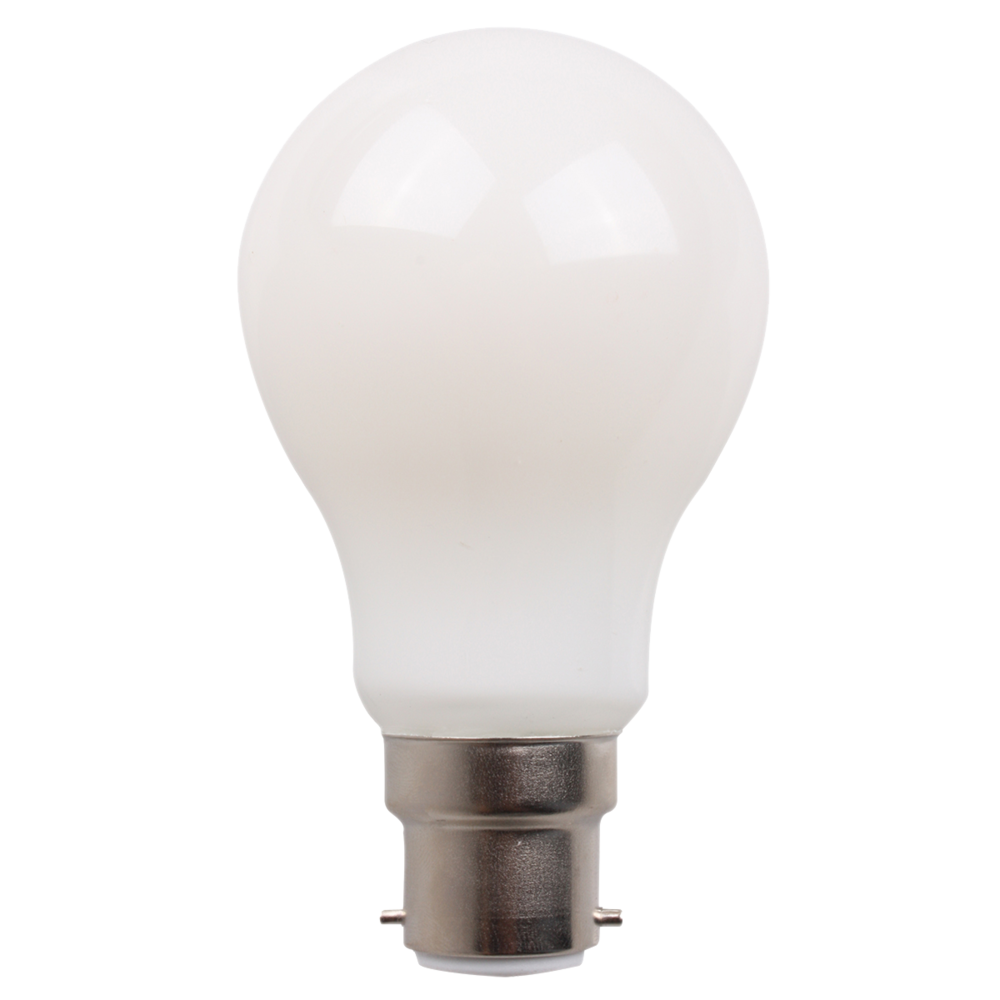

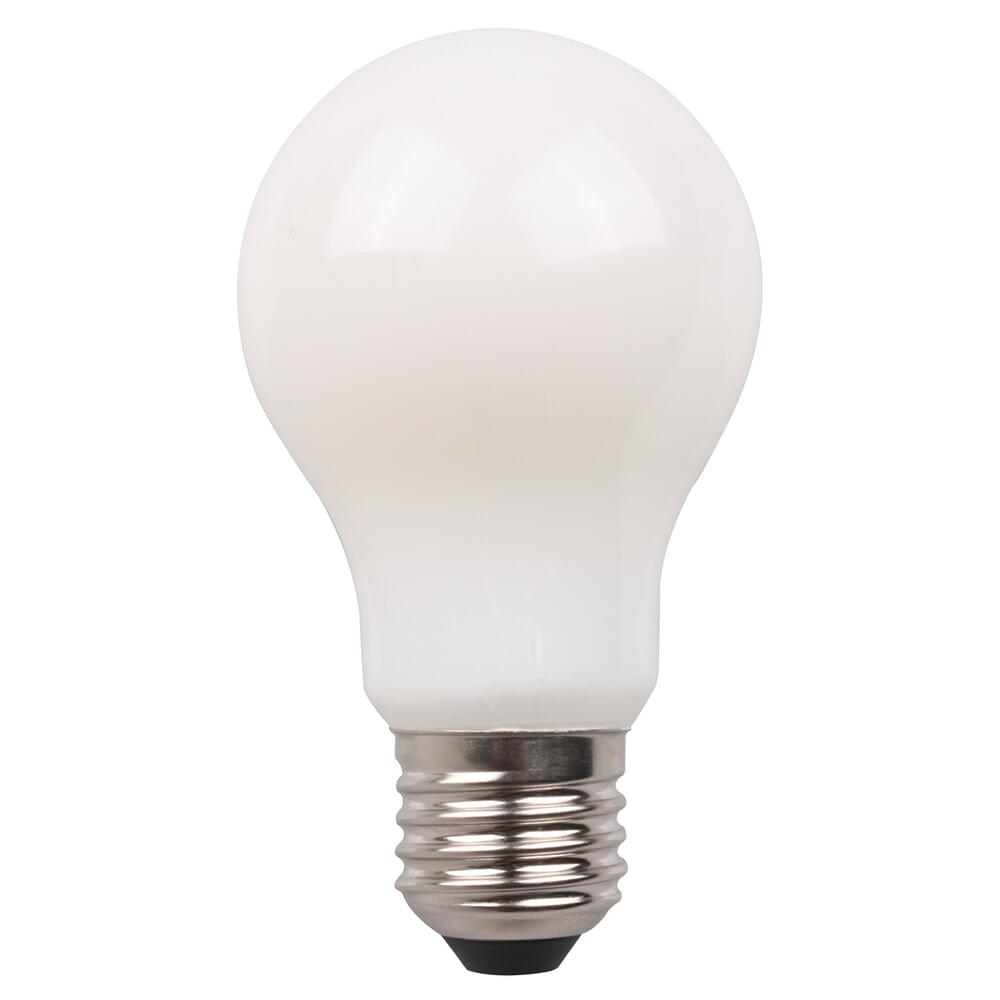

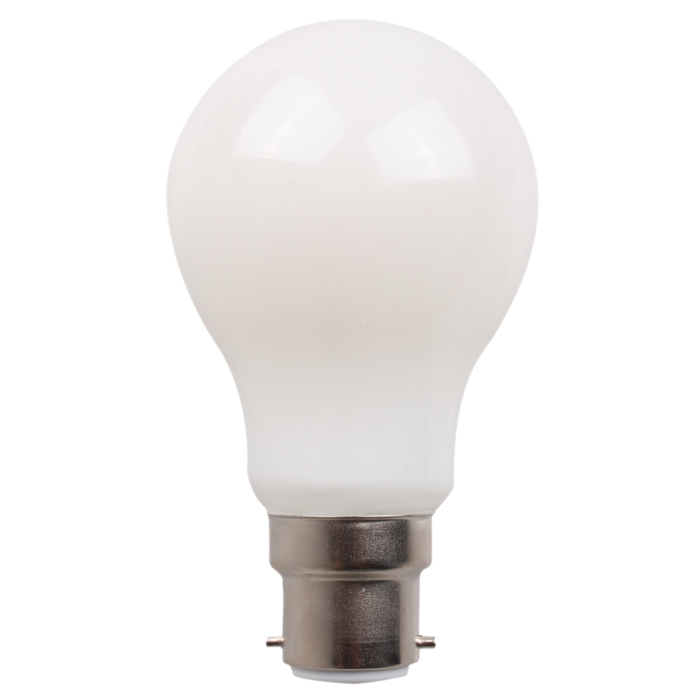

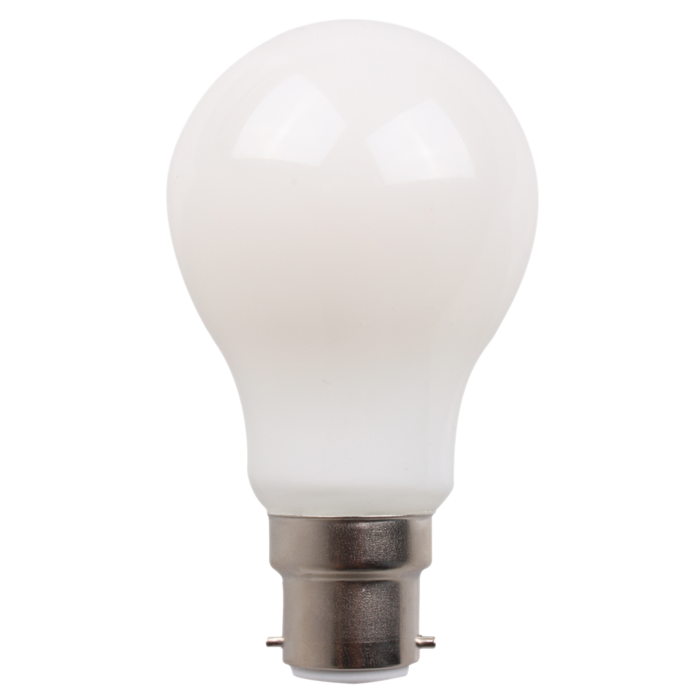

LG5 OPAL DIMMABLE - 4W

4 watt dimmable LED filament GLS style lamps

Application

Energy efficient LED lamp solutions

Design Specifications

  • Opal polycarbonate diffuser, ES or BC base

  • High efficiency LED filament, CRI > 80

  • Integral trailing edge dimmable LED driver

  • 320° beam distribution

  • CCT choice of 2700K / 5000K

  • 1:1 size to traditional GLS lamps,
    suits most GLS lamp fittings

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
  • WARM WHITE2700K
  • NEUTRAL DAYLIGHT5000K

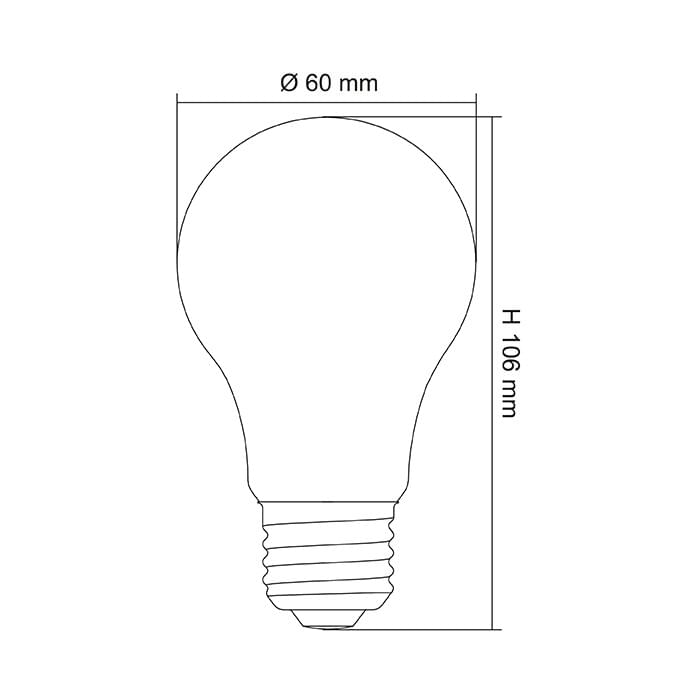

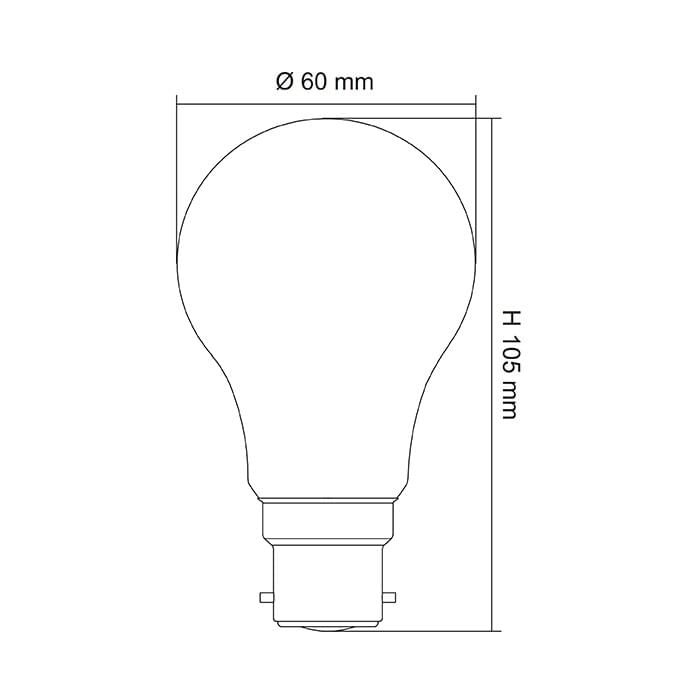

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Length Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.LG5/27B22D Input Voltage240 Power4 Lumens420 CCT2700 CRI80 Beam Angle320 Dimmable YES Diameter60 Length105 Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LG5/27E27D Input Voltage240 Power4 Lumens420 CCT2700 CRI80 Beam Angle320 Dimmable YES Diameter60 Length106 Base TypeE27 Add to Enquiry Add Remove Remove
    Model No.LG5/50B22D Input Voltage240 Power4 Lumens420 CCT5000 CRI80 Beam Angle320 Dimmable YES Diameter60 Length105 Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LG5/50E27D Input Voltage240 Power4 Lumens420 CCT5000 CRI80 Beam Angle320 Dimmable YES Diameter60 Length106 Base TypeE27 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
