• LED LINEAR BATTENS & PROFILES

ECOLINE SUPER-WIDE SL9739TC/DP - 10/50W

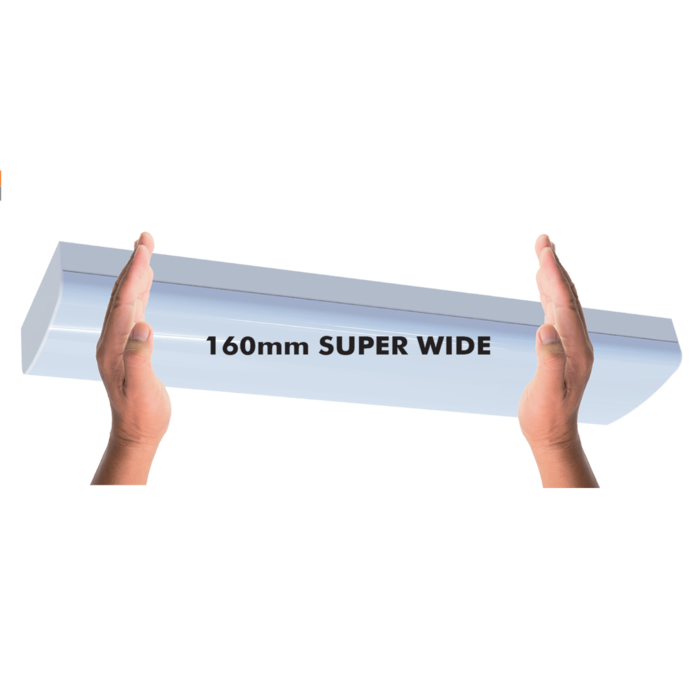

LED SUPER-WIDE 160mm body diffused batten with selectable CCT and Dual Power

Application

Conventional style (SUPER-WIDE) linear LED batten products for commercial service spaces

Design Specifications

  • 160mm SUPER-WIDE steel body

  • White powder coat finish with PC diffuser

  • Large terminal block, easy installation

  • Selectable CCT 3000K/4000K/5700K

  • High efficiency LED, CRI >80, 120° beam distribution

  • Integral flickerCONTROLLED non-dimmable LED driver with selectable power, emergency options available, non-dimmable corridorSTANDBY options

Performance

  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL9739/20TC/DP Input Voltage240 Multiple Wattage10/20 Lumens2300/2450/2200 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim610(L) x 160(W) x 82(H) Body ColourWHITE Add to Enquiry Add Remove Remove

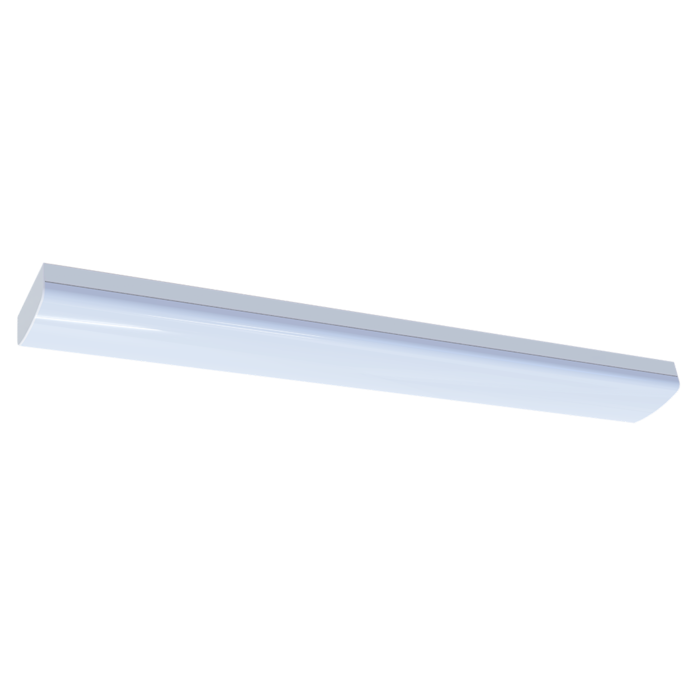

    Model No.SL9739/40TC/DP Input Voltage240 Multiple Wattage20/40 Lumens4550/4850/4350 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1225(L) x 160(W) x 82(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9739/50TC/DP Input Voltage240 Multiple Wattage25/50 Lumens5550/5950/5350 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1519(L) x 160(W) x 82(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9739/20TC/DP/EM Input Voltage240 Multiple Wattage10/20 Lumens2300/2450/2200 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim610(L) x 160(W) x 82(H) Body ColourWHITE Add to Enquiry Add Remove Remove

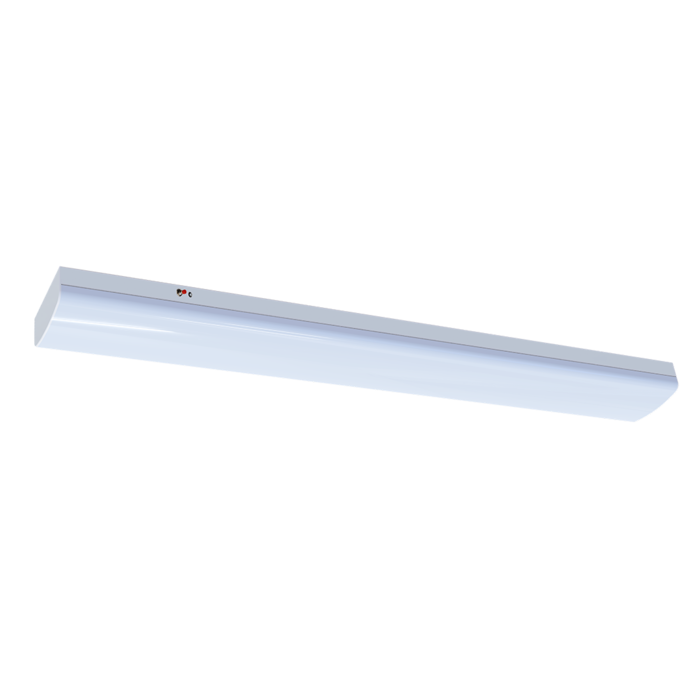

    Model No.SL9739/40TC/DP/EM Input Voltage240 Multiple Wattage20/40 Lumens4550/4850/4350 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1225(L) x 160(W) x 82(H) Body ColourWHITE Add to Enquiry Add Remove Remove

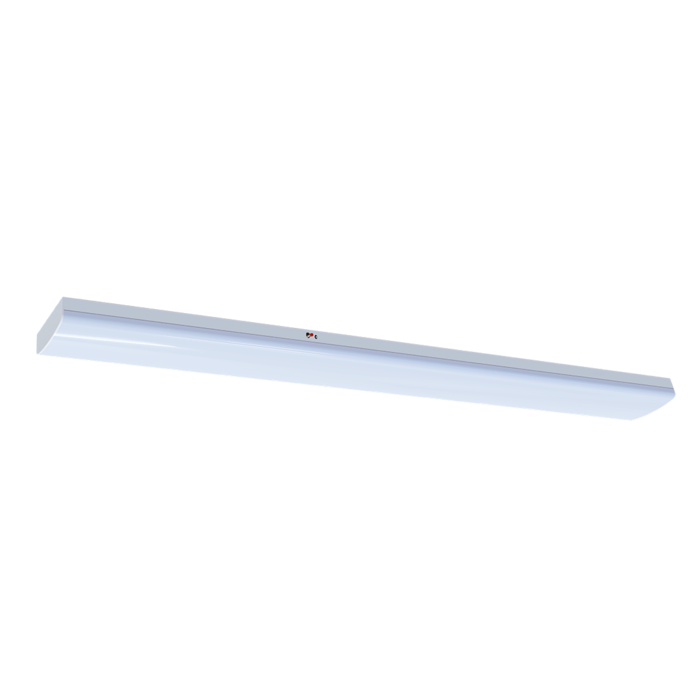

    Model No.SL9739/50TC/DP/EM Input Voltage240 Multiple Wattage25/50 Lumens5550/5950/5350 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1519(L) x 160(W) x 82(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9739/20TC/DP/S Input Voltage240 Multiple Wattage10/20 Lumens2300/2450/2200 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim610(L) x 160(W) x 82(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9739/40TC/DP/S Input Voltage240 Multiple Wattage20/40 Lumens4550/4850/4350 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1225(L) x 160(W) x 82(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9739/50TC/DP/S Input Voltage240 Multiple Wattage25/50 Lumens5550/5950/5350 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1519(L) x 160(W) x 82(H) Body ColourWHITE Add to Enquiry Add Remove Remove

    NOTE: lumens (lm) shown are at FULL power setting

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
