• OYSTERS

GEM SO3701/TC/DP - 8/30W

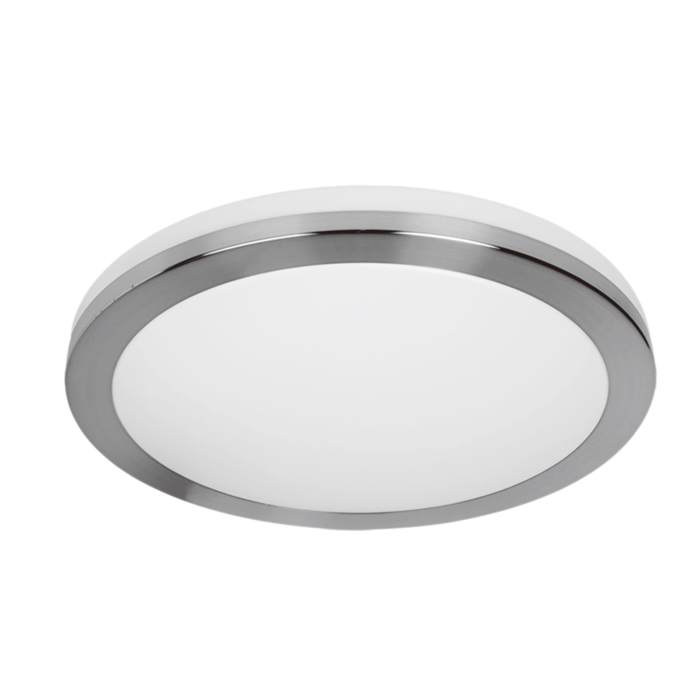

LED Oyster 8 to 30 watt satin nickel trim deco with selectable CCT and dual power

Application

A perfect choice for apartments, residential or commercial spaces

Design Specifications

  • Selectable CCT 3000K, 4000K, 6000K

  • Durable white powder coated steel body profile

  • High performance opal PMMA diffuser

  • High efficiency LED optics, CRI >80

  • Satin Nickel plated deco trim, two versatile profile sizes 8/16 or 15/30 watt

  • Integral constant current non-dimmable LED driver, with selectable power. SENSOR OPTION - Integrated microwave motion sensor (SO3701/40L/TC/DP only).

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI/DSI (SO3701/40L/TC/DP)
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE

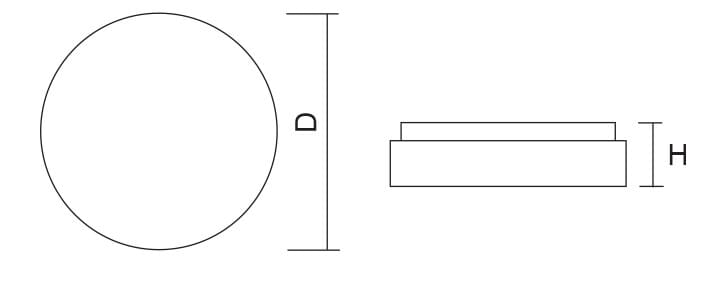

  • Dimensions - Wiring Diagrams
  • Design Options

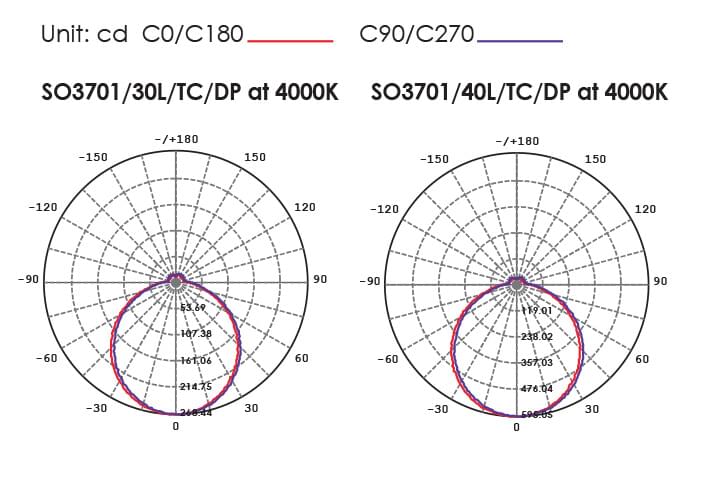

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Body Colour Diameter Dim Mass IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SO3701/30L/TC/DP Input Voltage240 Multiple Wattage8/16 Lumens1070/1170/1100 CCT3000/4000/6000 CRI80 Beam Angle120 Body ColourSatin Nickel Diameter310 Dim100(H) Mass1.22 IPARTYES Add to Enquiry Add Remove Remove
    Model No.SO3701/40L/TC/DP Input Voltage240 Multiple Wattage15/30 Lumens2250/2250/2330 CCT3000/4000/6000 CRI80 Beam Angle120 Body ColourSatin Nickel Diameter390 Dim112(H) Mass1.82 IPARTYES Add to Enquiry Add Remove Remove

      Lumens (lm) shown are displayed at maximum power. 8 watt half power value (lm) 600 / 630 / 620, 15 watt half power value 1290/1300/1290 (lm).

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
