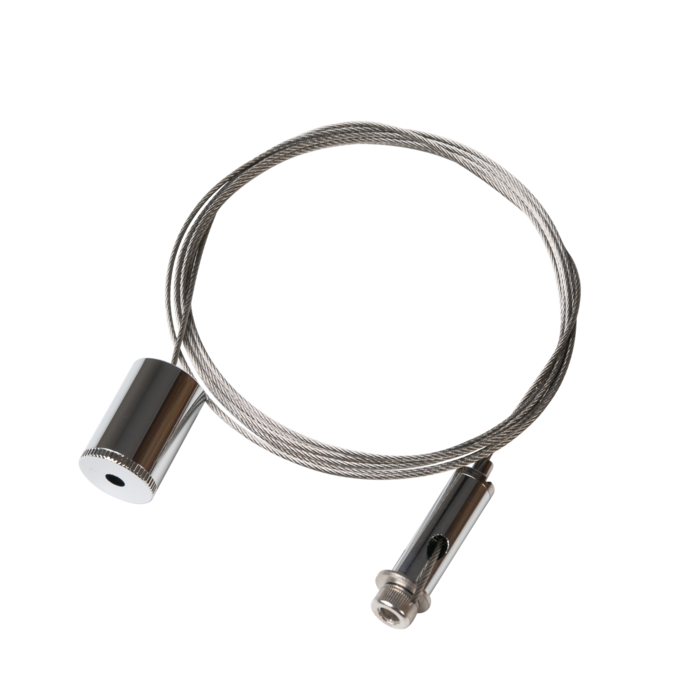

SUSPENSION DROPS

Multi-function LED panel, weatherproof and linear extrusion suspension drops

Application

Panel, weatherproof and linear extrusion accessories for retail, residential and commercial applications

Design Specifications

  • M10 size ceiling attachment

  • 1.2 mm stainless steel wire, maximum load per drop is 15kg

  • M10 size griplock system

  • NOTE:  SSI1512 and SSY1512 codes represent one (1) wire drop only.
    Four (4) x SSI1512 drops are required for each panel
    Two (2) x SSY1512 drops are required for each panel

  • NOTE: S97X4SP4 (1) one pack of (4) four brackets is required

  • NOTE: suspension brackets and suspension drops MUST be ordered separately

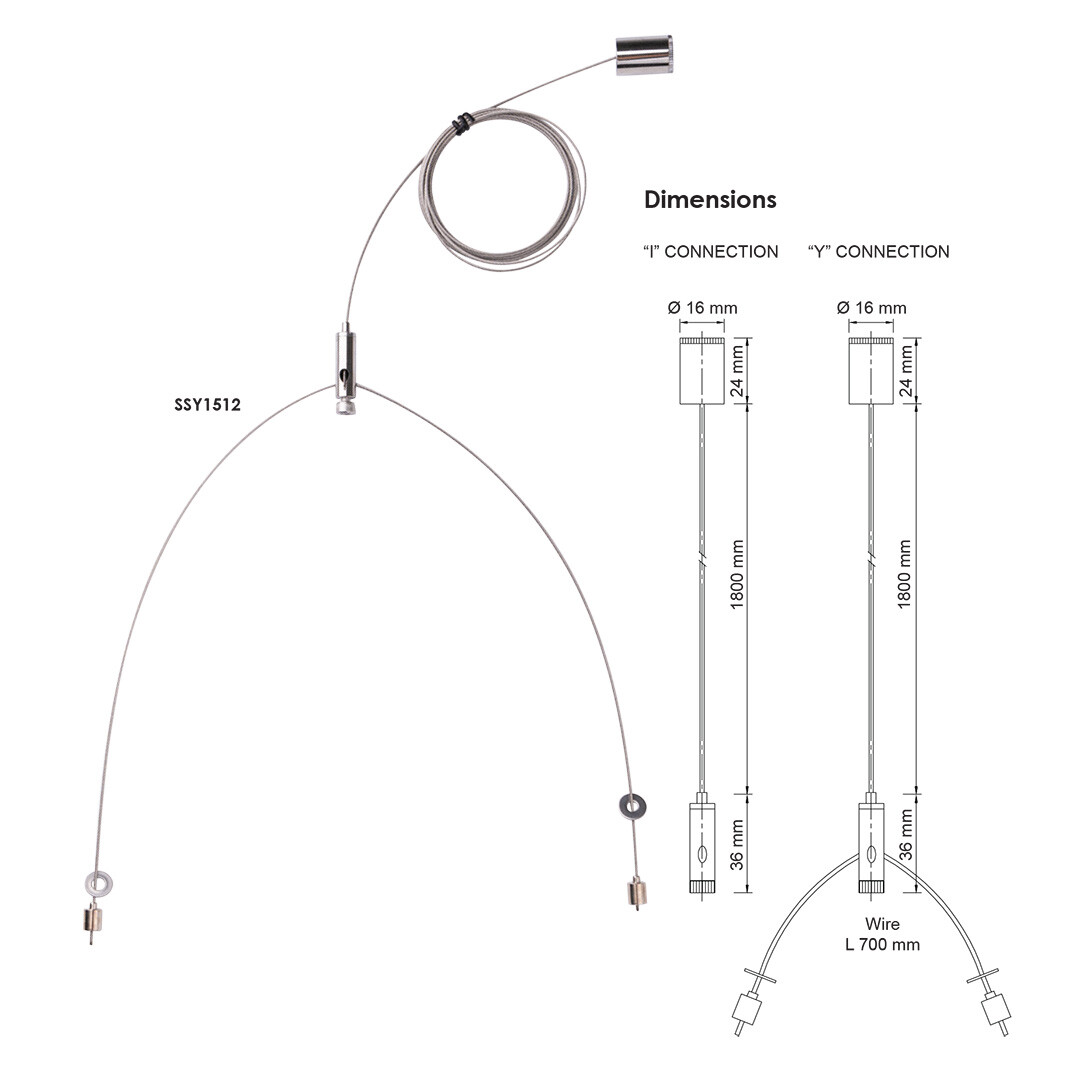

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Body Colour Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S97X4SP4 Body ColourSUSPENSION BRACKET PACK OF 4 Dim Mass0.03 Add to Enquiry Add Remove Remove
    Model No.SSI1512 Body Colour"I" SUSPENSION DROP STAINLESS STEEL Dim1800(L) Mass0.05 Add to Enquiry Add Remove Remove
    Model No.SSY1512 Body Colour"Y" SUSPENSION DROP STAINLESS STEEL Dim1800(L) Mass0.06 Add to Enquiry Add Remove Remove
    Model No.S97X4KIT Body Colour‘Y’’ SUSPENSION DROP INCLUDES 4 X BRACKETS AND 2 X Y-DROPS Dim1800(L) Mass Add to Enquiry Add Remove Remove
