• STRIP LIGHTS

FLEXI 24V WHITE COLOUR IP65, FLL2406/SS10-6W/M

Run length 20 metre, CRI> 80, 24V, LED Strip IP65

Application

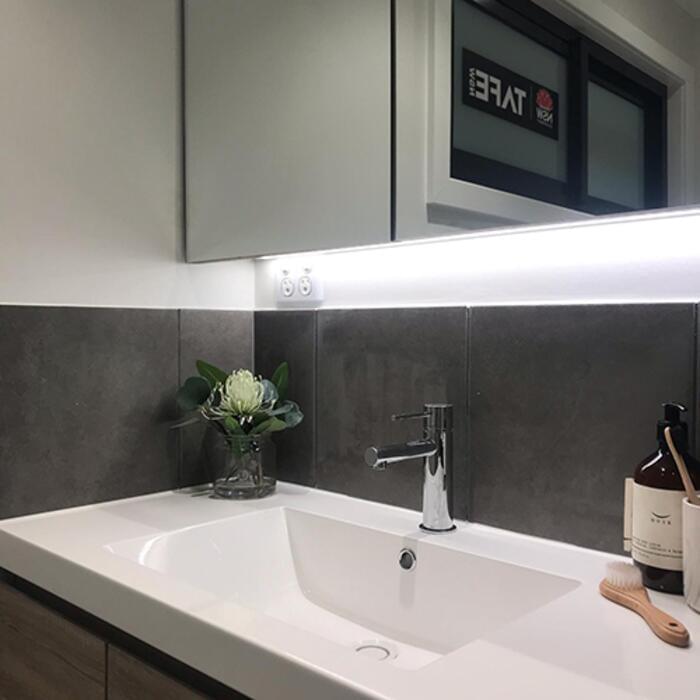

A creative solution for residential and commercial interior spaces, requiring 20 metre run lengths

Design Specifications

  • High efficiency SMD LED chips with 3M self-adhesive tape, 6 watt p/m

  • Maximum run length 20m, cuttable every 100 mm
    at scissors symbol ✂ , silicon spray coating

  • Heat sink and 24V constant voltage LED driver required

  • Dimming options: (quick link)
    Type A - Trailing edge dimming,
    Type B - LED strip controller LT8915DIM/BT with
    LT8914DIM/RP if required
    Type C - Analogue 1-10V
    Type D - DALI 2 control

  • LED channel options (quick link)

Performance

  • Dimmable - NO

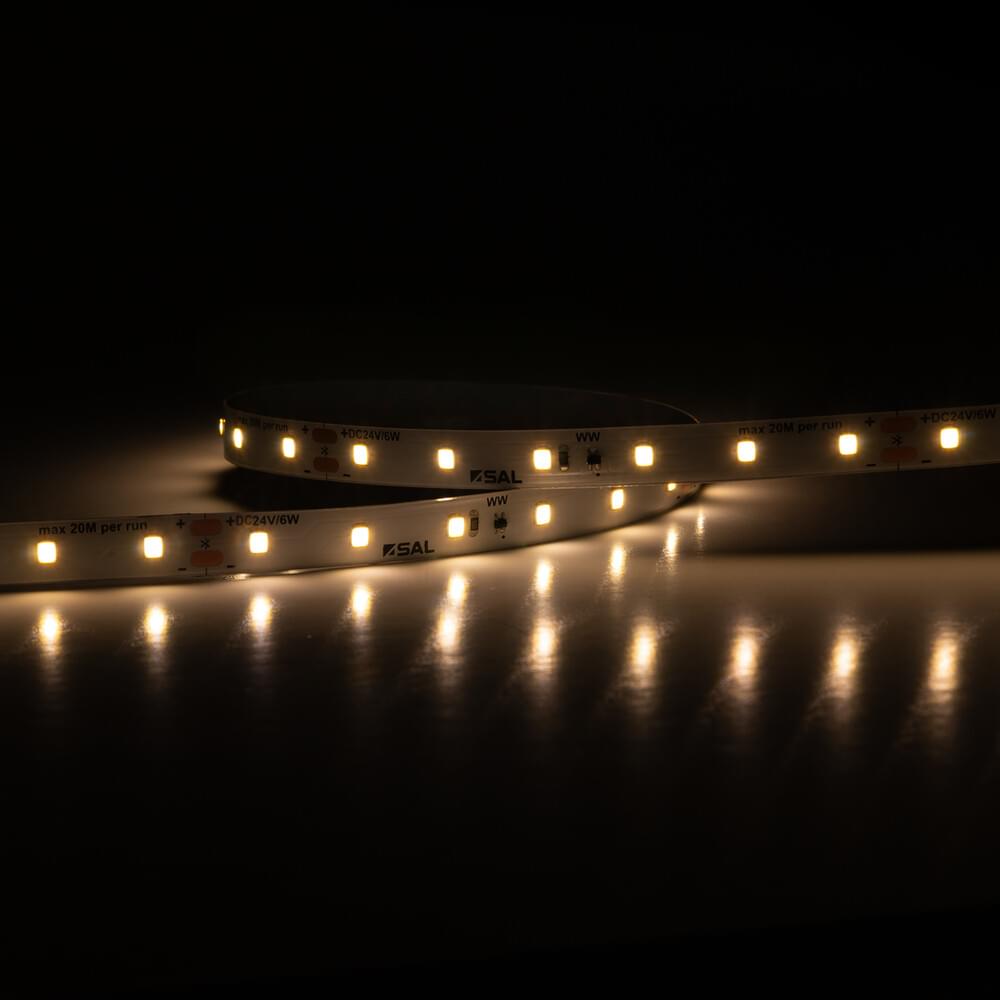

  • WARM WHITE3000K

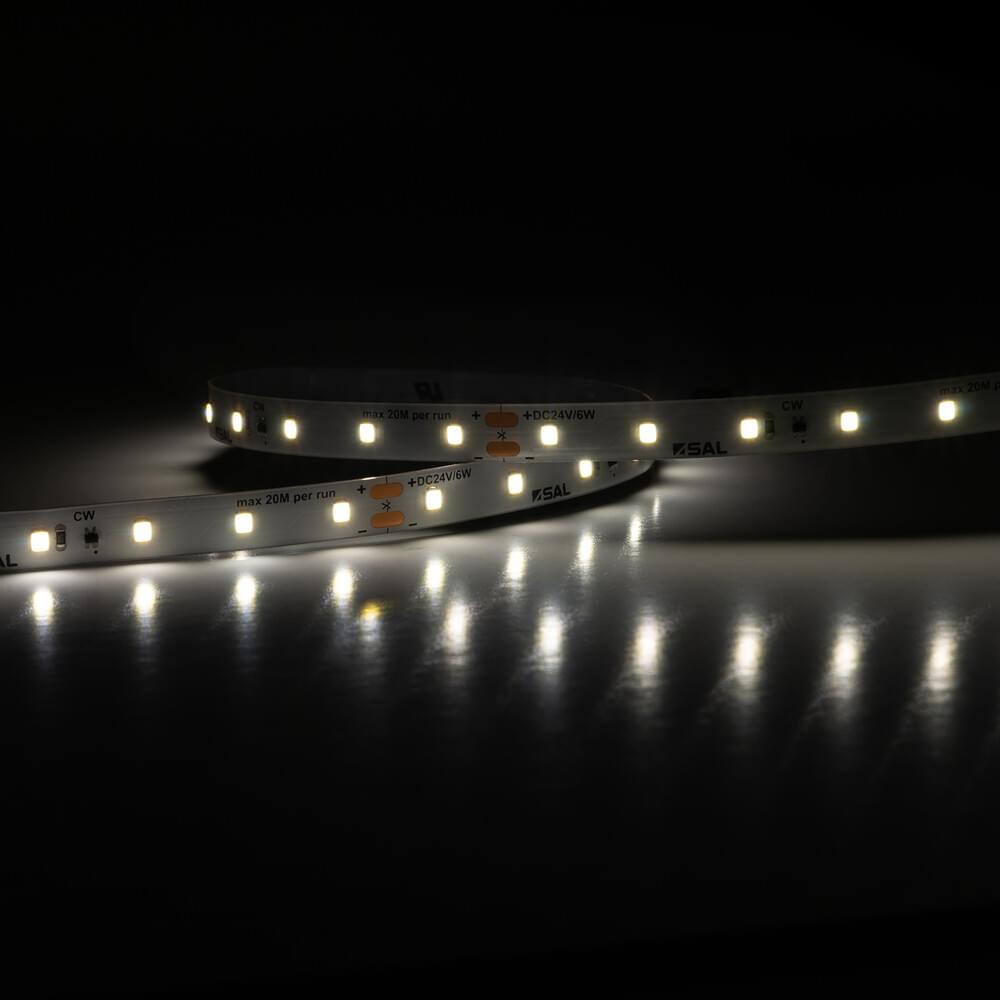

  • COOL WHITE4000K

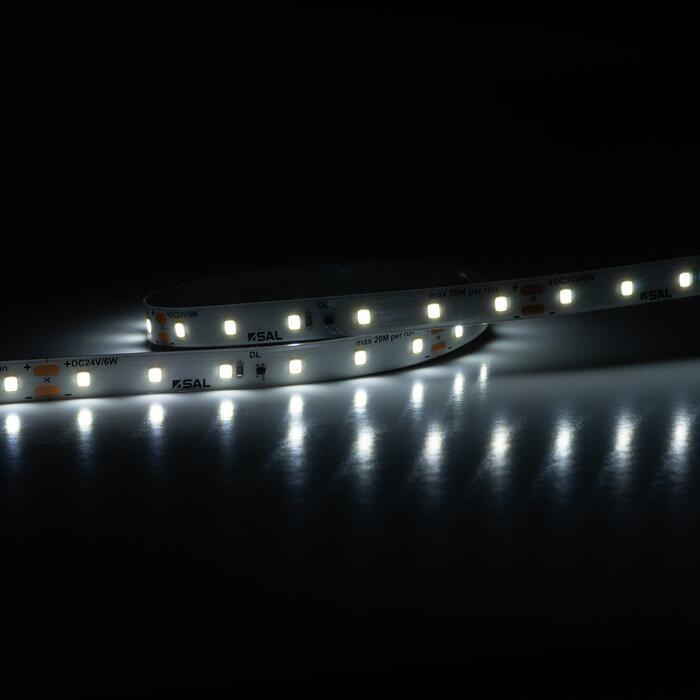

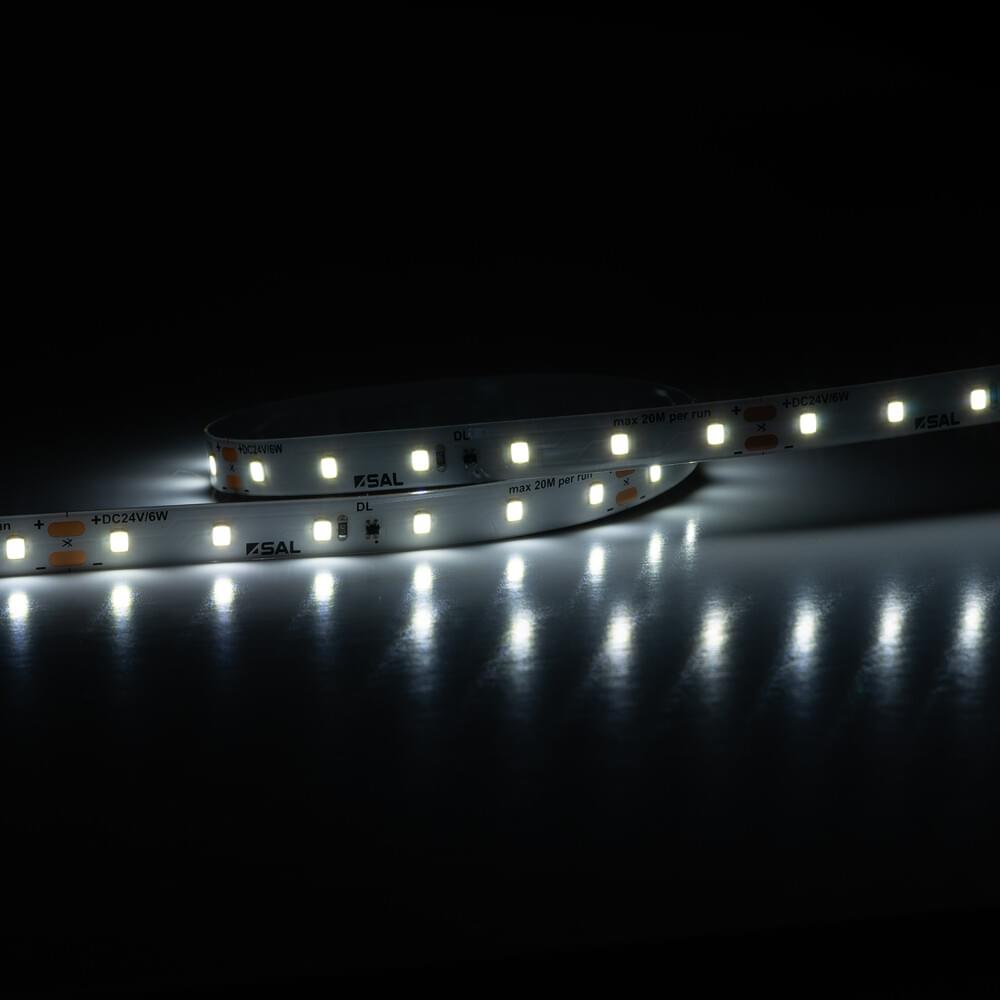

  • DAYLIGHT6000K

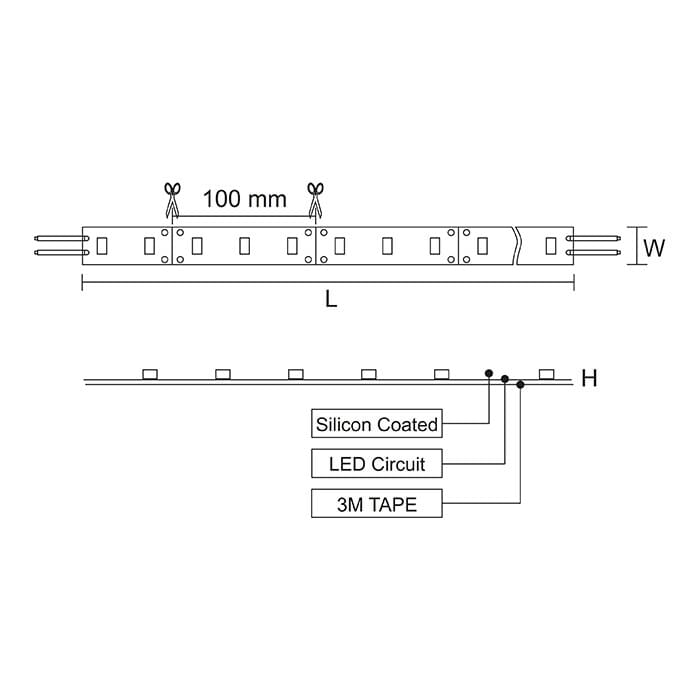

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Watts per metre Beam Angle CRI Lumens LEDs Per Metre Cutting Interval Colour Temp. Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.FLL2406WW/SS10 Input Voltage24 Watts per metre6 Beam Angle115 CRI80 Lumens500 LEDs Per Metre60 Cutting Interval100 Colour Temp.3000 Body ColourCLEAR Dim10(W) x 1.6(H) Add to Enquiry Add Remove Remove
    Model No.FLL2406CW/SS10 Input Voltage24 Watts per metre6 Beam Angle115 CRI80 Lumens500 LEDs Per Metre60 Cutting Interval100 Colour Temp.4000 Body ColourCLEAR Dim10(W) x 1.6(H) Add to Enquiry Add Remove Remove
    Model No.FLL2406DL/SS10 Input Voltage24 Watts per metre6 Beam Angle115 CRI80 Lumens500 LEDs Per Metre60 Cutting Interval100 Colour Temp.6000 Body ColourCLEAR Dim10(W) x 1.6(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
