• TRACK LIGHTS

UNITREK STR9017 - 15W

Dimmable 15 watt single circuit track spot, with integral driver - Unitrek single circuit

Application

Ideal for decorative interior or residential designs

Design Specifications

  • Architectural cylindrical profile

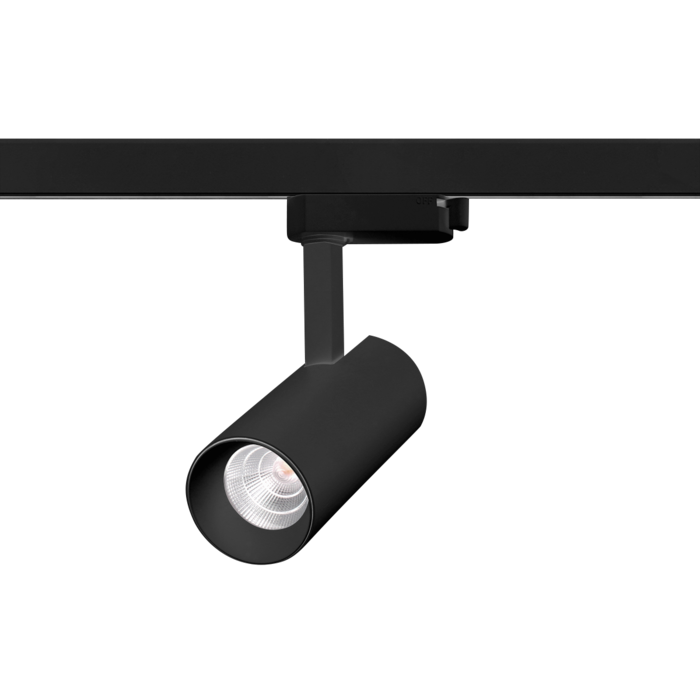

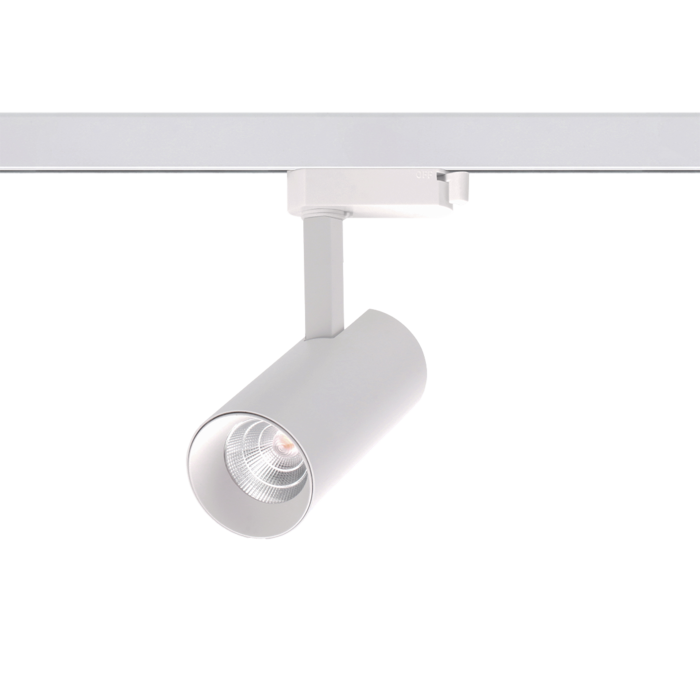

  • Aluminium body, colour matt white or black

  • High efficiency LED optics, CRI > 80, CCT 3000K or 5000K

  • Changeable multifaceted reflector system, polycarbonate lens, beam distribution 40 degree, 25 and 60 degree options

  • 15 watt integral trailing edge dimmable driver

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K

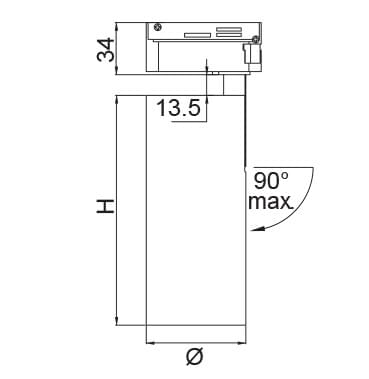

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Body Colour CRI Beam Angle Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.STR9017/15W/WW/BK Input Voltage240 Power15 Lumens1200 CCT3000 Body ColourBlack CRI80 Beam Angle40 Dim65(W) x 175(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
