DALI 75/120/150 - 12V/24V

Australian approved, dimmable constant voltage, DALI 2.0 power supply.

Application

Reliable constant voltage dimmable driver with DALI 2.0 certified by DiiA

Design Specifications

  • Choice of 75 watt / 24V, 150 watt / 24V or 120 watt / 12V, minimum load 5 watt

  • DALI 2.0 certified by DiiA

  • Overload and short circuit protection, DALI and Push DIM control with > 12 bit dimming resolution

  • SELV and EMC compliant, fixed terminal termination

  • flickerCONTROLLED technology, perfect for LED strip applications

  • Electrical class II, Do Not Cover.

Performance

  • Dimmable - YES
  • Dimmer Type - DALI2

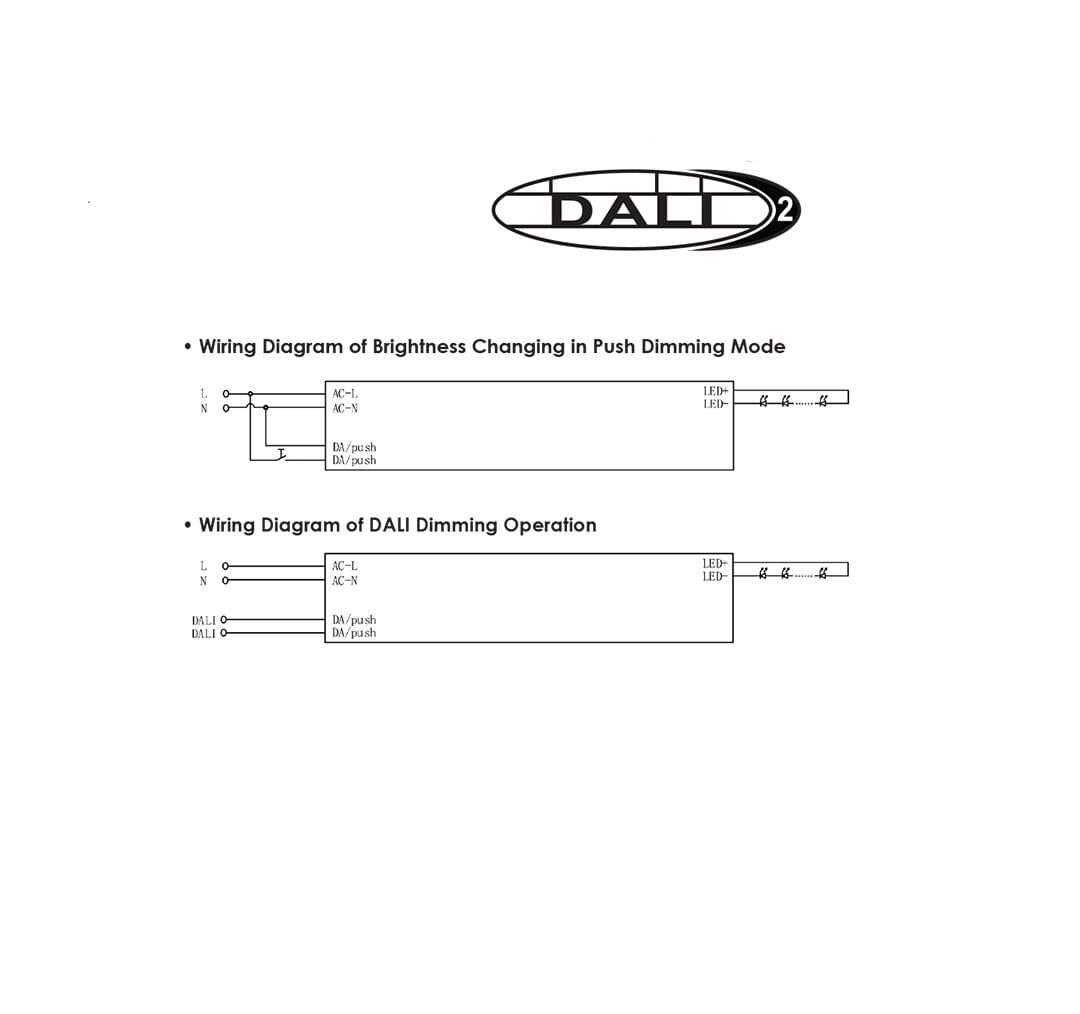

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Output Voltage Power Power Factor Dimmable Dim

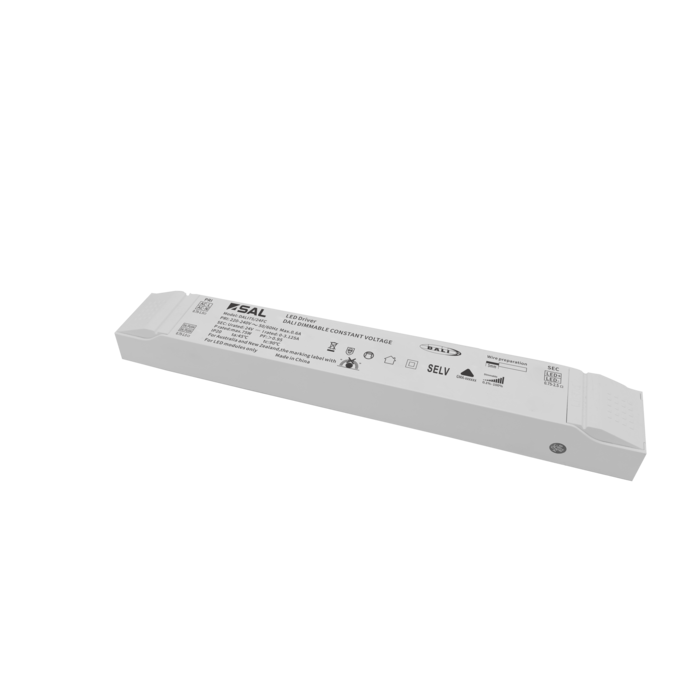

      		Model No. DALI75/24V Add to Enquiry Add Remove Remove Input Voltage 240 Output Voltage 24 Power 75 Power Factor 0.95 Dimmable YES Dim 300(L) x 43(W) x 31(H)

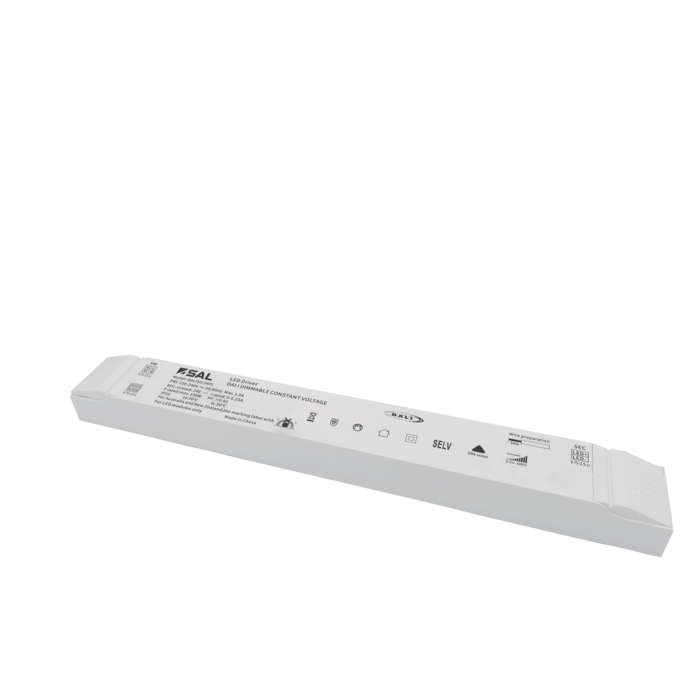

      		Model No. DALI150/24V Add to Enquiry Add Remove Remove Input Voltage 240 Output Voltage 24 Power 150 Power Factor 0.95 Dimmable YES Dim 361(L) x 43(W) x 31(H)
      		Model No. DALI120/12V Add to Enquiry Add Remove Remove Input Voltage 240 Output Voltage 12 Power 120 Power Factor 0.95 Dimmable YES Dim 361(L) x 43(W) x 31(H)

      NOTE: Before using the PUSH DIM function, please ensure the driver (L/N supply) is powered ON FIRST, to prevent damage to the PUSH DIM terminations.
