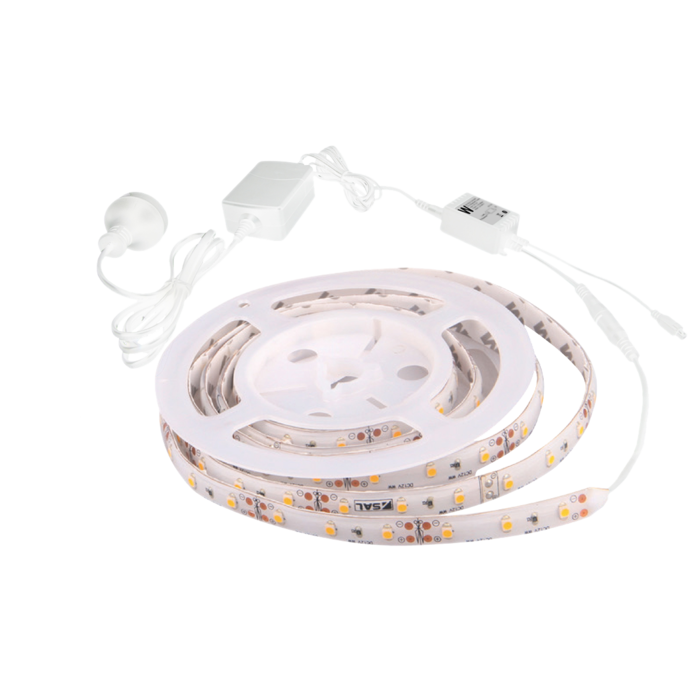

PIXIE FLEXI SMART KIT - FLP12V/SBT

PIXIE MASTER DEVICE - 2m or 5m smart lighting, warm white or neutral daylight strip kits

Application

Home theatre, bar features, decorative task illumination demanding smart controls

Design Specifications

  • Smart LED strip kit, dimmable via PIXIE secondary device, or the PIXIE or PIXIE PLUS apps

  • Dimming memory function

  • High performance, stable, even light output

  • Pre-wired for easy installation, plug-in & ready to use, cuttable every 50mm

  • IP44 strip only, driver IP20

  • NOTE: when cutting LED strips, it is always important to calculate the remaining LED load to reconfirm its compatibility with the existing driver, as driver changes may be required with moderate reduction in loads. Heat-sink required for system integrity and performance LED channel options refer this section

Performance

  • Dimmable - YES
  • Dimmer Type - PIXIE
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Beam Angle Body Colour Dim Watts per metre CCT LEDs Per Metre CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.FLP12V2M/WW/SBT Input Voltage240 Beam Angle115 Body ColourCLEAR Dim2000(L) x 8(W) x 2.5(H) Watts per metre6 CCT3000 LEDs Per Metre60 CRI80 Add to Enquiry Add Remove Remove
    Model No.FLP12V2M/NDL/SBT Input Voltage240 Beam Angle115 Body ColourCLEAR Dim2000(L) x 8(W) x 2.5(H) Watts per metre6 CCT5000 LEDs Per Metre60 CRI80 Add to Enquiry Add Remove Remove
    Model No.FLP12V5M/WW/SBT Input Voltage240 Beam Angle115 Body ColourCLEAR Dim5000(L) x 8(W) x 2.5(H) Watts per metre6 CCT3000 LEDs Per Metre60 CRI80 Add to Enquiry Add Remove Remove
    Model No.FLP12V5M/NDL/SBT Input Voltage240 Beam Angle115 Body ColourCLEAR Dim5000(L) x 8(W) x 2.5(H) Watts per metre6 CCT5000 LEDs Per Metre60 CRI80 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
