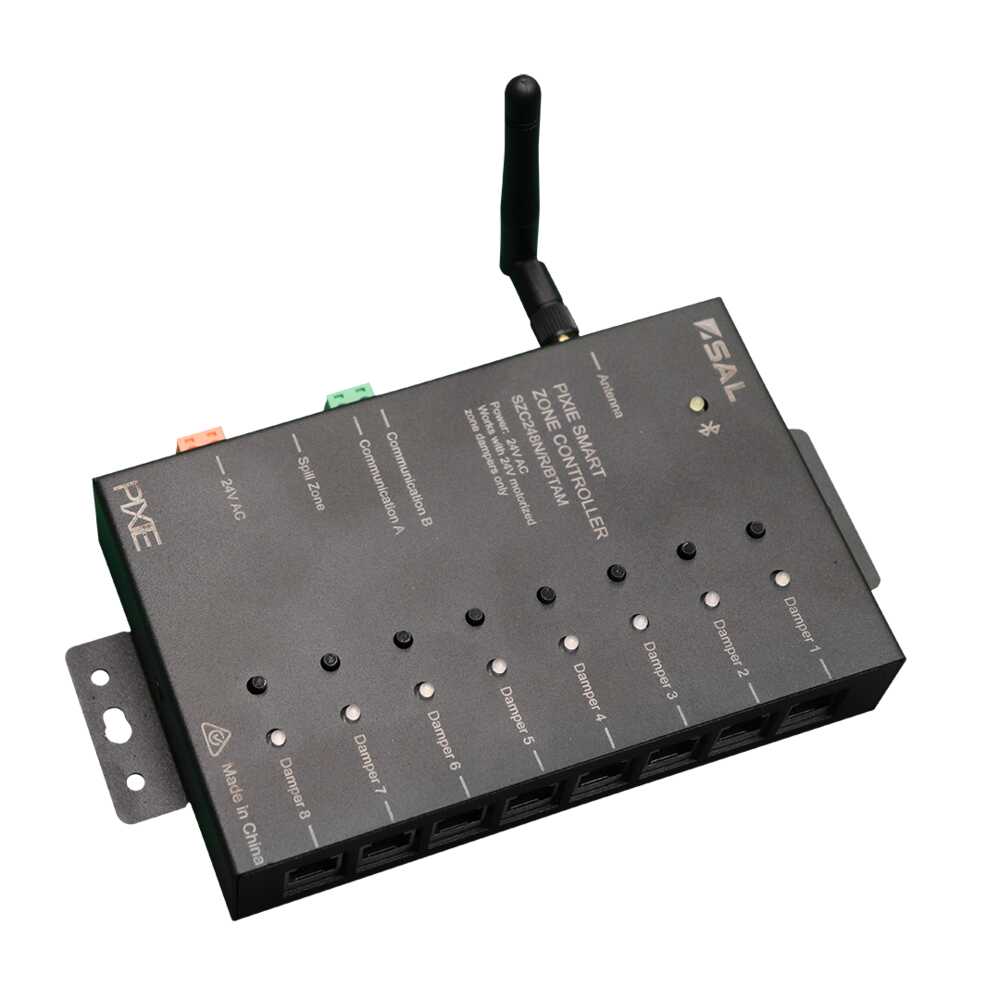

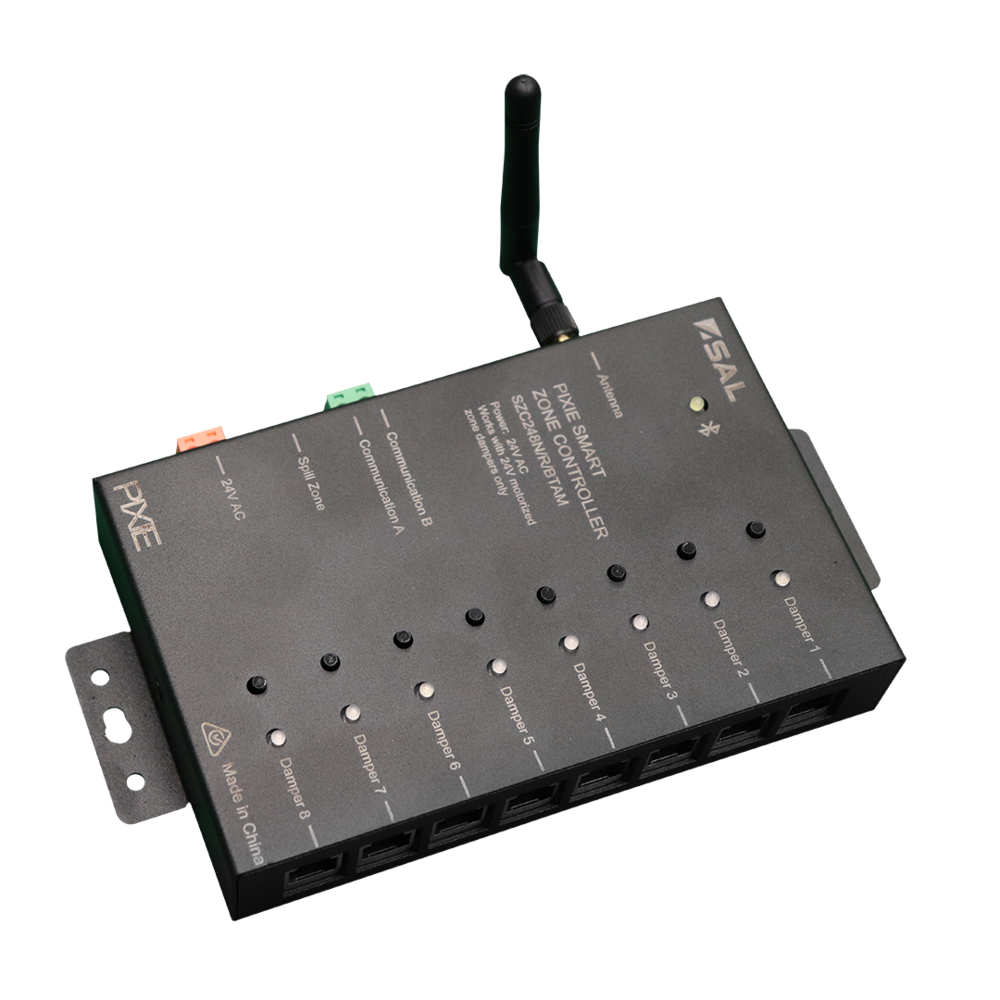

PIXIE SMART ZONE CONTROLLER - SZC248N/R/BTAM

PIXIE MASTER DEVICE – Smart HOME 8-channel Bluetooth® mesh 24V AC damper controller with spill-zone and on-device control buttons

Application

Designed to deliver fast, smart zoning for ducted aircon systems in Australia by opening and closing 24V AC dampers to allow or stop airflow to each zone.

Design Specifications

  • Customizable spill zone setting

  • Unused channels can be disabled (hidden) in the App

  • Works with popular 24V motorised dampers with RJ12 connection

  • Durable metal case, high performance antenna

  • Detachable terminal plug connectors for easy wiring

  • On-device buttons for easy setup, test and commissioning, LED indicators for working status display

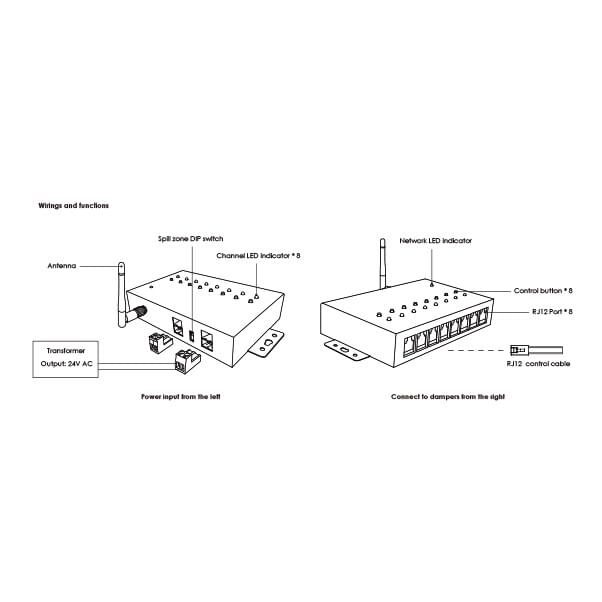

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 GREY
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SZC248N/R/BTAM Input Voltage24 Body ColourGREY Dim94(L) x 177(W) x 30(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
