PIXIE SMART PIR SENSOR OUTDOOR - SMS862WF/BTAM

PIXIE MASTER DEVICE - SMART HOME PIR Sensor with PE cell and override functions - surface mount IP66

Application

Versatile residential and commercial sensor applications with Smart function control

Design Specifications

  • Sensitivity, hold time and brightness threshold adjustment can be set via physical dials, and via the PIXIE PLUS App

  • Maximum loads (LED) 500W, (Halogen) 2000W

  • Additional PE cell mode

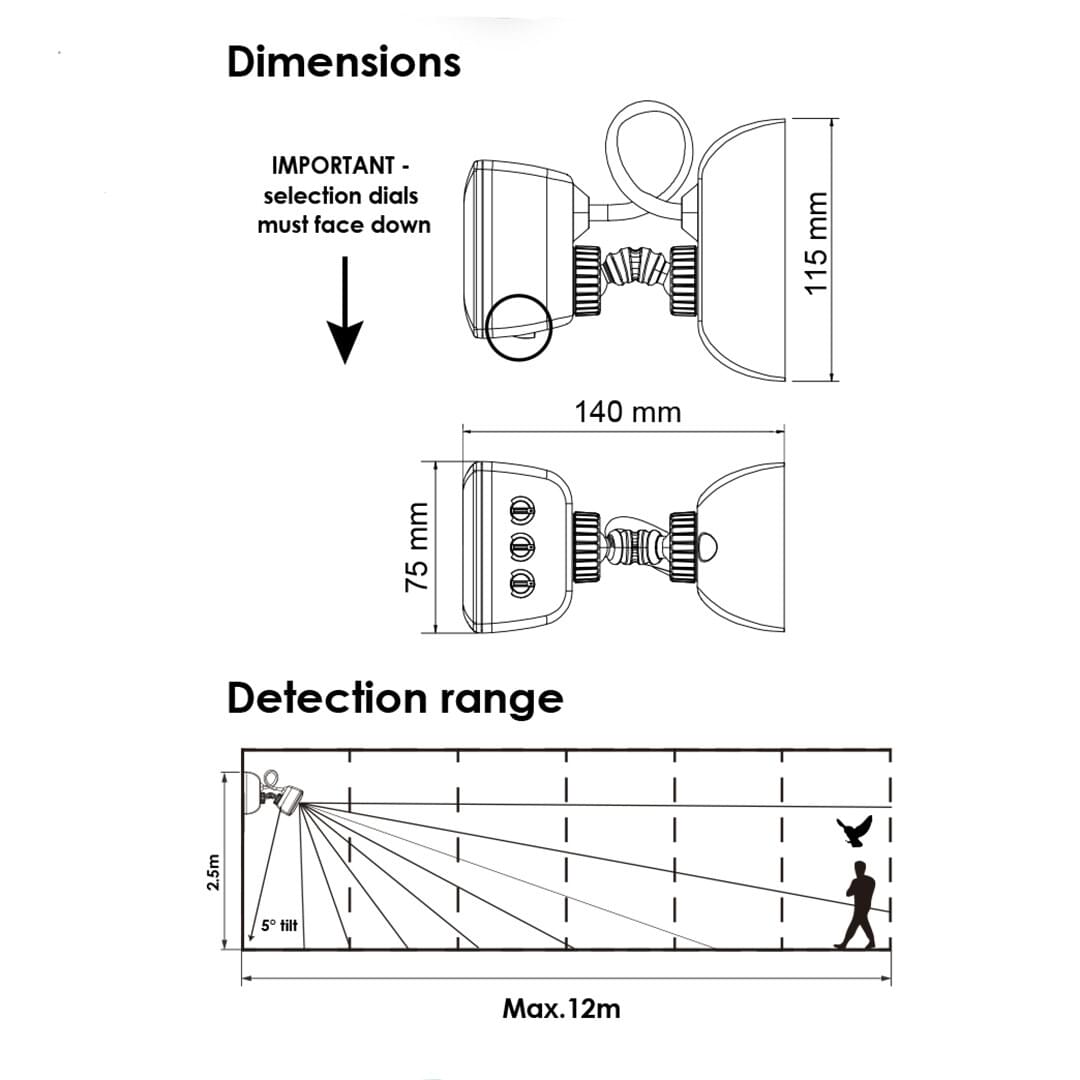

  • Detection angle 110° up to 12 metres at a height of 1.8 - 2.5m (Black model detection range 10 metres).

  • Simply use the App or PIXIE secondary device to switch among 4 working modes: Motion sensor mode, Override ON, Override OFF, and PE cell mode

  • 3 wire design for interior or exterior use in a choice of WHITE or BLACK

Performance

  • Dimmable - NO
  • In Built Sensor - YES
  • Sensor Type - PIR
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

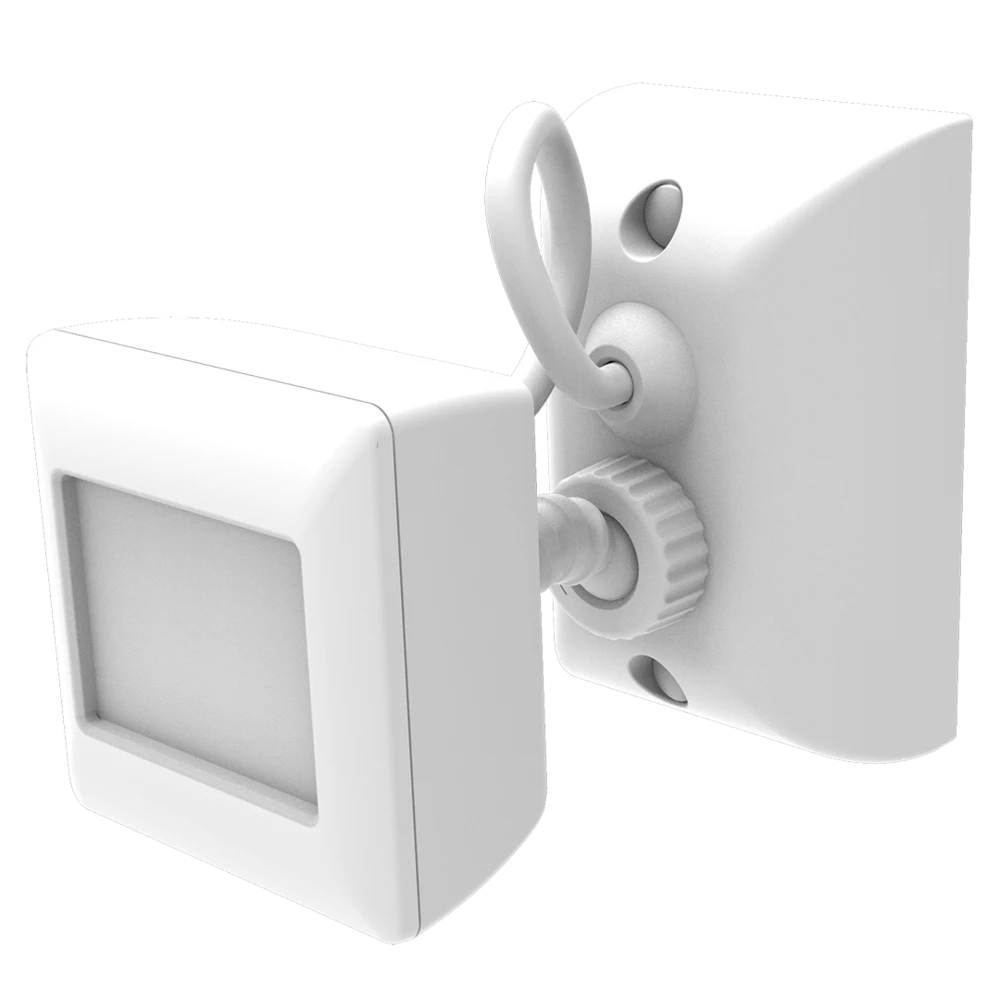

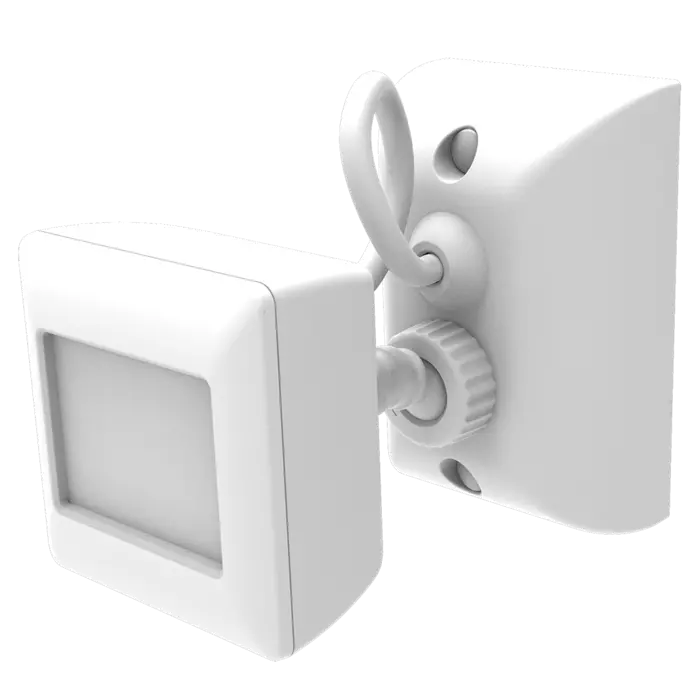

    Model No.SMS862WF/WH/BTAM Input Voltage240 Body ColourWHITE Dim140(L) x 75(W) x 115(H) Add to Enquiry Add Remove Remove

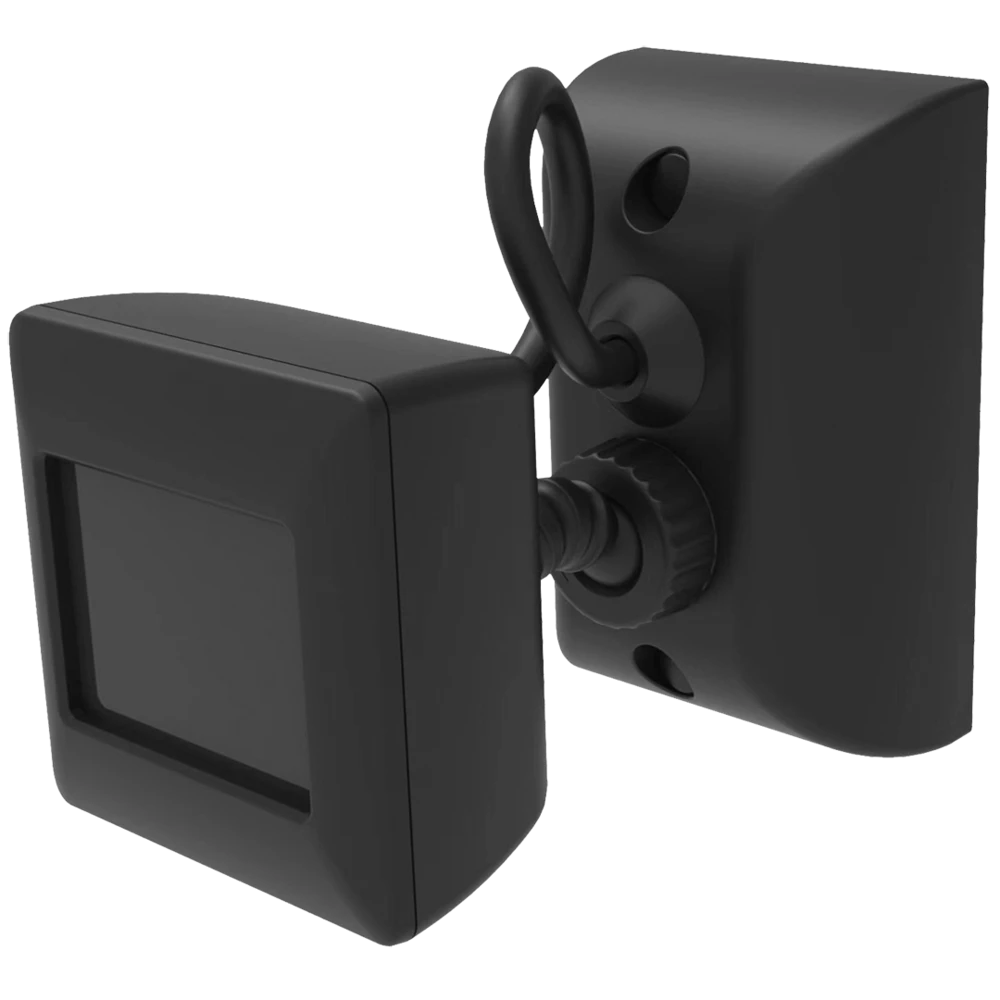

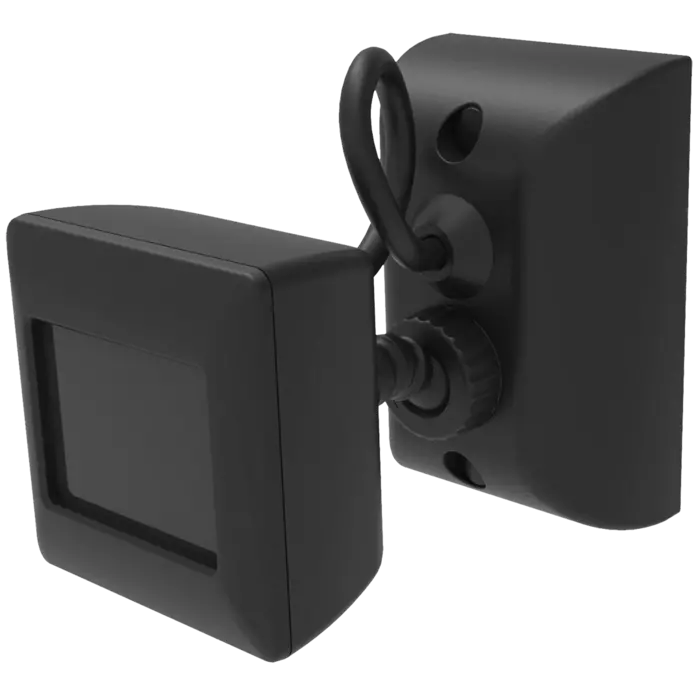

    Model No.SMS862WF/BK/BTAM Input Voltage240 Body ColourBLACK Dim140(L) x 75(W) x 115(H) Add to Enquiry Add Remove Remove
