• LED BULKHEADS

COOPER SE7083TC - 23W

23 watt, IP65 LED commercial bunker luminaire, selectable CCT, IK10 rated, ceiling or wall mount

Application

A decorative architectural solution for commercial exteriors

Design Specifications

  • Robust die-cast aluminium body, durable black or silver finish

  • Stainless steel allen screws

  • High efficiency LED optics

  • Integral constant current non-dimmable LED driver

  • Selectable CCT 3000 / 4000 / 5700K

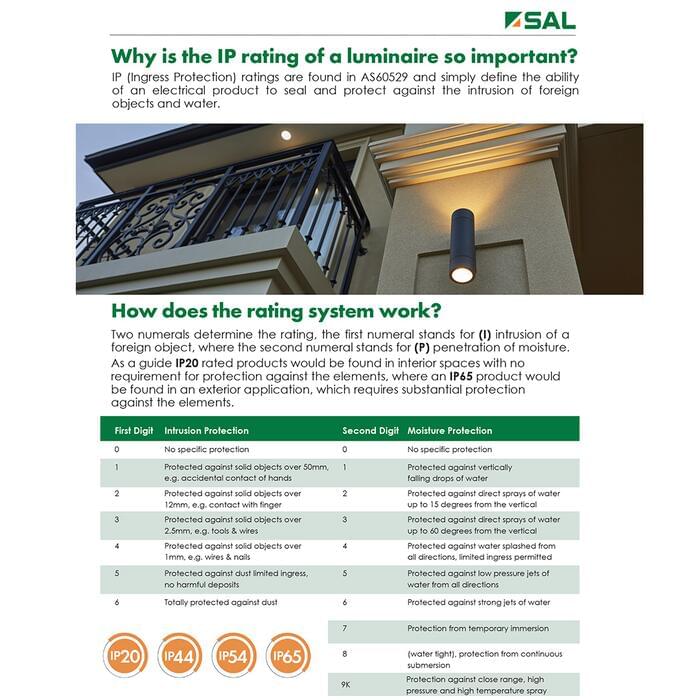

  • UV stabilized opal polycarbonate diffuser, IK10, IP65 performance
    Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the exterior emergency section

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - TRAILING EDGE
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE

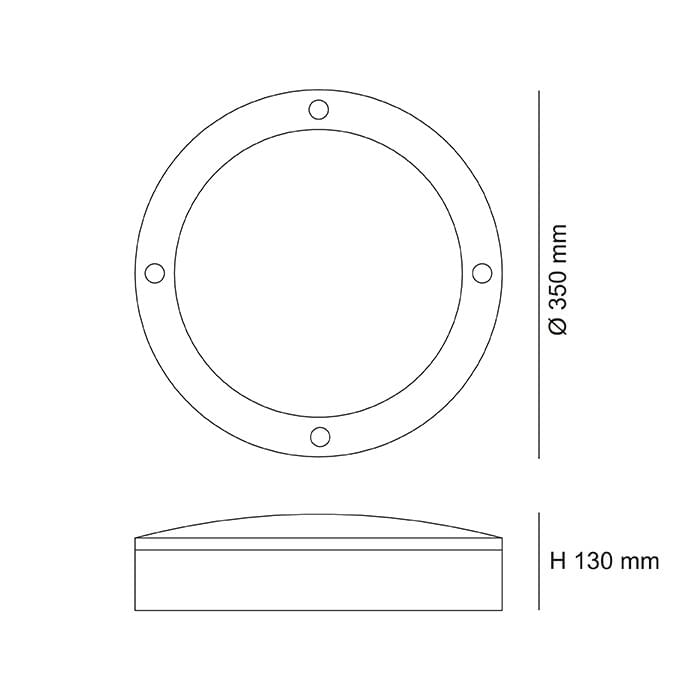

    • Dimensions - Wiring Diagrams
    • Design Options

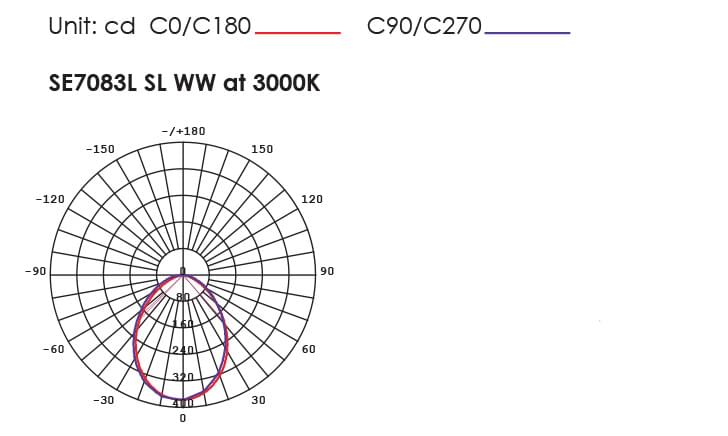

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Diameter Dim

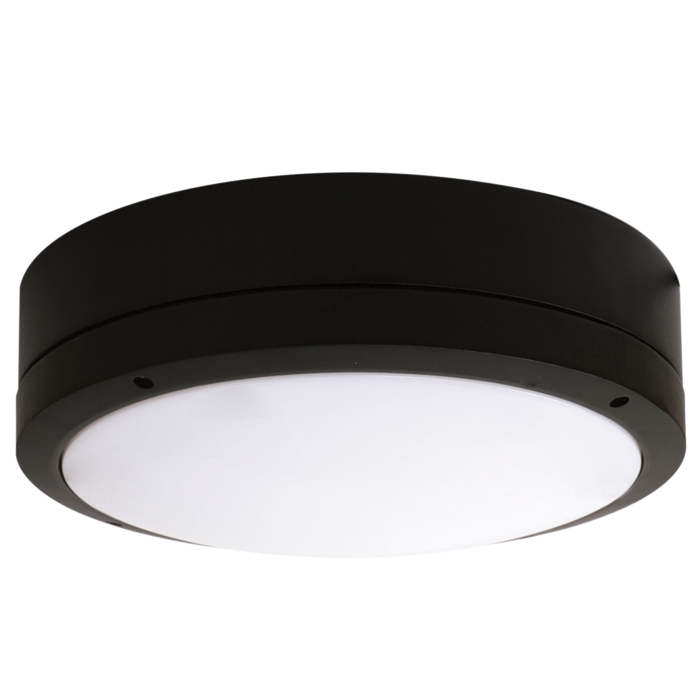

      		Model No. SE7083TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 23 Lumens 1400/1500/1500 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Body Colour BLACK Diameter 350 Dim 130(H)

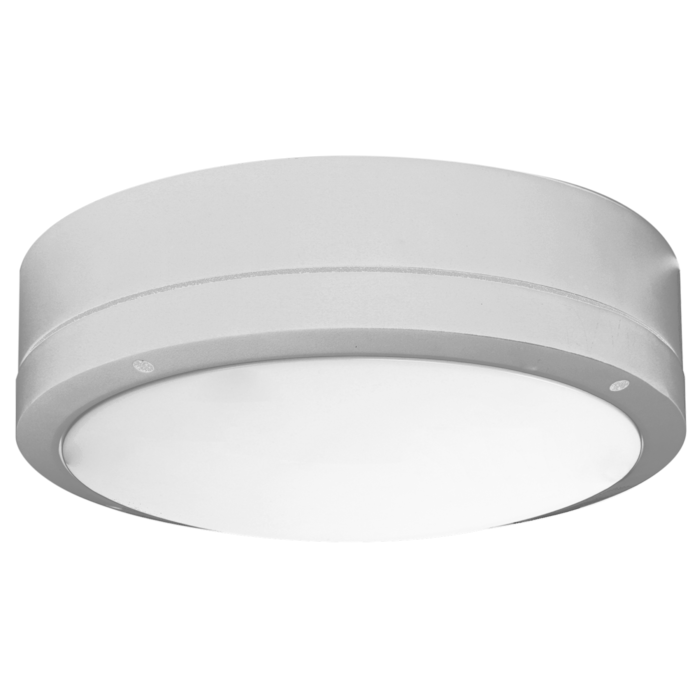

      		Model No. SE7083TC/SL Add to Enquiry Add Remove Remove Input Voltage 240 Power 23 Lumens 1400/1500/1500 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Body Colour SILVER Diameter 350 Dim 130(H)

      NOTE: SL models, indent only.

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
