• LED ARCHITECTURAL

BOLLARD DOME SL7088DC TC - 10W

Dome profile, IP65 circular bollard, integral LED control gear with selectable CCT

Application

Ideal for residential or apartment exterior pathways

Design Specifications

  • Die-cast aluminium body, dome profile design,
    base plate mounting, rag bolts included

  • Durable BLACK powder coated finish

  • Clear polycarbonate lens

  • High efficiency LED optics

  • Integral LED control gear, IP65, IK08 performance

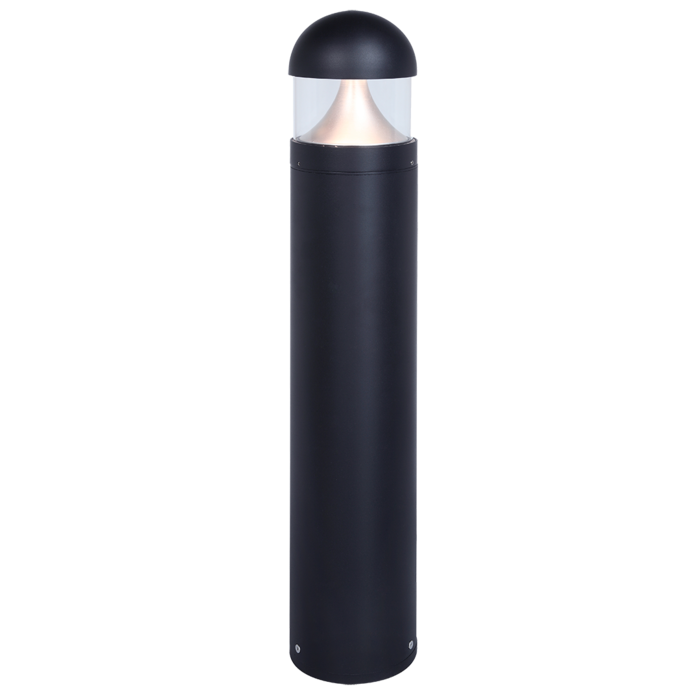

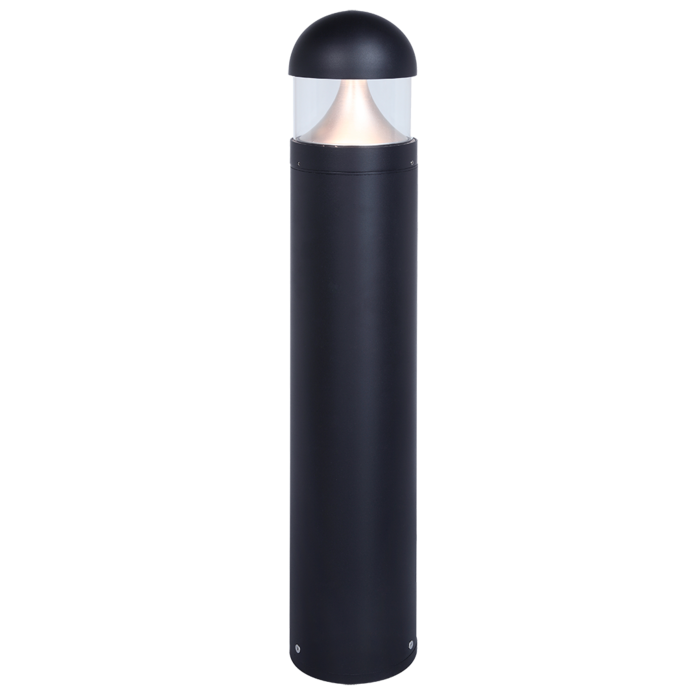

  • SL7088DC50TC - 120mm Ø, 670mm height

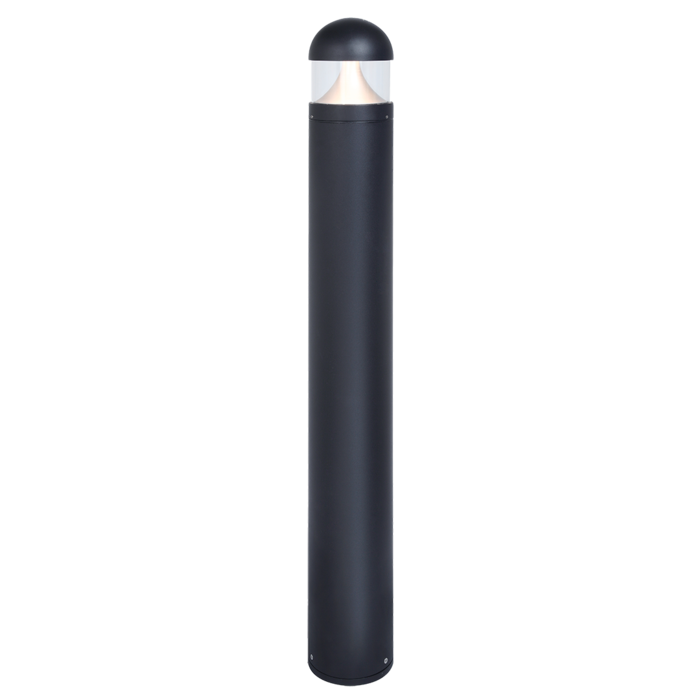

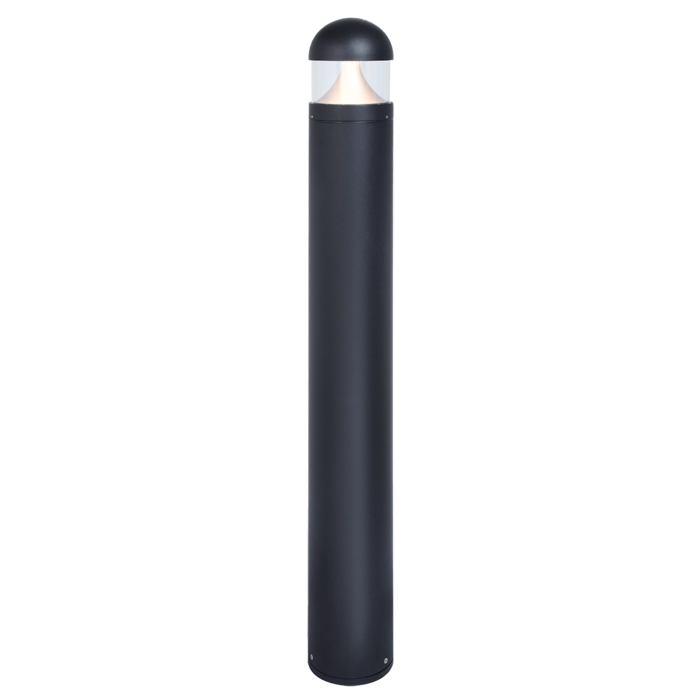

    SL7088DC85TC - 120mm Ø, 1020mm height

Performance

  • Dimmable - NO
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Mass Diameter Dim Body Colour
      		Model No. SL7088DC50TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 725/760/740 CCT 3000/4000/5000 Beam Angle 250 Mass 2.2 Diameter 120 Dim 670(H) Body Colour BLACK
      		Model No. SL7088DC85TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 725/760/740 CCT 3000/4000/5000 Beam Angle 250 Mass 2.8 Diameter 120 Dim 1020(H) Body Colour BLACK
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
