• ARCHITECTURAL

BONDI SE7122TC

IP65 LED architectural GU10 (UP/DOWN) wall luminaire, with selectable CCT GU10 lamps included

Application

A decorative residential exterior or interior solution

Design Specifications

  • Machined 316L stainless steel or cast aluminium body, powder coated finish (black, silver)

  • 240V termination

  • Clear tempered glass cover
  • GU10 lamp base with GU10L350TC selectable CCT lamps included

  • SAL lamp options: GU10L550TC, GU10LR750 (excluding stainless steel fitting), GU10LA750 (excluding stainless steel fitting). See Lamp section for detail

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

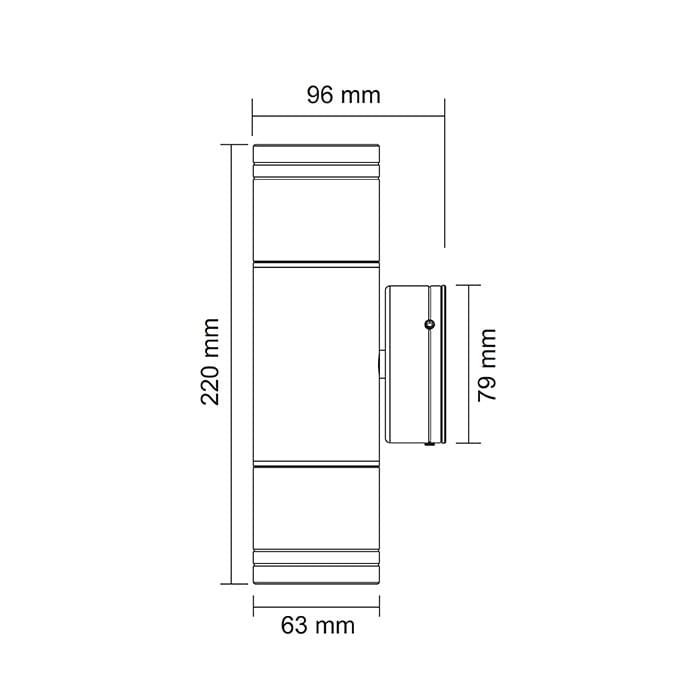

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Body Colour IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SE7122TC/SLS Input Voltage240 Power8 Lumens360/400/380 CCT3000/4000/6000 CRI80 Beam Angle50 Mass0.93 Diameter63 Dim96(W) x 220(H) Body ColourSTAINLESS STEEL IPART Add to Enquiry Add Remove Remove
    Model No.SE7122TC/BK Input Voltage240 Power8 Lumens360/400/380 CCT3000/4000/6000 CRI80 Beam Angle50 Mass0.48 Diameter63 Dim96(W) x 220(H) Body ColourBLACK IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SE7122TC/SL Input Voltage240 Power8 Lumens360/400/380 CCT3000/4000/6000 CRI80 Beam Angle50 Mass0.89 Diameter63 Dim96(W) x 220(H) Body ColourSILVER IPART Add to Enquiry Add Remove Remove

    Note: optical performance shown (lumens lm) is for a single lamp.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
