• LED ARCHITECTURAL

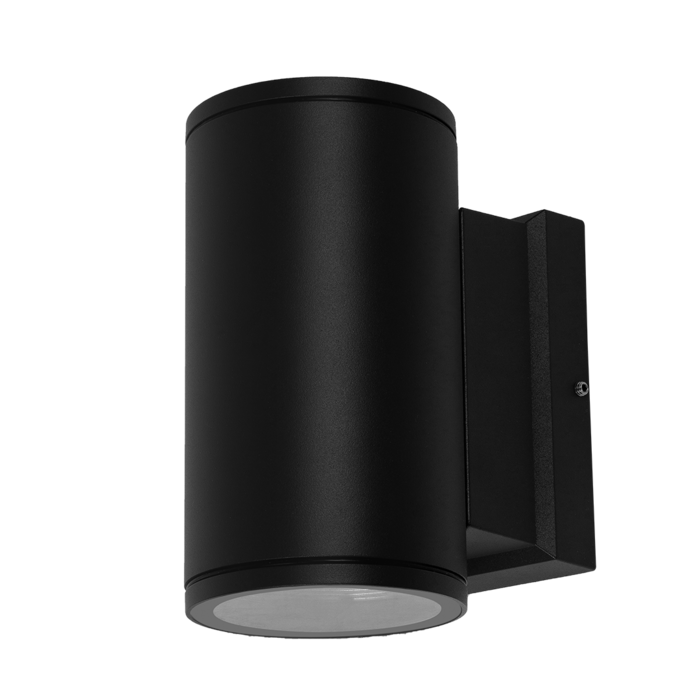

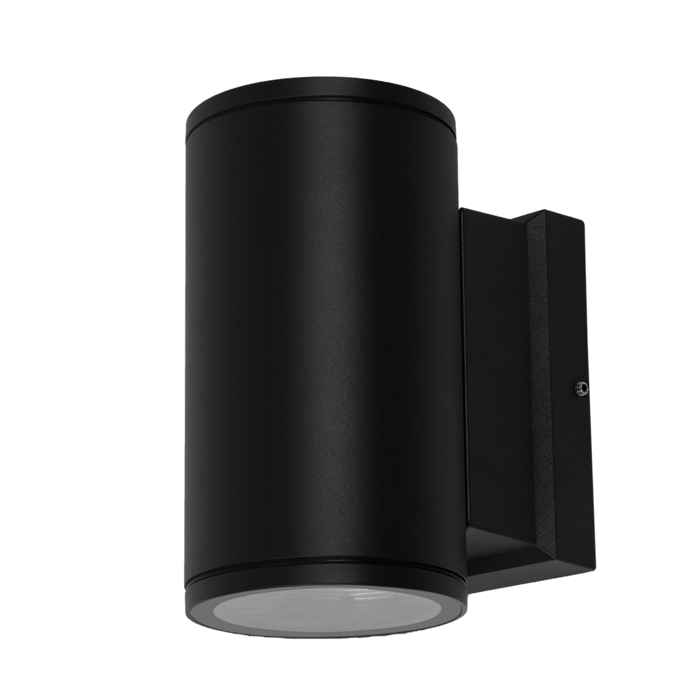

COOGEE SE724XL/TC - 10 / 40 W

IP65 LED architectural wall luminaire with combinations of DOWN or UP/DOWN optical distribution

Application

A decorative residential / commercial exterior or interior solution

Design Specifications

  • Die-cast aluminium body with a durable black powder coat finish or choice of silver

  • Clear tempered glass cover

  • High efficiency LED optics, CRI>80, selectable CCT 3000/4000/5000K

  • High performance optical system, standard beam distribution 38°  -  DOWN or UP/DOWN design options

  • Integral non-dimmable LED flickerCONTROLLED  gear, with a choice of 10 watt, 2 x 10 watt, 20 watt or 2 x 20 watt models

  • Large rectangular mounting base for easy installation

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • NEUTRAL DAYLIGHT5000K

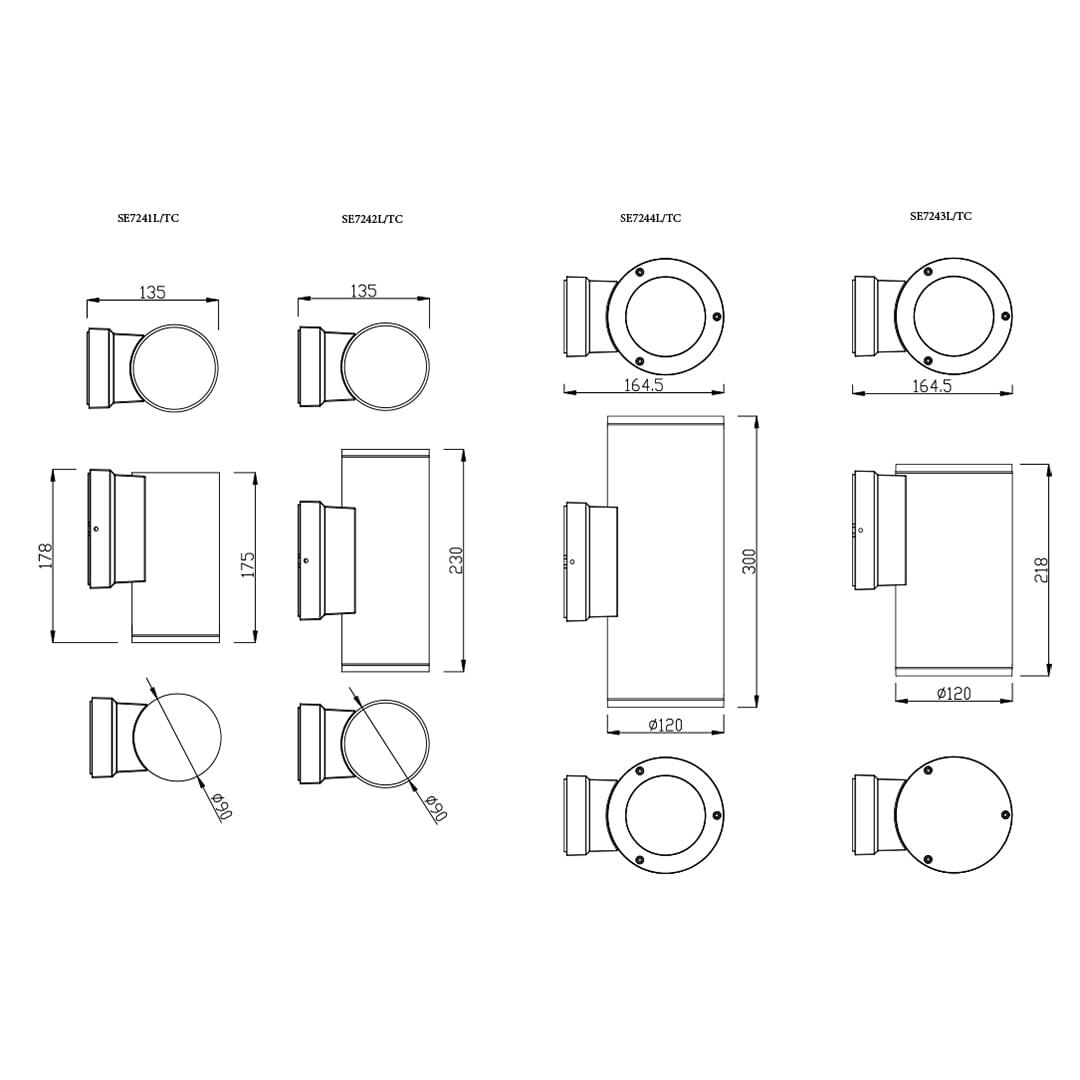

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Body Colour

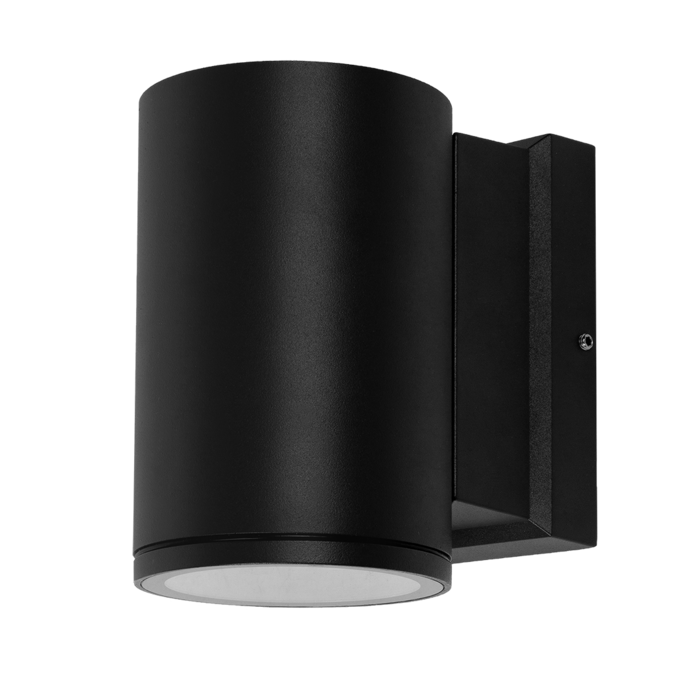

      		Model No. SE7241L/TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 1000/1050/1050 CCT 3000/4000/5000 CRI 80 Beam Angle 38 Mass 0.82 Diameter 90 Dim 175(H) x 135(D) Body Colour BLACK - DOWN

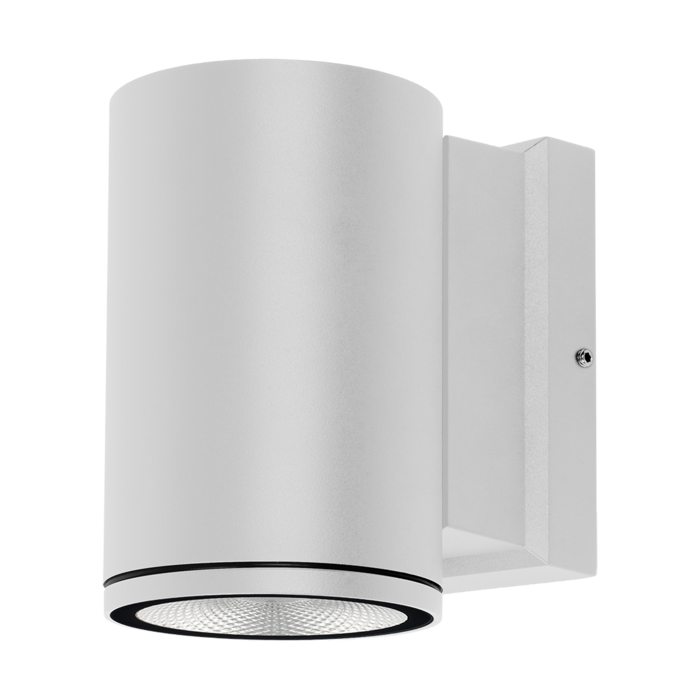

      		Model No. SE7241L/TC/SL Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 1000/1050/1050 CCT 3000/4000/5000 CRI 80 Beam Angle 38 Mass 0.82 Diameter 90 Dim 175(H) x 135(D) Body Colour SILVER - DOWN
      		Model No. SE7242L/TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 1000/1050/1050 CCT 3000/4000/5000 CRI 80 Beam Angle 38 Mass 1.09 Diameter 90 Dim 230(H) x 135(D) Body Colour BLACK - UP/DOWN

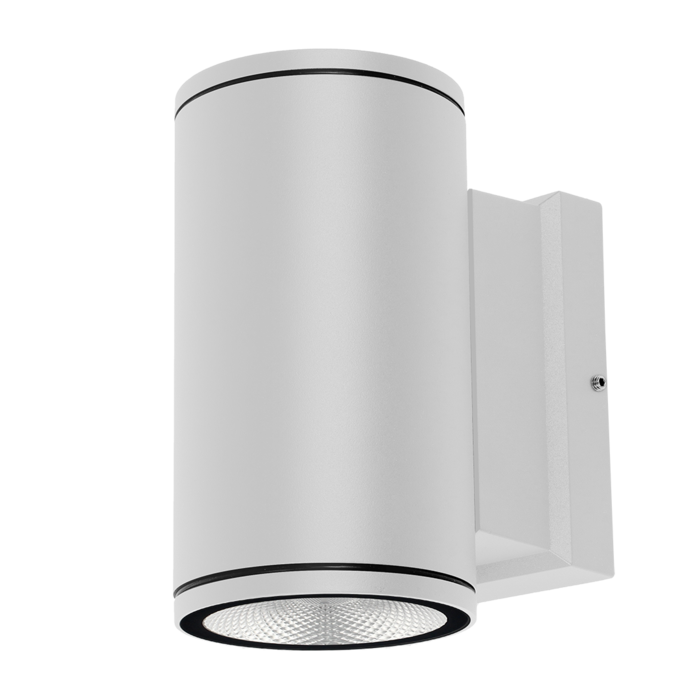

      		Model No. SE7242L/TC/SL Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 1000/1050/1050 CCT 3000/4000/5000 CRI 80 Beam Angle 38 Mass 1.09 Diameter 90 Dim 230(H) x 135(D) Body Colour SILVER - UP/DOWN

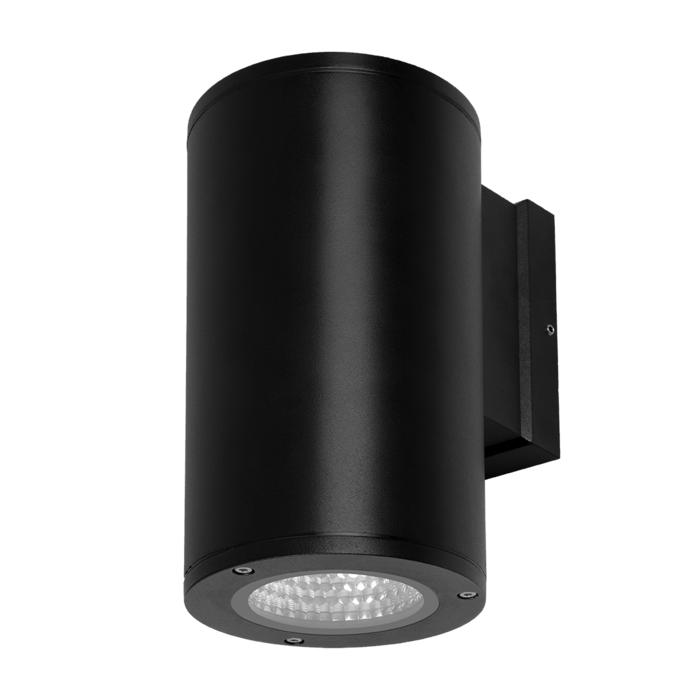

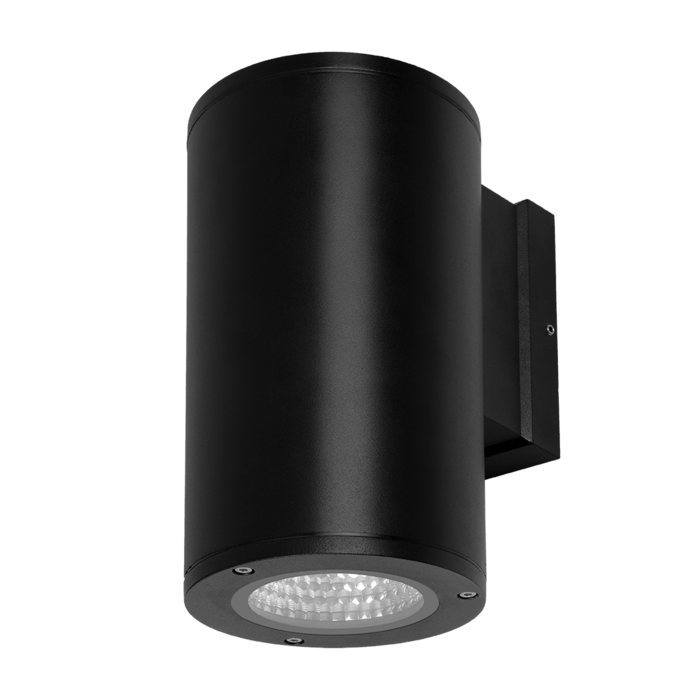

      		Model No. SE7243L/TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 1950/2050/1850 CCT 3000/4000/5000 CRI 80 Beam Angle 38 Mass 1.22 Diameter 120 Dim 218(H) x 165(D) Body Colour BLACK - DOWN

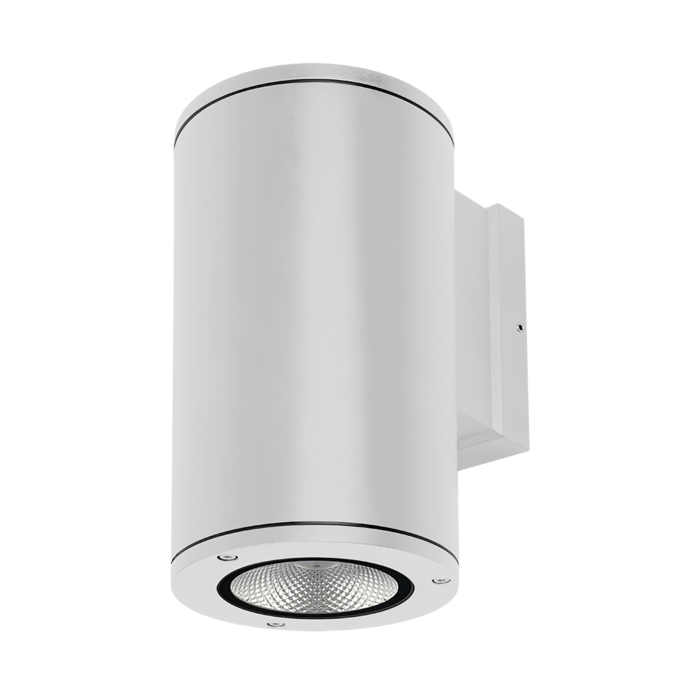

      		Model No. SE7243L/TC/SL Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 1950/2050/1850 CCT 3000/4000/5000 CRI 80 Beam Angle 38 Mass 1.22 Diameter 120 Dim 218(H) x 165(D) Body Colour SILVER - DOWN

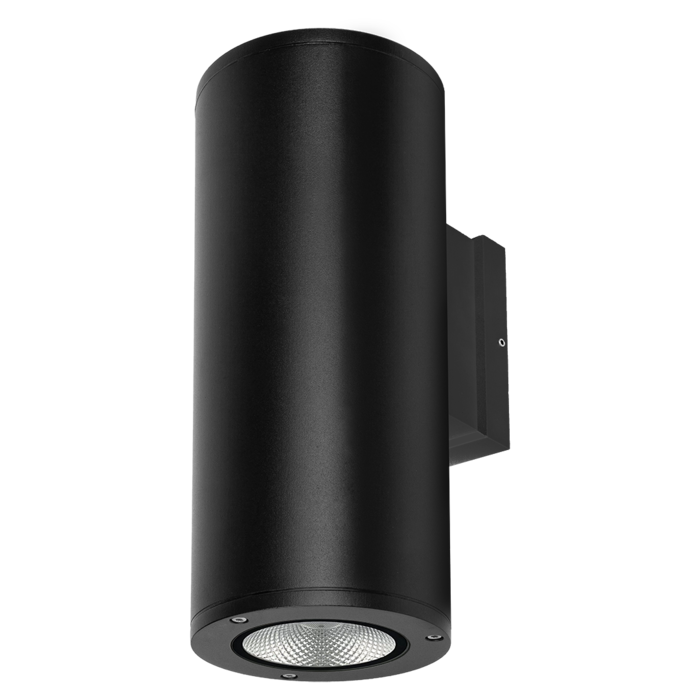

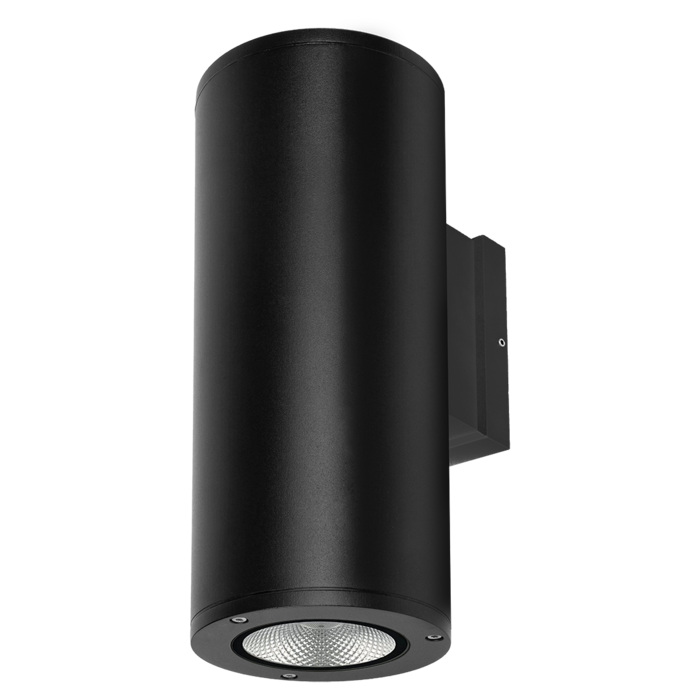

      		Model No. SE7244L/TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 Lumens 1950/2050/1850 CCT 3000/4000/5000 CRI 80 Beam Angle 38 Mass 1.83 Diameter 120 Dim 300(H) x 165(D) Body Colour BLACK - UP/DOWN

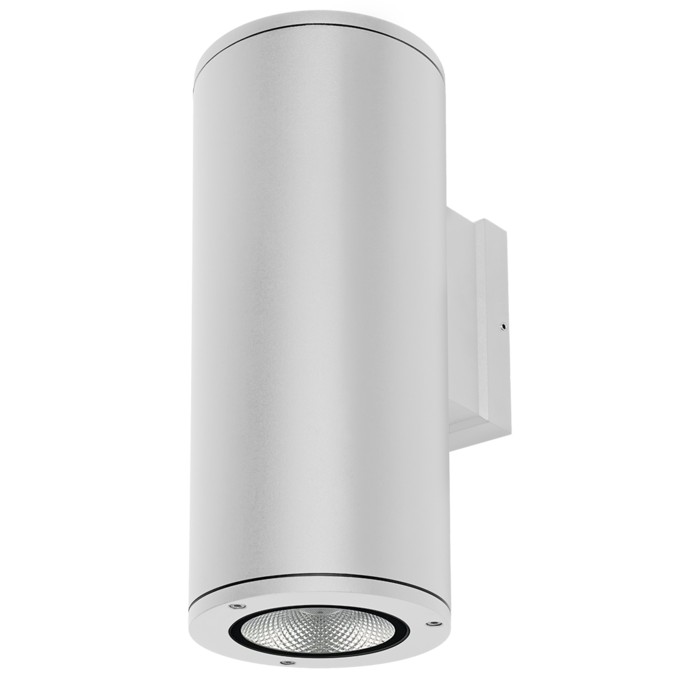

      		Model No. SE7244L/TC/SL Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 Lumens 1950/2050/1850 CCT 3000/4000/5000 CRI 80 Beam Angle 38 Mass 1.83 Diameter 120 Dim 300(H) x 165(D) Body Colour SILVER - UP/DOWN

      NOTE: Lumens (lm) displayed are per optical head.

      NOTE: SL models, indent only.
