• LED ARCHITECTURAL

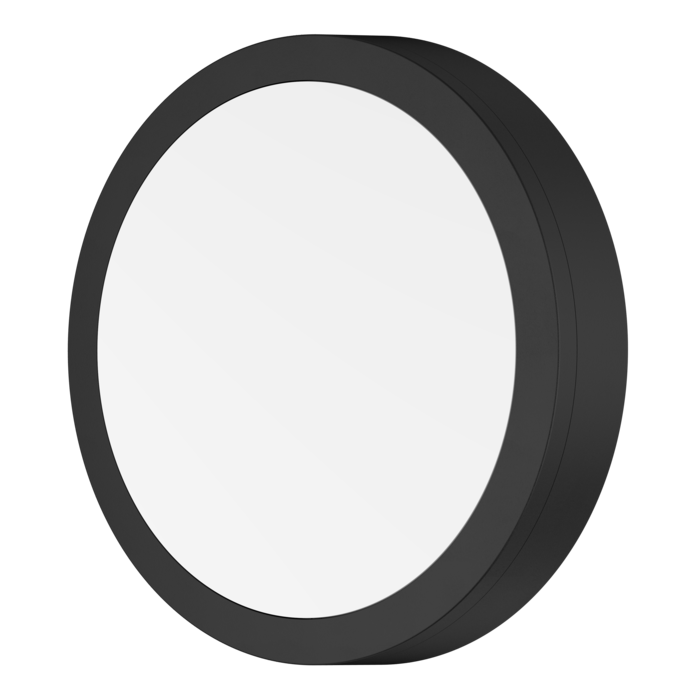

COOPER III SE7192TC - 18W

Decorative 18 watt round profile IP65 architectural LED wall mount luminaire

Application

A decorative architectural solution for residential & commercial interior or exterior spaces

Design Specifications

  • Convenient TC selectable colour temperature, 3000K/4000K/5700K

  • Stylish black finish

  • Integral non-dimmable control gear, 18 watt

  • Robust PC body profile and opal PC diffuser,  designed with multi access 20mm rear or side conduit entry points

  • High efficiency SMD LED

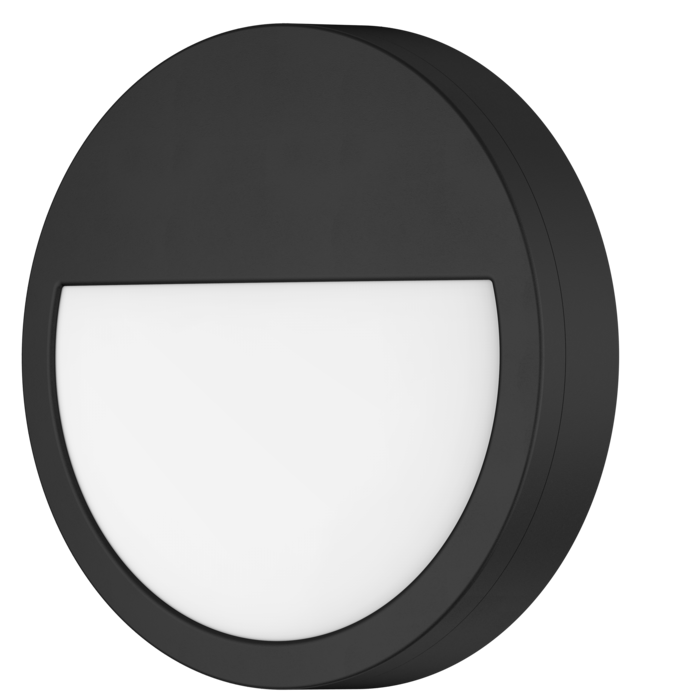

  • Optional eye lid diffuser to order (SE7192E/BK/P) for non-emergency models.

    Maintained emergency options are compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology, spacing classification D20@C0

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K

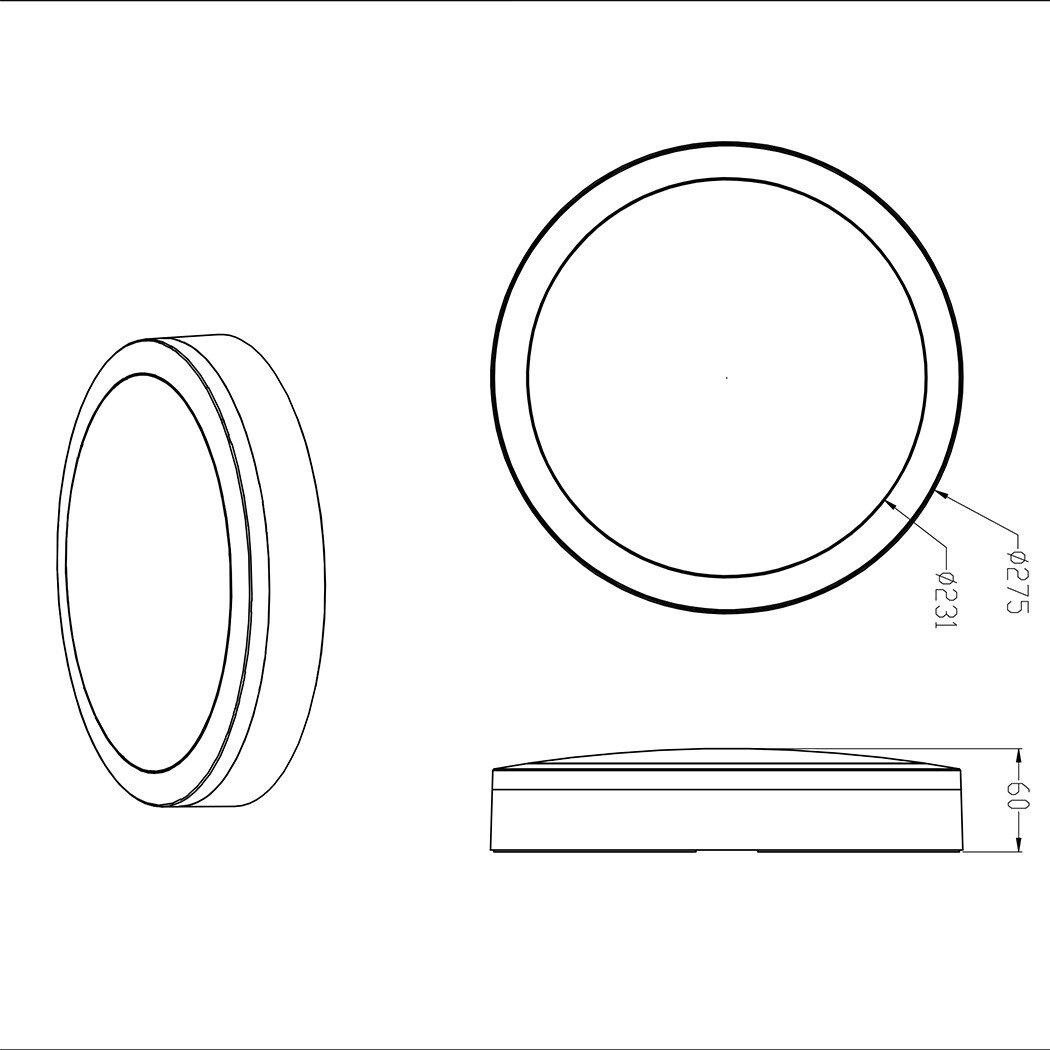

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Black
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SE7192TC/BK Input Voltage240 Power18 Lumens1600/1800/1750 CCT3000/4000/5700 CRI80 Diameter275 Dim60(H) Body ColourBlack Add to Enquiry Add Remove Remove

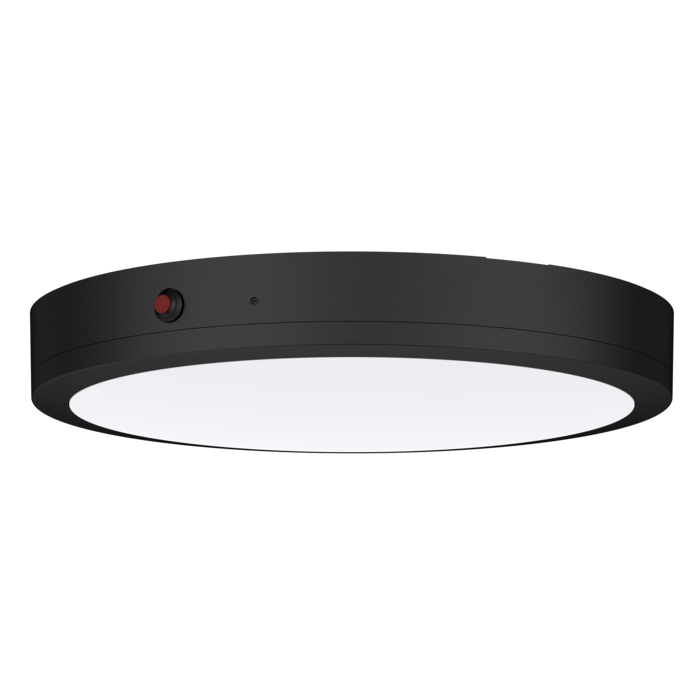

    Model No.SE7192TC/BK/EM Input Voltage240 Power18 Lumens1600/1800/1750 CCT3000/4000/5700 CRI80 Diameter275 Dim60(H) Body ColourBlack Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
