• ARCHITECTURAL

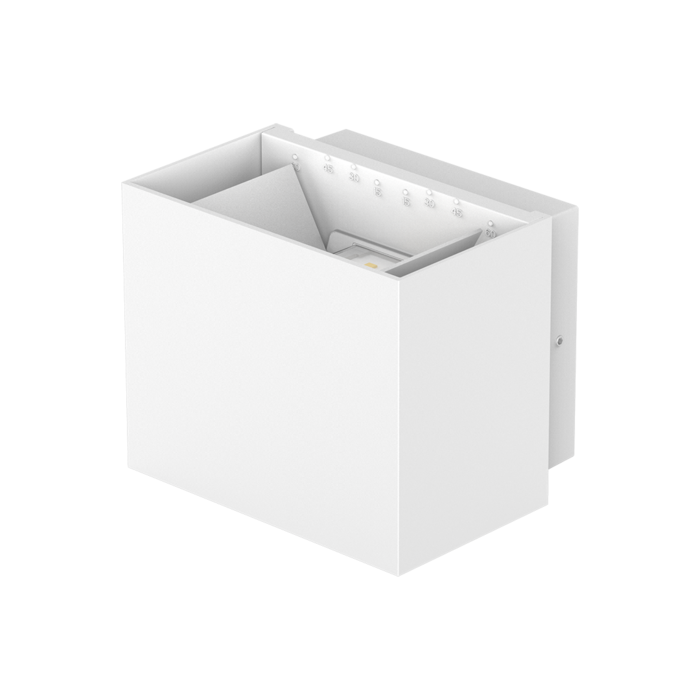

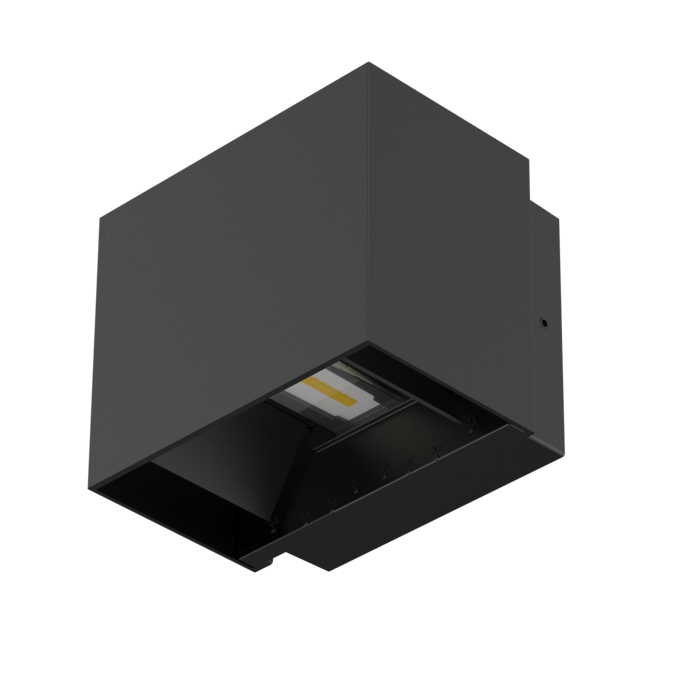

CUBE II S9320 - 10W

10 watt LED surface mount CUBE profile wall luminaire, IP65

Application

Ideal for any residential or commercial interior or exterior space

Design Specifications

  • Durable aluminium body profile

  • Powder coat finish, colour black or white

  • High efficiency LED optics

  • CCT choice of 3000K / 5000K

  • Independent up & down beam, adjustable from 10º to 60°

  • Integral non-dimmable LED driver

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K

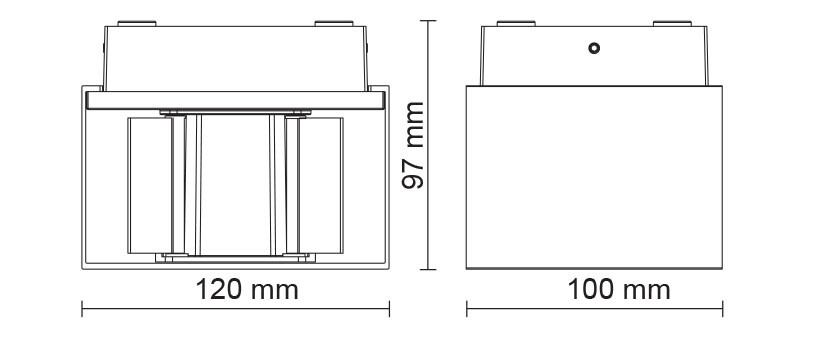

  • Dimensions - Wiring Diagrams
  • Design Options

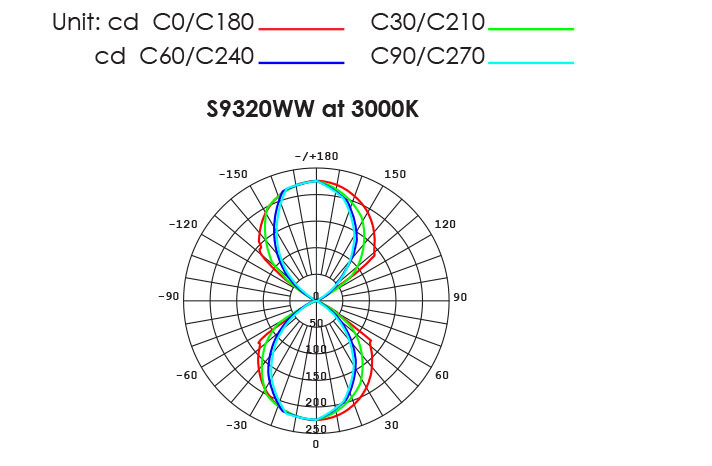

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Mass Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9320WW/WH Input Voltage240 Power10 Lumens750 CCT3000 CRI80 Beam Angle60 Mass0.59 Dim120(W) x 100(H) x 97(D) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9320WW/BK Input Voltage240 Power10 Lumens750 CCT3000 CRI80 Beam Angle60 Mass0.59 Dim120(W) x 100(H) x 97(D) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.S9320NDL/WH Input Voltage240 Power10 Lumens900 CCT5000 CRI80 Beam Angle60 Mass0.59 Dim120(W) x 100(H) x 97(D) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9320NDL/BK Input Voltage240 Power10 Lumens900 CCT5000 CRI80 Beam Angle60 Mass0.59 Dim120(W) x 100(H) x 97(D) Body ColourBLACK Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
