• LED ARCHITECTURAL

GROUND S9338 - 3W

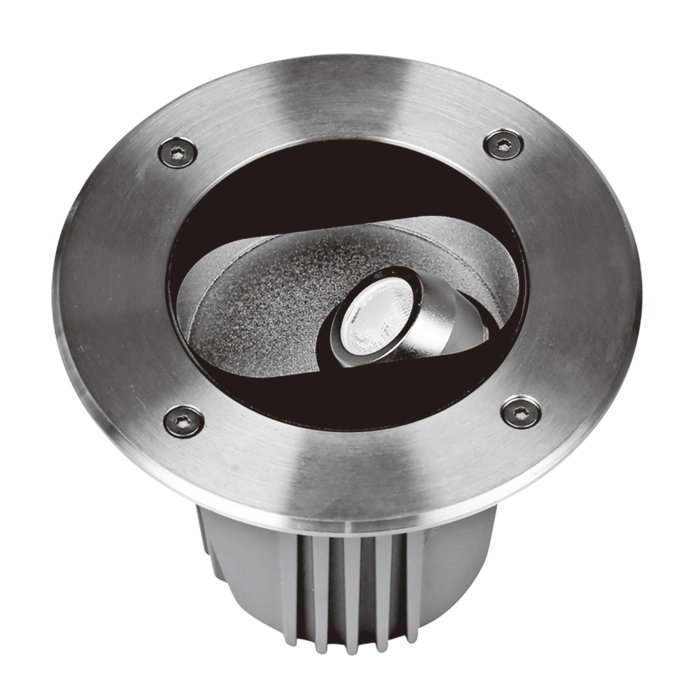

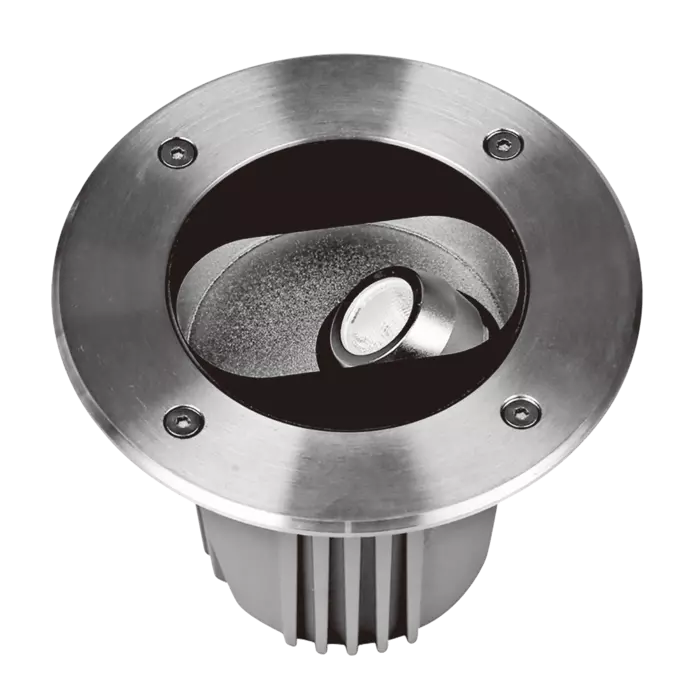

3 watt adjustable LED inground luminaire, IP67 rated

Application

Decorative residential exterior solution, ideal for gardens and decorative pathways

Design Specifications

  • Die-cast aluminium body
  • Stainless steel face panel & screws, clear tempered glass diffuser

  • High output LED optics 24V DC driver required

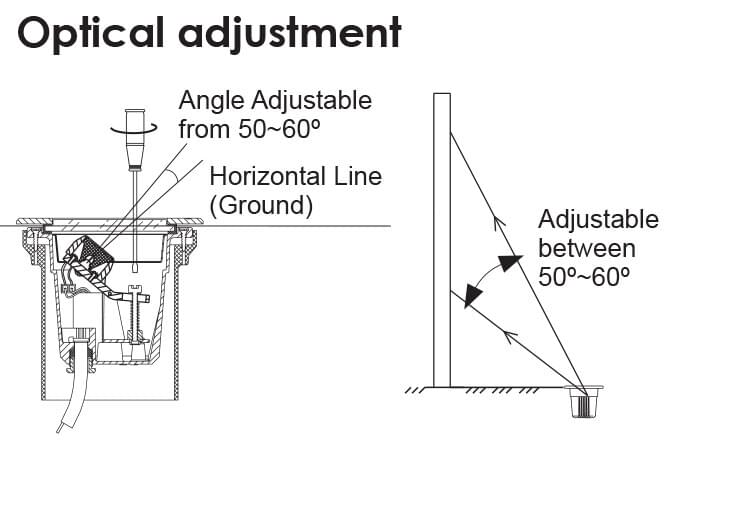

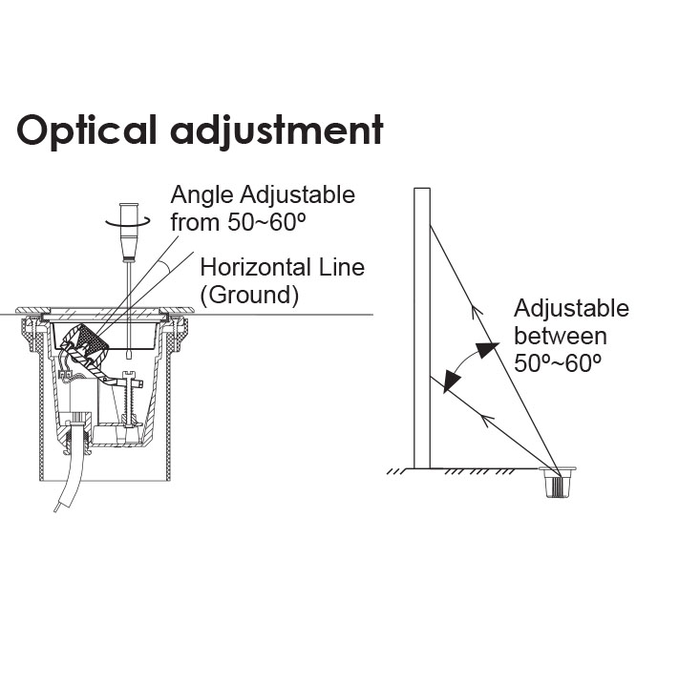

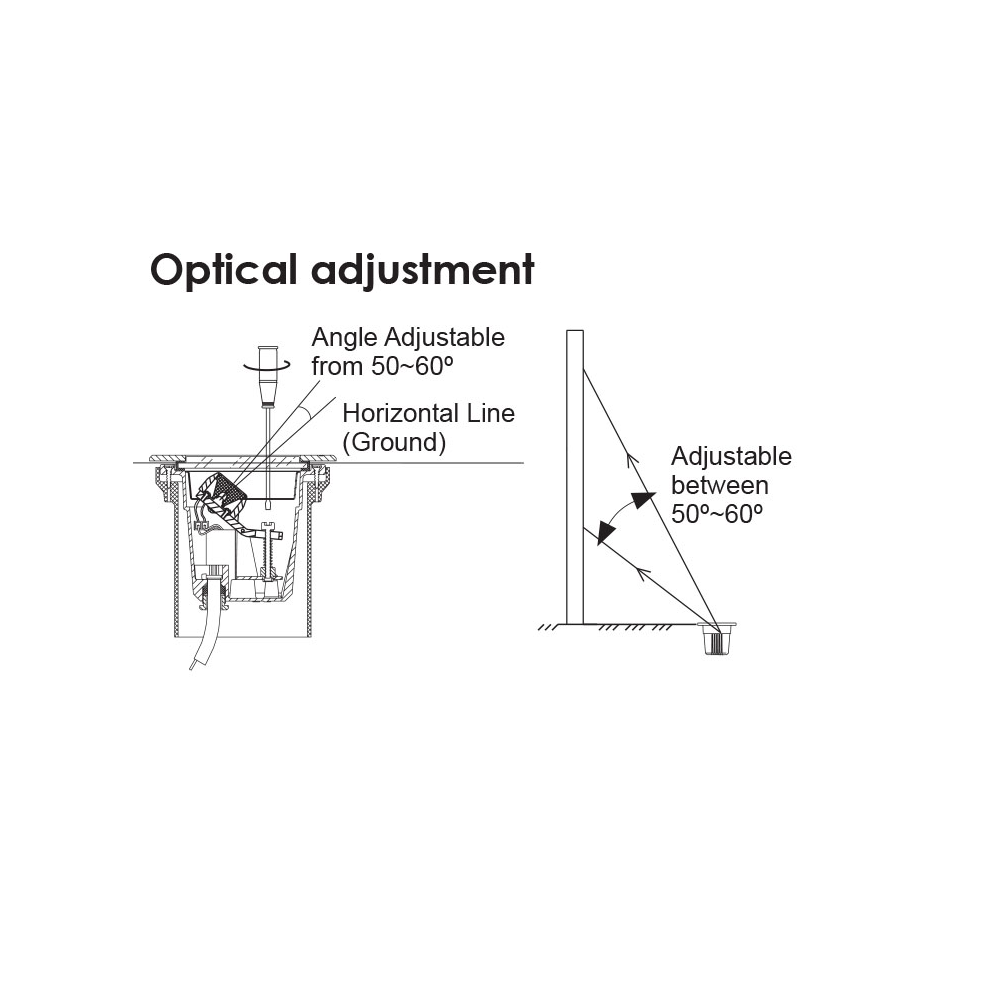

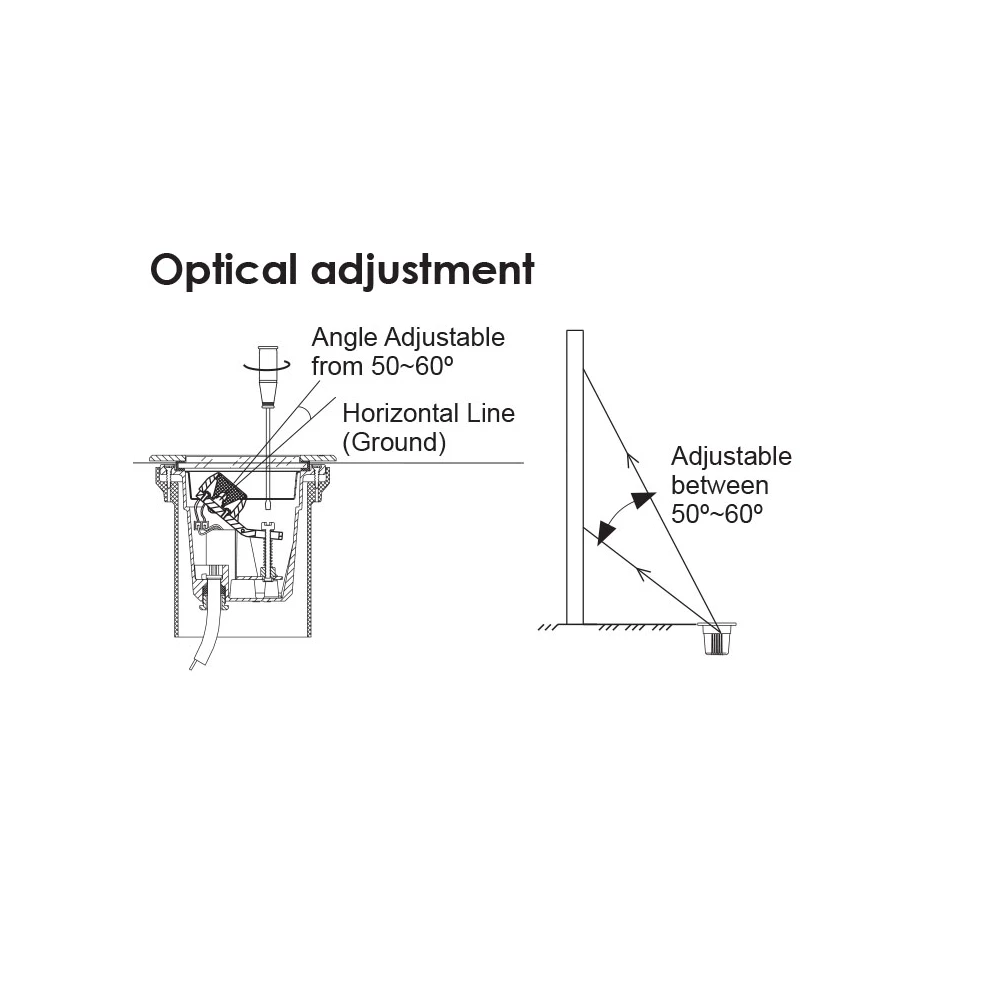

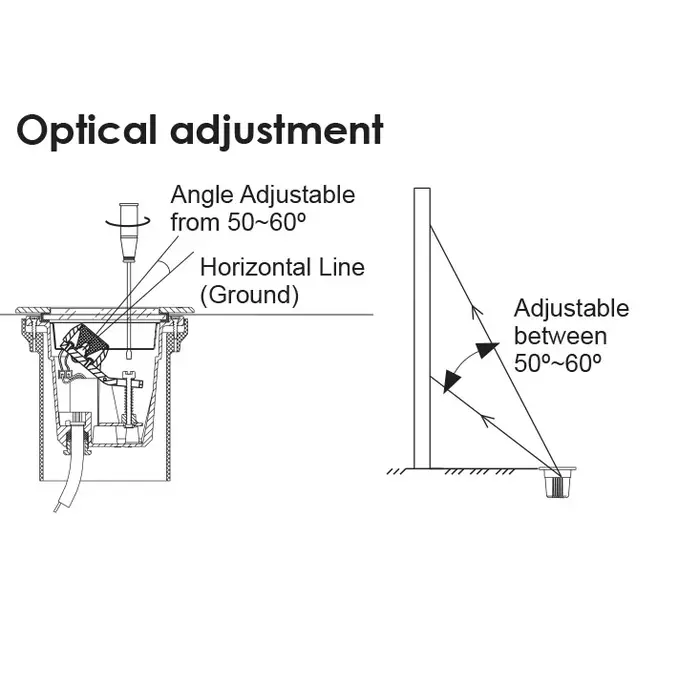

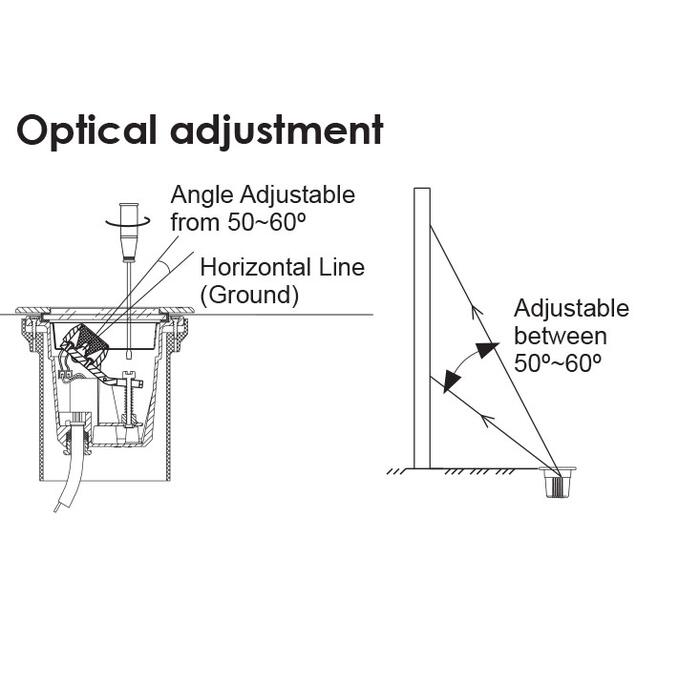

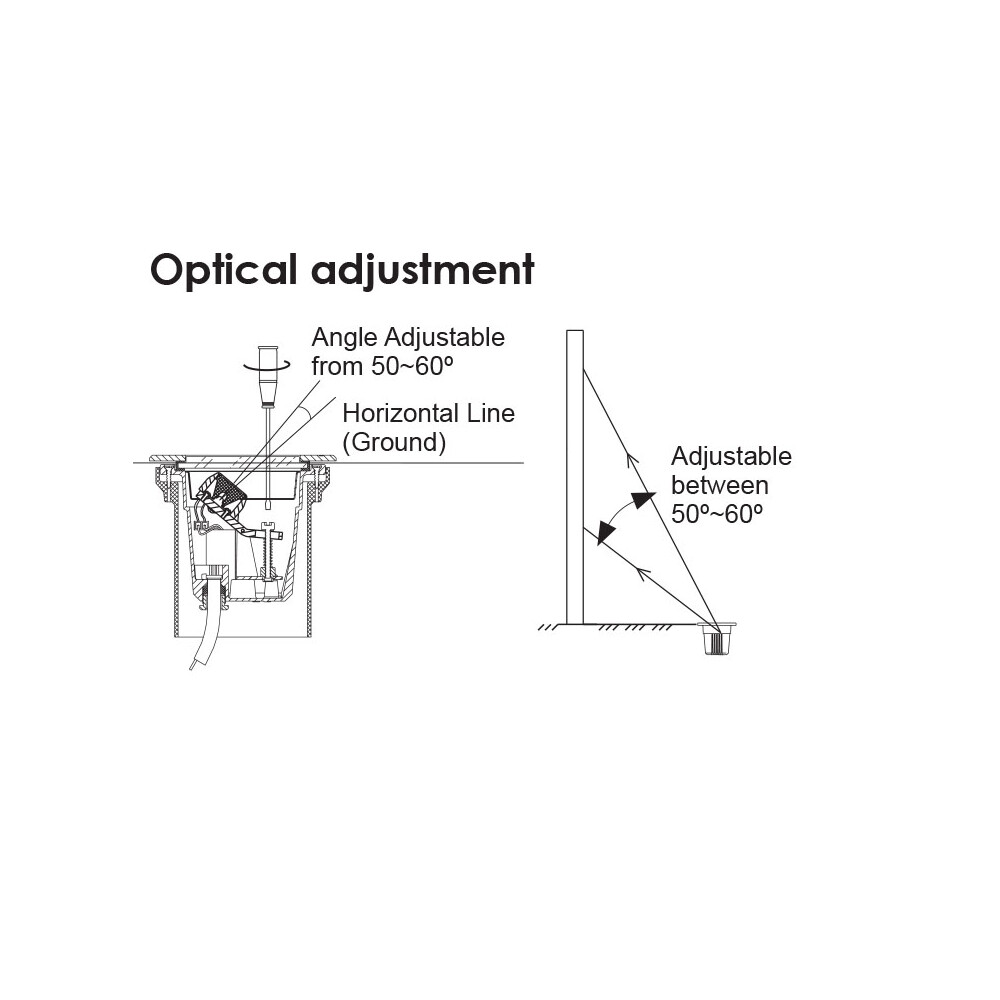

  • Beam angle 30º , optical adjustment between 50º~60º

  • PC installation canister included, pre-wqired 600 mm 2 core rubber flex

  • Suitable LED drivers, PLUTO 15DV, PLUTO 40DV, PLUTO 60DV, PLUTO 100/24V, IK08, IP67 performance

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • DAYLIGHT6000K

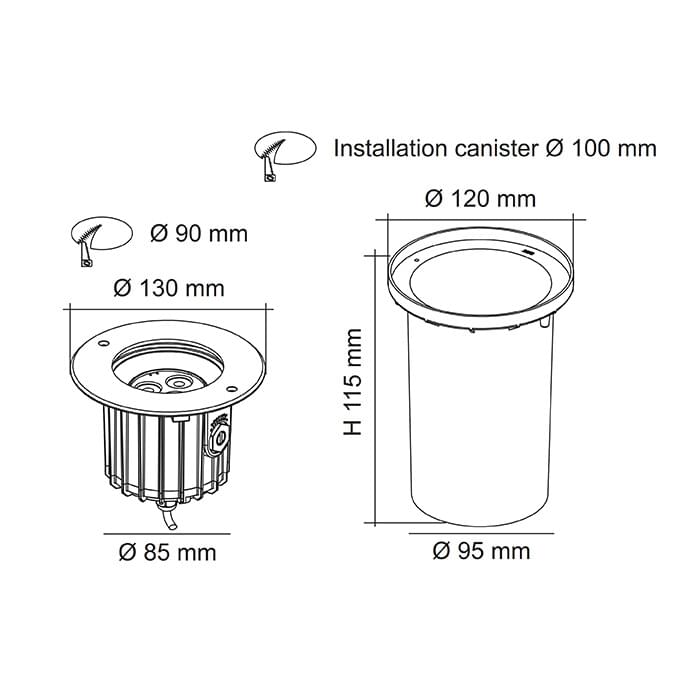

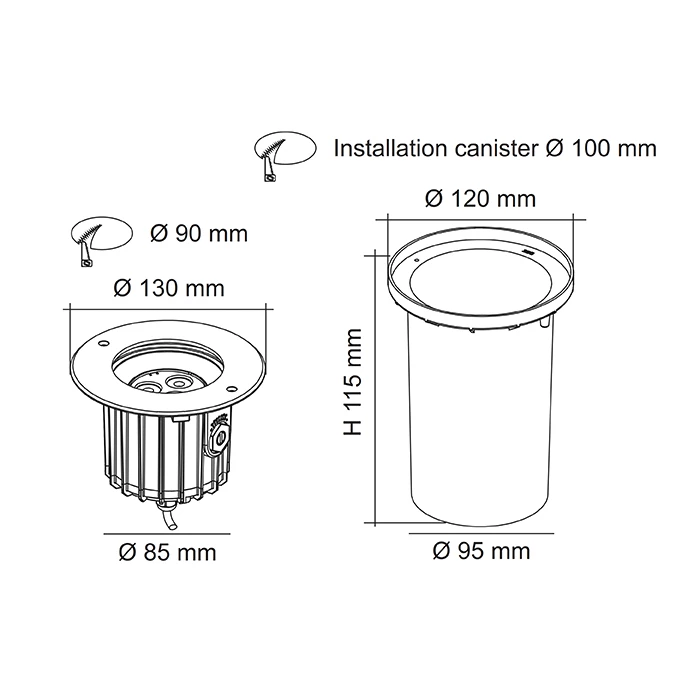

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Beam Angle Diameter Dim Body Colour
      		Model No. S9338/3W/30WW Add to Enquiry Add Remove Remove Input Voltage 24 Power 3 Lumens 150 CCT 3000 CRI 70 Beam Angle 30 Diameter 130 Dim 115(H) Body Colour STAINLESS STEEL
      		Model No. S9338/3W/30DL Add to Enquiry Add Remove Remove Input Voltage 24 Power 3 Lumens 200 CCT 6000 CRI 70 Beam Angle 30 Diameter 130 Dim 115(H) Body Colour STAINLESS STEEL
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
