• ARCHITECTURAL

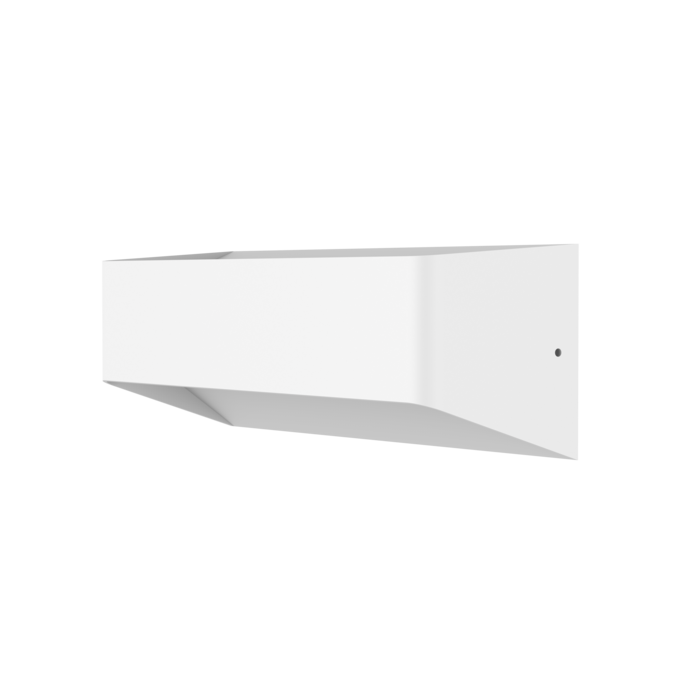

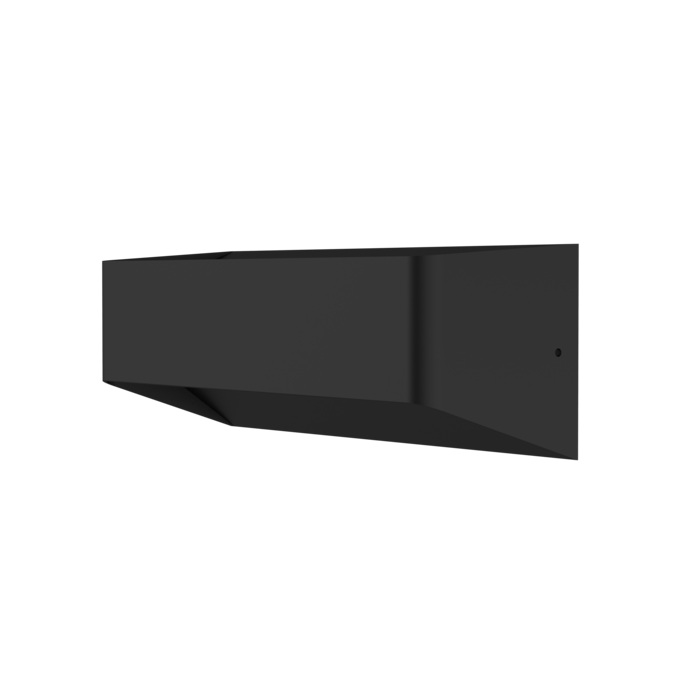

LOUNGE III S9327 - 18W

18 watt decorative IP54 architectural LED wall mount luminaire

Application

Ideal for any residential and commercial interior or exterior space

Design Specifications

  • Durable aluminium body profile

  • Quality white or black powder coat finish

  • High efficiency LED optics

  • Indirect illumination (up and down) optical performance

  • Integral constant current non-dimmable driver

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K

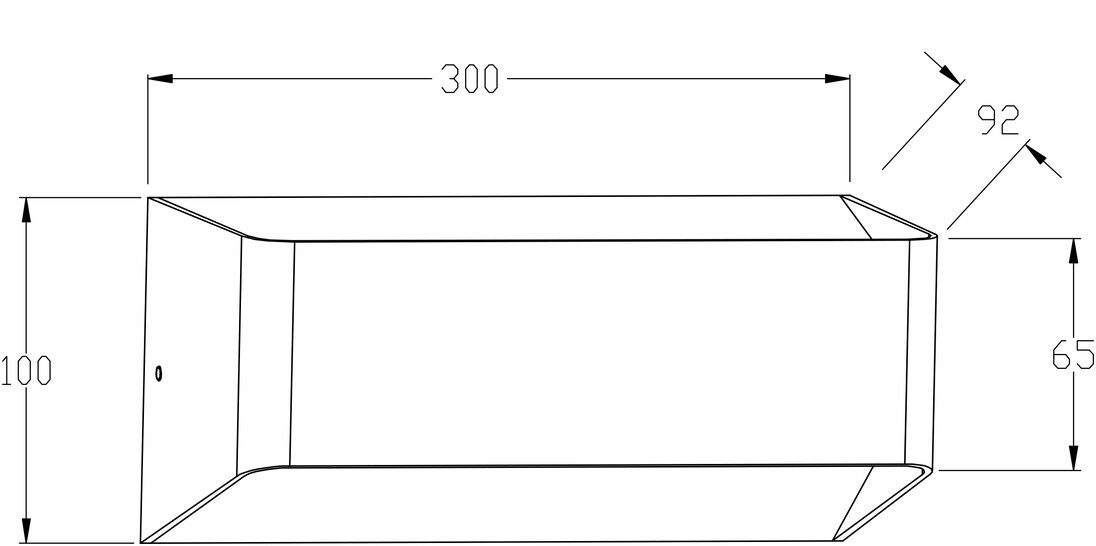

  • Dimensions - Wiring Diagrams
  • Design Options

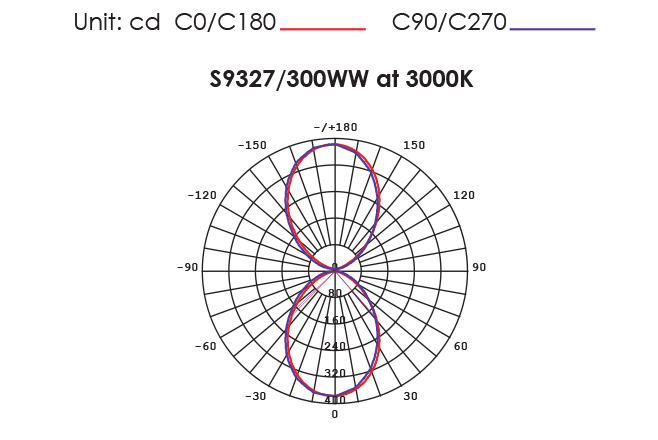

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9327/300WW/WH Input Voltage240 Power18 Lumens720 CCT3000 CRI80 Dim300(L) x 100(W) x 92(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9327/300WW/BK Input Voltage240 Power18 Lumens720 CCT3000 CRI80 Dim300(L) x 100(W) x 92(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.S9327/300NDL/WH Input Voltage240 Power18 Lumens900 CCT5000 CRI80 Dim300(L) x 100(W) x 92(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9327/300NDL/BK Input Voltage240 Power18 Lumens900 CCT5000 CRI80 Dim300(L) x 100(W) x 92(H) Body ColourBLACK Add to Enquiry Add Remove Remove

    Optional use off-set mounting legs provided in all packs for installation on uneven wall surfaces
