• ARCHITECTURAL

MAXI PLAIN SE7139 - 7W

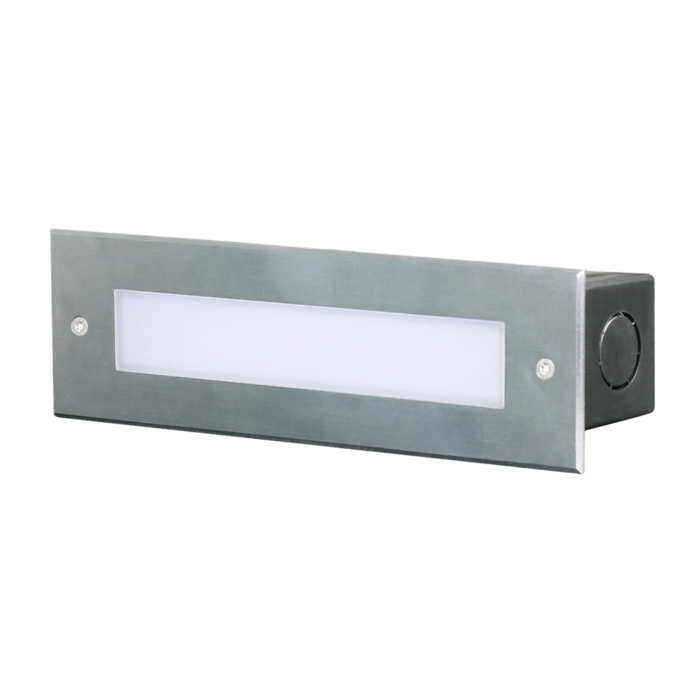

Recessed IP65 LED wall luminaire

Application

A decorative commercial exterior or interior solution

Design Specifications

  • Die-cast aluminium body and stainless steel face cover

  • Opal polycarbonate diffuser

  • High efficiency LED optics with integral non-dimmable LED driver

  • IP65 PVC cable gland

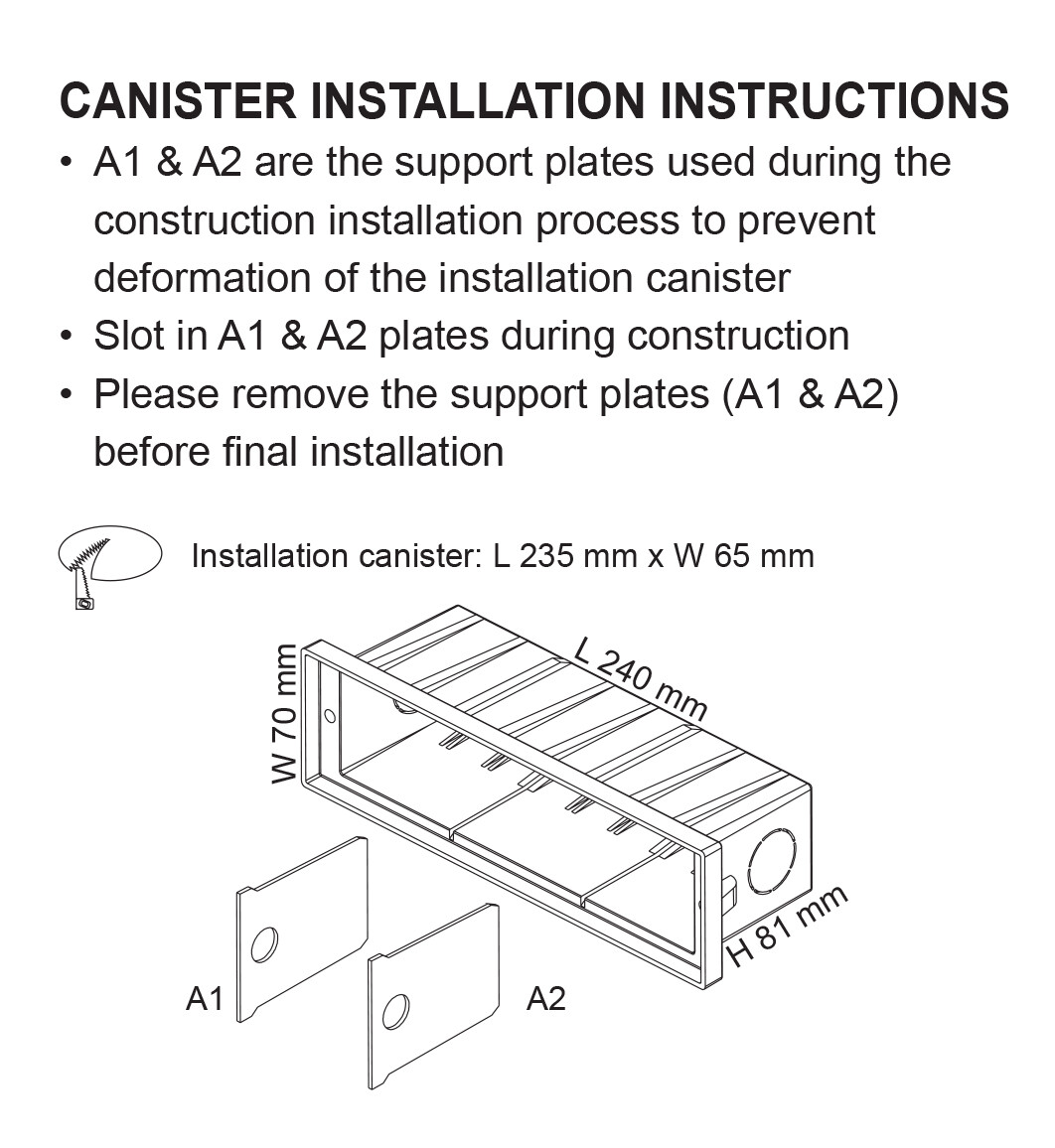

  • ABS installation canister included

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K

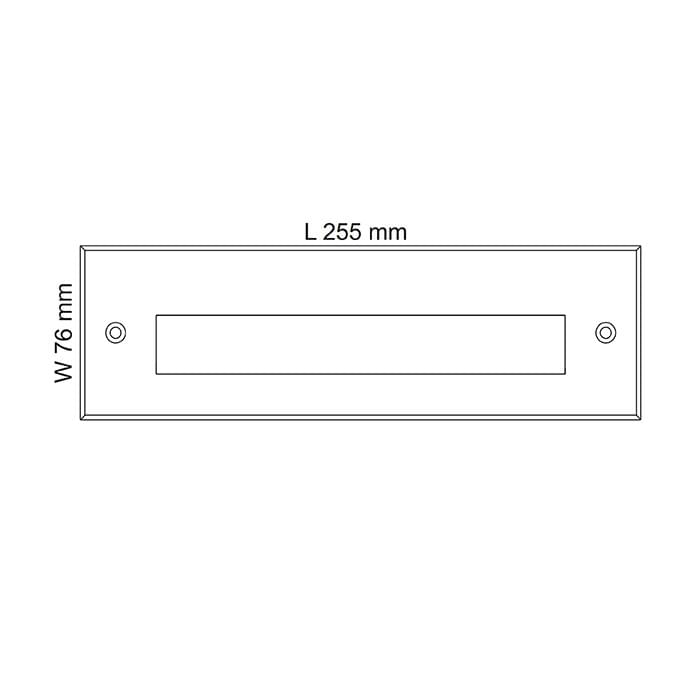

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Mass Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SE7139WW Input Voltage240 Power7 Lumens140 CCT3000 CRI80 Mass1.34 Dim255(L) x 76(W) Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
    Model No.SE7139CW Input Voltage240 Power7 Lumens140 CCT4000 CRI80 Mass1.34 Dim255(L) x 76(W) Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
