• ARCHITECTURAL

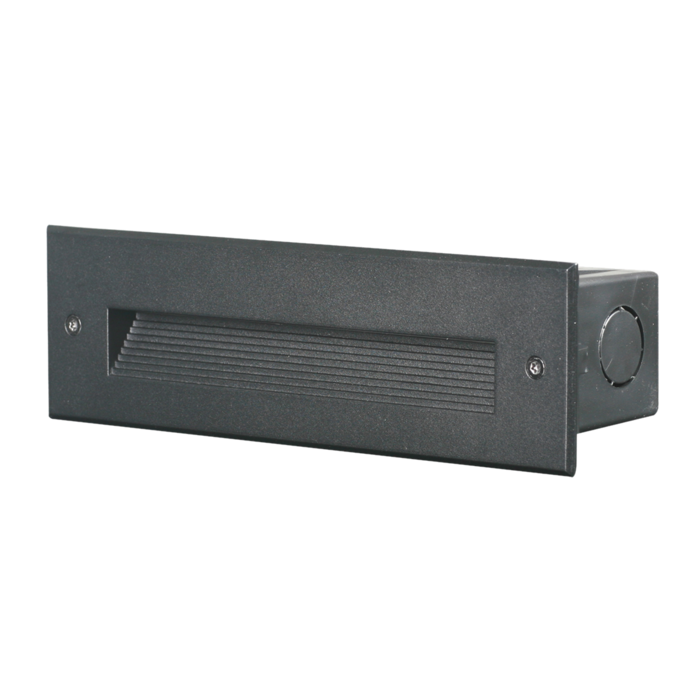

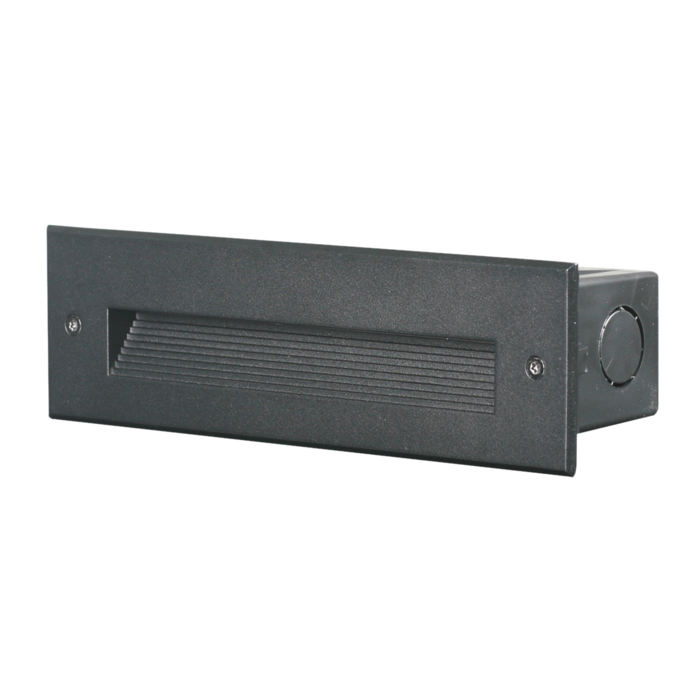

MAXI SLOT SE7136 - 7W

Recessed IP65 LED wall luminaire

Application

A decorative commercial exterior or interior solution

Design Specifications

  • Die-cast aluminium body and powder coated face cover (black RAL9005).

  • Opal polycarbonate diffuser

  • High efficiency LED optics with integral non-dimmable LED driver

  • IP68 PVC cable gland

  • ABS installation canister included

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Mass Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

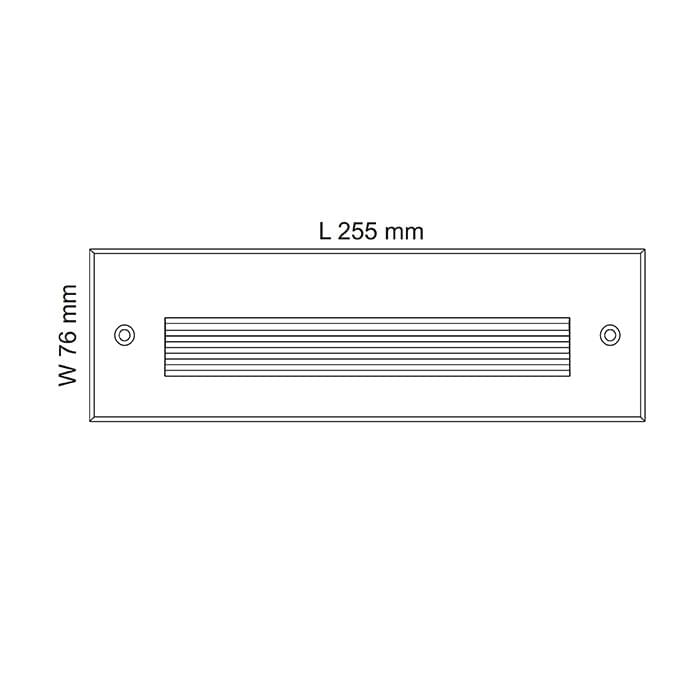

    Model No.SE7136WW/BK Input Voltage240 Power7 Lumens60 CCT3000 CRI80 Mass0.97 Dim255(L) x 76(W) x 81(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SE7136CW/BK Input Voltage240 Power7 Lumens60 CCT4000 CRI80 Mass1.23 Dim255(L) x 76(W) x 81(H) Body ColourBLACK Add to Enquiry Add Remove Remove
