MINI SPIKE SL7266 - 6W

IP65 LED residential mini spike landscape luminaire

Application

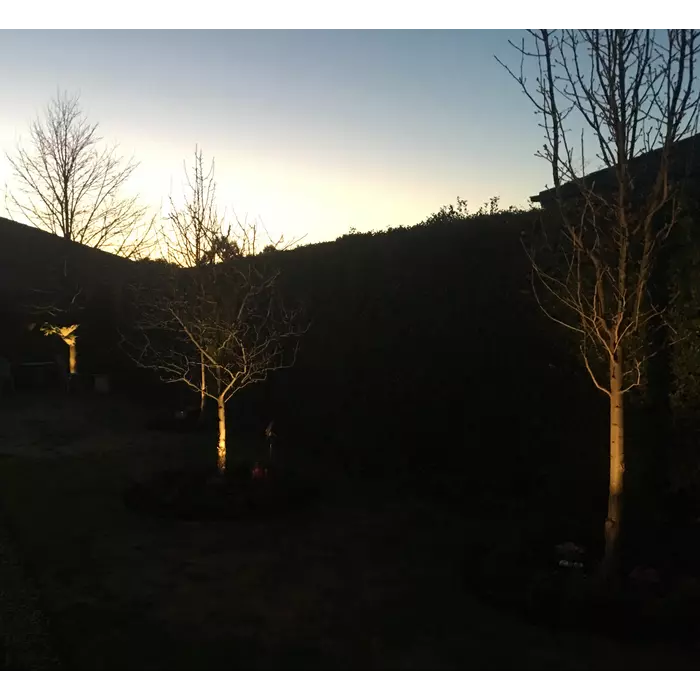

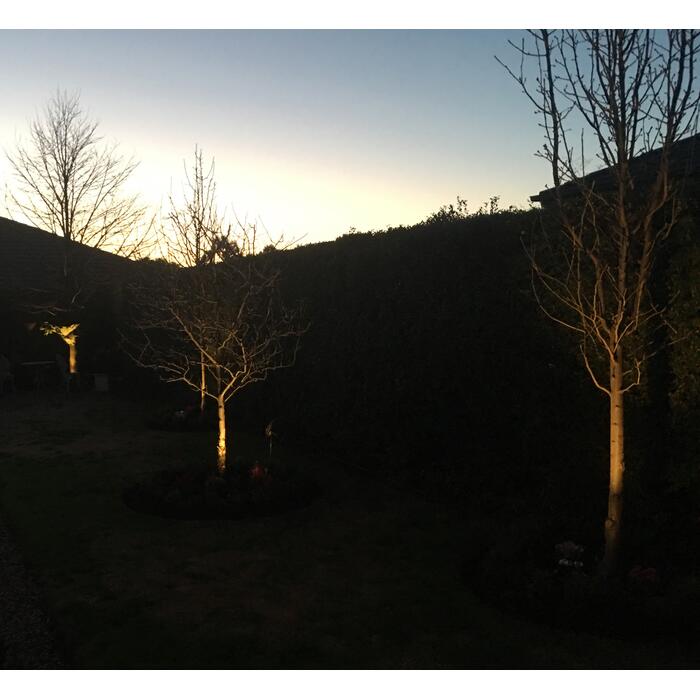

Decorative accent solution for residential garden spaces

Design Specifications

  • Die-cast aluminium body and powder coated black aluminium body profile

  • 12V AC or DC driver required.

  • High efficiency LED optics

  • Supplied with 1.5 m 2 core rubber flex

  • IP65 protection

  • Adjustable trunnion optical system

Performance

  • Dimmable - NO
  • WARM WHITE3000K

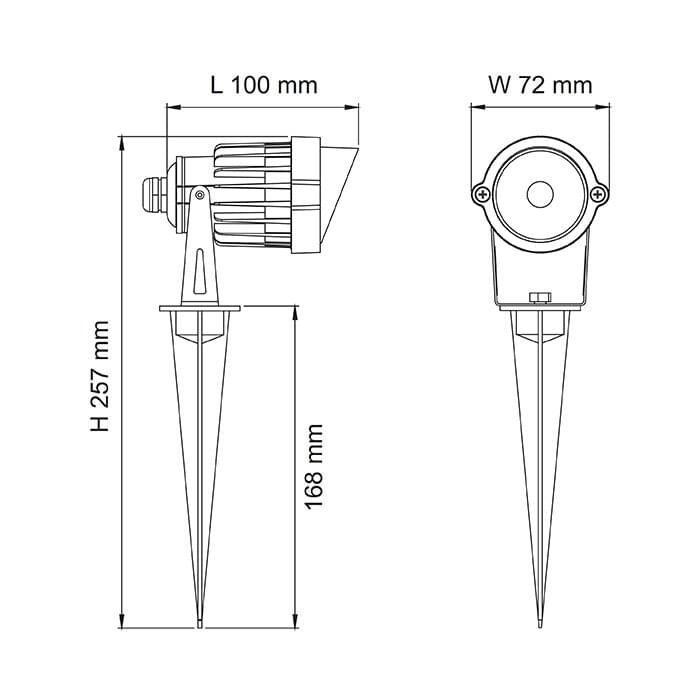

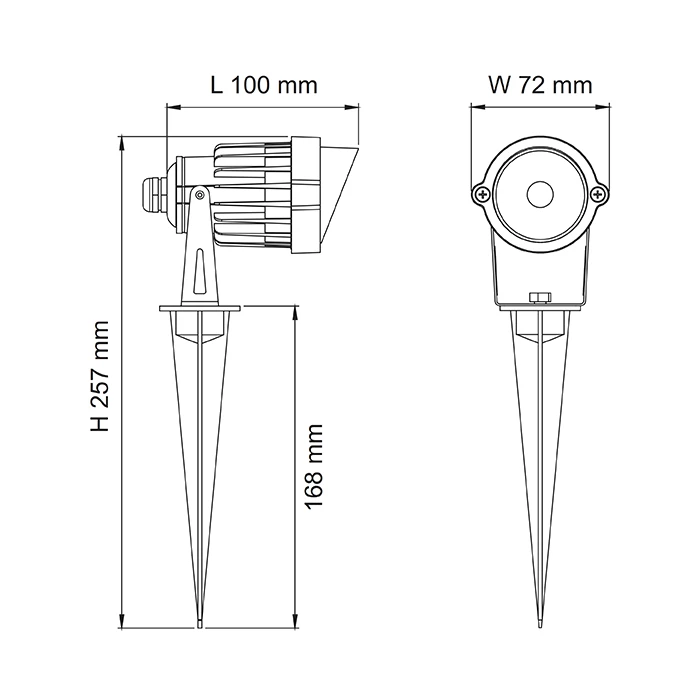

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL7266WW/BK Input Voltage12 Input Voltage12 Power6 Lumens400 CCT3000 CRI80 Beam Angle30 Diameter72 Dim72(W) x 257(H) Body ColourBLACK Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
