24 SERIES - IP65 GU10 architectural wall luminaires, with 2 x 4 watt GU10 selectable CCT lamps included


A decorative residential exterior or interior solution

Design Specifications

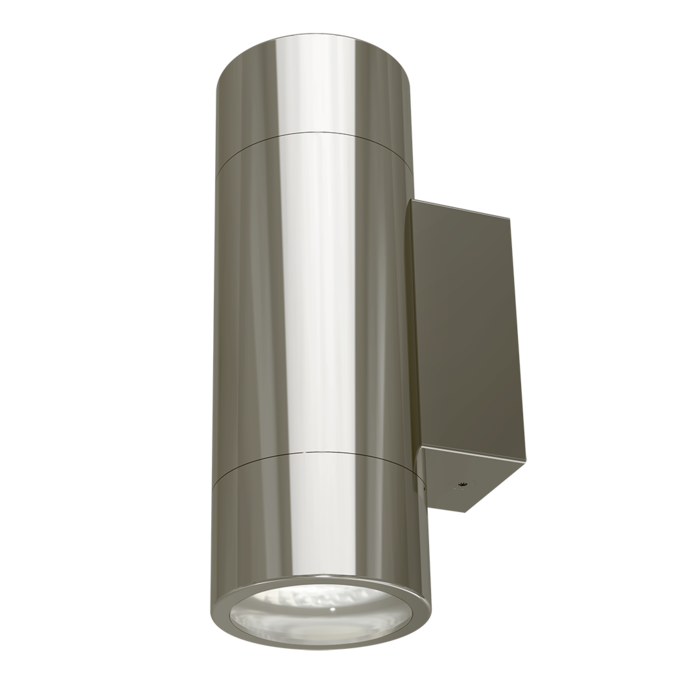

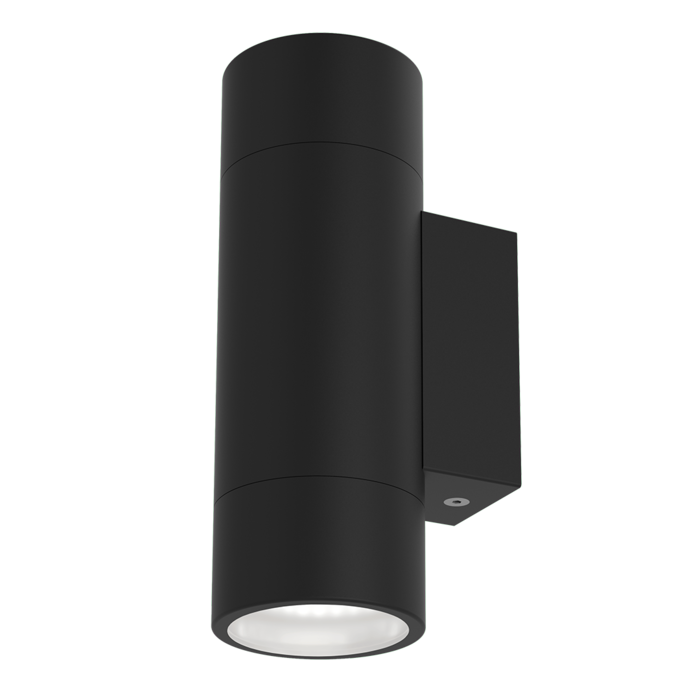

  • Aluminium body profile, powder coat black or (AST) stainless finish

  • Clear tempered glass cover
  • GU10 lamp base, selectable CCT lamps included

  • SAL lamp options GU10L550TC, GU10LR750, GU10LA750

  • Up and down light distribution

  • Beam distribution 50°


  • Dimmable - NO

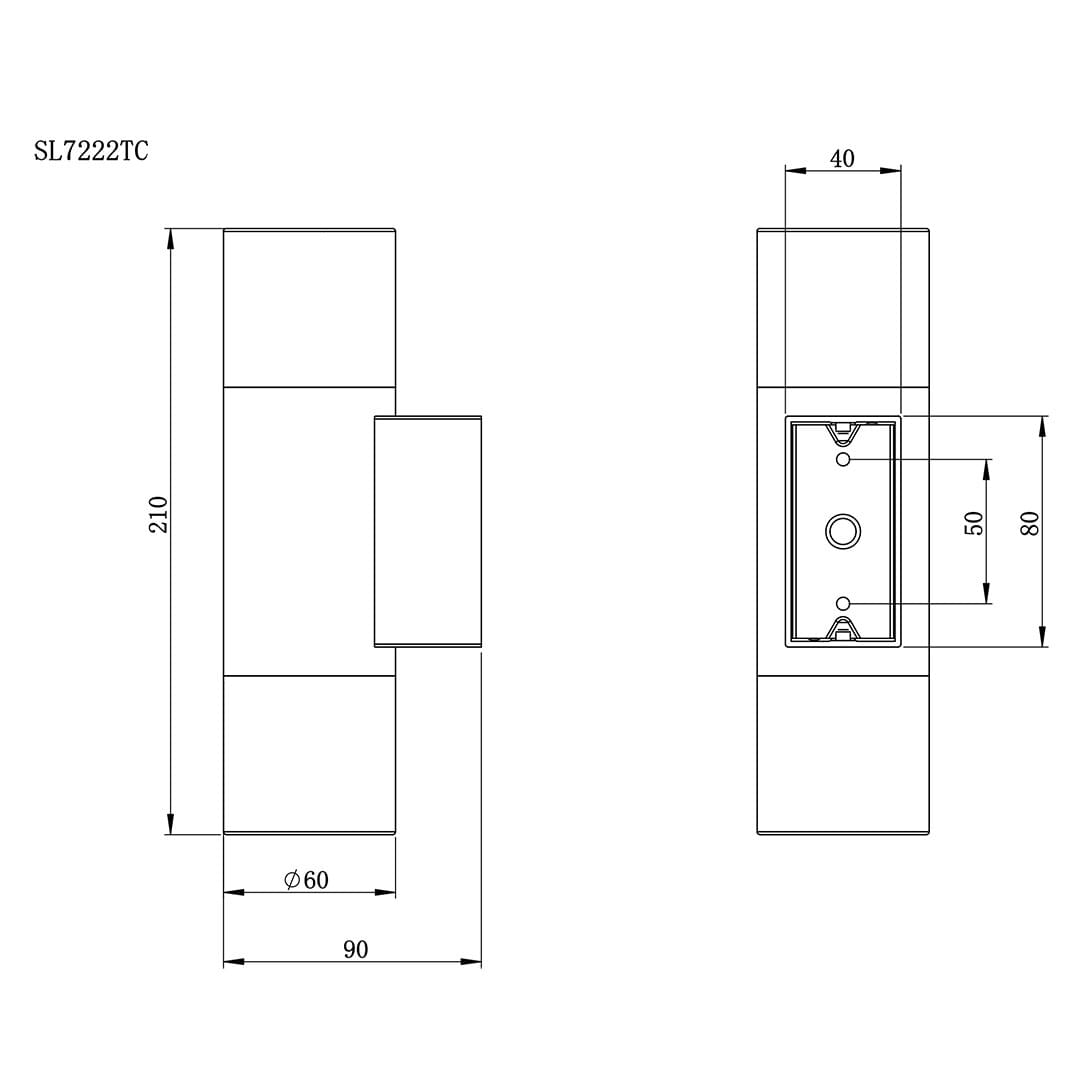

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.

  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL7222TC/AST Input Voltage240 Power8 Lumens360/400/380 CCT3000/4000/6000 Beam Angle50 Diameter60 Dim210(H) x 90(D) Body ColourALUMINIUM STAINLESS Add to Enquiry Add Remove Remove
    Model No.SL7222TC/BK Input Voltage240 Power8 Lumens360/400/380 CCT3000/4000/6000 Beam Angle50 Diameter60 Dim210(H) x 90(D) Body ColourBLACK Add to Enquiry Add Remove Remove

    Note: Optical performance (lumens lm) shown are PER LAMP


(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
