• ARCHITECTURAL

NEW BONDI II SL7223TC - 5W

IP65 LED architectural wall luminaires

Application

A decorative residential exterior or interior solution

Design Specifications

  • Aluminium body profile, powder coat black
    or (AST) stainless finish

  • Clear tempered glass cover
  • Polycarbonate optical lens

  • High efficiency LED optics

  • Integral non-dimmable LED driver

  • Downward light distribution 36°

Performance

  • Dimmable - NO
COMING SOON
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

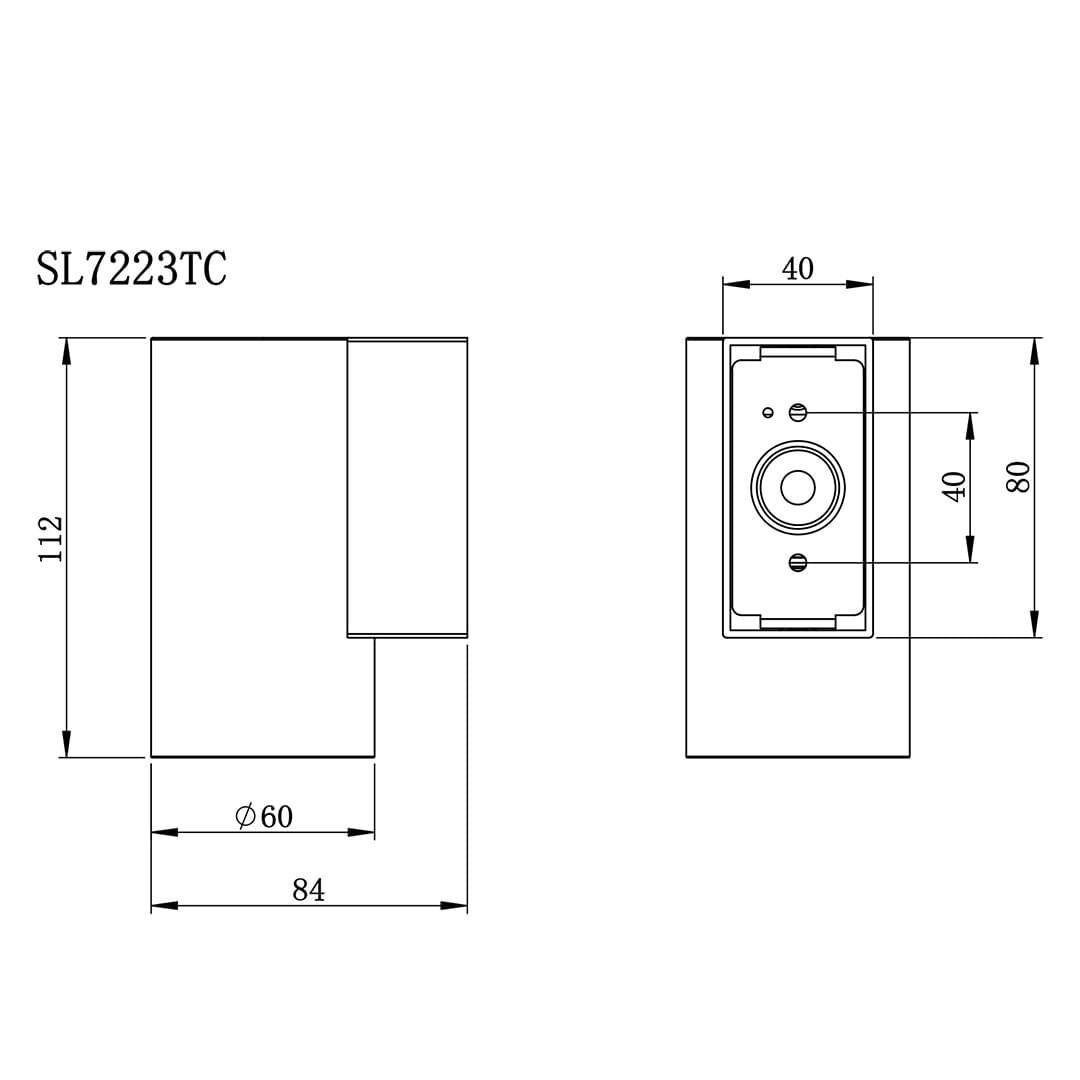

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL7223TC/BK Input Voltage240 Power5 Lumens370/410/390 CCT3000/4000/6000 CRI80 Beam Angle36 Diameter60 Dim112(H) x 84(D) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SL7223TC/AST Input Voltage240 Power5 Lumens370/410/390 CCT3000/4000/6000 CRI80 Beam Angle36 Diameter60 Dim112(H) x 84(D) Body ColourALUMINIUM STAINLESS Add to Enquiry Add Remove Remove
