• ARCHITECTURAL

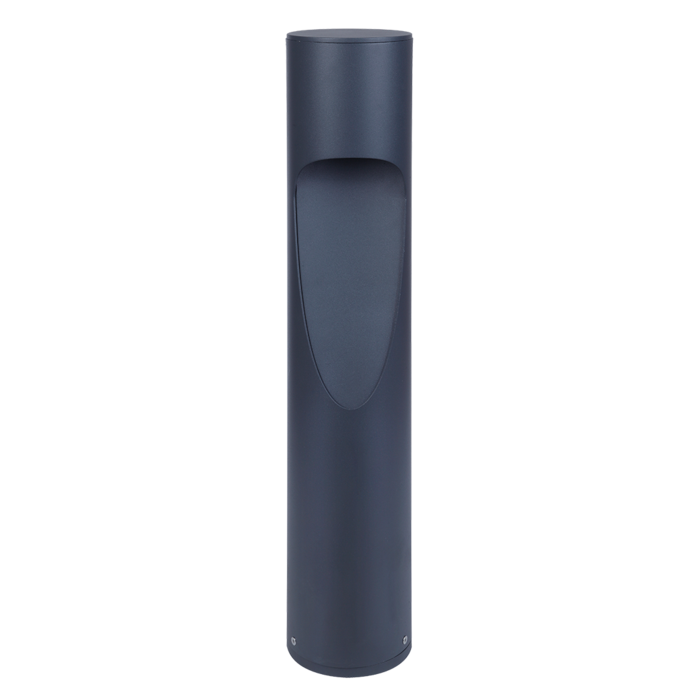

NEWLAND SL7015LTC - 10W

LED architectural post luminaire, with selectable CCT

Application

Ideal for residential or apartment exterior pathways

Design Specifications

  • Die-cast aluminium body, flat profile design,
    base plate mounting, rag bolts included

  • Durable BLACK powder coated finish

  • Clear polycarbonate lens, pathway optical distribution 70°

  • Integral LED control gear 10 watt

  • IP65, IK08 performance

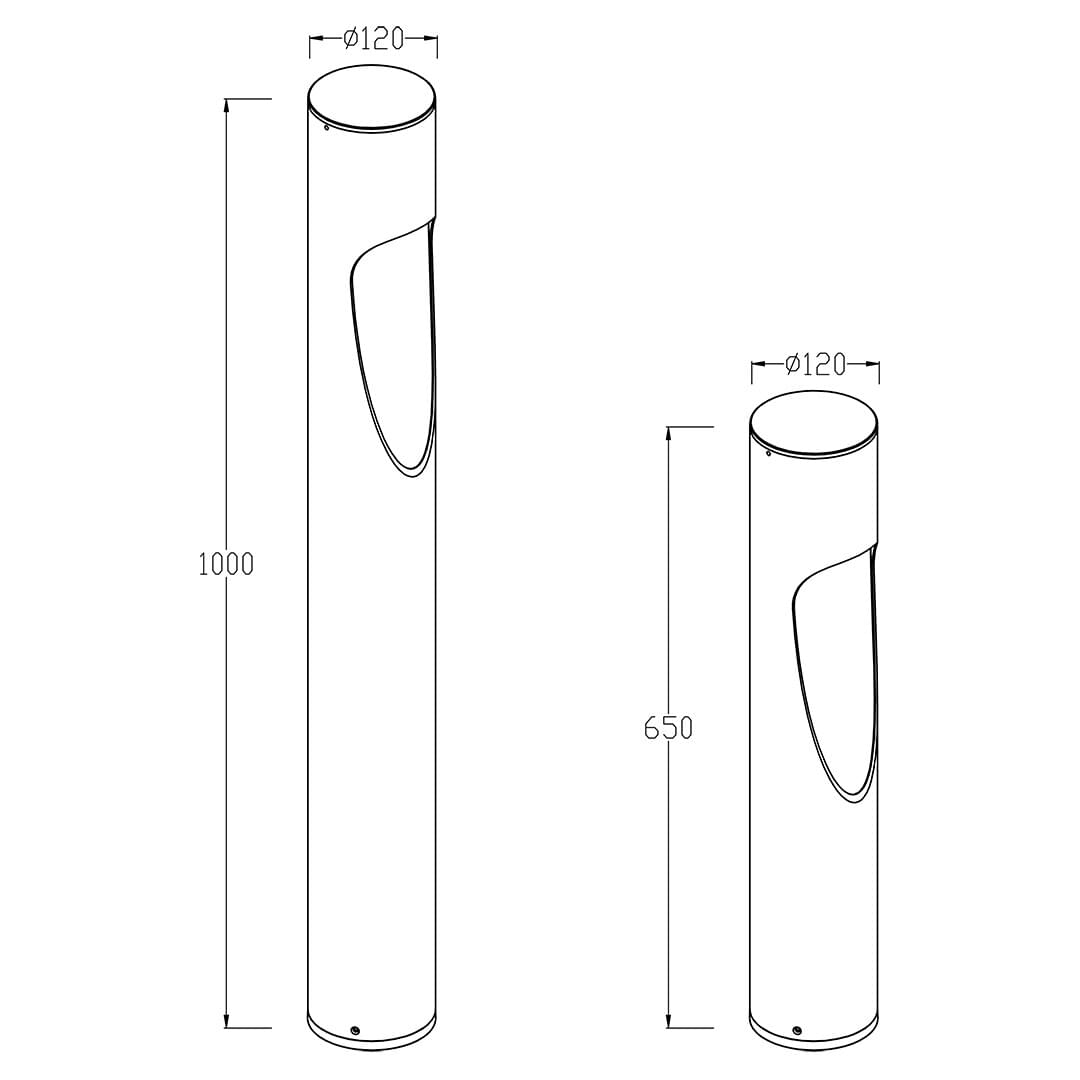

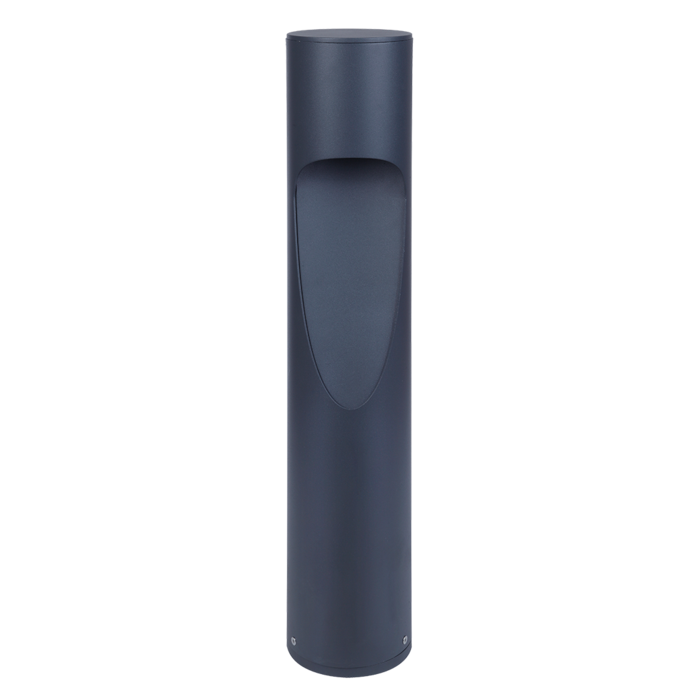

  • SL7015L65TC/BK - 120mm Ø, 650mm height

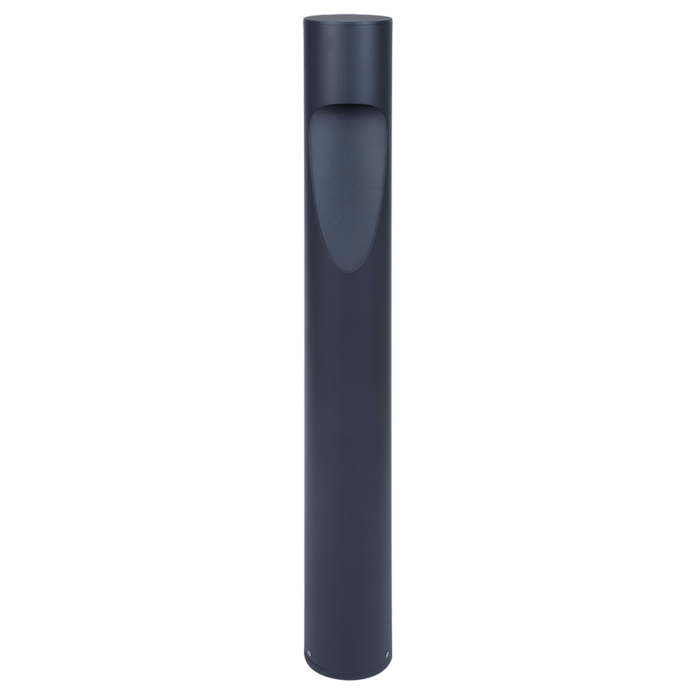

    SL7015100TC/BK - 120mm Ø, 1000mm height

Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL7015L65TC/BK Input Voltage240 Power10 Lumens300/340/375 CCT3000/4000/5000 Beam Angle70 Diameter120 Dim650(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SL7015L100TC/BK Input Voltage240 Power10 Lumens300/340/375 CCT3000/4000/5000 Beam Angle70 Diameter120 Dim1000(H) Body ColourBLACK Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
