• ARCHITECTURAL

PILLAR SE7188 - 20/62W

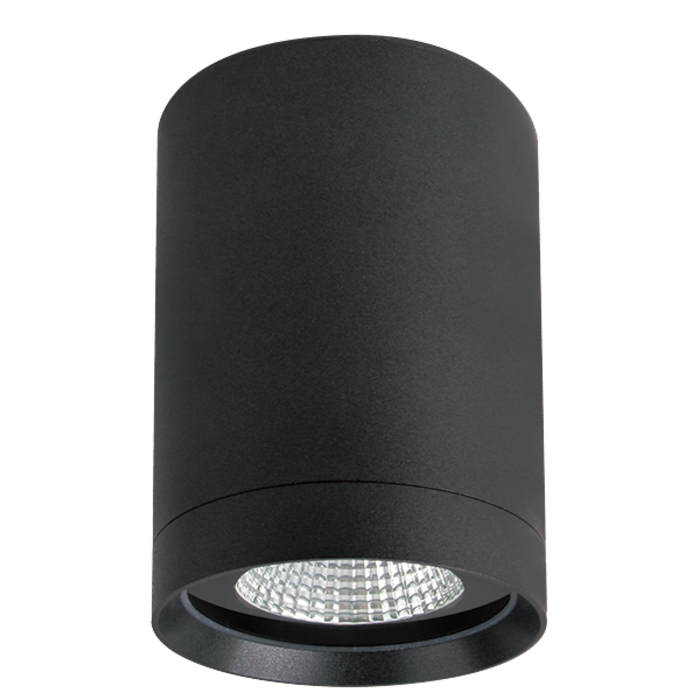

IP65 LED architectural circular profile surface mount downlight

Application

A decorative residential exterior or interior solution

Design Specifications

  • Surface mounted downlight with concealed screw fixings, standard colour black

  • Clear tempered glass cover

  • High efficiency LED optics, standard CCT 4000K, optional 3000K and 5000K

  • Changeable high performance multi-reflector system, standard beam distribution 30 degree.

  • Integral constant current non-dimmable LED driver, 20, 28, 34, 38 and 62 watt models

  • Optional beam distribution SE7188/80 - 10°, 20°, 40°, 50°, SE7188/110 - 10°, 20°, 40°, 70°, SE7188/150 - 12°, 20°, 40°, 70°

Performance

  • Dimmable - NO
  • COOL WHITE4000K

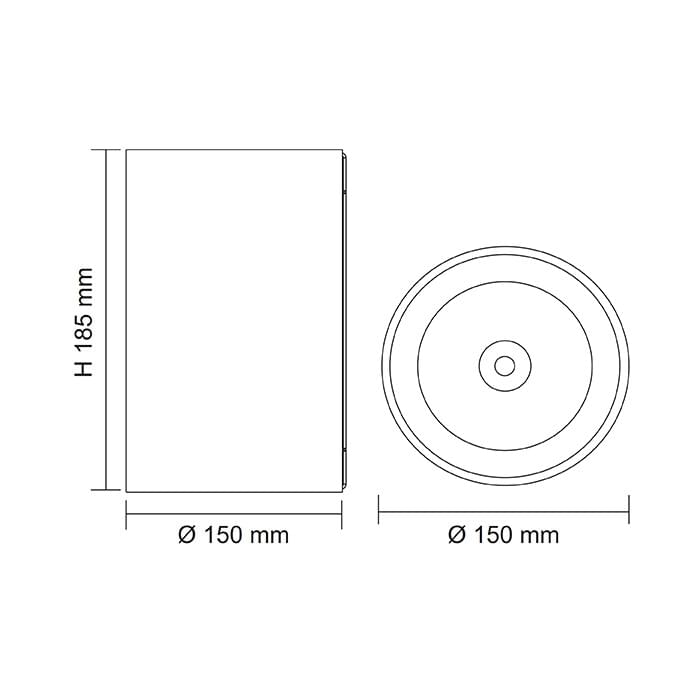

  • Dimensions - Wiring Diagrams
  • Design Options

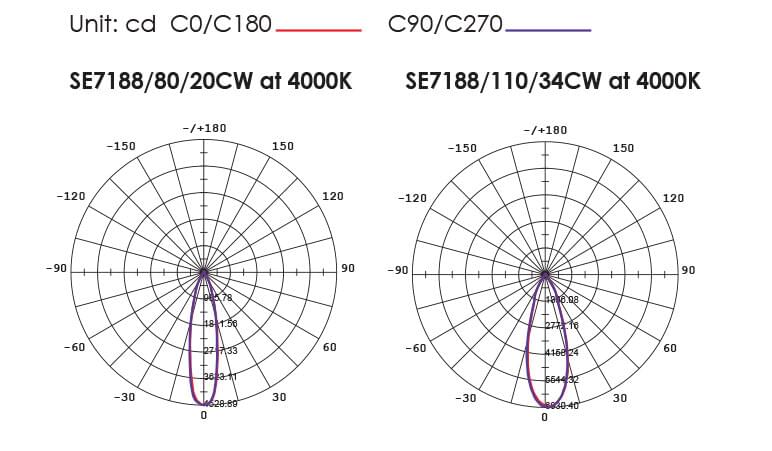

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SE7188/80/20CW Input Voltage240 Power20 Lumens2000 CCT4000 CRI80 Beam Angle30 Mass0.62 Diameter80 Dim80(W) x 136(H) Body ColourBlack Add to Enquiry Add Remove Remove
    Model No.SE7188/110/25CW Input Voltage240 Power20 Lumens2500 CCT4000 CRI80 Beam Angle30 Mass1.16 Diameter110 Dim110(W) x 160(H) Body ColourBlack Add to Enquiry Add Remove Remove
    Model No.SE7188/110/34CW Input Voltage240 Power28 Lumens3400 CCT4000 CRI80 Beam Angle30 Mass1.16 Diameter110 Dim110(W) x 160(H) Body ColourBlack Add to Enquiry Add Remove Remove
    Model No.SE7188/150/42CW Input Voltage240 Power34 Lumens4200 CCT4000 CRI80 Beam Angle30 Mass1.99 Diameter150 Dim150(W) x 185(H) Body ColourBlack Add to Enquiry Add Remove Remove
    Model No.SE7188/150/49CW Input Voltage240 Power38 Lumens4900 CCT4000 CRI80 Beam Angle30 Mass1.99 Diameter150 Dim150(W) x 185(H) Body ColourBlack Add to Enquiry Add Remove Remove
    Model No.SE7188/150/62CW Input Voltage240 Power62 Lumens6200 CCT4000 CRI80 Beam Angle30 Mass2.12 Diameter150 Dim150(W) x 185(H) Body ColourBlack Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
