• LED ARCHITECTURAL

QUARTER SE7146 - 16W

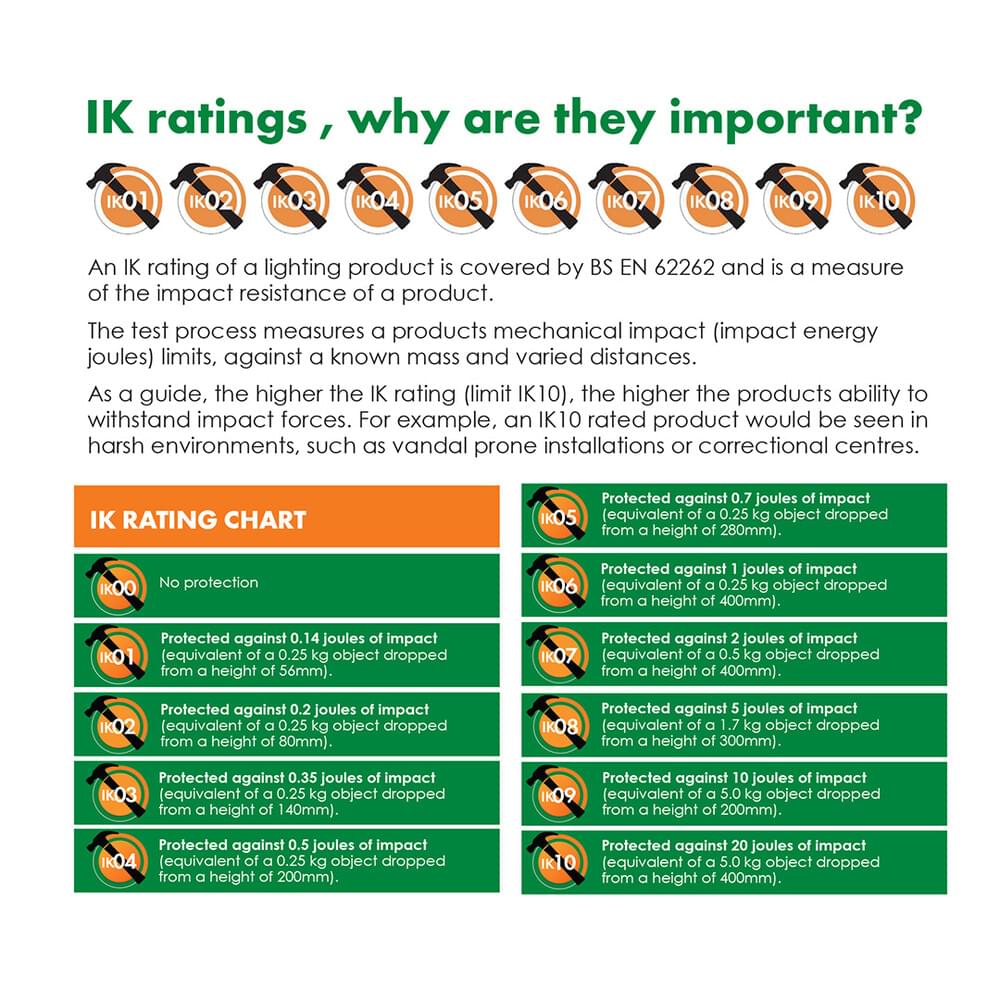

IP65 LED architectural wall luminaire IK07

Application

A decorative residential exterior or interior solution

Design Specifications

  • Die-cast aluminium body and powder coated body profile
  • Clear tempered glass cover

  • High efficiency LED optics

  • High performance multifaceted reflector system

  • Integral constant current non-dimmable LED driver

  • Installation orientation, face down only

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K

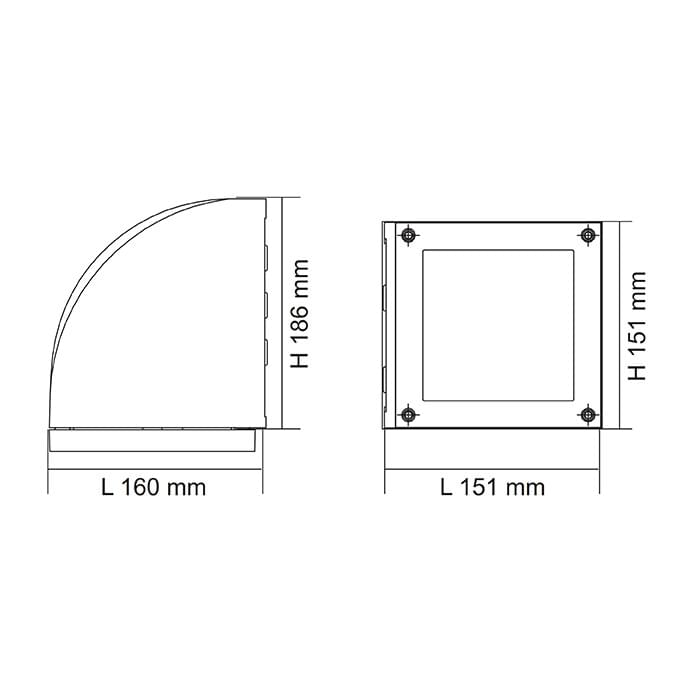

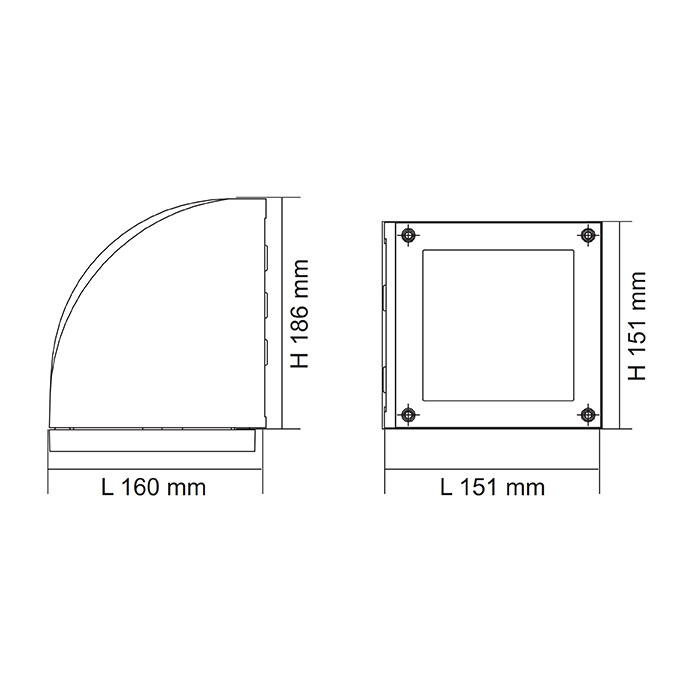

  • Dimensions - Wiring Diagrams
  • Design Options

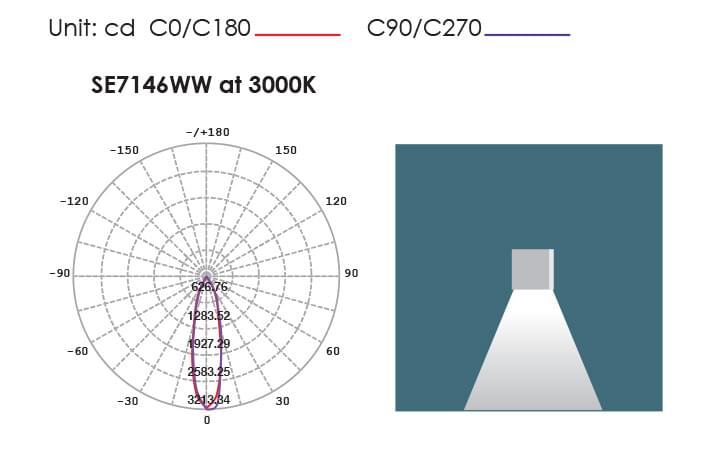

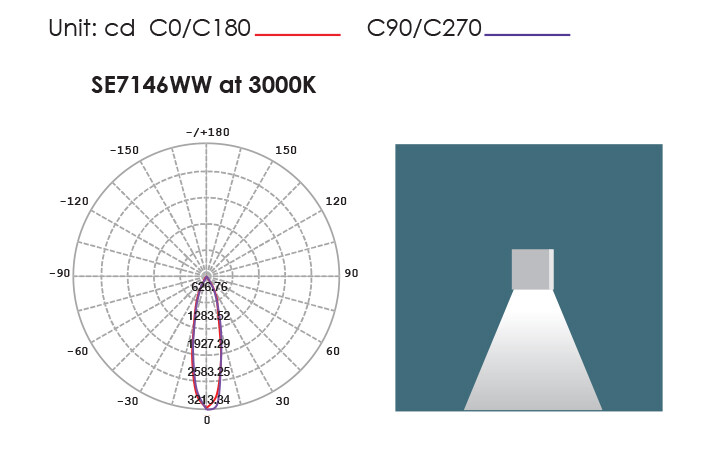

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Mass Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SE7146WW/BK Input Voltage240 Power16 Lumens1150 CCT3000 CRI80 Beam Angle25 Mass2.93 Dim160(L) x 151(W) x 186(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SE7146WW/CB Input Voltage240 Power16 Lumens1150 CCT3000 CRI80 Beam Angle25 Mass2.93 Dim160(L) x 151(W) x 186(H) Body ColourCHARCOAL BLACK Add to Enquiry Add Remove Remove
    Model No.SE7146CW/BK Input Voltage240 Power16 Lumens1200 CCT4000 CRI80 Beam Angle25 Mass2.93 Dim160(L) x 151(W) x 186(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SE7146CW/CB Input Voltage240 Power16 Lumens1200 CCT4000 CRI80 Beam Angle25 Mass2.93 Dim160(L) x 151(W) x 186(H) Body ColourCHARCOAL BLACK Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
