• ARCHITECTURAL

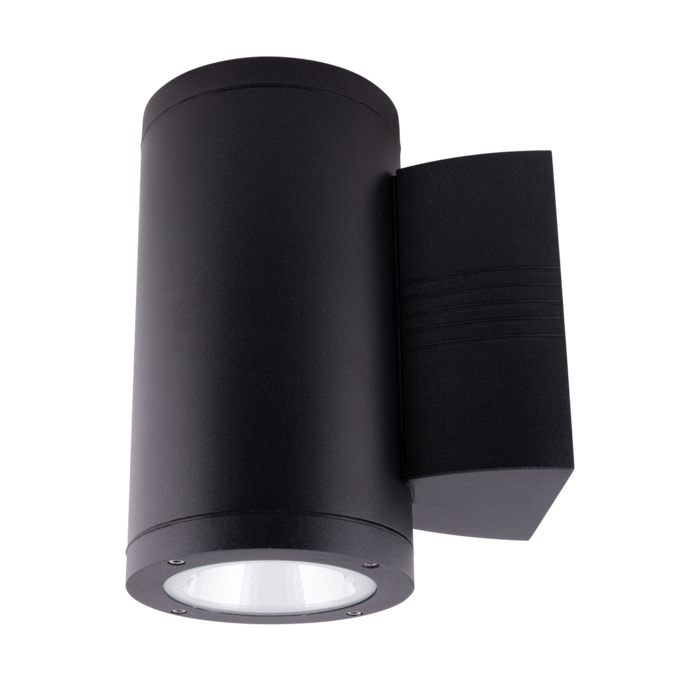

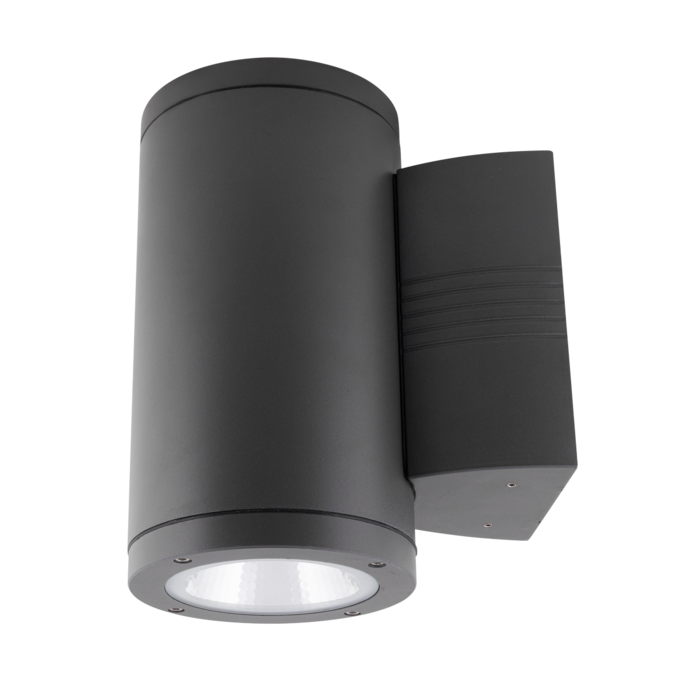

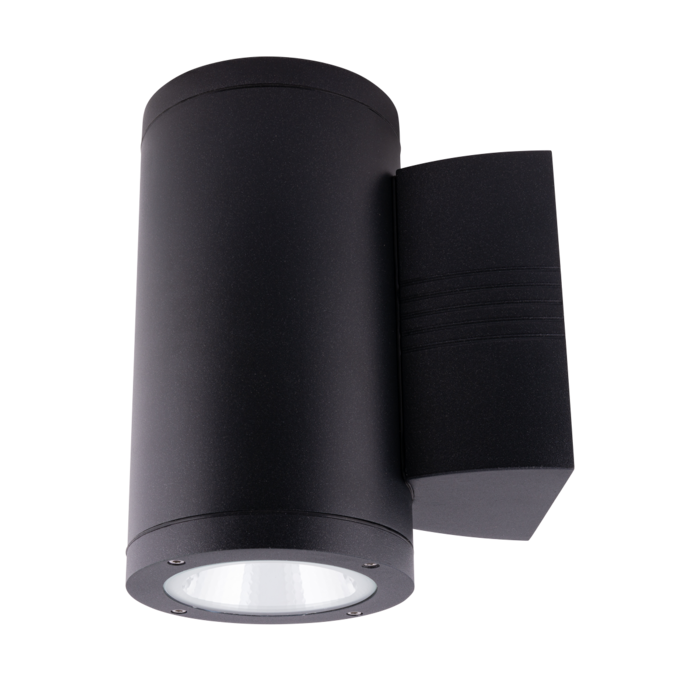

STEIN SE7148 - 32W

IP65 LED architectural wall luminaire - up and down

Application

A decorative residential / commercial exterior or interior solution

Design Specifications

  • Die-cast aluminium body and powder coated body profile
  • Clear tempered glass cover
  • High efficiency LED optics

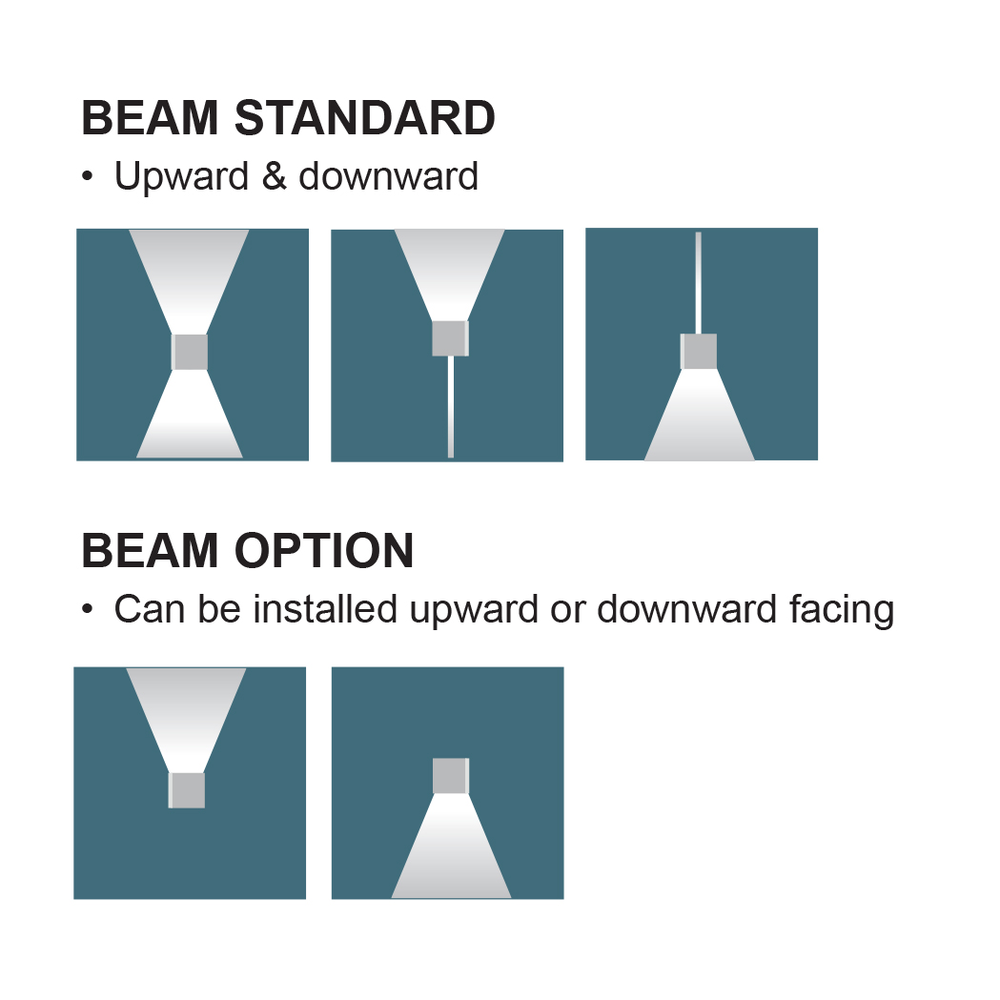

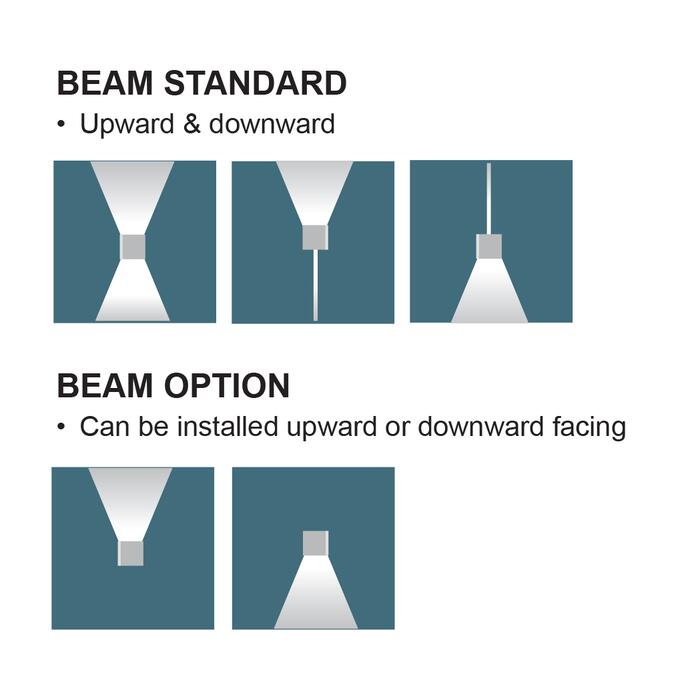

  • High performance multifaceted reflector system, standard beam distribution 17° UP/DOWN

  • Narrow beam (NB) distribution option (UP)  8° / (DOWN) 17° available

  • Integral non-dimmable LED driver

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K

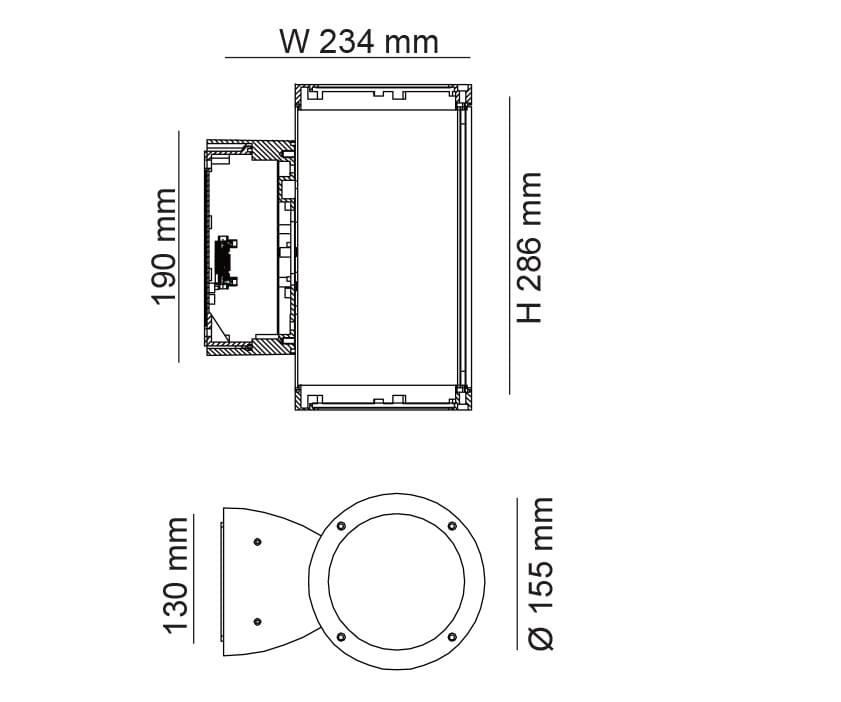

  • Dimensions - Wiring Diagrams
  • Design Options

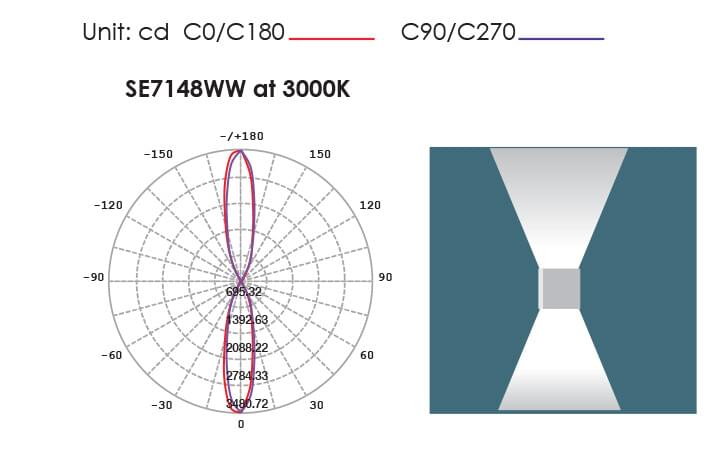

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Mass Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SE7148WW/BK Input Voltage240 Power32 Lumens1275/1275 CCT3000 CRI80 Beam Angle17 Mass5.1 Dim234(W) x 286(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SE7148WW/CB Input Voltage240 Power32 Lumens1275/1275 CCT3000 CRI80 Beam Angle17 Mass5.1 Dim234(W) x 286(H) Body ColourCHARCOAL BLACK Add to Enquiry Add Remove Remove
    Model No.SE7148CW/BK Input Voltage240 Power32 Lumens1315/1315 CCT4000 CRI80 Beam Angle17 Mass5.1 Dim234(W) x 286(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SE7148CW/CB Input Voltage240 Power32 Lumens1315/1315 CCT4000 CRI80 Beam Angle17 Mass5.1 Dim234(W) x 286(H) Body ColourCHARCOAL BLACK Add to Enquiry Add Remove Remove
    Model No.SE7148NB/WW/BK Input Voltage240 Power32 Lumens1275/630 CCT3000 CRI80 Beam Angle8.17 Mass Dim234(W) x 286(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SE7148NB/WW/CB Input Voltage240 Power32 Lumens1275/630 CCT3000 CRI80 Beam Angle8.17 Mass Dim234(W) x 286(H) Body ColourCHARCOAL BLACK Add to Enquiry Add Remove Remove
    Model No.SE7148NB/CW/BK Input Voltage240 Power32 Lumens1315/650 CCT4000 CRI80 Beam Angle8.17 Mass Dim234(W) x 286(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SE7148NB/CW/CB Input Voltage240 Power32 Lumens1315/650 CCT4000 CRI80 Beam Angle8.17 Mass Dim234(W) x 286(H) Body ColourCHARCOAL BLACK Add to Enquiry Add Remove Remove

    NOTE: Lumens (lm) displayed are per optical head, NB models beam distribution (DOWN 17° / UP 8°)
